EN 622-1:2003
(Main)Fibreboards - Specifications - Part 1: General requirements
Fibreboards - Specifications - Part 1: General requirements
This European Standard specifies the requirements for some properties which are common for all uncoated fibreboard types according to EN 316.
Faserplatten - Anforderungen - Teil 1: Allgemeine Anforderungen
Diese Europäische Norm legt die Anforderungen an einige Eigenschaften fest, die für alle Typen unbeschichteter Faserplatten nach EN 316 gleich sind.
Panneaux de fibres - Exigences - Partie 1: Exigences générales
La présente Norme européenne prescrit des exigences pour quelques caractéristiques qui sont communes à tous les types de panneaux de fibres non revêtus selon l'EN 316.
Vlaknene plošče – Specifikacije – 1. del Splošne zahteve
General Information
- Status
- Published
- Publication Date
- 22-Apr-2003
- Technical Committee
- CEN/TC 112 - Woodbased panels
- Drafting Committee
- CEN/TC 112/WG 3 - Fibreboards
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 06-May-2025
- Completion Date
- 14-May-2025
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 22-Dec-2008
Overview
EN 622-1:2003 - Fibreboards - Specifications - Part 1: General requirements is a CEN standard that defines the common, uncoated fibreboard requirements applicable to all fibreboard types defined in EN 316. It sets the baseline for dimensional tolerances, moisture content, formaldehyde performance and the factory and external verification procedures for fibreboards (hardboards, medium boards, softboards and dry process boards/MDF) at dispatch from the producing factory.
Key topics and technical requirements
- Scope: Applies to uncoated fibreboards as classified in EN 316. It supersedes EN 622-1:1997.
- Dimensional tolerances: Thickness, length, width, squareness and edge straightness tolerances are specified (see Table 1 and Table 2 of the standard). Example tolerances given include squareness at 2 mm/m and edge straightness at 1.5 mm/m.
- Moisture content: Typical dispatch moisture ranges are 4 % to 9 % for hard, medium and soft boards and 4 % to 11 % for MDF.
- Density control (MDF): A ±7 % tolerance on mean density within a panel is specified for dry process boards.
- Formaldehyde requirements: Formaldehyde potential (perforator value) and formaldehyde emission classes (E1/E2) are included. For dry-process boards (MDF), EN 120/ENV 717 test methods and numerical limits are given (E1 and E2 perforator limits and steady-state emission thresholds). Perforator values are referenced to a moisture content of 6.5 %; correction for other moisture contents is required.
- Verification and testing: Defines test methods and verification procedures. Factory production control and sampling follow EN 326-2, and consignment inspection follows EN 326-3. Recommended maximum test intervals are given (e.g., formaldehyde potential: 24 h per board type for E1; moisture content: 8 h per board type).
- Marking and colour coding: Marking follows the relevant part (EN 622-2 to EN 622-5). A voluntary two-colour coding system for intended use and exposure class is specified in Annex A.
Applications and users
- Manufacturers of hardboard, medium boards, softboards and MDF use EN 622-1:2003 to set quality and dispatch controls.
- Quality-control and testing laboratories apply the standard’s test methods and sampling intervals to demonstrate compliance.
- Inspection agencies and certification bodies rely on EN 326-series procedures referenced by EN 622-1 for external control.
- Specifiers, architects and product purchasers use the standard to ensure material suitability (dimensional stability, formaldehyde class, moisture behaviour) for interior or structural applications.
Related standards
- EN 316 (classification of fibreboards)
- EN 120, EN 322, EN 323, EN 324-1/2, EN 326-2/3
- EN 622-2 / -3 / -4 / -5 (specific requirements for hardboards, medium boards, softboards and MDF)
- ENV 717-1, EN 717-2 (formaldehyde emission test methods)
- EN 13986 (wood-based panels for construction)
Keywords: EN 622-1:2003, fibreboards, fibreboard specifications, general requirements, EN 316, formaldehyde, perforator method, factory production control, EN 326, MDF, hardboards.
Frequently Asked Questions
EN 622-1:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Fibreboards - Specifications - Part 1: General requirements". This standard covers: This European Standard specifies the requirements for some properties which are common for all uncoated fibreboard types according to EN 316.
This European Standard specifies the requirements for some properties which are common for all uncoated fibreboard types according to EN 316.
EN 622-1:2003 is classified under the following ICS (International Classification for Standards) categories: 79.060.20 - Fibre and particle boards. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 622-1:2003 has the following relationships with other standards: It is inter standard links to EN 622-1:1997. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 622-1:2003 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/113. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 622-1:2003 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2004
1DGRPHãþD
SIST EN 622-1:1998
9ODNQHQHSORãþH±6SHFLILNDFLMH±GHO6SORãQH]DKWHYH
Fibreboards - Specifications - Part 1: General requirements
Faserplatten - Anforderungen - Teil 1: Allgemeine Anforderungen
Panneaux de fibres - Exigences - Partie 1: Exigences générales
Ta slovenski standard je istoveten z: EN 622-1:2003
ICS:
79.060.20 9ODNQHQHLQLYHUQHSORãþH Fibre and particle boards
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 622-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2003
ICS 79.060.20 Supersedes EN 622-1:1997
English version
Fibreboards - Specifications - Part 1: General requirements
Panneaux de fibres - Exigences - Partie 1: Exigences Faserplatten - Anforderungen - Teil 1: Allgemeine
générales Anforderungen
This European Standard was approved by CEN on 3 March 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 622-1:2003 E
worldwide for CEN national Members.

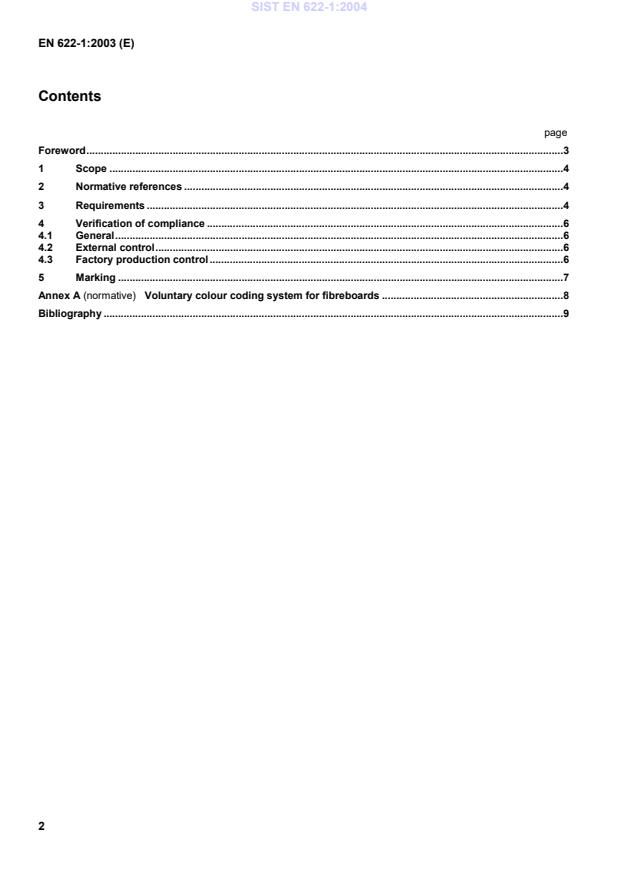

Contents
page
Foreword.3
1 Scope .4
2 Normative references .4
3 Requirements .4
4 Verification of compliance .6
4.1 General.6
4.2 External control.6
4.3 Factory production control.6
5 Marking .7
Annex A (normative) Voluntary colour coding system for fibreboards .8
Bibliography .9
Foreword
This document (EN 622-1:2003) has been prepared by Technical Committee CEN/TC 112 “Wood-based panels”,
the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by October 2003, and conflicting national standards shall be withdrawn at the latest
by October 2003.
This document supersedes EN 622-1:1997.
This standard is one of a series specifying requirements for fibreboards. The titles of the other parts of this series
are listed in clause 2.
Compared to EN 622-1:1997 the following modifications have been made:
a) annex A with A-deviations for formaldehyde emission has been deleted. The formaldehyde classes according
to EN 13986 have taken into account in Table 1 and Table 3.
b) EN 326-2 and EN 326-3 have been added as normative references in clause 4.
Annex A is normative.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following coun-
tries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal,
Slovakia, Spain, Sweden, Switzerland and the United Kingdom.
1 Scope
This European Standard specifies the requirements for some properties which are common to all uncoated fibre-
board types as defined in EN 316.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text, and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this European
Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the
publication referred to applies (including amendments).
EN 120, Wood-based panels — Determination of formaldehyde content — Extraction method called the perforator
method.
EN 316, Wood fibreboards — Definition, classification and symbols.
EN 322, Wood-based panels — Determination of moisture content.
EN 323, Wood-based panels — Determination of density.
EN 324-1, Wood-based panels — Determination of dimensions of boards — Part 1: Determination of thickness
width and length.
EN 324-2, Wood-based panels — Determination of dimensions of boards — Part 2: Determination of squareness
and edge straightness.
EN 326-2, Wood-based panels — Sampling, cutting and inspection — Part 2: Quality control in the factory.
EN 326-3, Wood-based panels — Sampling, cutting and inspection
...
SIST EN 622-1:2004は、全ての無コーティングファイバーボードタイプに共通する特性に関する要件を定めたEN 622-1:2003の欧州標準です。この標準は、主にファイバーボードの仕様に関する基本的なガイドラインを提供し、製品の一貫性と品質を保証します。 この標準の強みは、その包括的な範囲にあります。ファイバーボードの特性について、強度、密度、及び厚みなど、明確な定義が含まれており、製造業者や使用者にとって重要な情報を提供しています。これにより、製品間の比較が容易になり、品質管理や製品設計のプロセスにおいて、信頼性の高い基準が確立されます。 また、EN 622-1:2003は、持続可能性にも配慮しています。ファイバーボードの製造において使用される材料の選定や、製品のライフサイクルの考慮が求められるため、環境に優しい製品開発へとつながります。このように、業界全体が環境規制や社会的責任を果たすための指針としても機能しています。 さらに、この標準は、国際的な取引や製品の輸出においても重要な役割を果たします。EN 622-1:2003に準拠することにより、製品は国際的に受け入れられる基準を満たし、相互認証の実現を促進します。その結果、企業は市場競争力を高め、顧客からの信頼を獲得することができます。 総じて、SIST EN 622-1:2004は、ファイバーボード業界における品質基準を洗練させ、持続可能性と国際的な相互承認を推進するための必須の標準です。
SIST EN 622-1:2004 문서는 EN 622-1:2003 범주 내에서 유럽 표준의 일환으로 제정된 섬유판의 일반 요구 사항을 규정하고 있습니다. 이 표준은 모든 비코팅 섬유판 유형에 대해 공통적으로 적용되는 특성에 대한 요구 사항을 규명하고 있으며, EN 316에 명시된 내용을 기반으로 합니다. 이 표준의 범위는 섬유판의 성능, 내구성 및 안전성에 중점을 두고 있으며, 이를 통해 사용자가 다양한 섬유판 제품을 선택할 때 필요한 기준을 제공하고 있습니다. 특히, 이 문서는 섬유판의 물리적, 화학적 성질을 평가할 수 있도록 명확한 기준을 제시하고 있어 제조업체와 소비자 모두에게 큰 도움이 됩니다. SIST EN 622-1:2004의 강점 중 하나는 모든 섬유판 유형에 대한 일관된 요구 사항을 갖추고 있어, 품질 보증 및 기관의 인증 과정에서 신뢰성을 제공합니다. 이 표준은 일반 요구 사항을 설정하여, 다양한 응용 분야에서 사용할 수 있는 다양한 섬유판의 특성을 비교하고 평가할 수 있게 하는 플랫폼을 제공합니다. 또한, 이 표준은 건축, 가구 및 산업 분야 등 다양한 분야에서 섬유판의 필요성과 활용성을 증대시킬 수 있는 기반을 마련하고 있습니다. 결과적으로, SIST EN 622-1:2004 문서는 섬유판의 품질과 일관성을 보장하는 데 필수적인 참조 자료로, 산업계에서의 중요한 역할을 하고 있습니다. 이러한 이유로, 이 표준은 현재와 미래의 섬유판 관련 제품 개발 및 안전 규제에 있어서 매우 중요하며 관련성이 높습니다.
The EN 622-1:2003 standard, titled "Fibreboards - Specifications - Part 1: General requirements," serves as a crucial document in the realm of material specifications. Its primary scope encompasses the establishment of general requirements for uncoated fibreboard types as per EN 316, thereby facilitating a clearer understanding of the material characteristics and performance criteria. One of the significant strengths of this standard is its comprehensive approach to fibreboard specifications. It encompasses various properties that are essential for ensuring quality and consistency across different types of fibreboards. This thoroughness allows manufacturers and consumers alike to have a clear framework for assessing the suitability of fibreboards for specific applications, thereby promoting standardized practices in the industry. Additionally, the relevance of the EN 622-1:2003 standard cannot be overstated. As industries increasingly rely on sustainable materials, fibreboard's role as an eco-friendly construction and packaging option continues to grow. This standard addresses material properties that directly impact performance, durability, and environmental considerations, making it highly pertinent to current industry trends. Furthermore, the incorporation of safety and performance benchmarks aids stakeholders in meeting regulatory requirements, demonstrating the standard's alignment with both safety and quality assurance protocols. By delineating these specifications, EN 622-1:2003 enhances communication between manufacturers, suppliers, and end-users in the fibreboard market. In conclusion, EN 622-1:2003 stands as a pivotal standard offering vital guidelines for the assessment of uncoated fibreboards. Its multifaceted scope, combined with its focus on quality and relevance to contemporary materials usage, establishes it as an indispensable resource within the fibreboard industry.
Die Norm EN 622-1:2003 legt die allgemeinen Anforderungen für verschiedene Eigenschaften von unbeschichteten Faserplatten fest, die gemäß EN 316 klassifiziert sind. Diese europäische Norm bietet einen klaren Rahmen für die Herstellungs- und Qualitätsstandards von Faserplatten, indem sie sicherstellt, dass alle Arten von unbeschichteten Faserplatten konsistente und zuverlässige Eigenschaften aufweisen. Ein wesentlicher Vorteil dieser Norm ist ihre umfassende Anwendung auf alle Faserplattenarten. Durch die Festlegung einheitlicher Anforderungen wird nicht nur die Qualität der Produkte erhöht, sondern auch die Interoperabilität zwischen Herstellern und Nutzern gefördert. Die Norm verbessert somit die Marktcrossfunktionalität, indem sie eine Basis schafft, auf der verschiedene Produkte verglichen und bewertet werden können. Die Relevanz der EN 622-1:2003 erstreckt sich über verschiedene Branchen, die Faserplatten verwenden, sei es im Bauwesen, in der Möbelindustrie oder in der Innenarchitektur. Ihre Anwendung trägt dazu bei, die Anforderungen an Festigkeit, Stabilität und Verarbeitbarkeit von Faserplatten zu erfüllen, was für die Langlebigkeit und die Zufriedenheit der Endverbraucher entscheidend ist. Die Stärken dieser Norm liegen nicht nur in ihren klaren Definitionen und Anforderungen, sondern auch in ihrer Flexibilität, verschiedene Faserboard-Typen zu standardisieren, ohne die individuellen Eigenschaften der spezifischen Produkte zu vernachlässigen. Durch die Einhaltung der EN 622-1:2003 können Hersteller sicherstellen, dass ihre Produkte den höchsten Standards entsprechen, was letztlich zu einer höheren Marktakzeptanz führt.
La norme EN 622-1:2003, intitulée "Fibreboards - Specifications - Part 1: General requirements", établit des exigences fondamentales pour tous les types de fibreboards non revêtus, conformément à la norme EN 316. Ce document normatif, référencé par SIST EN 622-1:2004, offre une base solide pour l'évaluation des propriétés essentielles des fibreboards, garantissant ainsi leur qualité et leur conformité sur le marché européen. L'un des principaux avantages de cette norme est sa capacité à créer une uniformité dans les spécifications des fibreboards, facilitant la comparaison et l'évaluation des matériaux par les fabricants et les consommateurs. Les exigences définies dans cette norme concernent des aspects cruciaux tels que la résistance, la durabilité et d'autres propriétés physiques des fibreboards. Cela permet de s'assurer que chaque type de fibreboard répond à des critères de performance rigoureux, promouvant ainsi une utilisation sécurisée et efficace dans diverses applications. De plus, la norme EN 622-1:2003 est particulièrement pertinente dans le contexte actuel, où la durabilité et la performance des matériaux sont au cœur des préoccupations environnementales et industrielles. En fixant des standards élevés pour les fibreboards, elle encourage l'innovation dans la production de matériaux éco-responsables, tout en répondant aux exigences de l'industrie. En résumé, la norme EN 622-1:2003 joue un rôle crucial dans le secteur des matériaux de construction en fournissant un cadre normatif clair et précis pour les fibreboards. Grâce à ses exigences bien définies, elle assure non seulement la qualité des produits, mais aussi leur pertinence dans le cadre des normes environnementales et de performance actuelles.
