Glass containers - Resistance to vertical load - Test method (ISO 8113:2004)

ISO 8113:2004 specifies a method for determination of the resistance of glass containers to external force in the direction of the vertical axis.

Behältnisse aus Glas - Axialdruckfestigkeit - Prüfverfahren (ISO 8113:2004)

Diese Europäische Norm legt ein Verfahren für die Bestimmung der Festigkeit von Behältnissen aus Glas durch äußere Kräfte in axialer Richtung fest.

Récipients en verre - Résistance à la charge verticale - Méthode d'essai (ISO 8113:2004)

L'ISO 8813:2004 spécifie une méthode de détermination de la résistance des récipients en verre à une force externe dans la direction de l'axe vertical.

Steklena embalaža – Odpornost proti navpični obremenitvi – Preskusna metoda (ISO 8113:2004)

General Information

Status
Published
Publication Date
29-Feb-2004
ICS
55.100 - Bottles. Pots. Jars
Technical Committee
CEN/TC 261 - Packaging
Drafting Committee
CEN/TC 261/SC 5/WG 21 - Glass packaging
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
23-Oct-2009
Completion Date
23-Oct-2009
Directive
80/232/EEC - Ranges of nominal quantities and nominal capacities permitted for certain pre-packaged products
87/356/EEC - Ranges of nominal quantities and nominal capacities permitted for certain pre-packged products (Dir. 80/232/EEC amendment)
Ref Project
SIST EN ISO 8113:2004 - Glass containers - Resistance to vertical load - Test method (ISO 8113:2004)

Overview

EN ISO 8113:2004 (ISO 8113:2004) defines a standardized test method to determine the resistance of glass containers to vertical (axial) load. It describes sampling, required apparatus, test procedures (pass test and progressive break test), safety considerations and the required content of the test report. This standard is used to assess how much compressive force a bottle, jar or other glass container can withstand along its vertical axis, a key parameter for packaging performance and transport safety.

Key Topics and Requirements

  • Scope: Method for determining resistance to external force applied along the container’s vertical axis.
  • Sampling: Tests are performed on a predetermined number of containers; samples must be free from prior mechanical or thermal testing that could affect results.
  • Apparatus:
    • Press with two horizontal flat steel pressure plates (upper plate self-aligning, lower plate with centring marks).
    • Force indication accurate to at least ±2.5%.
    • Protective cover or a firm cylindrical cover for each container height.
    • Pads (cardboard, folded paper, plastic or rubber) to prevent glass-to-metal contact and ensure even load distribution.
  • Procedure:
    • Sample temperature must be within 5 °C of ambient.
    • Centre the container on the lower plate and secure with protective cover; use a closure on the finish when specified.
    • Maintain a constant approach speed (rate of force increase) and report this value.
    • Two test types:
      • Pass test: Apply force up to a specified value and withdraw plates; report containers that fail.
      • Total progressive test: Increase force until each container breaks; record breaking force for each sample.
  • Safety: Tests can be hazardous; operators must take appropriate safety precautions.
  • Test report: Must include reference to the standard, apparatus description, sample description, pads/closures used, approach speed, test results (forces, mean, standard deviation), date, location and responsible signature.

Applications and Users

  • Quality control and production testing in glass container manufacturing (bottles, jars, pots).
  • Packaging engineers assessing container strength for transport, stacking, and storage.
  • Test laboratories performing compliance testing and supplier validation.
  • R&D teams developing stronger container designs or assessing closure effects on axial strength.
  • Buyers and specifiers requiring documented mechanical performance for procurement.

Related Standards

  • EN ISO 7458: Internal pressure resistance - Test methods
  • EN ISO 7459: Thermal shock resistance and endurance - Test methods
  • prEN ISO 8106: Determination of capacity by gravimetric method
  • EN 29008 / EN 29009: Verticality and finish non-parallelism test methods for glass containers

Keywords: EN ISO 8113:2004, ISO 8113, glass containers, resistance to vertical load, axial load test, glass bottle testing, packaging quality control, vertical load resistance.

Frequently Asked Questions

EN ISO 8113:2004 is a standard published by the European Committee for Standardization (CEN). Its full title is "Glass containers - Resistance to vertical load - Test method (ISO 8113:2004)". This standard covers: ISO 8113:2004 specifies a method for determination of the resistance of glass containers to external force in the direction of the vertical axis.

ISO 8113:2004 specifies a method for determination of the resistance of glass containers to external force in the direction of the vertical axis.

EN ISO 8113:2004 is classified under the following ICS (International Classification for Standards) categories: 55.100 - Bottles. Pots. Jars. The ICS classification helps identify the subject area and facilitates finding related standards.

EN ISO 8113:2004 is associated with the following European legislation: EU Directives/Regulations: 80/232/EEC, 87/356/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.

You can purchase EN ISO 8113:2004 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.

Standards Content (Sample)


SLOVENSKI STANDARD
01-september-2004
6WHNOHQDHPEDODåD±2GSRUQRVWSURWLQDYSLþQLREUHPHQLWYL±3UHVNXVQDPHWRGD
,62
Glass containers - Resistance to vertical load - Test method (ISO 8113:2004)
Behältnisse aus Glas - Axialdruckfestigkeit - Prüfverfahren (ISO 8113:2004)
Récipients en verre - Résistance a la charge verticale - Méthode d'essai (ISO
8113:2004)
Ta slovenski standard je istoveten z: EN ISO 8113:2004
ICS:
55.100 Steklenice. Lonci. Kozarci Bottles. Pots. Jars
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 8113
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2004
ICS 55.100
English version
Glass containers - Resistance to vertical load - Test method
(ISO 8113:2004)
Récipients en verre - Résistance à la charge verticale - Behältnisse aus Glas - Axialdruckfestigkeit - Prüfverfahren
Méthode d'essai (ISO 8113:2004) (ISO 8113:2004)
This European Standard was approved by CEN on 3 November 2003.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 8113:2004: E
worldwide for CEN national Members.

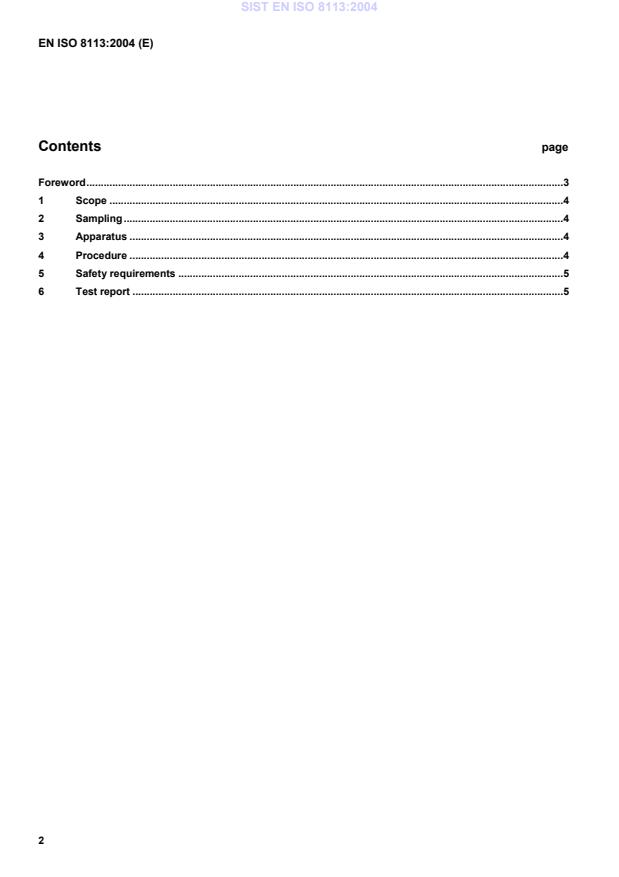

Contents page
Foreword.3
1 Scope .4
2 Sampling.4
3 Apparatus .4
4 Procedure .4
5 Safety requirements .5
6 Test report .5
Foreword
This document (EN ISO 8113:2004) has been prepared by Technical Committee CEN /TC 261 "Packaging", the
secretariat of which is held by AFNOR, in collaboration with Technical Committee ISO/TC 63 "Glass containers".
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by September 2004, and conflicting national standards shall be withdrawn at the
latest by September 2004.
Efficient packaging is of great importance for the distribution and the protection of goods and the environment.
Insufficient or inappropriate packaging can lead to damage or wastage ot the contents of the pack.
This standard is part of a series of standards for "Glass containers - Test methods":
 EN ISO 7458, Glass containers — Internal pressure resistance — Test methods (ISO 7458:2004)
 EN ISO 7459, Glass containers — Thermal shock resistance and thermal shock endurance — Test methods
(ISO 7459:2004)
 prEN ISO 8106, Glass containers — Determination of capacity by gravimetric method — Test method
(ISO/FDIS 8106:2003)
 EN ISO 8113, Glass containers — Resistance to vertical load — Test metho
...
