Overview
EN 2713-012:2022 - part of the Aerospace series - specifies the product characteristics for UV laser printable, single- and multicore silver-plated copper screened (spiral) and jacketed electrical cables intended for on‑board aircraft electrical systems. The standard covers the MNA (1 core), MNB (pair), MNC (3 cores) and MND (4 cores) cable family designed to operate between −55 °C and 200 °C. It also permits qualified compatible marking in accordance with EN 3838.
Key topics and technical requirements
- Scope and construction
- Defines cable family (MNA, MNB, MNC, MND), cores (1–4), and requirements for twisted assemblies (2–4 cores) per EN 2235.
- Screen: silver-plated copper stranded spiral (material per EN 4434).
- Outer jacket requirements to meet Clause 5 characteristics.
- Performance and tests (from EN 3475 series)
- Electrical: ohmic resistance, continuity, voltage proof, insulation and surface resistance.
- Mechanical/thermal: accelerated ageing (230 ±5 °C), shrinkage/delamination, thermal shock (200 ±5 °C), bending, cold bend, tensile on conductors/strands.
- Fire/safety: flammability (extinguishing time ≤ 3 s), smoke density, toxicity.
- Marking and marking permanence: UV laser markability, contrast requirement (K ≥ 50 %), permanence tests per EN 3838.
- Electromagnetic screening: transfer impedance limits - Z ≤ 220 mΩ/m (DC to 100 kHz), ≤ 350 mΩ/m (up to 500 kHz), ≤ 500 mΩ/m (up to 1 MHz).
- Plating tests: continuity, adherence, thickness and solderability.
- Quality assurance and qualification
- Qualification recommended via established aerospace procedures (e.g. EN 9133 or equivalent) and documented test programs.
- Identification, marking, packaging and delivery lengths per EN 2713-002 and EN 2235.
Applications and practical value
- Use for aircraft on-board electrical systems where high temperature resistance, reliable screening, and permanent UV laser marking are required.
- Typical applications: signal and control wiring, shielded power distribution, and harness segments in airframes, engines and avionics bays exposed to −55 °C to 200 °C environments.
- Practical benefits: reliable EMC performance (spiral silver‑plated screen), durable laser-markable identification for traceability, and standardized test credentials for procurement and certification.
Who uses this standard
- Cable manufacturers and material suppliers
- Aircraft OEMs, wiring harness manufacturers and avionics integrators
- Procurement, quality and certification engineers in aerospace
- Test laboratories and qualification teams
Related standards
- EN 2235, EN 2267-009, EN 2713-002, EN 3475 (test methods), EN 3838 (marking), EN 4434 (conductors), EN 9133 (qualification).
Frequently Asked Questions
EN 2713-012:2022 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between -55 °C and 200 °C - Part 012: MNA (1 core), MNB (pair), MNC (3 cores), MND (4 cores), cables family - Silver-plated copper screened (spiral) and jacketed, UV laser printable - Product standard". This standard covers: This document specifies the characteristics of UV laser printable, single and multicore silver-plated copper screened (spiral) and jacketed electrical cables for use in the on-board electrical systems of aircraft, at operating temperatures between −55 °C and 200 °C. It is also possible to mark these cables by qualified compatible marking. These markings are in accordance with EN 3838.
This document specifies the characteristics of UV laser printable, single and multicore silver-plated copper screened (spiral) and jacketed electrical cables for use in the on-board electrical systems of aircraft, at operating temperatures between −55 °C and 200 °C. It is also possible to mark these cables by qualified compatible marking. These markings are in accordance with EN 3838.
EN 2713-012:2022 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2713-012:2022 has the following relationships with other standards: It is inter standard links to EN 2713-012:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2713-012:2022 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-april-2022
Nadomešča:
SIST EN 2713-012:2017
Aeronavtika - Eno- ali večžilni električni kabli za splošno uporabo - Delovne
temperature med –55 °C in 200 °C - 012. del: MNA (1 jedro), MNB (združitev), MNC
(3 jedra), MND (4 jedra), družina kablov - Posrebren baker, oklopljen (spirala) in
oplaščen, z možnostjo UV-laserskega tiskanja - Standard za proizvod
Aerospace series - Cables, electrical, single and multicore for general purpose -
Operating temperatures between -55 °C and 200 °C - Part 012: MNA (1 core), MNB
(pair), MNC (3 cores), MND (4 cores), cables family - Silver-plated copper screened
(spiral) and jacketed, UV laser printable - Product standard
Luft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine
Verwendung - Betriebstemperaturen zwischen -55 °C und 200 °C - Teil 012: MNA-
(einadrig), MNB- (zweiadrig), MNC- (dreiadrig), MND- (vieradrig) Leitungsfamilie, mit
versilbertem - Kupfergeflecht geschirmt (Umseilung) und ummantelt, UV-Laser-
bedruckbar - Produktnorm
Série aérospatiale - Câbles, électriques, mono et multiconducteurs d'usage general -
Températures de fonctionnement comprises entre -55 °C et 200 °C - Partie 012 : MNA (1
élément), MNB (paire), MNC (tierce), MND (quarte), série de câbles multiconducteurs à
blindage cuivre argenté (guipés et gainés), marquables au laser UV - Norme de produit
Ta slovenski standard je istoveten z: EN 2713-012:2022
ICS:
29.060.20 Kabli Cables
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 2713-012
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2022
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 2713-012:2017
English Version
Aerospace series - Cables, electrical, single and multicore
for general purpose - Operating temperatures between -55
°C and 200 °C - Part 012: MNA (1 core), MNB (pair), MNC
(3 cores), MND (4 cores), cables family - Silver-plated
copper screened (spiral) and jacketed, UV laser printable -
Product standard
Série aérospatiale - Câbles, électriques, mono et Luft- und Raumfahrt - Leitungen, elektrisch, ein- und
multiconducteurs d'usage general - Températures de mehradrig, für allgemeine Verwendung -
fonctionnement comprises entre -55 °C et 200 °C - Betriebstemperaturen zwischen -55 °C und 200 °C -
Partie 012 : MNA (1 élément), MNB (paire), MNC Teil 012: MNA- (einadrig), MNB- (zweiadrig), MNC-
(tierce), MND (quarte), série de câbles (dreiadrig), MND- (vieradrig) Leitungsfamilie, mit
multiconducteurs à blindage cuivre argenté (guipés et versilbertem - Kupfergeflecht geschirmt (Umseilung)
gainés), marquables au laser UV - Norme de produit und ummantelt, UV-Laser-bedruckbar - Produktnorm
This European Standard was approved by CEN on 8 November 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 2713-012:2022 E
worldwide for CEN national Members.

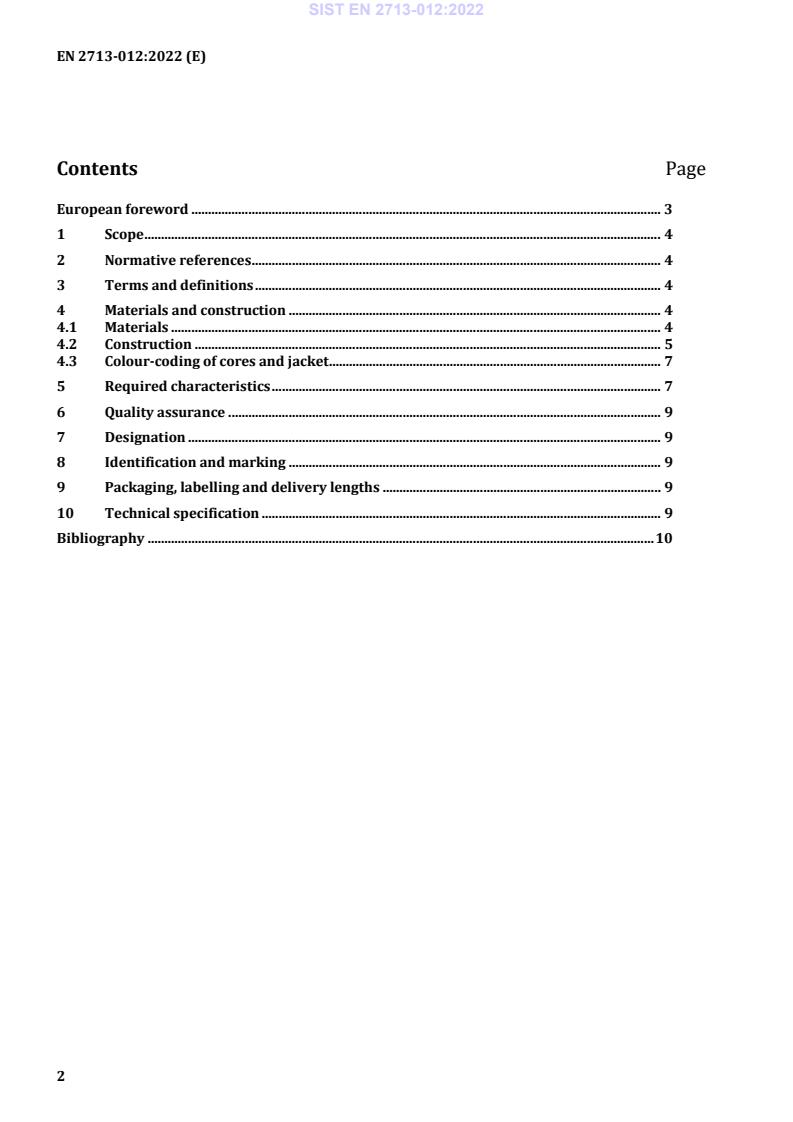

Contents Page
