EN ISO 12086-2:2006

SLOVENSKI STANDARD
01-april-2006
1DGRPHãþD
SIST EN ISO 12086-2:2000
3ROLPHUQLPDWHULDOL±'LVSHU]LMHLQPDWHULDOL]DREOLNRYDQMHLQHNVWUXGLUDQMHQD
RVQRYLIOXRURSROLPHURY±GHO3ULSUDYDSUHVNXãDQFHYLQGRORþDQMHODVWQRVWL
,62',6
Plastics - Fluoropolymer dispersions and moulding and extrusion materials - Part 2:
Preparation of test specimens and determination of properties (ISO 12086-2:2006)
Kunststoffe - Fluorpolymerdispersionen, Formmassen und Extrusionsmaterialien - Teil 2:
Herstellung von Probekörpern und Bestimmung von Eigenschaften (ISO 12086-2:2006)
Plastiques - Polymeres fluorés: dispersions et matériaux pour moulage et extrusion -
Partie 2: Préparation des éprouvettes et détermination des propriétés (ISO 12086-
2:2006)
Ta slovenski standard je istoveten z: EN ISO 12086-2:2006
ICS:
83.080.20 Plastomeri Thermoplastic materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 12086-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2006
ICS 83.080.20 Supersedes EN ISO 12086-2:1999
English Version
Plastics - Fluoropolymer dispersions and moulding and extrusion
materials - Part 2: Preparation of test specimens and
determination of properties (ISO 12086-2:2006)
Plastiques - Polymères fluorés: dispersions et matériaux Kunststoffe - Fluorpolymerdispersionen, Formmassen und
pour moulage et extrusion - Partie 2: Préparation des Extrusionsmaterialien - Teil 2: Herstellung von
éprouvettes et détermination des propriétés (ISO 12086- Probekörpern und Bestimmung von Eigenschaften (ISO
2:2006) 12086-2:2006)
This European Standard was approved by CEN on 13 February 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 12086-2:2006: E
worldwide for CEN national Members.

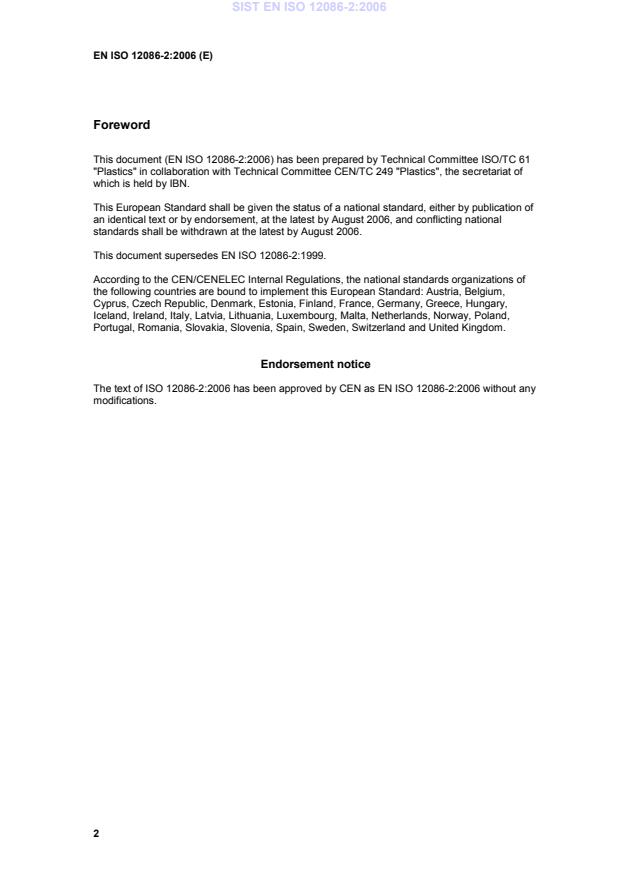

Foreword
This document (EN ISO 12086-2:2006) has been prepared by Technical Committee ISO/TC 61
"Plastics" in collaboration with Technical Committee CEN/TC 249 "Plastics", the secretariat of
which is held by IBN.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by August 2006, and conflicting national
standards shall be withdrawn at the latest by August 2006.

This document supersedes EN ISO 12086-2:1999.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 12086-2:2006 has been approved by CEN as EN ISO 12086-2:2006 without any
modifications.
INTERNATIONAL ISO
STANDARD 12086-2
Second edition
2006-02-15
Plastics — Fluoropolymer dispersions
and moulding and extrusion materials —
Part 2:
Preparation of test specimens
and determination of properties
Plastiques — Polymères fluorés: dispersions et matériaux pour
moulage et extrusion —
Partie 2: Préparation des éprouvettes et détermination des propriétés

Reference number
ISO 12086-2:2006(E)
©
ISO 2006
ISO 12086-2:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

ISO 12086-2:2006(E)
Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 3
4 Abbreviated terms and symbols . 4
5 Sampling. 5
6 Preparation of test specimens . 5
7 Conditioning and test conditions. 5
8 General testing of fluoropolymers. 5
8.1 Electrical properties . 6
8.2 Mechanical properties. 8
8.3 Thermal-transition temperatures . 10
8.4 Density . 11
8.5 Flammability by oxygen index. 11
8.6 Particle size and size distribution. 11
9 Testing of fluoropolymer dispersions . 17
9.1 General. 17
9.2 Preparation of test samples. 18
9.3 Isolation of PTFE from dispersion . 18
9.4 Coagulum in dispersions. 19
9.5 Percentage polymer and surfactant in aqueous dispersion . 19
9.6 PTFE solids content by hydrometer . 20
9.7 pH of dispersions. 21
10 Testing of PTFE and closely related materials . 21
10.1 General. 21
10.2 Preparation of test specimens by moulding. 21
10.3 Bulk density. 23
10.4 Extrusion pressure . 27
10.5 Powder-flow time . 32
10.6 Standard specific gravity (SSG), extended specific gravity (ESG) and thermal-instability
index (TII) . 34
10.7 Stretching-void index (SVI). 37
11 Testing of conventionally melt-processible fluoropolymers . 38
11.1 Preparation of test specimens by moulding. 38
11.2 Melt mass-flow rate (MFR) and melt volume-flow rate (MVR) . 39
12 Other test methods used with fluoropolymers. 41
12.1 Brittleness temperature of plastics and elastomers by impact . 41
12.2 Coefficients of static and kinetic friction . 41
12.3 Zero-strength time . 41
Annex A (informative) Listing of test methods (alphabetical order). 42
Annex B (informative) Designatory properties for common fluoropolymer types with
cross-reference listing to the tables for codes in ISO 12086-1 and the test methods in
ISO 12086-2. 43
Bibliography . 45
ISO 12086-2:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 12086-2 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 9, Thermoplastic
materials.
This second edition cancels and replaces the first edition (ISO 12086-2:1995), which has been technically
revised.
ISO 12086 consists of the following parts, under the general title Plastics — Fluoropolymer dispersions and
moulding and extrusion materials:
⎯ Part 1: Designation system and basis for specifications
⎯ Part 2: Preparation of test specimens and determination of properties

iv © ISO 2006 – All rights reserved

INTERNATIONAL STANDARD ISO 12086-2:2006(E)

Plastics — Fluoropolymer dispersions and moulding and
extrusion materials —
Part 2:
Preparation of test specimens and determination of properties
SAFETY STATEMENT — Persons using this document should be familiar with normal laboratory
practice, if applicable. This document does not purport to address all of the safety concerns, if any,
associated with its use. It is the responsibility of the user to establish appropriate safety and health
practices and to ensure compliance with any regulatory requirements. The warnings in
Subclauses 8.6.2.1, 9.7 and 10.6.1.4 point out specific hazards.
1 Scope
1.1 This part of ISO 12086 describes the preparation of test specimens and provides test methods to define
characteristics of thermoplastic fluoropolymer resins. Results from the testing may be used as the basis for
designation, material specifications or both. This part of ISO 12086 describes the conditions of test for
determining both designatory and other properties of the homopolymers and various copolymers of
fluoromonomers, as dispersions or powders for moulding, extrusion and other uses. The test procedures
included are appropriate for, but are not restricted to, the fluoropolymers listed in Clause 4 and for which
designatory properties are specified in ISO 12086-1.
1.2 The properties of semi-finished and finished products made from fluoropolymer resins depend on the
material used, the shape of the product, the physical and morphological state of the material resulting from the
processing operations, and on the test conditions. Therefore, to obtain reproducible test results, the defined
methods of preparation of test specimens and defined test conditions given in this part of ISO 12086 must be
applied.
1.3 Agreements between vendor and purchaser should preferably be based on properties measured using
the specimens and test conditions described in this part of ISO 12086.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 75-2, Plastics — Determination of temperature of deflection under load — Part 2: Plastics and ebonite
ISO 178, Plastics — Determination of flexural properties
ISO 179-1, Plastics — Determination of Charpy impact properties — Part 1: Non-instrumented impact test
ISO 180, Plastics — Determination of lzod impact strength
ISO 291, Plastics — Standard atmospheres for conditioning and testing
ISO 293, Plastics — Compression moulding of test specimens of thermoplastic materials
ISO 472, Plastics — Vocabulary
ISO 527-1, Plastics — Determination of tensile properties — Part 1: General principles
ISO 12086-2:2006(E)
ISO 527-2, Plastics — Determination of tensile properties — Part 2: Test conditions for moulding and
extrusion plastics
ISO 527-3, Plastics — Determination of tensile properties — Part 3: Test conditions for films and sheets
ISO 565, Test sieves — Metal wire cloth, perforated metal plate and electroformed sheet — Nominal sizes of
openings
ISO 976, Rubber and plastics — Polymer dispersions and rubber latices — Determination of pH
ISO 1043-1, Plastics — Symbols and abbreviated terms — Part 1: Basic polymers and their special
characteristics
ISO 1043-2, Plastics — Symbols and abbreviated terms — Part 2: Fillers and reinforcing materials
ISO 1133:2005, Plastics — Determination of the melt mass-flow rate (MFR) and the melt volume-flow rate
(MVR) of thermoplastics
ISO 1183-1, Plastics — Methods for determining the density of non-cellular plastics — Part 1: Immersion
method, liquid pyknometer method and titration method
ISO 1183-2, Plastics — Methods for determining the density of non-cellular plastics — Part 2: Density gradient
column method
ISO 4589 (all parts), Plastics — Determination of burning behaviour by oxygen index
ISO 11357-2, Plastics — Differential scanning calorimetry (DSC) — Part 2: Determination of glass transition
temperature
ISO 11357-3, Plastics — Differential scanning calorimetry (DSC) — Determination of temperature and
enthalpy of melting and crystallization
ISO 12086-1, Plastics — Fluoropolymer dispersions and moulding and extrusion materials — Part 1:
Designation system and basis for specifications
ISO 13320-1, Particle size analysis — Laser diffraction methods — General principles
IEC 60093, Methods of test for volume resistivity and surface resistivity of solid electrical insulating materials
IEC 60243-1, Electrical strength of insulating materials — Test methods — Part 1: Tests at power frequencies
IEC 60250, Recommended methods for the determination of the permittivity and dielectric dissipation factor of
electrical insulating materials at power, audio and radio frequencies including metre wavelengths
ASTM D 746, Standard Test Method for Brittleness Temperature of Plastics and Elastomers by Impact
ASTM D 1430, Standard Classification System for Polychlorotrifluoroethylene (PCTFE) Plastics
ASTM D 1894, Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and
Sheeting
ASTM D 3418, Standard Test Method for Transition Temperatures of Polymers by Differential Scanning
Calorimetry
ASTM D 4052, Standard Test method for Density and Relative Density of Liquids by Digital Density Meter
ASTM D 4591, Standard Test Method for Determining Temperatures and Heats of Transitions of
Fluoropolymers by Differential Scanning Calorimetry
ASTM D 4894, Standard Specification for Polytetrafluoroethylene (PTFE) Granular Molding and Ram
Extrusion Materials
ASTM D 4895, Standard Specification for Polytetrafluoroethylene (PTFE) Resin Produced from Dispersion
BS 4641:1986, Method for specifying electroplated coatings of chromium for engineering purposes
2 © ISO 2006 – All rights reserved

ISO 12086-2:2006(E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 472 and the following terms and
definitions apply. The terms listed in 3.1 to 3.3 are repeated from ISO 472 to be sure there is no
misunderstanding.
3.1
dispersion
heterogeneous system in which a finely divided material is distributed in another material
3.2
fluoroplastic
plastic based on polymers made with monomers containing one or more atoms of fluorine, or copolymers of
such monomers with other monomers, the fluoromonomer being in the greatest amount by mass
3.3
latex
colloidal aqueous dispersion of a polymeric material
3.4
amorphous
noncrystalline, or devoid of regular structure
3.5
bulk density
mass (in grams) per litre of material, measured under the conditions of the test
3.6
copolymer
polymer formed from two or more types of monomer
3.7
emulsion polymer
〈fluoropolymer materials〉 material isolated from its polymerization medium as a colloidal aqueous dispersion
of the polymer solids
NOTE This definition, used in the fluoropolymer industry, is similar to that for “latex” in ISO 472 and is quite different
from the definition for “emulsion” in ISO 472.
3.8
fluorocarbon plastic
plastic based on polymers made from perfluoromonomers only
3.9
fluoropolymer
synonymous with fluoroplastic (see 3.2)
3.10
melt-processible
capable of being processed by, for example, injection moulding, screw extrusion and other operations typically
used with thermoplastics
3.11
preforming
compacting powdered PTFE material under pressure in a mould to produce a solid object, called a preform,
that is capable of being handled
NOTE With PTFE, “moulding” and “compaction” are terms used interchangeably with “preforming”.
ISO 12086-2:2006(E)
3.12
sintering
〈PTFE〉 thermal treatment during which the material is melted and recrystallized by cooling, with coalescence
occurring during the treatment
3.13
standard specific gravity
SSG
specific gravity of a specimen of PTFE material preformed, sintered and cooled through the crystallization
point at a rate of 1 °C per minute in accordance with the appropriate sintering schedule as described in this
part of ISO 12086
NOTE The SSG of unmodified PTFE is inversely related to its molecular mass.
3.14
suspension polymer
polymer isolated from its liquid polymerization medium as a solid having a particle size well above colloidal
dimensions
3.15
zero-strength time
ZST
measure of the relative molecular mass of PCTFE
4 Abbreviated terms and symbols
4.1 The abbreviated terms given in ISO 1043-1 and ISO 1043-2 are applicable to this part of ISO 12086.
4.2 This part of ISO 12086 is particularly concerned with, but is not limited to, test methods for the materials
listed below:
ECTFE ethylene-chlorotrifluoroethylene copolymer
EFEP ethylene-tetrafluoroethylene-hexafluoropropene copolymer
ETFE ethylene-tetrafluoroethylene copolymer
FEP perfluoro(ethylene-propene) copolymer
PCTFE polychlorotrifluoroethylene
PFA perfluoro(alkoxy alkane)
PTFE polytetrafluoroethylene
PVDF poly(vinylidene fluoride)
PVF poly(vinyl fluoride)
TFE/PDD tetrafluoroethylene-perfluorodioxole copolymer
VDF/CTFE vinylidene fluoride-chlorotrifluoroethylene copolymer
VDF/HFP vinylidene fluoride-hexafluoropropene copolymer
VDF/TFE vinylidene fluoride-tetrafluoroethylene copolymer
VDF/TFE/HFP vinylidene fluoride-tetrafluoroethylene-hexafluoropropene copolymer
4 © ISO 2006 – All rights reserved

ISO 12086-2:2006(E)
4.3 For the purposes of this part of ISO 12086, the following additional abbreviated terms apply.
AF amorphous fluoropolymer
ESG extended specific gravity (see 10.6)
MFR melt mass-flow rate (see 11.2)
MVR melt volume-flow rate (see 11.2)
SSG standard specific gravity (see 10.6)
SVI stretching-void index (see 10.7)
TII thermal-instability index (see 10.6)
ZST zero-strength time (see 12.3)
5 Sampling
Sampling shall be statistically adequate to satisfy the requirements of this part of ISO 12086.
6 Preparation of test specimens
Where applicable, ISO standards shall be followed for the preparation of test specimens. In some instances,
special procedures are required that are described either in the general discussion or in the method.
7 Conditioning and test conditions
7.1 For determinations of specific gravity, tensile properties and electrical properties, condition the moulded
test specimens in atmosphere 23 of ISO 291 for a period of at least 4 h prior to testing. The other
determinations require no conditioning.
NOTE For PVDF, some producers recommend waiting one week after moulding before testing in order to minimize
the effects of post-crystallization.
7.2 Conduct tests at a laboratory temperature of 23 °C ± 2 °C for determining specific gravity, tensile
properties and electrical properties only. (See the Note for comments related to PTFE.) Since the
fluoropolymer resins do not absorb water, the maintenance of constant humidity during testing is not
necessary. Conduct tests for melt flow rate and melting-peak temperature under ordinary laboratory conditions.
NOTE A minimum temperature of 22 °C should preferably be maintained with PTFE due to its first-order transition
just below 22 °C that affects properties determined at slightly lower temperatures. This effect of temperature is especially
important during the determination of density/specific gravity.
8 General testing of fluoropolymers
Properties required for designation or specification, or both, shall be determined in accordance with the
international or national standards listed in Clause 2 or the procedures given in this part of ISO 12086.
Tables of values of the designatory properties and corresponding codes are included in ISO 12086-1.
Tables of values and codes are also included in this part of ISO 12086 for many of the other properties that
are needed to supplement the designatory properties for specification and other purposes.
ISO 12086-2:2006(E)
8.1 Electrical properties
8.1.1 Dielectric constant and dissipation factor
Determine these properties on three specimens, each 100 mm in diameter, in accordance with IEC 60250.
Typical frequencies used for testing are 100 Hz, 1 kHz, 1 MHz and 100 MHz. For some applications, it is
important to know the values at subambient and elevated temperatures. Codes for test frequencies and
values of the properties are given in Tables 1 and 2.
NOTE Electrical properties, like many other properties, vary with temperature.
Table 1 — Codes for test frequencies
Code Test frequency
2 100 Hz
3 1 kHz
6 1 MHz
8 100 MHz
Table 2 — Codes and ranges for dielectric constant and dissipation factor
Code Dielectric constant Code Dissipation factor
A < 1,6 A < 0,000 1
B 1,6 to < 1,8 B 0,000 1 to < 0,000 2
C 1,8 to < 2,0 C 0,000 2 to < 0,000 4
D 2,0 to < 2,2 D 0,000 4 to < 0,000 6
E 2,2 to < 2,4 E 0,000 6 to < 0,000 8
F 2,4 to < 2,6 F 0,000 8 to < 0,001 0
G 2,6 to < 2,8 G 0,001 0 to < 0,001 2
H 2,8 to < 3,0 H 0,001 2 to < 0,001 4
I 3,0 to < 3,2 I 0,001 4 to < 0,001 6
J 3,2 to < 3,4 J 0,001 6 to < 0,001 8
K 3,4 to < 3,6 K 0,001 8 to < 0,002 0
L 3,6 to < 4,0 L 0,002 0 to < 0,002 2
M 4,0 to < 4,5 M 0,002 2 to < 0,002 4
N 4,5 to < 5,0 N 0,002 4 to < 0,002 6
O 5,0 to < 5,5 O 0,002 6 to < 0,002 8
P 5,5 to < 6.0 P 0,002 8 to < 0,003 0
R 6,0 to < 6,5 Q 0,003 0 to < 0,003 5
S 6,5 to < 7,0 R 0,003 5 to < 0,004 0
T 7,0 to < 8.0 S 0,004 0 to < 0,006 0
U 8,0 to < 9,0 T 0,006 0 to < 0,008 0
V 9,0 to < 10,0 U 0,008 0 to < 0,010
W 10,0 to < 11,0 W 0,010 to < 0,030
X 11,0 to < 12,0 X 0,030 to < 0,10
Y 12,0 to < 14,0 Y u 0,1
Z W 14,0
6 © ISO 2006 – All rights reserved

ISO 12086-2:2006(E)
8.1.2 Dielectric strength (electric strength)
Determine this property in accordance with the procedures of IEC 60243-1. Codes for values of the property
are given in Table 3.
NOTE Dielectric strength, which is expressed in kilovolts per millimetre, varies with the thickness of the test specimen.
Table 3 — Codes and ranges for dielectric strength
Code Dielectric strength (kV/mm)
A < 5
B 5 to < 10
C 10 to < 15
D 15 to < 20
E 20 to < 25
F 25 to < 30
G 30 to < 35
H 35 to < 40
I 40 to < 45
J 45 to < 50
K 50 to < 55
L 55 to < 60
M 60 to < 65
N 65 to < 70
O 70 to < 75
P 75 to < 80
Q 80 to < 85
R 85 to < 90
S 90 to < 95
T 95 to < 100
U W 100
8.1.3 Surface resistivity
Determine this property in accordance with IEC 60093.
Codes and ranges are listed in Table 4.
Table 4 — Codes and ranges for surface resistivity
Code Surface resistivity (Ω)
A < 10
3 12
B 10 to 10
C > 10
ISO 12086-2:2006(E)
8.2 Mechanical properties
8.2.1 Impact properties
Determine impact properties using the procedures of ISO 180 for lzod impact strength and ISO 179-1 for
Charpy impact strength. Codes and ranges are given in Table 5. The test used, the size of the test specimen
and the type of notch shall be reported in addition to the code for impact strength.
Table 5 — Codes and ranges for impact properties
Code Impact strength (J/m)
A < 100
B 120 to < 140
C 140 to < 160
D 160 to < 180
E 180 to < 200
F 200 to < 300
G 300 to < 400
H 400 to < 500
I 500 to < 600
J 600 to < 700
K 700 to < 800
L 800 to < 900
M W 900
8.2.2 Tensile properties
8.2.2.1 Fluoropolymers for which tensile modulus is not to be determined
8.2.2.1.1 PTFE skived film with a thickness equal to or less than 0,125 mm shall be tested in accordance
with the procedure described in ISO 527-3, using test specimen type 2.
8.2.2.1.2 For test specimens other than the skived film referred to in 8.2.2.1.1 (equal to or less than
0,125 mm in thickness), prepare five specimens using the microtensile die described in Figure 1. The die shall
1)
be of the steel-rule type with a curvature of 5 mm ± 0,5 mm . Determine the tensile properties in accordance
with the procedures described in ISO 527-1 except that the specimens used shall be as detailed above, the
initial jaw separation shall be 22,0 mm ± 0,13 mm, and the speed of testing shall be 50 mm/min ± 5 mm/min.
Clamp the specimens with an essentially equal length in each jaw. Determine the elongation from the recorder
chart, expressing it as a percentage of the initial jaw separation. In determining elongation from the chart,
draw a perpendicular line from the break point to the time axis. Measure the distance along the time axis from
the foot of this perpendicular line to the beginning of the load-time curve. Optionally, an extensiometer may be
used to determine the elongation.

1) The steel-rule type of die has been found satisfactory for this purpose. Two sources for these steel-rule dies
are: Stansvormenfabriek Vervloet B.V., Postbus 220, Gantelweg 15, 3350 AE Papendrecht, Netherlands,
Tel.: +31 70 322 22 21, Fax: +31 70 322 22 24, and MS Laboratory Instruments, 28 Gateway Road, Fairport, NY 14450,
USA, Tel: +1 585 377 2830, Fax: +1 585 388 1333. This information is given for the convenience of users of this part of
ISO 12086 and does not constitute an endorsement by ISO of these products. Other sources may be available or a die
may be constructed from details in Figure 1.
8 © ISO 2006 – All rights reserved

ISO 12086-2:2006(E)
Dimensions in millimetres
Inside dimensions of die are same as those of test specimen.
Die to be sharpened on outside of knife edge only (as shown in figure).
Rockwell C hardness of die: 45 to 50.
a)  Steel-rule die
Figure 1 (continued on next page)

ISO 12086-2:2006(E)
Dimensions in millimetres
b)  Micro-tensile specimen
a
Possible thicknesses: 1,5 ± 0,3
0,8 ± 0,15
0,5 ± 0,1
0,125 ± 0,03.
Figure 1 — Knife-edged die for micro-tensile (type A) specimens, and punched-out specimen
Calculate the percentage elongation using the following equation:
100d
% elongation =
22,0m
where
d is the distance, in millimetres, on the chart;
m is the chart-speed magnification [= chart speed/crosshead speed (both in same units)];
22,0 is a factor allowing for the fact that d is in millimetres.
8.2.2.2 Fluoropolymers for which tensile modulus is to be determined
Determine tensile properties in accordance with ISO 527-2, using test specimen 5A and a crosshead speed of
50 mm/min ± 5 mm/min. For determination of tensile modulus, use a crosshead speed of 1 mm/min.
8.2.3 Modulus in flexure
Determine this property in accordance with the procedures of ISO 178.
8.3 Thermal-transition temperatures
8.3.1 Deformation temperature under load
Determine this temperature in accordance with the procedures of ISO 75-2.
10 © ISO 2006 – All rights reserved

ISO 12086-2:2006(E)
8.3.2 Glass-transition temperature(s)
Determine these temperatures in accordance with the procedures of ASTM D 3418 or ISO 11357-2.
8.3.3 Melting-peak temperature
8.3.3.1 Test samples/specimens for melting-peak temperature determination may be powder as received,
dried polymer isolated from a dispersion, or the required amount cut from a pellet or fabricated piece of the
resin as sold or received. The test shall be determined on a 10 mg ± 2 mg specimen of dry polymer. It is
desirable, but not essential, to test two specimens, each being run twice, using both a heating and a cooling
cycle. Melting-peak temperature characteristics are specific for fluoropolymers and help identify a particular
material. The procedures of ASTM D 4591 or ISO 11357-3 supplemented by ASTM D 3418 are appropriate
for this determination. Some fluoropolymers such as PTFE show different melting behaviour the first time a
virgin powder is melted compared to the second and subsequent determinations that have lower melting-peak
temperatures. Both the first and second melting points shall be measured. With PTFE, the second melting
point usually is 327 °C ± 10 °C. The first melting point is normally at least 5 °C higher than the second melting
point.
8.3.3.2 Use differential scanning calorimetry (DSC) as described in ASTM D 3418, ISO 11357-3 and
ASTM D 4591 for this determination. The heating rate shall be 10 °C ± 1 °C per minute. Two peaks during the
initial melting test are observed occasionally. In this case, report the peak temperatures as T for the lower
l
temperature and T for the upper temperature. Report the temperature corresponding to the peak largest in
u
height as the melting point if a single value is required. If a peak temperature is difficult to discern from the
curves — that is, if the peak is rounded rather than pointed — draw straight lines tangentially to the sides of
the peak. Take the temperature corresponding to the point where these lines intersect beyond the peak as the
peak temperature.
8.3.3.3 Other thermal techniques may be used if the user can demonstrate that they are capable of
measuring the melting-peak temperature and give results of equivalent significance.
8.4 Density
Cut two specimens from the moulding or other solid sample and determine the density in accordance with one
of the methods described in ISO 1183-1 or ISO 1183-2. If ISO 1183-2 is used, the liquid system used shall
have a density gradient appropriate for the fluoropolymer being tested (see Table A.1 in ISO 1183-2:2004).
The use of ISO 1183-2 is discouraged, however, due to the carcinogenicity of the liquids used.
8.5 Flammability by oxygen index
Use the procedure in the appropriate part of ISO 4589.
8.6 Particle size and size distribution
8.6.1 General
The wet and dry-sieve procedures of 8.6.2 and 8.6.3 are widely used with PTFE and closely related materials.
The resistance-variation test procedure in 8.6.4 (the Coulter principle) is often used with PVDF, PTFE filler
resin, and fine-cut suspension powders. The light-scattering procedures in 8.6.5 are becoming more widely
used with all the fluoropolymers. The use of automatic or other instruments that have been shown to provide
equivalent results is an acceptable alternative to the detailed procedures given in this part of ISO 12086.
ASTM F 660 (see the Bibliography) provides a standard practice for comparing particle size determined with
different types of automatic particle counter.
ISO 12086-2:2006(E)
8.6.2 Wet-sieve analysis
8.6.2.1 Significance and use
The fabrication of PTFE resins either by moulding or extrusion is affected significantly by particle (or
agglomerate) size and size distribution. The average particle size of PTFE resins is determined by
fractionation of the material with a series of sieves. Fractionation is facilitated by spraying the powder on a
sieve with an organic liquid that wets the powder, breaks up lumps and prevents clogging of the sieve
openings. In published test procedures, the liquid specified is perchloroethylene (see Warning). Use of
isopropyl alcohol or ethyl alcohol instead of perchloroethylene has been reported as giving equivalent results.
WARNING — Perchloroethylene is under investigation by government agencies and industry for its
carcinogenic effects. Protective nitrile or butyl gloves should be worn to prevent skin contact and
adequate ventilation provided to remove the vapours. The supplier's MSDS sheet should be consulted
for full safety measures.
8.6.2.2 Apparatus and materials
8.6.2.2.1 Balance, capable of weighing to ± 0,1 g.
8.6.2.2.2 Standard sieves, 203 mm diameter, conforming to ISO 565. It is suggested that the following
sieve openings (sieve numbers) be used: 1,4 mm (No. 14), 1 mm (No. 18), 710 µm (No. 25), 500 µm (No. 35),
355 µm (No. 45), 250 µm (No. 60) and 180 µm (No. 80). The equivalent sieve numbers, given for information,
are those defined in ASTM E 11 (see the Bibliography). Other sieve configurations may be used provided they
give equivalent results. It is desirable to use a set of sieves that have openings that are uniformly related on a
logarithmic scale.
8.6.2.2.3 Ventilated hood.
8.6.2.2.4 Six tared beakers, capacity 150 ml.
NOTE As an alternative, the sieves may be tared, dried and weighed on a balance to avoid errors that can be
introduced during transfer of fractionated samples to the tared beakers.
8.6.2.2.5 Sieving and solvent-spraying apparatus: A suggested arrangement for an apparatus with
recirculating spray liquid is shown in Figure 2. The apparatus shall be located, and the operations carried out,
in a ventilated hood or adequately ventilated area.
8.6.2.2.6 Spray liquid, 20 litres. See the comments and Warning in 8.6.2.1. Although perchloroethylene
has been the usual choice, an alternative liquid may be used after its applicability and any hazards associated
with its use have been investigated thoroughly and use of the liquid shown to be satisfactory.
8.6.2.3 Procedure
8.6.2.3.1 Weigh out a 10 g test sample for powders with a particle size less than 100 µm or a 50 g test
sample for powders with a larger particle size. Adjust the rate of flow of the spray liquid to 6 l/min ± 0,5 I/min.
8.6.2.3.2 Place the weighed resin on the top sieve and spray it with the organic spray liquid for
1 min ± 0,2 min. The shower head shall be about level with the top of the sieve and be moved in a circular
fashion. Take care to break up all of the lumps and to wash the material from the sides of the sieve.
8.6.2.3.3 Remove the top sieve and place it in the hood to dry until all of the sieves are ready for oven
drying as described in 8.6.2.3.4.
8.6.2.3.4 Repeat the procedure specified in 8.6.2.3.2 and 8.6.2.3.3 until all the sieves have been sprayed.
Dry the sieves in a ventilated oven at a temperature of at least 90 °C up to a maximum of 130 °C for at least
15 min up to a maximum of 30 min and then cool to room temperature. Remove the resin from each sieve by
tapping on a piece of paper as shown in the insert in Figure 2. Pour each fraction into a tared beaker and
weigh to ± 0,1 g.
8.6.2.3.5 Record the mass of resin on each sieve.
12 © ISO 2006 – All rights reserved

ISO 12086-2:2006(E)
8.6.2.3.6 Clean the sieve by inverting it over filter paper and spraying with spray liquid. Take care to
prevent the resin from getting into the spray liquid.
Dimensions in millimetres
Key
1 portable all-purpose shower head 10 clamp to adjust flow rate
2 stacked sieves 11 all-plastic tubing, int. diam. 13 mm
3 grating 12 sieve
4 support 13 sheet of paper
5 13 mm diam. drain 14 table top
6 20 l carboy
7 perchloroethylene (or alternative solvent)
8 13 mm ext. diam. glass tubing
9 centrifugal pump capable of delivering 6 l/min at shower head
a
Use a fine sieve at the bottom of the stack to prevent material from going into the reservoir. A standard 38 µm sieve
has been found to be convenient.
Figure 2 — Apparatus for wet-sieve analysis
ISO 12086-2:2006(E)
8.6.2.4 Expression of results
8.6.2.4.1 Calculate the net percentage of resin on each sieve as follows:
Net percentage of resin on sieve Y = F × m
where
F = 2 for a 50 g test sample;
F = 10 for 10 g test sample;
m is the mass, in grams, of resin on sieve Y.
8.6.2.4.2 Calculate the cumulative percentage of resin on each sieve as follows:
Cumulative percentage of resin on sieve Y = sum of net percentage on sieve Y and on sieves having
sizes greater (i.e. numbers smaller) than sieve Y
EXAMPLE Cumulative percentage on 500 µm (No. 35) sieve equals net percentage on 1,4 mm (No. 14) plus net
percentage on 1,0 mm (No. 18) plus net percentage on 710 µm (No. 25) plus net percentage on 500 µm (No. 35) sieve.
8.6.2.4.3 Plot the cumulative percentage versus the sieve opening size (or sieve number) on log/log paper
as shown in the sample plot in Figure 3. The sieve numbers and sieve opening sizes in micrometres are
indicated below the figure. Draw the best straight line through the points and read the particle size at the 50 %
cumulative percentage point (d50). Take this value as the average particle size. It is permissible to carry out
the calculation of d50 by use of computer programmes that provide “best-fit” analysis using linear regression
procedures involving a log-normal model.
8.6.2.5 Precision and bias
Because the resin particles have complex shapes, and because on each sieve there is a distribution of
particle sizes, the values for particle size and particle-size distribution obtained will only be relative numbers.
The 95 % confidence limits based on a limited series of tests are ± 2,8 % for the average particle size. Since
there is no accepted reference material suitable for determining the bias for this test procedure, no statement
on bias can be made.
8.6.3 Dry-sieve analysis
8.6.3.1 Significance and use
The fabrication of PTFE resins may be affected signific
...
