EN 15317:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Non-destructive testing - Ultrasonic testing - Characterization and verification of ultrasonic thickness measuring equipmentEssais non destructifs - Contrôle ultrasonore - Caractérisation et vérification des appareils de mesure de l'épaisseur par ultrasonsZerstörungsfreie Prüfung - Ultraschallprüfung - Charakterisierung und Verifizierung der Ultraschall-Prüfausrüstung zur DickenmessungTa slovenski standard je istoveten z:EN 15317:2007SIST EN 15317:2007en,fr,de19.100Neporušitveno preskušanjeNon-destructive testingICS:SLOVENSKI
STANDARDSIST EN 15317:200701-september-2007

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15317February 2007ICS 19.100 English VersionNon-destructive testing - Ultrasonic testing - Characterizationand verification of ultrasonic thickness measuring equipmentEssais non destructifs - Contrôle ultrasonore -Caractérisation et vérification de l'appareillage de contrôlepar ultrasons pour le mesurage de l'épaisseurZerstörungsfreie Prüfung - Ultraschallprüfung -Charakterisierung und Verifizierung der Ultraschall-Prüfausrüstung zur DickenmessungThis European Standard was approved by CEN on 13 January 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15317:2007: E

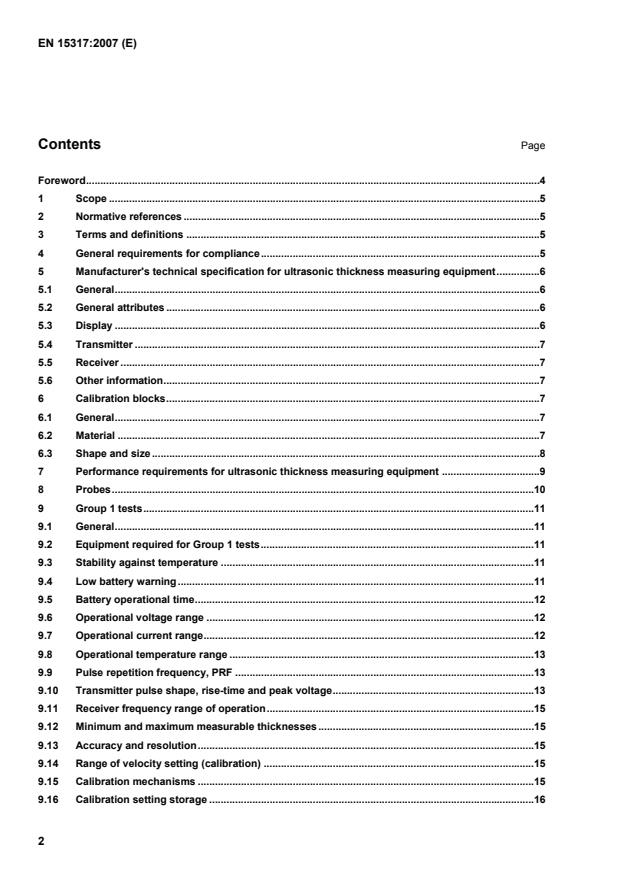

2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1330-4:2000, Non destructive testing – Terminology – Part 4 : Terms used in ultrasonic testing. EN 10025-2, Hot rolled products of structural steels - Part 2 : Technical delivery conditions for non-alloy structural steels EN 12668-2, Non-destructive testing – Characterization and verification of ultrasonic examination equipment – Part 2: Probes. 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 1330-4:2000 apply. 4 General requirements for compliance Ultrasonic thickness measuring equipment complies with this standard if it satisfies all the following conditions:
a) ultrasonic instrument and probe comply with the technical requirements of this standard; b) either a declaration of conformity, issued by an organisation certified in accordance with EN ISO 9001; or a certificate issued by an organisation accredited according to EN ISO/IEC 17050-1 and EN ISO/IEC 17050-2, or a test report issued by an organisation performing in-house calibration; c) ultrasonic instrument and probe are clearly marked to identify the manufacturer, type and series, and carries a unique serial number; d) user instruction manual for the particular type and series of the ultrasonic equipment is available; e) manufacturer's technical specification for the appropriate type and series of ultrasonic equipment which defines the performance criteria in accordance with this standard is available. NOTE The manufacturer's technical specification does not in itself constitute the certificate of measured values required in b).

5.2 General attributes The following shall be detailed:
a) size; b) weight (at an operational stage); c) type(s) of power supply; d) type(s) of probe sockets; e) battery operational time (as new, at maximum power consumption with a specified duty cycle); f) temperature and voltage (mains and/or battery) ranges, in which operation complies with the technical specification. If a warm-up period is necessary, the duration of this shall be stated; g) form of indication given when a low battery voltage takes the ultrasonic instrument performance outside of specification; h) pulse repetition frequencies (PRFs) (switched positions and/or variable ranges); i) if available, monitor outputs to indicate when the measurement values fall outside a set tolerance; j) if equipment can measure through coatings; k) minimum measurable and maximum measurable thicknesses on a defined material; NOTE A minimum measurable thickness of zero cannot be verified and therefore not specified. l) accuracy and resolution shall be stated in mm. 5.3 Display The following shall be detailed: a) type of display (alphanumeric or graphical and also whether LED, LCD or CRT); b) dimension of alphanumeric display; c) dimension of graphical display.

a) characteristics of gain control if user selected; b) frequency range of operation. 5.6 Other information In addition to the information given in 5.2 to 5.5, details should be supplied on the principles of: a) data output and storage facilities (memory capacity); b) calibration setting storage; c) calibration mechanisms; d) display and recall facilities; e) display response time; f) number of pixels to display the waveform; g) printer output. Where applicable, these details should also include sampling rates used, effect of pulse repetition frequency or display range on the sampling rate and response time. In addition, the principles of any algorithm used to process data for display should be described. 6 Calibration blocks 6.1 General In order to verify the ultrasonic thickness measuring equipment, it is necessary to take measurements on defined calibration blocks. These blocks are specified in 6.2 and 6.3. 6.2 Material Blocks shall be manufactured from steel grade S355JO specified in EN 10025-2. Blocks shall be rough-machined before heat treatment which shall consist of:

The velocity for longitudinal waves in the calibration block material shall be (5 920 ± 30) ms-1. The surfaces used for measurement shall be machined to an Ra value not greater than 0,8 µm. Prior to final machining, the block shall be proved free from internal discontinuities.
It is permissible to chromium plate or electroless nickel plate the surfaces of the block to a maximum of 0,5 % of the block thickness. NOTE If chromium plating is used, care should be taken to use a thickness of plating that will avoid separation.
6.3 Shape and size 6.3.1 Accuracy blocks These calibration blocks shall be cylinders with diameter, D, and length, L, and as shown in Table 1. Table 1 – Size of calibration blocks Block Diameter D Length L A ≥ 0,5 L Minimum specified thickness B ≥ 0,5 L LA+ 0,25 (LE – LA) C ≥ 0,5 L LA + 0,50 (LE – LA) D ≥ 0,5 L LA + 0,75 (LE – LA) E ≥ 0,5 L Maximum specified thickness
where LA is the height of block A; and LE is the height of block E. NOTE If LA < 0,1 LE
the subtraction of LA may be omitted. D shall not be < 3 x the probe face diagonal dimension. The values 0,25, 0,5 and 0,75 may be varied by up to 10 % of the value in question. The overall height of the block shall be ≤ 3 (10-4L) across the measurement faces. The fixed dimension for L shall be measured at the centre of the block to an accuracy of 10-4 L.
The blocks shall be permanently, circumferentially marked with the actual length L, e.g. L = 50,333 mm, and a unique identity (serial number).

Key w step width r step height L length of block C (see Table 1) Figure 1 – Resolution block Where w shall be ≥ 3 x, the diagonal dimension of the probe face and r shall be ≤ to the specified resolution. The block shall provide a minimum of five steps. 7 Performance requirements for ultrasonic thickness measuring equipment To comply with
...
