TECHNICAL SPECIFICATION
CEN/TS 14821-5
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
May 2003
ICS 35.240.60
English version
Traffic and Travel Information (TTI) - TTI messages via cellular
networks - Part 5: Internal services
This Technical Specification (CEN/TS) was approved by CEN on 10 May 2001 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available. It
is permissible to keep conflicting national standards in force (in parallel to the CEN/TS) until the final decision about the possible
conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2003 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 14821-5:2003 E
worldwide for CEN national Members.

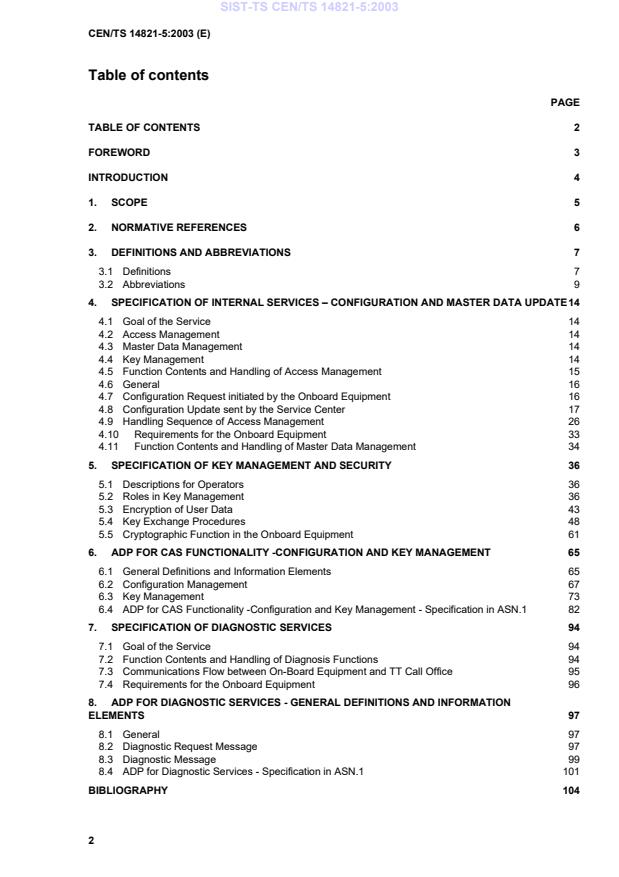

Table of contents
PAGE
TABLE OF CONTENTS 2
FOREWORD 3
INTRODUCTION 4
1. SCOPE 5
2. NORMATIVE REFERENCES 6
3. DEFINITIONS AND ABBREVIATIONS 7
3.1 Definitions 7
3.2 Abbreviations 9
4. SPECIFICATION OF INTERNAL SERVICES – CONFIGURATION AND MASTER DATA UPDATE14
4.1 Goal of the Service 14
4.2 Access Management 14
4.3 Master Data Management 14
4.4 Key Management 14
4.5 Function Contents and Handling of Access Management 15
4.6 General 16
4.7 Configuration Request initiated by the Onboard Equipment 16
4.8 Configuration Update sent by the Service Center 17
4.9 Handling Sequence of Access Management 26
4.10 Requirements for the Onboard Equipment 33
4.11 Function Contents and Handling of Master Data Management 34
5. SPECIFICATION OF KEY MANAGEMENT AND SECURITY 36
5.1 Descriptions for Operators 36
5.2 Roles in Key Management 36
5.3 Encryption of User Data 43
5.4 Key Exchange Procedures 48
5.5 Cryptographic Function in the Onboard Equipment 61
6. ADP FOR CAS FUNCTIONALITY -CONFIGURATION AND KEY MANAGEMENT 65
6.1 General Definitions and Information Elements 65
6.2 Configuration Management 67
6.3 Key Management 73
6.4 ADP for CAS Functionality -Configuration and Key Management - Specification in ASN.1 82
7. SPECIFICATION OF DIAGNOSTIC SERVICES 94
7.1 Goal of the Service 94
7.2 Function Contents and Handling of Diagnosis Functions 94
7.3 Communications Flow between On-Board Equipment and TT Call Office 95
7.4 Requirements for the Onboard Equipment 96
8. ADP FOR DIAGNOSTIC SERVICES - GENERAL DEFINITIONS AND INFORMATION
ELEMENTS 97
8.1 General 97
8.2 Diagnostic Request Message 97
8.3 Diagnostic Message 99
8.4 ADP for Diagnostic Services - Specification in ASN.1 101
BIBLIOGRAPHY 104
Foreword
This document (CEN/TS 14821-5:2003) has been prepared by Technical Committee CEN/TC 278
"Road transport and traffic telematics", the secretariat of which is held by NEN, in collaboration with

Technical Committee ISO/TC 204 "Transport information and control systems".
This technical specification was prepared by Working Group 7 of CEN TC278. In the field of Traffic and
Traveller Information, the innovative rate is high, with many research and development projects under
way in many countries, and there is a need to establish prospective standards which allow
manufacturers to introduce competitive products to the market in the knowledge that they can
accommodate the future issues of the standard(s) without fundamental change to equipment.
In accordance with the CEN/CENELEC “Internal Regulations Part 2: Common Rules for standards work,
04-1996“ the original copyright holders on the complete set of documents are Mannesmann Autocom
GmbH and TEGARON Telematics GmbH. The original copyright holders hereby grant CEN all
necessary rights with regard to said original copyrights to execute the standardisation process as
described below.
No known national technical specifications (identical or conflicting) exist on this subject.
CEN/TS 14821 consists of eight parts; one part describing the framework and seven parts providing
detailed specifications of all components, protocols and services that are within the scope of CEN/TS
14821.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to announce this CEN Technical Specification: Austria, Belgium, Czech
Republic, Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg,
Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and the United Kingdom.
Introduction
Traffic and Traveller Information (TTI) may be disseminated through a number of services or means of
communication, covering static displays, portable terminals and in-vehicle equipment.
For all such services, the data to be disseminated, and the message structure involved in the various
interfaces, require clear definition and standards formats in order to allow competitive products to
operate with any received data.
This technical specification focuses on an application data specification whereby data is produced at a
central location and is disseminated via a cellular radio network. It addresses the data specifications for
both downlink and uplink existing between a central location and randomly located vehicles. It enables
messages to be exchanged between different systems and service providers adopting a variety of
applications specifications.
Other techncial specifications are being produced by the CEN TC278 Working Group 4 to cover TTI
dissemination via other means or services. This set of specifications is named GATS (Global Automotive
Telematics Standard). GATS provides the modular framework for implementing such traffic telematics
services on an open technology platform and is network - independent. In many details definitions are
necessary to ensure interoperability. Therefore, those detailed definitions are given in a network-specific
part (CEN/TS 14821-8). With the development of future mobile communication systems towards UMTS /
IMT2000 the bottleneck of narrow-band data communication might fade. Due to its modular structure,
the GATS framework and applications are prepared for that due to its network-independence. The same
holds for emerging technologies for positioning which today is almost exclusively based on GPS.
Other relevant standard developments are, independent from telematics, the application-independent
Wireless Application Protocol (WAP), enabling mobile access to the Internet. It is understood that these
emerging technologies might fit into the framework of telematics applications in future WAP-versions.
For the time being, GATS already today independently from WAP enables access to telematics services.
Utilisation of GATS on a WAP protocol stack and identifying necessary adaptation of WAP specifications
(if any) is currently under investigation of the appropriate groups within WAP-Forum and GATS-Forum.
1. Scope
This CEN/TS defines the specific interfaces and functionality of traffic telematics (TT) services based on
the use of cellular networks. Device manufacturers are enabled to develop terminal equipment
compatible to services based on this technical specification. This will allow for interoperability of different
terminal equipment and service providers which allows competition between service providers and
terminal manufacturers. Furthermore it sets the scene for international availability of these services.
This technical specification specifies
• TT-specific interfaces between terminal and service centre. This especially incorporates the

message sets of the application data protocols and the service-independent communication handling
(including conditional access and transport protocols).
• Functionality, procedures and requirements of basic terminal components as well as their interaction

with the service centre. This especially comprises conditional access and security mechanisms.
• Service Specifications, which are essential to ensure consistent behaviour of terminal and service
centre.
The services incorporated within this issue comprise:
• breakdown and emergency services
• interactive traffic information services

• broadcast traffic information services

• navigation services (route assistance, route advice, homing)
• operator services
• general information services
• floating car data collection

It is envisaged that future research and development will lead to improvements on the services listed
above as well as to the creation of new services. Nevertheless this technical specification provides the
framework for seamless integration of new features and services into the existing architecture.
2. Normative references
This Technical Specification incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any of
these publications apply to this Technical Specification only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
ISO/IEC 9797-1 Information technology -- Security techniques -- Message Authentication
Codes (MACs) -- Part 1: Mechanisms using a block cipher
ISO/IEC 9797-2:2002 Information technology -- Security techniques -- Message Authentication
Codes (MACs) -- Part 2: Mechanisms using a dedicated hash-function
ISO/IEC 10116 Information technology – Security techniques - Modes of operation for an n-
bit block cipher
ISO/IEC 10118-1:2000 Information technology - Security techniques – Hash-functions – Part 1:
General
ISO/IEC 10118-2 Information technology – Security techniques – Hash-functions – Part 2:
Hash-functions using an n-bit block cipher
ISO 11568-3: Banking - Key management (retail) - Part 3: Key life cycle for symmetric
ciphers
PKCS#1: RSA Encryption Standard, RSA Labs Technical Notes, Version 1.5, Nov. 1993
CCITT, Annex A to CCITT Blue Book Rec. E212
3. Definitions and abbreviations
3.1 Definitions
For the purposes of this CEN/TS, the following terms and definitions apply:
3.1.1 Attribute (of a Traffic Information Message)
A Traffic Information Message is made up of separate parts that can be called attributes. This includes,
for example, an item of information and a length of validity.
3.1.2 Authorisation
Reciprocal proof that the identity provided by the communications partner is valid
3.1.3 Broadcast Service
Data service within a cellular wireless network that allows for mono-directional dissemination of data
from a service centre to multiple users in the area of signal reception
3.1.4 Bypass Description
Representation of a Bypass, consisting of a Bypass Hint and/or a Bypass Route.
3.1.5 Bypass Hint
Representation of a hint for a Bypass
3.1.6 Bypass Link
Prominent waypoints on a Bypass Route
3.1.7 Bypass Route
Representation of the route for a Bypass
3.1.8 Cell Broadcast
Broadcast service of the GSM network
3.1.9 Data telegram
Digital message exchanged between two systems
3.1.10 Delivery Notification
Network acknowledgement for successful/ unsuccessful delivery of a message to the mobile device
3.1.11 Functional Road Class
A classification based on the importance of the road element in the connectivity of the total road network
3.1.12 Functional Road Class 0
Motorways
3.1.13 Functional Road Class 1
All non-Motorways that are part of a connection used for nation wide traffic and transport
3.1.14 Geocode
Geocodes are unique identifiers unmistakably defining important points on road networks. Geocodes
can be derived from / converted into WGS84 co-ordinates by the algorithm described in CEN/TS 14821-
3.
3.1.15 Hardware service agents
Partner companies of the traffic telematics service providers who are authorised to install onboard
equipment into vehicles and to maintain it
3.1.16 Homing
Simple form of guidance to destination, in which the direction and
straight-line distance of the destination are indicated
3.1.17 Information Element
Information unit of a message
3.1.18 Intersection
Junction of two or more roads
3.1.19 Length of a Speech Report
Length of a Speech Report, including pauses, in tenths of a second
3.1.20 Mobile Originated
Data telegram sent from the onboard equipment to the Service Centre.
3.1.21 Mobile Terminated
Data telegram sent by the Service Centre to the onboard equipment.
3.1.22 Onboard equipment
A system, generally mobile, interacting with the service centre to handle traffic telematics services
3.1.23 Road Junction
Intersection of two or more roads
3.1.24 Route description
Description of a route showing the geometry of street intersections, manoeuvre instructions, street and
place names, and geographical co-ordinates
3.1.25 Service centre
System produced by the traffic telematics operators / service providers to handle traffic telematics
services
3.1.26 Short Message Service
Packet-based form of data transfer within the GSM network
3.1.27 Speech connection
Communications channel between two systems for the bi-directional transmission of speech
3.1.28 Speech Report
Traffic Information Report transmitted by a speech system
3.1.29 Terminal Device
Generally mobile system interacting with the service centre for implementation of telematics services
3.1.30 TINFO
Traffic Information Report
3.1.31 TINFO Version
Unique identification of a Traffic Message, consisting of a number and a time stamp
3.1.32 Traffic Data
Data for qualification of Traffic Events. This includes:
• Values: speed, traffic flow, traffic density

• Places: position, place designation
• Facts: description of situation
3.1.33 Traffic Event
An occurrence on a road or in an area that is worthy of reporting, such as a traffic jam, wrong-way driver,
or fog.
3.1.34 Traffic Information
Technical representation of a Traffic Situation within the onboard equipment, accomplished by a number
of Traffic Information Reports.
This Traffic Information can be displayed to the customer via suitable terminals.
3.1.35 Traffic Information Report
Technical representation of a Traffic Event produced by processing traffic data.
Each Traffic Reports uniquely identified by a number, the TINFO ID, a time stamp, the TINFO version.
Note: If the Traffic Event changes, the time stamp changes, but the TINFO ID number does not.
3.1.36 Traffic Situation
The total number of all Traffic Events taking place that deserve reporting within an area. The Traffic
Situation is always linked to an area. Thus, for example, an areas could be a conurbation or a
geometrically demarcated area; an example is the radius around a point.
3.1.37 Voice connection
Circuit-switched channel between two systems for bi-directional voice transmission
3.1.38 Waypoint
Significant points on the route
3.2 Abbreviations
For the purposes of this CEN/TS, the following abbreviations apply:
3.2.1 % ott
percent of the time
3.2.2 ADP
Application Data Protocol, i.e. a message set for a telematics service
3.2.3 AM
Acknowledge Message
3.2.4 ASN.1
Abstract Syntax Notation
3.2.5 BC
Broadcast
3.2.6 BCS
Broadcast Service
3.2.7 CA
Conditional Access
3.2.8 CAS
Conditional Access and Security
3.2.9 CB
Cellular Broadcast
3.2.10 CBC
Cipher Block Chaining
3.2.11 CLI
Calling Line Identification
3.2.12 CRM
Calling Request Message
3.2.13 CSD
Circuit Switched Data
3.2.14 DES
Data Encryption Standard: symmetrical encryption procedure
3.2.15 DRM
Digital Road Map
3.2.16 DSC
Data Service Centre: depending on the mobile communication network
3.2.17 ELB
Extended Location Block
3.2.18 FCD
Floating Car Data
3.2.19 FCDGM
FCD General Message
3.2.20 FCDPM
FCD Parameter Message
3.2.21 FCDNSM
FCD Notification Set-up Message
3.2.22 FCDRM
FCD Revoke Message
3.2.23 FCDVDSUM
FCD Virtual Detection Site Update Message
3.2.24 GATS
Global Automotive Telematics Standard
3.2.25 GEM
General Error Message
3.2.26 GPS
Global Positioning System NAVSTAR GPS
3.2.27 GSM
Global System for Mobile Communication
3.2.28 IE
Information Element
3.2.29 ICV
Initial Chaining Value
3.2.30 L_max
one
Max. length of transferable data in data transaction
3.2.31 MAC
Message Authentication Code
3.2.32 MNA
Mobile Network Address
3.2.33 MF
Mandatory Fixed format
3.2.34 MO
Mobile Originated Message
3.2.35 MT
Mobile Terminated Message
3.2.36 MV
Mandatory Variable format
3.2.37 N_min
Minimum number of ELB waypoints
3.2.38 OBU
Onboard Unit, synonymously used telematics device, telematics terminal
3.2.39 OF
Optional Fixed format
3.2.40 OV
Optional Variable format
3.2.41 PDU
Protocol Data Unit
3.2.42 PFA
Probability of false alarm (i.e. estimated error is too large)
3.2.43 PMD
Probability of missed detection (i.e. estimated error is too small)
3.2.44 RSA
Asymmetrical encryption procedure by Rivest, Shamir and Adleman
3.2.45 SAE
Society of Automotive Engineers, Inc.
3.2.46 SMS
Short Message Service
3.2.47 SMSC
SMS Centre
3.2.48 SV
Space Vehicle
3.2.49 TEG
Telematics Expert Group – Group within the WAP-Forum Ltd.
3.2.50 TINFO
Traffic Information Report
3.2.51 TOC
Telematics Operator Code
3.2.52 TRP
Transport Protocol
3.2.53 TT
Traffic telematics
3.2.54 TTI
Traffic and Traveller Information
3.2.55 TTFF
Time to First Fix
3.2.56 UTC
Universal Time Co-ordinated
3.2.57 VDS
Virtual Detection Site
3.2.58 vel, V
Velocity
3.2.59 VIN
Vehicle Identification Number
3.2.60 WAP
Wireless Application Protocol
3.2.61 WGS84
World Geodetic System
4. Specification of internal services – configuration and master
data update
4.1 Goal of the Service
The task of the internal services is
• the administration and diagnosis of functions and parameters for all services,
• the administration of parameters specific to a particular service, and also
• to check onboard equipment basic functionality.

The separate internal services can be summarised in the areas of access management (4.2), in master
data management (4.3), and diagnosis (see 8) for onboard equipment basic functionality. The
description of the cryptographic procedures required to meet the security requirements and the
associated management of cryptographic keys is done within the framework of the Service „Specification
of Key Management and Security“ (see 5), a short overview over this topic and its interaction with the
internal services is given in 4.4.
4.2 Access Management
The following belong to the functions and parameters covering all services within the framework of
access management:
• Management of communication addresses (Short Message and call addresses),
• Conditional Access management
The concept of Conditional Access (CA) means access control management for telematics services.
It primarily includes activation/deactivation of individual services or service groups and the
assignment of cryptographic methods and keys to the services.
• Service-specific parameter management,
• Management of service language,

• Management of service availability in the case of roaming.
4.3 Master Data Management
This internal service includes the updating of vehicle-related master data for items that were not known
at the time of production of the onboard equipment, or which can change during the lifetime of the
onboard equipment.
4.4 Key Management
The „Specification of Key Management and Security“ (see 5) covers the security mechanisms for the
traffic telematics services between the onboard equipment and the service center. This therefore
touches on the application-independent aspects of the use of cryptographic procedures in carrying out
the services at the transport level and CAS layer, the associated key allocation is described within the
application Key Management (description and ADP). The application-specific parameterization of key
use and the management of service-specific authorization profiles can be found in this specification for
Internal Services.
The following function areas are looked at in the „Specification of Key Management and Security“:
• Application of cryptographic methods to provide the security of messages, particularly with respect to:

• Message confidentiality
• Message integrity
• Sender identity / authenticity
• Retaining sender anonymity
• Non-Repudiation
For the individual services, differentiated encryption of the application-dependent data for the individual
services is used for the various interactive point-to-point and broadcast data messages services.
The security concept is based on the following properties of the onboard equipment:
The keys required to encode or decode the ADP contents are made accessible to the onboard
equipment via point to point data message requests within the framework of the „Specifications of Key
Management and Security“ (Key Update) in encrypted form.
The keys are stored in a secured environment in the onboard equipment (1st generation without chip
card), or in an encryption module (2nd generation with chip card).
Each key can be allocated to one or more applications for use so that each operator can decide
independently if he wishes to secure various services with a single unified key or multiple different keys.
4.5 Function Contents and Handling of Access Management
Access management makes available to the onboard equipment all the necessary information within the
onboard equipment to process the services properly.
As a rule access management is initiated by the onboard equipment by an request (Configuration
Request Message) and acknowledged by an update message (Configuration Update Message) from the
service center.
In addition the service center may send Configuration Update Messages without any initiation from the
onboard equipment. These messages may be transmitted individually via point-to-point messages or
non-individually via broadcast messages.
The internal service access management (Configuration Update) includes the address-related,
authorization-related and also parameter-related updates (Address Update, Access Update and
Parameter Update respectively) by the onboard equipment via the data communications media.
Additional information transmitted refer to the service availability in case of roaming (using telematics
services within other countries and/or networks). Figure 1 gives an overview over the configuration
information sent by the service center to the onboard equipment. The individual elements and the
context of their application are given in the following sections.
The configuration elements shall be stored in the onboard equipment (with equipment of the first
generation without chip card) or in the encryption module (in the case of equipment of the second
generation with chip card), so that they can be changed only by the traffic telematics service operator.
Individual situations and the data contents that are consequently transmitted are explained in 4.9.2 to
4.9.7. The following describes the contents of the messages.
The access management specified in this and the following parts of CEN/TS 14821 enable telematics
service roaming and interoperability, however, it is not within the scope of this GATS-specifications to
define the link between the service operators itself.
4.6 General
The service described below is based on the interface specification
ADP-Version = 2
and shall be signaled at the transport layer as:
Application ID = „Configuration Update“
The following parameter timers are relevant for the proceess control of Access Management Services
itself. The depositing and updating of the timers in the terminal device will be handled according to the
following specification as well as the initialization process defined in this CEN/TS. The usage of the
different timers is explained within the context of the communication procedures.
Table 4-1 : Parameters
Para-
Identifier Description Unit Range Scale Default
meter ID
1 KM_Ctrl Control parameter for Key - 0-65535 1 0
Management, not used in this
version of GATS
2 IS_Ctrl Control parameter for Access-1 0
Management, not used in this
version of GATS
3 IS_Twait Timer between a configuration s 3600 1 240
request message and the
configuration update message
All parameter will be transmitted from the service center to the onboard unit as absolute values, without
any scaling or offset. In the table the given scaling factors, min. and max. values might be used in the
onboard unit for compressed data storage, since the parameter update will be carried out with fixed IE-
lengths for each parameter.
4.7 Configuration Request initiated by the Onboard Equipment
The onboard equipment’s request for parameters is typically made through the Configuration Request
Message. The following information shall be included:
• Identification of the country and mobile network the Configuration Update is requested for.
• The desired type of information (addresses and/or CA information and/or parameters).

• Identification of all applications supported by the terminal, including the ADP Version and the most
recent address and parameter update states of the onboard equipment, marked on the basis of the
update version number. If currently no address / parameter updates are stored in the terminal the
corresponding version number shall be set to zero.
Note: In the case of signaling parameter version number 0 for any application the terminal shall apply the
default parameter settings defined by the services specification of consideration.
If, in case of a manually triggered Configuration Request, the terminal does not receive a Configuration
Update within the waiting period IS_TWait, the request has to be cancelled. The parameter IS_TWait
itself can be set by a Configuration Update.
4.8 Configuration Update sent by the Service Center

4.8.1 General
The general structure of the Configuration Update Message sent by the service center via point-to-point
or broadcast data messages is given in figure 1. It contains the following information elements:
• a variable number of Configuration Blocks (0.255) and
• Each Configuration Block may contain any combination of the following information elements, which
can be used by the service center according to the situation:
• Application Flag: to flag the application-related validity of the following information, optionally
service-related or not service-specific.
• Address Flag: address information included / not included. Transmitted addresses are always

related to applications, i.e. the address flag can only be set in combination with the application
flag.
• Access Flag: authorization information included / not included
• Parameter Flag: parameters included / not included. Transmitted parameters are always related
to applications, i.e. the parameter flag can only be set in combination with the application flag.
The information containers hold the following according to the setting of the above-mentioned flags:
• If the Application Flag is set to service-specific, then the Application Container follows with a number
of services for which the following information has validity. It includes for each application the
Application ID and additional information on the usability of these services abroad.
• If the Address Flag has been set, then the Address Container follows with a number of Address

Blocks which include communication addresses and related control information.
• If the Access Flag has been set, then the Access Container follows with authorization and cipher

control information.
• If the Parameter Flag has been set, then the Parameter Container follows with service-specific
parameters.
Note: optionally a free text for display within the terminal after sucessfull processing of the message.
Each Configuration Update Message shall only contain one text element. If more than one is included
the last one shall be displayed with the highest priority.
The terminal shall only accept Configuration Update Messages sent by the domestic (master) operator

as defined within the initial activation procedure (Key Control Message with Admin_ Command =
Assign_Operator or Assign_and_Load_Keys). If the terminal receives a Configuration Update Message
which changes any of the current service permission (Access Update) or service availability (Address
Update) it should actively give a notification to the user (beep, display a popup or so on). A service shall
only be marked as available if it is allowed by Access Update and all types of communication addresses
necessary for this service are loaded.
If the terminal receives a General Error Message instead of the Configuration Update Message expected
(using the same transport context as of the Configuration Request Message) or if the configuration
update procedure is terminated without receiving any response (time out) this may cause services to be
not available. In the first case the terminal should display the content of the General Error Message, in
the second case it should actively give a notification to the user, too.
Configuration Update Message
Configuration Blocks (0.255)
Application Container
Country Container
Address Container
Access Container
Parameter Container
Free text
Figure 4-1: General structure of a configuration update message
4.8.2 Application-related and country-related Update validity
The access management for the various services can be identical. Thus an update is described for the
service-specific areas of validity. In order to make it possible to use this abroad as well, the relevant
neighbouring countries in which a service or a group of services are offered are named as well.
The application elements given in an update message are listed as follows:
• Number of applications for which the following message is valid

• for each Application:
• Application ID
• Number of adjacent countries to the location in which TT roaming is possible with the home-

based TT operator for the service in question
• Mobile Country Code / Mobile Network Code

As a rule the terminal shall provide separate configuration table entries (address, access, parameter,
language) for all applications supported. Deviations may be defined within the services specification of
consideration, e.g. two or more Application IDs may use the same parameter data set and address data
set but different access data sets if specified.
4.8.3 Address Management
All the services available within the traffic telematics onboard equipment shall be allocated to addresses
by which the communications unit can make queries from the onboard equipment to the service provider
or receive messages from the service provider. Over the course of time, the addresses established at
the beginning of the introduction of the service may lose their validity. The reasons for this can be, for
example, changing structures by the mobile network operator, by the fixed network connections or by
the service vendor. It is not possible to make a prediction about any changes to be expected in the
addresses.
It cannot be assumed in the case of Mobile Originated queries from the onboard equipment that the
recipient address is identical to the sender address in the case of Mobile Terminated replies from the
service center. Plausibility checks are made for this reason, and are entered on the base of the address
masks for the relevant communications network.
In this case it is necessary that the communications interface of the onboard equipment compares to the
sender address in the case of MT messages with the relevant addresses. This check is done specifically
to the particular service, this concerns the service Configuration Update itself as well as the services Key
Management. Upon receipt of an MT-Message both the primary address as well as the backup address
of the corresponding address type (Mobile Network Address, Fixed Network Destination or Call) have to
be checked. Hence, an MT-Message has to be accepted if either the primary or the backup address
fulfils the check criterion. This is independent of the address used for a preceding MO-Message.
Furthermore, in the case of TT Roaming, an MT Message has to be accepted if either the domestic or
foreign address fulfils the check criterion.
The Configuration Update service provides mechanisms which allow the service provider to initiate
address changes without requiring the customer to take any action on the onboard equipment. These
addresses are updated by the Configuration Update service and stored in the onboard equipment in
non-volatile memory.
The Configuration Update service also provides additional options to make changes of address for
service providers outside one's own country. This will make it possible to make use of traffic telematics
services not only within one's own country but also in other countries.
4.8.3.1 Address Types
Multiple addresses with various meanings for service handling are required both in terms of the network
and the services offered. Thus when sending data telegrams, alternatively a Mobile Network Address is
required in connection with a Large Account (destination) address or only an Mobile Network Address is
required when using a virtual Mobile Network Address. In the case of operator-supported services a call
number is required in addition. Backup addresses are required for some services which are to be used
in the case of particular communication errors. The following address types are therefore defined for use
in the onboard equipment:
Table 4-2: Address types
MNA
MNA- Destination Destination- Call Call Backup
Backup Backup
Meaning MNA or MNA or e.g. Large e.g. Large Voice Voice
virtual MNA virtual Account / X.25 Account / X.25
MNA
Note: In case of emergency services the terminal shall use the standardized emergency number as a
hard-coded fall back number in those case where neither Call Address nor the Call Backup Address
could be used for a successful setup of a voice connection.
Addresses will be transmitted to the terminal according to data type specification „Address Coding“. This
information has to be interpreted as follows:
• If the information element „Validity range of Address“ is set to „unknown“, the following address in

the information element „address“ is to be interpreted transparently, i.e. it is to be used for
communication without any prefixes. National addresses like ”0802 1234567” as well as international
addresses like ”+448021234567” can be used. Hereby, in the case of roaming the terminal cannot
check if an address can correctly be used in the current country/net.
• If the information element „Validity range of Address“ is set to „international address“, the following

address in the information element „address“ is to be prefixed by „+“. A typical case would be an
international address like ”44821234567”, where the terminal has to prefix a „+“. International
addresses can be used in the domestic as well as in a foreign country.
• If the information element „Validity range of Address“ is set to „national address“, the following
address in the information element „address“ is to be interpreted transparently, i.e. it is to be used
for communication without any prefixes. A typical case would be a national address like
”0821234567”. The international address format ”+44821234567” may be used as well. National
addresses can only be used in their country of origin, i.e. the Mobile Country Code and Mobile
Network Code as indicated by the module (if available) have to be in accordance with the
corresponding values in the address block.
Special conversions of address formats, if required by specific mobile phones at their interface to the
telematics onboard equipment, have to be provided by the terminal and are outside the scope of this
specification.
4.8.3.2 Comparison Masks for MO and MT Addresses

Since it cannot be assumed that the sender address in the case of mobile terminated messages from the
service center is identical to the receiver address in the case of mobile originated messages, masks are
used to permit a comparison between these addresses. In this way it is possible to ensure that MT
replies are only processed by the onboard equipment if they come from the correct service center, and
messages from other origin are ignored by the onboard equipment.
The masks depend on the numbering plan of the network operator, so their parameters depend on the
address type.
Table 4-3: Comparison masks for MO and MT addresses
Address type reference
MNA MNA Dest. Dest. Call Call
Backup Backup Ref. Backup
Mask for MT Aa’B b’ C c’
messages
Various masks can be used (options a, b, c) to check the liability of an MT message by comparison with
the sender address stored in the onboard equipment for MO messages for the various address types
(MNA, destination, call or their backups):
4 7
Example: MO Mobile Network Address: ”+4482123 56 ”
1 6
MT Mobile Network Address: ”+4482123 56 ”
Mask: ***DDDDDDDD*DD*
D Direct match required
* Wildcard
The fixed length address mask bit string is applied to the variable length address string flush right.
For MT-voice calls the address mask is irrelevant since the information will not be routed forward to the
telematics unit, nevertheless for extended data services it might be used.
4.8.3.3 Elements of Address Management
An update message includes the address elements listed below:
• Type of address allocation:
New allocation, i.e., all other service-related entries will be deleted or only certain address entries
will be replaced
• The version of the overall address update:

this address number will be transferred with each address request message to the service center in
order to carry out a comparison with the current address configuration. The version number 0 will not
be used by the service center.
• A variable number of address entries with the following layout
• Type of address entry, optionally
• Absolute address with additional Address ID by which access is made by the onboard

equipment for the service-specific configuration of the address allocation. Thus it is possible
to use addresses for multiple services.
• The Address ID alone as a reference to existing absolute addresses.

• Comparison mask in the case of absolute address entries.
• Primary Message Identifier.
• A code (Network Type) which defines the address to be used as an MNA, Destination or Call
address.
• A code (Backup Flag) which shows whether the following address is to be used as a standard or

as a backup.
• Address data corresponding to the type of entry (Address ID / address and comparison mask in
the case of absolute address entries / Primary Message ID and range).
All absolute addresses referenced within a Configuration Update Message shall be transmitted within the
same message, because it is impossible to detect which absolute addresses are stored within the
onboard unit.
4.8.3.4 Address Organisation in the Onboard Equipment

Since the allocation of individual addresses to the services is not unique, the addresses are referenced
in the Configuration Update message (for example, a MNA or Voice Call address can be used for
several different services). Thus it is possible to reference a specific address multiple without having to
duplicate the transmission. This means that it is necessary to enter so-called address tables in the
onboard equipment so that the allocation of the absolute address is given from the combination of the
Address ID and network type of the Address Block.
The 6 different address types can thus be organised in the onboard equipment in user tables in such a
way that their elements can be referenced several times and their contents, in other words, the numbers,
can be changed independently of each other, as seen in the address table shown below:
Example:
Table 4-4: Example of address table
. Address ID (as reference number)
Network 1 2 3 4 5 6 7 8
Type
MNA
No. 1No. 2No. 3No. 4 No. 5No. 6No. 7No. 8
Dest. No. 1 No. 2 No. 3 No. 4 No. 5 No. 6 No. 7 No. 8
Call No. 1 No. 2 No. 3 No. 4 No. 5 No. 6No. 7No. 8
Each entry no. x indicates an absolute address and the assigned address mask.
Note: Address management in the onboard equipment may be done by a reference table which
establishes the context between the services and the absolute addresses. The reference table has a
pointer which is service-specific, to the contents of the address tables (see 4.8.3.1). It is thus stored in
the onboard equipment or in the encryption module as the case may be (if one exists) in non-volatile
memory and is updated by the Configuration Update.
Example: the following table gives a sample layout of an address reference table.
Table 4-5: Example of layout of an address reference table
Address type reference
Application MNA MNA Dest. Dest. Call Call
Backup Backup Backup
ID
TINFO 3 00 04 5
Breakdown 2 2 1 0 2 3
Emergency call 1 2 1 1 1 3
FCD 4 00 00 0
Meaning of the fields:
Application ID: Service code
Address types: Reference to the service address (see 4.8.3.1)
If the Address ID equals to zero no absolute address is referred to. The service centre may send an
Address Update with Address ID = 0 for a specific service to indicate that the service is currently not
available in the network of consideration, regardless of other address sets (see 6.1.1).
Absolute address tables and address reference tables are both managed by the terminal with respec
...
