EN 2242:2012
(Main)Aerospace series - Crimping of electric cables with conductors defined by EN 2083, EN 4434 and EN 2346
Aerospace series - Crimping of electric cables with conductors defined by EN 2083, EN 4434 and EN 2346
This European Standard specifies the general requirements and procedures to ensure the good quality of crimped connections made with multi-stranded cables with conductor cross-sections ranging from 0,15 mm2 (AWG 26) to 107 mm2 (AWG 0000) and all types of connection components ).
Electric cables to be used for the tests shall conform to EN 2084, EN 2234, EN 2235, EN 2346 and be stripped according to EN 2812. For conductors see EN 2083, EN 4434 and EN 2346.
Luft- und Raumfahrt - Crimpen von elektrischen Leitungen mit Leitern nach EN 2083, EN 4434 und EN 2346
Diese Norm legt die allgemeinen Anforderungen und Verfahren zur Gewährleistung hochwertiger Crimpver-bindungen zwischen mehrdrähtigen Leitungen mit Leiterquerschnitten von 0,15 mm2 (AWG 26) bis 107 mm2 (AWG 0000) und Verbindungselementen aller Art fest.
Die in den Prüfungen verwendeten Kabel müssen die Anforderungen von EN 2084, EN 2234, EN 2235 und EN 2346 erfüllen sowie nach EN 2812 abisoliert sein. Zu Leitern siehe EN 2083, EN 4434 und EN 2346.
Série aérospatiale - Sertissage des câbles électriques avec conducteurs définis par EN 2083, EN 4434 et EN 2346
La présente Norme Européenne spécifie les exigences générales et les procédures pour s’assurer de la bonne qualité des connexions serties faites avec des câbles multi-brins ayant des conducteurs de section de 0,15 mm2 (AWG 26) à 107 mm2 (AWG 0000) et tous les types de composant de connexion ).
Les câbles électriques à utiliser pour les essais doivent être conformes à l’EN 2084, l’EN 2234, l’EN 2235, l’EN 2346 et être dénudés selon l’EN 2812. Pour les conducteurs voir l’EN 2083, l’EN 2234 et l’EN 2346.
Aeronavtika - Stiskanje električnih kablov z vodniki po EN 2083, EN4434 in EN 2346
Ta evropski standard določa splošne zahteve in postopke za zagotovitev visoke kakovosti stisnjenih povezav iz večplastnih kablov z razponom prerezov prevodnika od 0,15 mm2 (AWG 26) do 107 mm2 (AWG 0000) in celo vrsto povezovalnih elementov 1). Električni kabli, ki se uporabljajo v preskusih, morajo izpolnjevati standarde EN 2084, EN 2234, EN 2235 in EN 2346, olupiti pa jih je treba v skladu s standardom EN 2812. Za prevodnike glejte standarde EN 2083, EN 4434 in EN 2346.
General Information
- Status
- Published
- Publication Date
- 15-May-2012
- Withdrawal Date
- 29-Nov-2012
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 30-Jun-2017
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2242:2012 - Aerospace series - specifies requirements and procedures to ensure high-quality crimped connections for multi‑stranded electric cables used in aerospace applications. The standard applies to conductor cross‑sections from 0.15 mm² (AWG 26) to 107 mm² (AWG 0000) and covers all types of connection components (barrel, terminal lug, splice). It defines preparation, tooling, inspection and test methods to qualify and control crimping processes in accordance with aerospace quality expectations.
Key topics and technical requirements
- Scope and materials
- Applies to multi‑stranded cables whose construction conforms to related aerospace cable/product standards (see Related Standards).
- Conductors and cable stripping must follow specified EN documents.
- Tooling and crimp process
- Crimping must be a single‑operation mechanical process using tooling approved by the connection component manufacturer and responsible authorities.
- Tools must include a crimping mechanism preventing return to open position before cycle completion and be inspected regularly.
- No additional heating, brazing or post‑crimp operations are allowed.
- Preparation and test pieces
- Test pieces are prepared for each “conductor – crimp tool – crimp barrel” combination prior to production.
- For double‑conductor crimps, EN 2242:2012 specifies compatibility, equal stripping lengths and tensile requirements per conductor.
- Inspection and tests after crimping
- Visual inspection of all crimped connections (correct form, stripping length, conductor visible through inspection hole, no burrs or cracks).
- Tensile strength test on representative test pieces per EN 2591-417; minimum tensile values are defined in the standard (Table 1).
- Periodic requalification is required if materials, tool types or component sizes change.
- Quality assurance
- Production controls: visual inspection of every crimp.
- Periodic inspection frequency: between 1 000 and 5 000 crimps or quarterly, with specified sample sizes; tensile testing may be limited to 500 N for sections ≥ 5 mm² if authorized.
Applications and users
- Aerospace OEMs and suppliers producing wiring harnesses and electrical interconnections.
- Crimp tool and terminal manufacturers for process qualification and tool approval.
- Quality, inspection and manufacturing engineers responsible for wire termination, assembly and certification.
- Certification bodies and test labs conducting tensile and visual tests on crimped connections.
Related standards
- EN 2083, EN 2084, EN 2234, EN 2235, EN 2346 (cables and conductors)
- EN 2812 (stripping)
- EN 2591-417 / EN 2591-503 (crimp test methods)
- EN 3155-002 (contact sizes)
EN 2242:2012 is essential for ensuring repeatable, certified crimping processes in aerospace electrical systems and for meeting traceability, inspection and tensile‑strength requirements.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 2242:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Crimping of electric cables with conductors defined by EN 2083, EN 4434 and EN 2346". This standard covers: This European Standard specifies the general requirements and procedures to ensure the good quality of crimped connections made with multi-stranded cables with conductor cross-sections ranging from 0,15 mm2 (AWG 26) to 107 mm2 (AWG 0000) and all types of connection components ). Electric cables to be used for the tests shall conform to EN 2084, EN 2234, EN 2235, EN 2346 and be stripped according to EN 2812. For conductors see EN 2083, EN 4434 and EN 2346.
This European Standard specifies the general requirements and procedures to ensure the good quality of crimped connections made with multi-stranded cables with conductor cross-sections ranging from 0,15 mm2 (AWG 26) to 107 mm2 (AWG 0000) and all types of connection components ). Electric cables to be used for the tests shall conform to EN 2084, EN 2234, EN 2235, EN 2346 and be stripped according to EN 2812. For conductors see EN 2083, EN 4434 and EN 2346.
EN 2242:2012 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2242:2012 has the following relationships with other standards: It is inter standard links to EN 4434:2005, EN 3155-070:2019, EN 3155-071:2019, EN 3155-001:2025, CEN ISO/TR 13881:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2242:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Crimpen von elektrischen Leitungen mit Leitern nach EN 2083, EN 4434 und EN 2346Série aérospatiale - Sertissage des câbles électriques avec conducteurs définis par EN 2083, EN 4434 et EN 2346Aerospace series - Crimping of electric cables with conductors defined by EN 2083, EN 4434 and EN 234649.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2242:2012SIST EN 2242:2012en01-september-2012SIST EN 2242:2012SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2242
May 2012 ICS 49.060 English Version
Aerospace series - Crimping of electric cables with conductors defined by EN 2083, EN 4434 and EN 2346
Série aérospatiale - Sertissage des câbles électriques avec conducteurs définis par EN 2083, EN 4434 et EN 2346
Luft- und Raumfahrt - Crimpen von elektrischen Leitungen mit Leitern nach EN 2083, EN 4434 und EN 2346 This European Standard was approved by CEN on 11 February 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2242:2012: ESIST EN 2242:2012

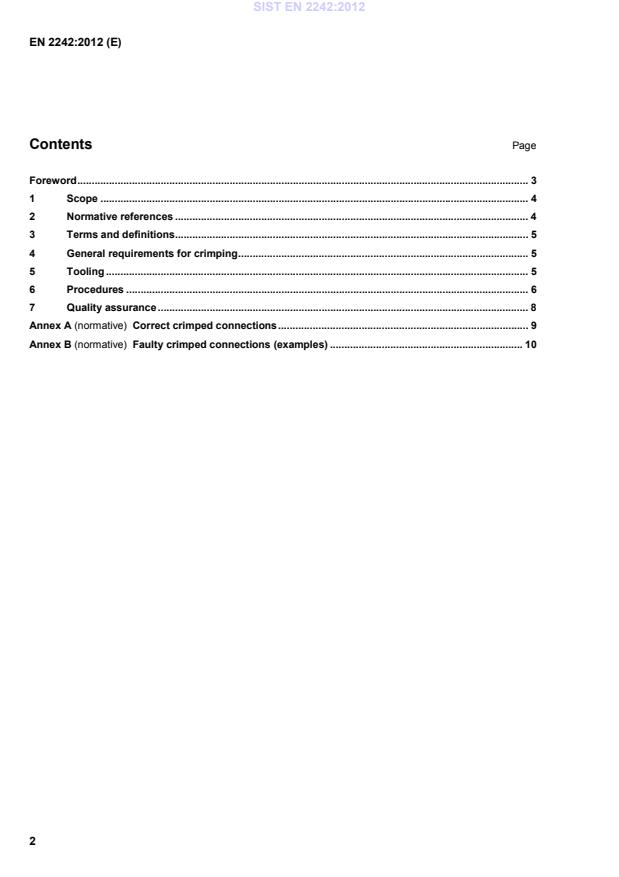

Correct crimped connections . 9Annex B (normative)
Faulty crimped connections (examples) . 10 SIST EN 2242:2012
EN 2235, Aerospace series — Single and multicore electrical cables, screened and jacketed EN 2346, Aerospace series — Fire resistant electrical cables — Dimensions, conductor resistance and mass 2) EN 2591-417, Aerospace series — Elements of electrical and optical connection — Test methods — Part 417: Tensile strength (crimped connection) EN 2591-503, Aerospace series — Elements of electrical and optical connection — Test methods — Part 503: Contact deformation after crimping EN 2812, Aerospace series — Stripping of electric cables EN 3155-002, Aerospace series — Electrical contacts used in elements of connection — Part 002: List and utilization of contacts EN 4434, Aerospace series — Copper or copper alloy lightweight conductors for electrical cables — Product standard (Normal and tight tolerances) IEC 60050-581, International Electrotechnical Vocabulary — Part 581: Electromechanical components for electronic equipment 3)
1) Barrel, terminal lug, splice. 2) Published as ASD-STAN Prestandard at the date of publication of this standard (www.asd-stan.org). 3) Published by: IEC International International Electrotechnical Commission http://www.iec.ch/. SIST EN 2242:2012
EN 2
...
