CEN/TS 17188:2018
(Main)Materials obtained from end of life tyres (ELT) - Sampling method for granulates and powders stored in big-bags
Materials obtained from end of life tyres (ELT) - Sampling method for granulates and powders stored in big-bags
This document specifies a method for obtaining a sample of rubber granulates or powders derived from End-of-life tyres which have been stored in big-bags.
Several sample increments at different levels within the big-bag are obtained, which represent the average particle size distribution within the big-bag. From these sample increments, a representative sample is derived.
Materialien aus Altreifen (ELTs) - Probeentnahme für in Big Bags gelagerte Granulate und Mehle
Dieses Dokument legt ein Verfahren zur Gewinnung einer Probe von Gummigranulat oder -mehlen aus Altreifen fest, die in Big Bags gelagert wurden.
Es werden mehrere Einzelproben auf verschiedenen Ebenen innerhalb des Big-Bags entnommen, die die durchschnittliche Partikelgrößenverteilung innerhalb des Big-Bags darstellen. Aus diesen Einzelproben wird eine repräsentative Probe erstellt.
Matériaux obtenus à partir de pneus usagés non réutilisables (PUNR) - Méthode d'échantillonnage de granulats et de poudrettes stockés dans des big-bags
Le présent document prescrit une méthode permettant d'obtenir un échantillon de granulats ou de poudrettes de caoutchouc issus de pneus usagés non réutilisables, qui ont été stockés dans des « big-bags ».
Plusieurs prises élémentaires sont prélevées à différents niveaux dans le « big-bag » ; elles représentent la distribution granulométrique moyenne dans le « big-bag ». Un échantillon représentatif est obtenu à partir de ces prises élémentaires.
Snovi iz izrabljenih avtomobilskih gum (ELT) - Metoda vzorčenja granulatov in praškov, shranjenih v velikih vrečah
Ta tehnična specifikacija določa metodo za pridobivanje laboratorijskih vzorcev granulatov in praškov, pridobljenih iz izrabljenih avtomobilskih gum, ki so shranjeni v velikih vrečah.
Pridobi se več enot vzorcev na različnih ravneh znotraj velike vreče, ki predstavljajo povprečno porazdelitev velikosti delcev v veliki vreči. Iz teh enot vzorcev izhaja reprezentativni vzorec.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2018
6QRYLL]L]UDEOMHQLKDYWRPRELOVNLKJXP (/7 0HWRGDY]RUþHQMDJUDQXODWRYLQ
SUDãNRYVKUDQMHQLKYYHOLNLKYUHþDK
Materials obtained from end of life tyres (ELTs) - Sampling method for granulates and
powders stored in big-bags
Materialien aus Altreifen - Probenahme von Granulaten aus dem Schleifprozess von
Altreifen - Methode, die auf der Entnahme einer relevanten Probe aus einem Big-Bag
aus übereinanderliegenden Schichten basiert
Matériaux obtenus à partir de pneus usagés non réutilisables (PUNR) - Méthode
d'échantillonnage de granulats et de poudrettes stockés dans des big-bags
Ta slovenski standard je istoveten z: CEN/TS 17188:2018
ICS:
13.030.50 Recikliranje Recycling
83.160.01 Avtomobilske pnevmatike na Tyres in general
splošno
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
CEN/TS 17188
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
June 2018
TECHNISCHE SPEZIFIKATION
ICS 13.030.50; 83.160.01
English Version
Materials obtained from end of life tyres (ELT) - Sampling
method for granulates and powders stored in big-bags
Matériaux obtenus à partir de pneus usagés non Materialien aus Altreifen (ELTs) - Probeentnahme für
réutilisables (PUNR) - Méthode d'échantillonnage de in Big Bags gelagerte Granulate und Mehle
granulats et de poudrettes stockés dans des big-bags
This Technical Specification (CEN/TS) was approved by CEN on 2 March 2018 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 17188:2018 E
worldwide for CEN national Members.

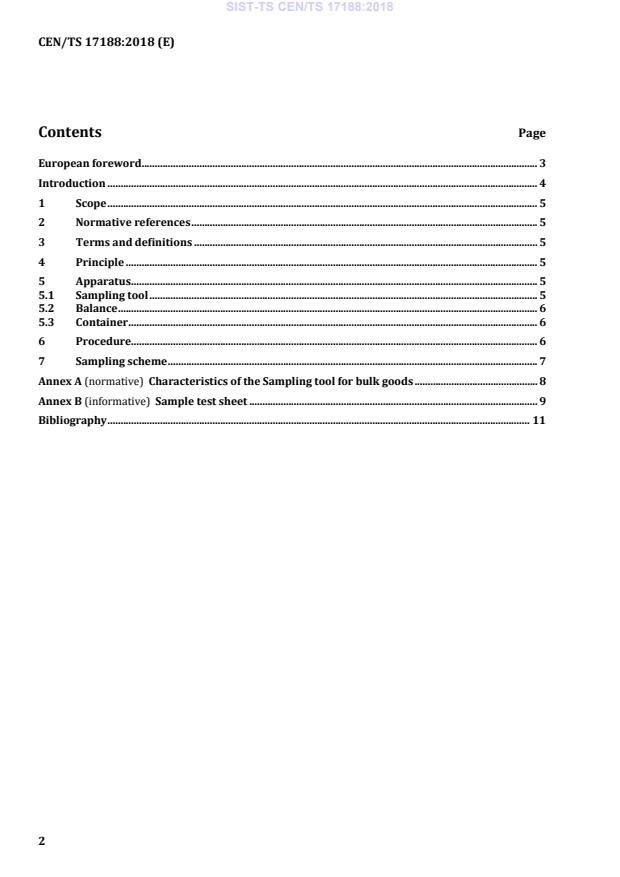

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 5
5.1 Sampling tool . 5
5.2 Balance . 6
5.3 Container . 6
6 Procedure. 6
7 Sampling scheme . 7
Annex A (normative) Characteristics of the Sampling tool for bulk goods . 8
Annex B (informative) Sample test sheet . 9
Bibliography . 11
European foreword
This document (CEN/TS 17188:2018) has been prepared by Technical Committee CEN/TC 366
“Materials obtained from End-of-Life Tyres (ELT)”, the secretariat of which is held by UNI.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Introduction
Particle size distribution and related parameters are key measurements for product characterization of
size-reduced materials, such as granulates and powders derived from End-of-life Tyres (ELTs). To
obtain an accurate particle size distribution, a representative sample of the material to be tested will be
taken according to the principle that every particle of the sample that represents the lot will have an
equal probability of being included in the sample.
Sampling criteria to assess characteristics of granulates and powders at different stages of a production
process by size reduction of End-of-life tyres are given in prEN 14243-2:2017, Clause 5.
When the lot to be characterized is a big-bag, particular attention has to be given in order to obtain a
representative sample(s) because of the tendency of the stored material to segregate over time with the
smaller particles settling in the lower part of the big-bag.
1 Scope
Thi
...
