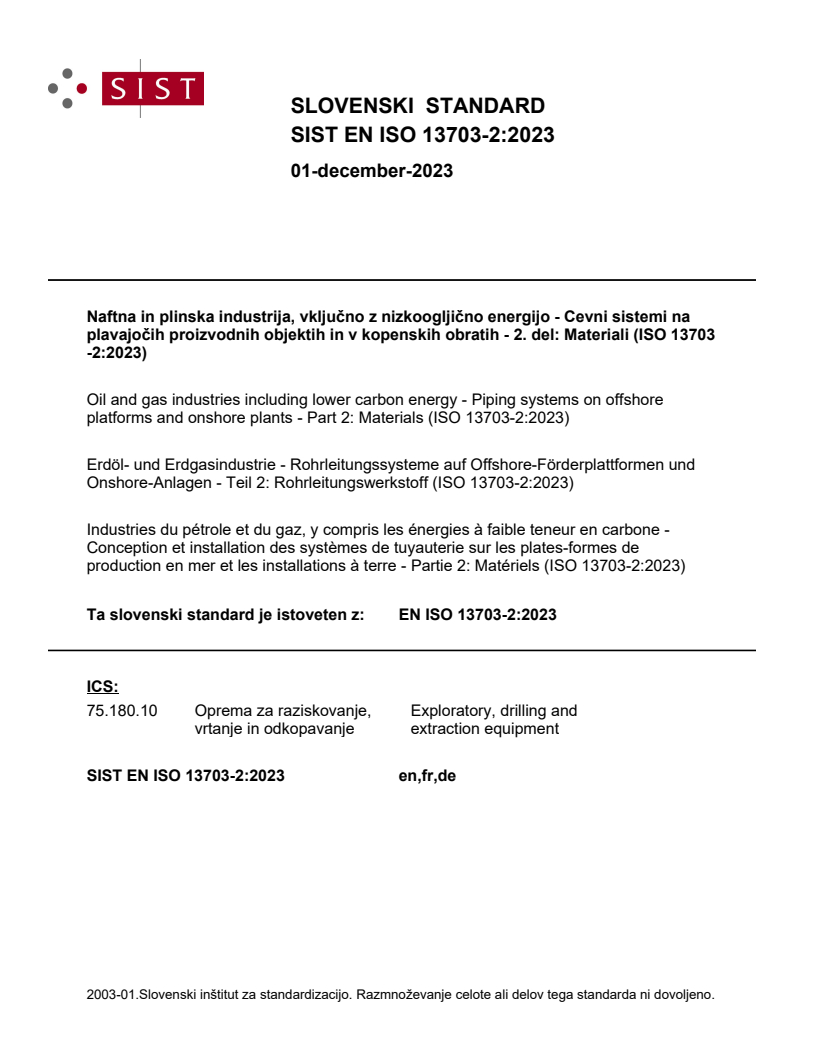

EN ISO 13703-2:2023

SLOVENSKI STANDARD
01-december-2023
Naftna in plinska industrija, vključno z nizkoogljično energijo - Cevni sistemi na
plavajočih proizvodnih objektih in v kopenskih obratih - 2. del: Materiali (ISO 13703
-2:2023)
Oil and gas industries including lower carbon energy - Piping systems on offshore
platforms and onshore plants - Part 2: Materials (ISO 13703-2:2023)
Erdöl- und Erdgasindustrie - Rohrleitungssysteme auf Offshore-Förderplattformen und
Onshore-Anlagen - Teil 2: Rohrleitungswerkstoff (ISO 13703-2:2023)
Industries du pétrole et du gaz, y compris les énergies à faible teneur en carbone -
Conception et installation des systèmes de tuyauterie sur les plates-formes de
production en mer et les installations à terre - Partie 2: Matériels (ISO 13703-2:2023)
Ta slovenski standard je istoveten z: EN ISO 13703-2:2023
ICS:
75.180.10 Oprema za raziskovanje, Exploratory, drilling and
vrtanje in odkopavanje extraction equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

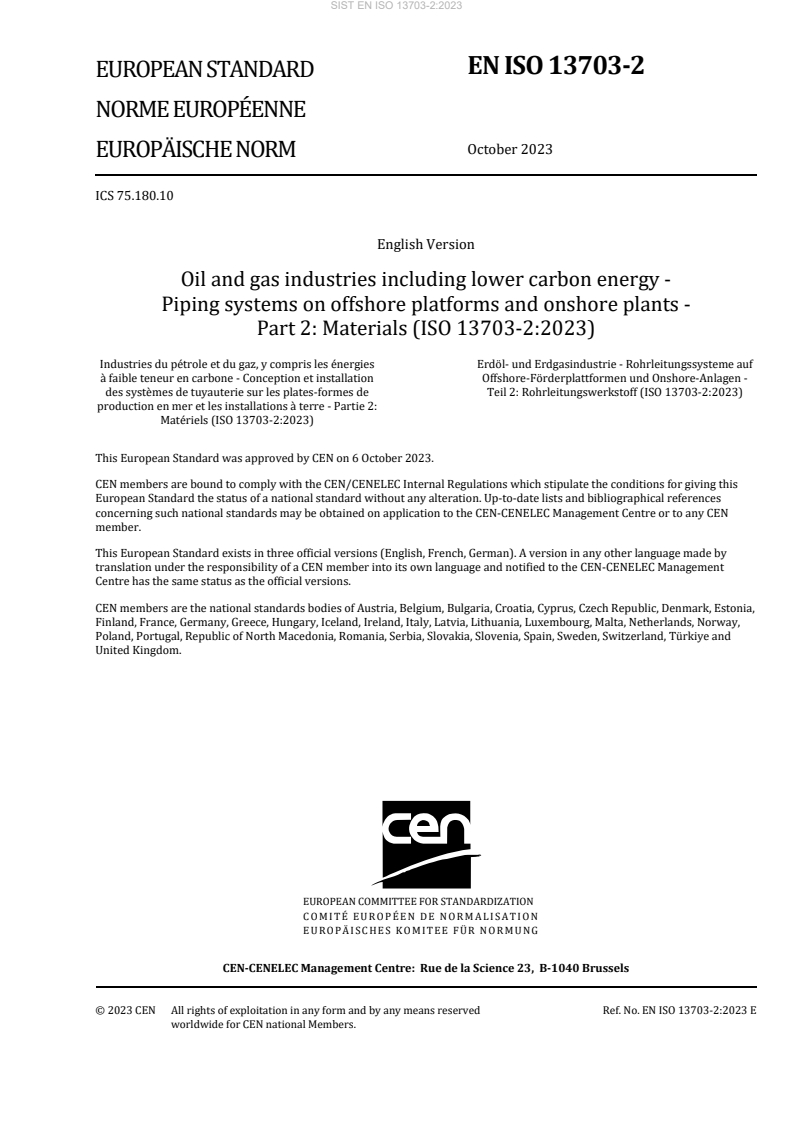

EN ISO 13703-2
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2023
EUROPÄISCHE NORM
ICS 75.180.10
English Version
Oil and gas industries including lower carbon energy -
Piping systems on offshore platforms and onshore plants -
Part 2: Materials (ISO 13703-2:2023)
Industries du pétrole et du gaz, y compris les énergies Erdöl- und Erdgasindustrie - Rohrleitungssysteme auf
à faible teneur en carbone - Conception et installation Offshore-Förderplattformen und Onshore-Anlagen -
des systèmes de tuyauterie sur les plates-formes de Teil 2: Rohrleitungswerkstoff (ISO 13703-2:2023)
production en mer et les installations à terre - Partie 2:
Matériels (ISO 13703-2:2023)
This European Standard was approved by CEN on 6 October 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 13703-2:2023 E
worldwide for CEN national Members.

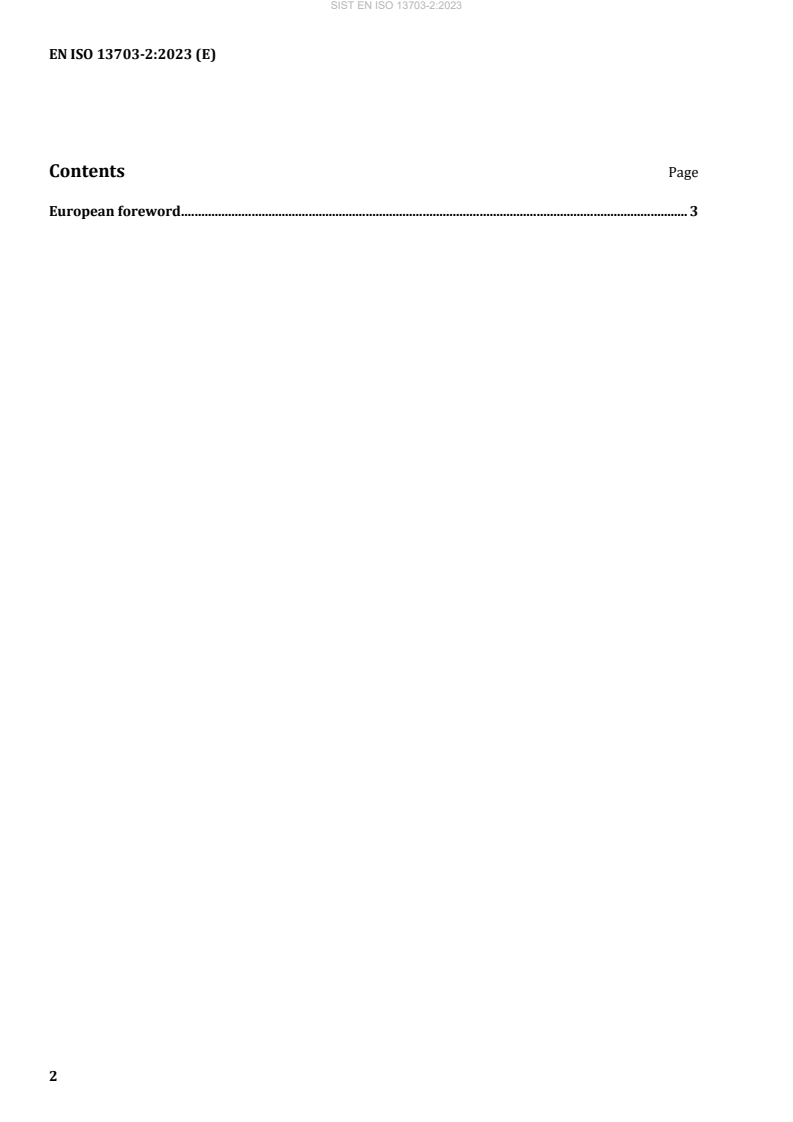

Contents Page
European foreword . 3

European foreword
This document (EN ISO 13703-2:2023) has been prepared by Technical Committee ISO/TC 67 "Oil and
gas industries including lower carbon energy" in collaboration with Technical Committee CEN/TC 12
“Oil and gas industries including lower carbon energy” the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2024, and conflicting national standards shall be
withdrawn at the latest by April 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 13703-2:2023 has been approved by CEN as EN ISO 13703-2:2023 without any
modification.
INTERNATIONAL ISO
STANDARD 13703-2
First edition
2023-10
Oil and gas industries including lower
carbon energy — Piping systems
on offshore platforms and onshore
plants —
Part 2:
Materials
Industries du pétrole et du gaz, y compris les énergies à faible teneur
en carbone — Conception et installation des systèmes de tuyauterie
sur les plates-formes de production en mer et les installations à
terre —
Partie 2: Matériels
Reference number
ISO 13703-2:2023(E)
ISO 13703-2:2023(E)
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 13703-2:2023(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 8
4 Abbreviated terms . 9
5 Material and element datasheets .11
5.1 General . 11
5.2 Numbering system .12
5.3 Deviations to ASME B31.3 .12
5.4 High pressure systems according to ASME B31.3 . 13
5.5 Parts designed to ASME BPVC VIII Div. 2 . 13
5.6 Qualification of manufacturers to ISO 17782 or NORSOK M-650 .13
5.7 Machining of valves or valve parts from bar . 14
5.8 NDT of piping and valves . 14
5.9 Pilot castings . 14
5.9.1 General . 14
5.9.2 Material qualification ranges for pilot castings . 14
5.9.3 NDT of pilot castings . 15
5.10 Ferritic-austenitic stainless steels . 15
5.11 Mechanical testing . 15
Annex A (normative) Material datasheets .16
Annex B (normative) Element datasheets .286
Annex C (informative) Guidance to European Pressure Equipment Directive . 297
Annex D (informative) Table of corresponding product standards . 298
Bibliography .310
iii
ISO 13703-2:2023(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use
of (a) patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents. ISO shall not be held responsible for identifying any or all
such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 67, Oil and gas industries including lower
carbon energy, Subcommittee SC 6, Process equipment, piping, systems, and related safety, in collaboration
with the European Committee for Standardization (CEN) Technical Committee CEN/TC 12, Oil and gas
industries including lower carbon energy, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This first edition of ISO 13703-2, together with ISO 13703-1 and ISO 13703-3, cancels and replaces
ISO 13703:2000, which has been technically revised. It also incorporates the Technical Corrigendum
ISO 13703:2000/Cor.1:2002.
The main changes compared to the previous edition are as follows:
— deletion of the installation and quality control requirements in Clause 10;
— deletion of former Annex C as requirements are addressed in ASME B31.3;
— addition of material data sheets.
A list of all parts in the ISO 13703 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
ISO 13703-2:2023(E)
Introduction
Requirements are defined in material datasheets and element datasheets, which can be used for
the specification and procurement of materials for piping systems. Common fabrication, welding,
inspection, examination and testing requirements of piping systems are covered by ISO 13703-3.
Local, national or regional regulations can also affect the specification of piping materials.
v
INTERNATIONAL STANDARD ISO 13703-2:2023(E)
Oil and gas industries including lower carbon energy —
Piping systems on offshore platforms and onshore
plants —
Part 2:
Materials
1 Scope
This document provides a set of common supplementary requirements for the most frequently used
materials in upstream oil and gas piping systems.
This document is applicable to offshore and onshore production facilities, processing and gas
liquefaction plants. The materials covered in this document are intended to be used in the following
piping systems services:
— category D, category M, normal and high pressure, according to ASME B31.3;
— sour environments as defined in the ISO 15156 series.
NOTE For the purposes of this document, ANSI/NACE MR0175 is equivalent to the ISO 15156 series, and
ANSI/NACE MR0103 is equivalent to ISO 17945.
This document does not provide guidelines for material selection. The selection of suitable materials for
a specific service including any necessary additional material requirements remains the responsibility
of the end user.
This document does not cover requirements related to:
— sulfide stress cracking (SSC) in corrosive petroleum refining environments included in ISO 17945;
— non-metallic piping systems according to ASME B31.3 or the ISO 14692 series;
— marine piping systems, e.g. ballasting piping system, covered by classification rules;
— subsea production systems;
— downhole equipment;
— transportation pipeline systems, including flowlines, designed in accordance with a recognized
pipeline design code.
Common requirements related to manufacture, inspection and procurement of piping and valve
parts are included in Annex A and Annex B, providing material datasheets and element datasheets,
respectively. These material and element datasheets can be applied for applications other than piping
systems, e.g. pressure vessels and pumps based upon assessment of the end user and conformance with
the selected design code for the relevant equipment. This document is not intended to limit the use of
alternative materials or grades within a referenced material standard. Where the use of alternative
materials/grades are considered appropriate, the end user is responsible for specifying any additional
requirements necessary to meet the design code or specification.
ISO 13703-2:2023(E)
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3452 (all parts), Non-destructive testing — Penetrant testing
ISO 4499-2, Hardmetals — Metallographic determination of microstructure — Part 2: Measurement of WC
grain size
ISO 4499-4, Hardmetals — Metallographic determination of microstructure — Part 4: Characterisation of
porosity, carbon defects and eta-phase content
ISO 4624, Paints and varnishes — Pull-off test for adhesion
ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
ISO 9606, Qualification testing of welders — Fusion welding
ISO 10474, Steel and steel products — Inspection documents
ISO 10684, Fasteners — Hot dip galvanized coatings
ISO 10893-11, Non-destructive testing of steel tubes — Part 11: Automated ultrasonic testing of the weld
seam of welded steel tubes for the detection of longitudinal and/or transverse imperfections
ISO 11970, Specification and qualification of welding procedures for production welding of steel castings
ISO 14732, Welding personnel — Qualification testing of welding operators and weld setters for mechanized
and automatic welding of metallic materials
ISO 15156 (all parts), Petroleum and natural gas industries — Materials for use in H S-containing
environments in oil and gas production
ISO 15614-1, Specification and qualification of welding procedures for metallic materials — Welding
procedure test — Part 1: Arc and gas welding of steels and arc welding of nickel and nickel alloys
ISO 15614-5, Specification and qualification of welding procedures for metallic materials — Welding
procedure test — Part 5: Arc welding of titanium, zirconium and their alloys
ISO 15614-7, Specification and qualification of welding procedures for metallic materials — Welding
procedure test — Part 7: Overlay welding
ISO 17637, Non-destructive testing of welds — Visual testing of fusion-welded joints
ISO 17781, Petroleum, petrochemical and natural gas industries — Test methods for quality control of
microstructure of ferritic/austenitic (duplex) stainless steels
ISO 17782, Petroleum, petrochemical and natural gas industries — Scheme for conformity assessment of
manufacturers of special materials
ISO 27509, Petroleum and natural gas industries — Compact flanged connections with IX seal ring
ISO 28079, Hardmetals — Palmqvist toughness test
ISO 6507-1, Metallic materials — Vickers hardness test — Part 1: Test method
ANSI/MSS SP-55, Quality standard for steel castings for valves, flanges, fittings, and other piping
components - visual method for evaluation of surface irregularities
ANSI/NACE TM0284, Evaluation of pipeline and pressure vessel steels for resistance to hydrogen-induced
cracking
ISO 13703-2:2023(E)
ANSI/NACE MR0175, Petroleum and natural gas industries — Materials for use in H S-containing
environments in oil and gas production
API RP 934-A, Materials and fabrication of 2 1/4 Cr-1Mo, 2 1/4 Cr-1Mo 1/4 v, 3Cr-1Mo, and 3Cr-1Mo-1/4 V
steel heavy wall pressure vessels for high-temperature, high pressure Hydrogen service
API RP 934-C, Materials and fabrication of 1 1/4 Cr-1/2 Mo steel heavy wall pressure vessels for high-
pressure Hydrogen service operating at or below 825 degrees F (440 degrees C)
API Spec 5L, Specification for line pipe
API Std 6ACRA, Age-hardened Nickel-based alloys for oil and gas drilling and production equipment
ASME B16.20, Metallic gaskets for pipe flanges
ASME B16.34, Valves – Flanged, threaded and welding end
ASME B31.3, Process piping
ASME Boiler and pressure vessel code (BPVC), Section V: Nondestructive examination
ASME Boiler and pressure vessel code (BPVC), Section VIII, Division 1: Rules for construction of pressure
vessels
ASME Boiler and pressure vessel code (BPVC), Section VIII, Division 2: Alternative rules
ASME Boiler and pressure vessel code (BPVC), Section VIII, Division 3: Alternative rules for high pressure
vessels
ASME Boiler and pressure vessel code (BPVC), Section IX: Welding and brazing qualifications
ASTM A20/A20M, Standard specification for general requirements for steel plates for pressure vessels
ASTM A29/A29M, Standard specification for general requirements for steel bars, Carbon and alloy, hot-
wrought
ASTM A105/A105M, Standard specification for Carbon steel forgings for piping applications
ASTM A106/A106M, Standard specification for seamless Carbon steel pipe for high-temperature service
ASTM A182/A182M, Standard specification for forged or rolled alloy and stainless Steel pipe flanges, forged
fittings, and valves and parts for high-temperature service
ASTM A193/A193M, Standard specification for alloy-steel and stainless steel bolting for high temperature
or high pressure service and other special purpose applications
ASTM A194/A194M, Standard specification for Carbon steel, alloy steel, and stainless steel nuts for bolts
for high pressure or high temperature service, or both
ASTM A203/A203M, Standard specification for pressure vessel plates, alloy steel, Nickel
ASTM A216/A216M, Standard specification for steel castings, Carbon, suitable for fusion welding, for high-
temperature service
ASTM A217/217M, Standard Specification for Steel Castings, Martensitic Stainless and Alloy, for Pressure-
Containing Parts, Suitable for High-Temperature Service
ASTM A234/A234M, Standard specification for piping fittings of wrought Carbon steel and alloy steel for
moderate and high temperature service
ASTM A240/A240M, Standard specification for Chromium and Chromium-Nickel stainless steel plate, sheet,
and strip for pressure vessels and for general applications
ISO 13703-2:2023(E)
ASTM A269/A269M, Standard specification for seamless and welded austenitic stainless steel tubing for
general service
ASTM A276/A276M, Standard specification for stainless steel bars and shapes
ASTM A312/A312M, Standard specification for seamless, welded, and heavily cold worked austenitic
stainless steel pipes
ASTM A320/A320M, Standard specification for alloy-steel and stainless steel bolting for low-temperature
service
ASTM A333/A333M, Standard specification for seamless and welded steel pipe for low-temperature service
and other applications with required notch toughness
ASTM A334/A334M, Standard specification for seamless and welded Carbon and alloy-steel tubes for low-
temperature service
ASTM A335/A335M, Standard specification for seamless Ferritic alloy-steel pipe for high-temperature
service
ASTM A350/A350M, Standard specification for Carbon and low-alloy steel forgings, requiring notch
toughness testing for piping components
ASTMA351/A351M, Standard specification for castings, austenitic, for pressure-containing parts
ASTM A352/A352M, Standard specification for steel castings, ferritic and martensitic, for pressure-
containing parts, suitable for low-temperature service
ASTM A358/A358M, Standard specification for electric-fusion-welded austenitic Chromium-Nickel
stainless steel pipe for high-temperature service and general applications
ASTM A363, Standard specification for Zinc-coated (galvanized) steel overhead ground wire strand
ASTM A370, Standard test methods and definitions for mechanical testing of steel products
ASTM A387/A387M, Standard specification for pressure vessel plates, alloy steel, Chromium-Molybdenum
ASTM A388/A388M, Standard practice for ultrasonic examination of steel forgings
ASTM A403/A403M, Standard specification for wrought austenitic stainless steel piping fittings
ASTM A420/A420M, Standard specification for piping fittings of wrought Carbon steel and alloy steel for
low-temperature service
ASTM A453/A453M, Standard specification for high-temperature bolting, with expansion coefficients
comparable to austenitic stainless steels
ASTM A479/A479M, Standard specification for stainless steel bars and shapes for use in boilers and other
pressure vessels
ASTM A484/A484M, Standard specification for general requirements for stainless steel bars, billets, and
forgings
ASTM A488/A488M, Standard practice for steel castings, welding, qualifications of procedures and
personnel
ASTM A494/A494M, Standard specification for castings, Nickel and Nickel alloy
ASTM A508/A508M, Standard specification for quenched and tempered vacuum-treated Carbon and alloy
steel forgings for pressure vessels
ASTM A516/A516M, Standard specification for pressure vessel plates, Carbon steel, for moderate- and
lower-temperature service
ISO 13703-2:2023(E)
ASTM A564/A564M, Standard specification for hot-rolled and cold-finished age-hardening stainless steel
bars and shapes
ASTM A578/A578M, Standard specification for straight-beam ultrasonic examination of rolled steel plates
for special applications
ASTM A671/A671M, Standard specification for electric-fusion-welded steel pipe for atmospheric and lower
temperatures
ASTM A672/A672M, Standard specification for electric-fusion-welded steel pipe for high-pressure service
at moderate temperatures
ASTM A691/A691M, standard specification for Carbon and alloy steel pipe, electric-fusion-welded for high-
pressure service at high temperatures
ASTM A694/A694M, Standard specification for Carbon and alloy steel forgings for pipe flanges, fittings,
valves, and parts for high-pressure transmission service
ASTM A696, Standard specification for steel bars, Carbon, hot-wrought or cold-finished, special quality, for
pressure piping components
ASTM A703/A703M, standard specification for steel castings, creep-strength enhanced ferritic alloy, for
pressure-containing parts, suitable for high temperature service
ASTM A705/A705M, Standard specification for age-hardening stainless steel forgings
ASTM A739, Standard specification for steel bars, alloy, hot-wrought, for elevated temperature or pressure-
containing parts, or both
ASTM A781/A781M, Standard specification for castings, steel and alloy, common requirements, for general
industrial use
ASTM A788/A788M, Standard specification for steel forgings, general requirements
ASTM A789/A789M, Standard specification for seamless and welded ferritic/austenitic stainless steel
tubing for general service
ASTM A790/A790M, Standard specification for seamless and welded ferritic/austenitic stainless steel pipe
ASTM A815/A815M, Standard specification for wrought ferritic, ferritic/austenitic, and martensitic
stainless steel piping fittings
ASTM A860/A860M, Standard specification for wrought high-strength ferritic steel butt-welding fittings
ASTM A928/A928M, Standard specification for ferritic/austenitic (duplex) stainless steel pipe electric
fusion welded with addition of filler metal
ASTM A957/A957M, Standard specification for investment castings, steel and alloy, common requirements,
for general industrial use
ASTM A960/A960M, Standard specification for common requirements for wrought steel piping fittings
ASTM A961/A961M, Standard specification for common requirements for steel flanges, forged fittings,
valves, and parts for piping applications
ASTM A962/A962M, Standard specification for common requirements for bolting intended for use at any
temperature from cryogenic to the creep range
ASTM A966/A966M, Standard practice for magnetic particle examination of steel forgings using
alternating current
ASTM A985/A985M, Standard specification for steel investment castings general requirements, for
pressure-containing parts
ISO 13703-2:2023(E)
ASTM A988/A988M, Standard specification for hot isostatically-pressed stainless steel flanges, fittings,
valves, and parts for high temperature service
ASTM A995/995M, Standard specification for castings, austenitic-ferritic (duplex) stainless steel, for
pressure-containing parts
ASTM A1058, Standard Test Methods for Mechanical Testing of Steel Products — Metric
ASTM A1080/A1080M, Standard practice for hot isostatic pressing of steel, stainless steel, and related
alloy castings
ASTM A1082/A1082M, Standard specification for high strength precipitation hardening and duplex
stainless steel bolting for special purpose applications
ASTM B124/B124M, Standard Specification for Copper and Copper Alloy Forging Rod, Bar, and Shapes
ASTM B148, Standard specification for Aluminum-Bronze sand castings
ASTM B150/150M, Standard Specification for Aluminum Bronze Rod, Bar, and Shapes
ASTM B151/B151M, Standard specification for Copper-Nickel-Zinc alloy (Nickel Silver) and Copper-Nickel
rod and bar
ASTM B171/B171M, Standard specification for Copper-alloy plate and sheet for pressure vessels,
condensers, and heat exchangers
ASTM B265, Standard specification for Titanium and Titanium alloy strip, sheet, and plate
ASTM B338, Standard specification for seamless and welded Titanium and Titanium alloy tubes for
condensers and heat exchangers
ASTM B348, Standard specification for Titanium and Titanium alloy bars and billets
ASTM B363, Standard specification for seamless and welded unalloyed Titanium and Titanium alloy
welding fittings
ASTM B366/B366M, Standard specification for factory-made wrought Nickel and Nickel alloy fittings
ASTM B367, Standard specification for Titanium and Titanium alloy castings
ASTM B381, Standard specification for Titanium and Titanium alloy forgings
ASTM B423, Standard Specification for Nickel-Iron-Chromium-Molybdenum-Copper Alloy Seamless Pipe
and Tube
ASTM B424, Standard Specification for Nickel-Iron-Chromium-Molybdenum-Copper Alloys Plate, Sheet, and
Strip
ASTM B425, Standard Specification for Nickel-Iron-Chromium-Molybdenum-Copper Alloys Rod and Bar
ASTM B443, Standard specification for Nickel-Chromium-Molybdenum-Columbium alloy and Nickel-
Chromium-Molybdenum-Silicon alloy plate, sheet, and strip
ASTM B444, Standard specification for Nickel-Chromium-Molybdenum-Columbium alloys (UNS N06625
and UNS N06852) and Nickel-Chromium-Molybdenum-Silicon alloy (UNS N06219) pipe and tube
ASTM B446, Standard specification for Nickel-Chromium-Molybdenum-Columbium Alloy (UNS N06625),
Nickel-Chromium-Molybdenum-Silicon alloy (UNS N06219), and Nickel-Chromium-Molybdenum-Tungsten
alloy (UNS N06650) rod and bar
ASTM B499, Standard test method for measurement of coating thicknesses by the magnetic method:
nonmagnetic coatings on magnetic basis metals
ASTM B564, Standard specification for Nickel alloy forgings
ISO 13703-2:2023(E)
ASTM B571, Standard practice for qualitative adhesion testing of metallic coatings
ASTM B578, Standard test method for microhardness of electroplated coatings
ASTM B602, Standard test method for attribute sampling of metallic and inorganic coatings
ASTM B637, Standard specification for precipitation-hardening and cold worked Nickel alloy bars, forgings,
and forging stock for moderate or high temperature service
ASTM B705, Standard specification for Nickel-alloy (UNS N06625, N06219 and N08825) welded pipe
ASTM B733, Standard specification for autocatalytic (electroless) Nickel-Phosphorus coatings on metal
ASTM B834, Standard specification for pressure consolidated powder metallurgy Iron-Nickel-Chromium-
Molybdenum (UNS N08367), Nickel-Chromium-Molybdenum-Columbium (Nb) (UNS N06625), Nickel-
Chromium-Iron alloys (UNS N06600 and N06690), and Nickel-Chromium-Iron-Columbium-Molybdenum
(UNS N07718) alloy pipe flanges, fittings, valves, and parts
ASTM B861, Standard specification for Titanium and Titanium alloy seamless pipe
ASTM B862, Standard specification for Titanium and Titanium alloy welded pipe
ASTM C633, Standard test method for adhesion or cohesion strength of thermal spray coatings
ASTM E8/E8M, Standard test methods for tension testing of metallic materials
ASTM E94/E94M, Standard guide for radiographic examination using industrial radiographic film
ASTM E112, Standard test methods for determining average grain size
ASTM E165/E165M, Standard practice for liquid penetrant testing for general industry
ASTM E186, Standard reference radiographs for heavy-walled (2 to 412 in. (50,8 to 114 mm)) steel castings
ASTM E280, Standard reference radiographs for heavy-walled (412 to 12 in. (114 to 305 mm)) steel castings
ASTM E446, Standard reference radiographs for steel castings up to 2 in. (50,8 mm) in thickness
ASTM F467/F467M, Standard specification for nonferrous nuts for general use
ASTM F468/F468M, Standard specification for nonferrous bolts, hex cap screws, socket head cap screws,
and studs for general use
ASTM F788/F788M, Standard specification for surface discontinuities of bolts, screws, studs, and rivets,
inch and metric series
ASTM F812, Standard specification for surface discontinuities of nuts, inch and metric series
ASTM F2329/F2329M, Standard specification for Zinc coating, hot-dip, requirements for application to
Carbon and alloy steel bolts, screws, washers, nuts, and special threaded fasteners
ASTM G28, Standard Test Methods for Detecting Susceptibility to Intergranular Corrosion in Wrought,
Nickel-Rich, Chromium-Bearing Alloys
ASTM G48, Standard test methods for pitting and crevice corrosion resistance of stainless steels and related
alloys by use of ferric chloride solution
EEMUA 234, 90/10 Copper nickel alloy piping for offshore applications
EN 10204, Metallic products — Types of inspection documents
EN 10228-4:2016, Non-destructive testing of steel forgings - Part 4: Ultrasonic testing of austenitic and
austenitic-ferritic stainless steel forgings
ISO 13703-2:2023(E)
MSS SP-93-2020, Quality standard for steel castings and forgings for valves, flanges, fittings, and other
piping components — Liquid penetrant examination method
MSS SP-147, Quality standard for steel castings used in standard class steel valves — sampling method for
evaluating casting quality
NORSOK M-650, Qualification of manufacturers of special materials
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
austenitic stainless steel
stainless steel whose microstructure at room temperature consists predominantly of austenite
3.2
carbon steel
alloy of carbon and iron containing up to 2 % mass fraction carbon and up to 1,65 % mass fraction
manganese and residual quantities of other elements, except those intentionally added in specific
quantities for deoxidation (usually silicon and/or aluminium)
Note 1 to entry: Carbon steels used in the petroleum industry usually contain less than 0,8 % mass fraction
carbon.
3.3
end user
organization that is responsible for the operation of an installation/facility and its component (e.g.
piping, valve)
Note 1 to entry: In the context of this document, the end user is normally an oil and gas company.
3.4
low alloy steel
steel containing a total alloying element content of less than 5 % mass fraction, or less than 10,5 %
mass fraction chromium, but more than that specified for carbon steel (3.2)
3.5
manufacturer
organization, including subcontractors, which carries out operations (e.g. forming, heat treatment,
welding) that affect the material properties of the finished product
3.6
nickel-based alloys
metallic material in which nickel is the major element
3.7
pilot casting
casting made and tested as part of the initiation and development of the production method such as
the first casting from a new or modified pattern produced using identical foundry practices as the
production castings it is intended to represent
ISO 13703-2:2023(E)
3.8
purchaser
organization that purchases a product from a manufacturer (3.5)
Note 1 to entry: A purchaser can be an oil and gas company, a contractor or a buyer.
3.9
stainless steel
steel containing 10,5 % mass fraction or more chromium, possibly with other elements added to secure
special properties
3.10
austenitic stainless steel type 304
austenitic stainless steel (3.1) certified to meet both 304/304L properties
3.11
austenitic stainless steel type 316
austenitic stainless steel (3.1) certified to meet both 316/316L properties
3.12
austenitic stainless steel type UNS S34565
highly alloyed austenitic stainless steel (3.1) alloys with SMYS ≥ 450 MPa and PREN ≥ 40
3.13
austenitic stainless steel type 6Mo
highly alloyed austenitic stainless steel (3.1) alloys with 6 % Mo and PREN ≥ 40,0
3.14
ferritic-austenitic stainless steel type 22Cr duplex
ferritic-austenitic stainless steel alloys with 30,0 ≤ PREN < 40,0 and Cr ≥ 19 % (by mass)
3.15
ferritic-austenitic stainless steel type 25Cr duplex
ferritic-austenitic stainless steel alloys with 40,0 ≤ PREN < 48,0
Note 1 to entry: Stainless steel type 25Cr duplex is often referred to as "super duplex".
3.16
ferritic-austenitic stainless steel type lean duplex
ferritic-austenitic stainless steel alloys with PREN ≥ 28
Note 1 to entry: In this document, stainless steel type lean duplex concerns UNS numbers S32003, S32304 and
S82441.
4 Abbreviated terms
ANSI American National Standards Institute
AOD argon oxygen decarburization
API American Petroleum Institute
ASTM American Society of Testing and Materials
ASME American Society of Mechanical Engineers
BPVC boiler and pressure vessel code
ISO 13703-2:2023(E)
CE carbon equivalent, , calculated as follows: (% C + % Mn / 6 + (% Cr + % Mo + % V) / 5
+ (% Ni + % Cu) / 15), with chemical element concentration expressed in mass fraction
percent
CLR crack length ratio
CSR crack sensitivity ratio
CTR crack thickness ratio
DN nominal diameter
EBW electron beam welding
EDS element data sheet
EEA European Economic Area
FCAW flux-cored arc welding
GTAW gas tungsten arc welding
EEMUA Engineering Equipment & Materials Users Association
EN European standard
HAZ heat-affected zone
HBW Brinell hardness with Tungsten ball
HFW high frequency welded
HIC hydrogen-induced cracking
HIP hot isostatic pressing
HR Rockwell hardness
HRB Rockwell hardness, B scale
HRC Rockwell hardness, C scale
HV Vickers hardness
HVAF high velocity air fuel
HVOF high velocity oxygen fuel
ISO International Organization for Standardization
LBW laser beam welding
MDS material data sheet
MPCR manufacturing procedure conformity record
MPS manufacturing procedure summary
MSS Manufacturers Standardization Society
MT magnetic particle testing
ISO 13703-2:2023(E)
NACE National Association of Corrosion Engineers
NDT non-destructive testing
NORSOK the Norwegian shelf’s competitive position
NPS nominal pipe size
OD outer diameter
PED Pressure Equipment Directive (European Directive 2014/68/EU)
PREN pitting resistance equivalent number, calculated as follows: (%Cr + 3,3 × % (Mo + 0,5W)
+ 16 × %N), with chemical element concentration expressed in mass fraction percent
PSL product specification level
PT penetrant testing
PTAW plasma transfer arc welding
PWHT post weld heat treatment
QL quality level
QTR qualification test record
RT radiographic testing
SAW submerged arc welding
SAWL submerged arc longitudinally welded
SMAW shielded-metal arc welding
SMYS specified minimum yield strength
SSC sulfide stress cracking
UNS unified numbering system
UT ultrasonic testing
VT visual testing
WC Tungsten carbide
5 Material and element datasheets
5.1 General
The material datasheets are collated in Annex A. Each MDS defines the requirements that supplement or
amend the referenced material standard or specification. The material shall be delivered in accordance
with the standard specification referenced in the MDS including any additional requirements specified
therein. Unless otherwise specified in the MDS, all the requirements of the referenced standard
specification shall be applied.
MDSs for welded parts specifying acceptance classes give weld joint quality factors ranging from 0,8
to 1,0 according to ASME B31.3. The required class shall be specified on the piping class sheet. The
purchase order shall specify acceptable class for each relevant item.
ISO 13703-2:2023(E)
The element datasheets are included in Annex B. Each EDS defines the requirements for special
processes and parts used in connection with manufacturing and/or assembly of piping and valves.
Processes and parts shall conform with the requirement specified in the EDS in Annex B.
5.2 Numbering system
Each MDS number consists of a one-letter prefix indicating the material type and a three-digit
sequential number. The following one-letter prefixes apply:
— C – carbon steels;
— D – ferritic austenitic stainless steels (duplex stainless steels);
— K – copper-nickel alloy 90-10 and other copper alloys including nickel-aluminium bronze;
— L – nickel alloyed steel;
— M – martensitic stainless steel;
— N – nickel-based alloys;
— R – highly alloyed austenitic stainless steels;
— S – austenitic stainless steels;
— T – titanium;
— V – Cr and Cr-Mo alloyed steels;
— X – high strength low alloy steels.
The supplementary suffix “S” is used to designate a material delivered in accordance with the MDS plus
the supplementary requirements for sour service but excluding HIC testing.
The supplementary suffix “
...
