Standards Content (Sample)


SLOVENSKI STANDARD
01-marec-2006
6WURML]DSUHGHODYRKUDQH±3ROQLOQLNLYHþHWDåQLKSHþL±9DUQRVWQHLQKLJLHQVNH
]DKWHYH
Food processing machinery - Fixed deck oven loaders - Safety and hygiene
requirements
Nahrungsmittelmaschinen - Ofenbeschickungseinrichtungen - Sicherheits- und
Hygieneanforderungen
Machines pour les produits alimentaires - Elévateurs-enfourneurs - Prescriptions
relatives a la sécurité et a l'hygiene
Ta slovenski standard je istoveten z: EN 13591:2005
ICS:
67.260 Tovarne in oprema za Plants and equipment for the
živilsko industrijo food industry
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 13591
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2005
ICS 67.260
English Version
Food processing machinery - Fixed deck oven loaders - Safety
and hygiene requirements
Machines pour les produits alimentaires - Elévateurs- Nahrungsmittelmaschinen -
enfourneurs - Prescriptions relatives à la sécurité et à Ofenbeschickungseinrichtungen - Sicherheits- und
l'hygiène Hygieneanforderungen
This European Standard was approved by CEN on 1 August 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13591:2005: E
worldwide for CEN national Members.

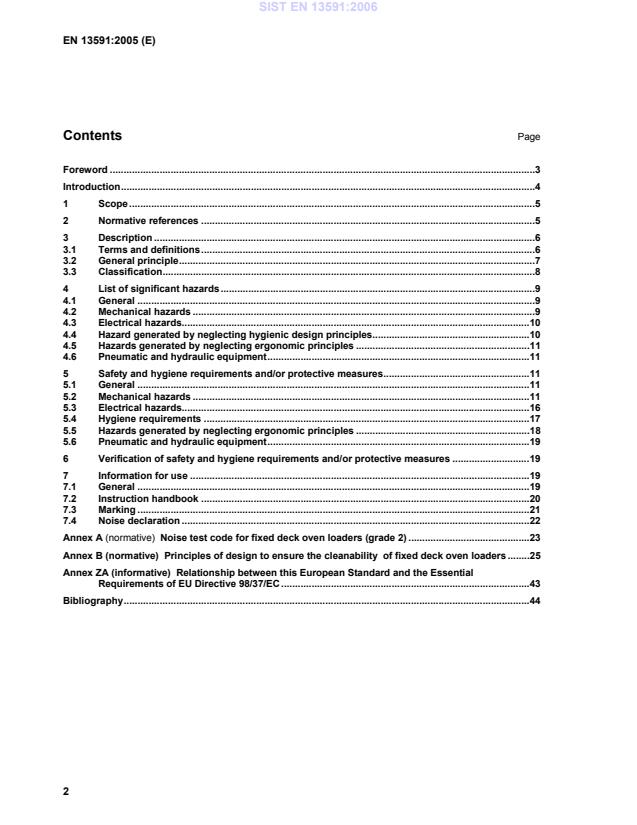

Contents Page
Foreword .3
Introduction.4
1 Scope.5
2 Normative references.5
3 Description.6
3.1 Terms and definitions.6
3.2 General principle.7
3.3 Classification.8
4 List of significant hazards.9
4.1 General.9
4.2 Mechanical hazards.9
4.3 Electrical hazards.10
4.4 Hazard generated by neglecting hygienic design principles.10
4.5 Hazards generated by neglecting ergonomic principles .11
4.6 Pneumatic and hydraulic equipment.11
5 Safety and hygiene requirements and/or protective measures.11
5.1 General.11
5.2 Mechanical hazards.11
5.3 Electrical hazards.16
5.4 Hygiene requirements.17
5.5 Hazards generated by neglecting ergonomic principles .18
5.6 Pneumatic and hydraulic equipment.19
6 Verification of safety and hygiene requirements and/or protective measures .19
7 Information for use .19
7.1 General.19
7.2 Instruction handbook.20
7.3 Marking.21
7.4 Noise declaration.22
Annex A (normative) Noise test code for fixed deck oven loaders (grade 2) .23
Annex B (normative) Principles of design to ensure the cleanability of fixed deck oven loaders .25
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37/EC .43
Bibliography.44

Foreword
This European Standard (EN 13591:2005) has been prepared by Technical Committee CEN/TC 153 “Food
processing machinery — Safety and hygiene specifications”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2006, and conflicting national standards shall be withdrawn at the
latest by April 2006.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association and supports essential requirements of EC Directive(s).
For relationship with EC Directives, see informative Annex ZA, which is an integral part of this document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland
and United Kingdom.
Introduction
This European Standard is a type C standard as stated in EN ISO 12100-1.
The machinery concerned and the extent to which hazards, hazardous situations and events are covered are
indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of the other standards, for machines
that have been designed and built according to the provisions of this type C standard.
1 Scope
This European Standard applies to the design and manufacture of fixed deck oven loaders used in the food
industry, bakeries, pastry-making, etc. These machines are used to place dough pieces on each deck of fixed
deck ovens and to remove the baked products from each deck.
This equipment may be:
 manual;
 semi-automatic (some movements powered, some movements requiring manual power).
The European Standard covers technical safety and hygiene requirements for the design, installation,
adjustment, operating, cleaning and maintenance of this equipment.
This European Standard deals with the significant hazards, hazardous situations and events relevant to fixed
oven deck loaders, when used as intended and under the conditions foreseen by the manufacturer.
Noise from fixed deck oven loaders is not considered to be a significant hazard. That does not mean that the
manufacturer of the machine is absolved from reducing noise and making a noise declaration. Therefore a
noise test code is given in Annex A.
The following equipment are excluded:
 experimental equipment and equipment under development by the manufacturer;
 loaders for conveyor ovens;
 loaders integral to the oven;
 fully automated fixed deck oven loaders.
This European Standard in not applicable to fixed deck oven loaders that are manufactured before the date of
publication of this European Standard by CEN.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 574:1996, Safety of machinery — Two-hand control devices — Functional aspects — Principles for design.
EN 614-1:1995, Safety of machinery — Ergonomic design principles — Part 1: Terminology and general
principles.
EN 953, Safety of machinery — Guards — General requirements for the design and construction of fixed and
movable guards.
EN 954-1, Safety of machinery — Safety-related parts of control systems — Part 1: General principles for
design.
EN 982, Safety of machinery — Safety requirements for fluid power systems and their components —.
Hydraulics.
EN 983, Safety of machinery — Safety requirements for fluid power systems and their components —
Pneumatics.
EN 1037, Safety of machinery — Prevention of unexpected start-up.
EN 1088:1995, Safety of machinery — Interlocking devices associated with guards — Principles for design
and selection.
EN 1672-2:2005, Food processing machinery — Basic concepts — Part 2: Hygiene requirements.
EN 60204-1:1997, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
(IEC 60204-1:1997).
EN 60529, Degrees of protection provided by enclosures (IP code) (IEC 60529:1989).
EN ISO 3744:1995, Acoustics — Determination of sound power levels of noise sources using sound
pressure — Engineering method in an essentially free field over a reflecting plane (ISO 3744:1994).
EN ISO 4287, Geometrical product Specifications (GPS) — Surface texture: Profile method — Terms,
definitions and surface texture parameters (ISO 4287:1997).
EN ISO 4871, Acoustics — Declaration and verification of noise emission values of machinery and equipment
(ISO 4871:1996).
EN ISO 11201, Acoustics — Noise emitted by machinery and equipment — Measurement of emission sound
pressure levels at a work station and at other specified positions — Engineering method in an essentially free
field over a reflecting plane (ISO 11201:1995).
EN ISO 12100-1:2003, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic
terminology, methodology (ISO 12100-1:2003).
EN ISO 12100-2:2003, Safety of machinery — Basic concepts, general principles for design — Part 2:
Technical principles (ISO 12100-2:2003).
3 Description
3.1 Terms and definitions
For the purposes of this European Standard, the terms and definitions given in EN ISO 12100-1:2003 and the
following apply.
NOTE Shifting, lifting, and loading in the oven are the three main functions of a fixed deck oven loader.
3.1.1
shifting
movement of the whole oven loader to the oven face
3.1.2
lifting
vertical movement up and down
3.1.3
loading
action of placing pieces of dough on the oven loader
3.1.4
loading in the oven
action of introducing and placing pieces of dough on the decks of the oven
3.1.5
unloading
action of removing loaves from the oven deck once baking has finished
3.1.6
nominal mass of dough
the mass the loader is intended for
3.2 General principle
A fixed deck oven loader generally consists of a frame mounted on castors supporting a lifting device and a
supporting platform with the loading device (see Figure 1).
The frame is mounted on castors to enable the loader to be positioned in front of the oven for loading and
unloading.
The lifting device (e. g. scissors lifting mechanism, lifting mast,…) allows the height of the oven loader to be
varied for loading and unloading at different levels in the oven.
The loading device comprises a frame and a belt in order to place the pieces of dough in the oven and to take
out the loaves when baking has finished.
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
