Aerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 010: Terminal lugs, ring shaped, tin plated, for crimping on copper conductors, temperature up to 150 °C for metric and inch stud series - Product standard

This standard defines the characteristics of tin plated copper ring shaped terminals for crimping on copper conductors. They are for use on both metric and inch dimension studs at temperatures up to 150 °C maximum.
This standard should be used in conjunction with EN 3373-001.

Luft- und Raumfahrt - Kabelschuhe und Stoßverbinder zum Crimpen auf elektrischen Leitungen - Teil 010: Kabelschuhe, ringförmig, verzinnt, zum Crimpen auf Leitungen aus Kupfer, für Temperaturen bis 150 °C, für metrische und Inch-Gewindebolzen - Produktnorm

Diese Norm legt die Eigenschaften von verzinnten, ringförmigen Kabelschuhen aus Kupfer für das Crimpen
auf Kupferleitungen fest. Sie werden sowohl für metrische als auch für Inch-Gewindebolzen bei Betriebstemperaturen
bis maximal 150 °C eingesetzt.
Diese Norm sollte in Verbindung mit EN 3373-001 angewendet werden.

Série aérospatiale - Cosses et prolongateurs pour sertissage sur conducteurss électriques - Partie 010: Cosses, rondes, étamées pour sertissage sur conducteurs en cuivre, température jusqu'à 150 °C pour bornages filetés en métriques et en pouces - Norme de produit

Aeronavtika - Kabelski čevlji in spojne tulke za spajanje s stiskanjem na električne vodnike - 010. del: Kabelski čevlji, obročasti, pocinkani, za stiskanje na bakrene vodnike, temperatura do največ 150 °C, za metrske in colske serije navojnih stebel - Standard za proizvod

General Information

Status
Published
Publication Date
10-Feb-2009
Withdrawal Date
30-Aug-2009
ICS
49.060 - Aerospace electric equipment and systems
Technical Committee
ASD-STAN - Aerospace
Drafting Committee
ASD-STAN/D 2 - Electrical
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
21-Jan-2025
Completion Date
21-Jan-2026
Ref Project
SIST EN 3373-010:2009 - Aerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 010: Terminal lugs, ring shaped, tin plated, for crimping on copper conductors, temperature up to 150 °C for metric and inch stud series - Product standard

Relations

Refers
EN 2591-218:2002 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 218: Ageing of terminal lugs and in-line splices by temperature and current cycling
Effective Date
28-Jan-2026
Refers
EN 2591-219:2002 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 219: Voltage strength for insulated terminal lugs and in-line splices
Effective Date
28-Jan-2026
Refers
EN 2591-217:2002 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 217: Voltage drop under specified current for terminal lugs and in-line splices
Effective Date
28-Jan-2026
Refers
EN 2591-307:2012 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 307: Salt mist
Effective Date
28-Jan-2026
Refers
EN 2591-403:2025 - Aerospace series - Elements of electrical and optical connection - Test methods - Part 403: Sinusoidal and random vibration
Effective Date
28-Jan-2026
Referred By
EN 3373-002:2009 - Aerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 002: General and list of product standard
Effective Date
28-Jan-2026

Overview

EN 3373-010:2009 is a CEN product standard in the Aerospace series that specifies the characteristics of tin‑plated copper, ring‑shaped terminal lugs intended for crimping onto copper conductors. The standard covers terminals for both metric and inch stud series and limits continuous operating temperature to up to 150 °C. It is intended to be used in conjunction with EN 3373-001 (technical specification and quality requirements).

Key topics and requirements

  • Scope and materials
    • Ring shaped terminal lugs made of copper with tin plating for crimping on copper conductors.
    • Operational temperature range: −65 °C to 150 °C.
  • Design and workmanship
    • Split‑barrel constructions must be permanently sealed and must not open during crimping.
    • All surfaces must be smooth and free from burrs and sharp edges.
  • Dimensions and identification
    • Detailed dimensions and mass are specified (Table 1 / Figure 1) and are based on metric conversions of SAE‑AS 20659. Items are identified by code numbers (see Table 1).
    • Provision for inspection hole(s) and a defined marking area.
  • Testing and performance
    • Applicable test methods referenced from EN 2591 series include visual inspection, dimensional checks, voltage‑drop measurement, ageing by temperature/current cycling (1 500 cycles to 150 °C), endurance at temperature (120 h at 165 °C), rapid temperature change, salt mist, vibration, and tensile strength of crimped connections.
    • Quality assurance is to follow EN 3373‑001.
  • Assembly tooling
    • Crimping tools must conform to MIL‑DTL‑22520. For conductor sizes up to 050 use tool M22520/5‑01; for 090 and larger use tooling conforming to MS25441. Die dimensions reference MS90485 where applicable.
  • Marking and packaging
    • Marking: item code and manufacturer monogram embossed per EN 2424 Style F.
    • Packaging must include EN designation, manufacturer name, part number, quantity, manufacture date and batch number.

Applications

  • Use in aerospace electrical systems: wiring harnesses, power distribution, avionics and grounding connections where high reliability and controlled crimp performance are required.
  • Relevant to manufacturers of aerospace terminals, electrical harness suppliers, procurement/specification engineers, quality assurance teams, and test laboratories.

Related standards

  • EN 3373‑001 (technical specification / quality assurance)
  • EN 2591 series (electrical/optical connection test methods)
  • SAE‑AS 20659 (dimension basis)
  • MIL‑DTL‑22520, MS25441, MS90485 (crimping tools and dies)
  • EN 2424 (marking of aerospace products)

Keywords: EN 3373-010:2009, aerospace terminal lugs, ring shaped terminals, tin plated copper terminals, crimping, metric and inch studs, 150 °C, EN 3373-001, MIL‑DTL‑22520, SAE‑AS 20659.

Get Certified

Connect with accredited certification bodies for this standard

National Aerospace and Defense Contractors Accreditation Program (NADCAP)

Global cooperative program for special process quality in aerospace.

ANAB United States Verified
Visit Website

NSF-ISR

NSF International Strategic Registrations.

ANAB United States Verified
Visit Website

Orion Registrar Inc.

US-based certification body for management systems.

ANAB United States Verified
Visit Website

Sponsored listings

Frequently Asked Questions

EN 3373-010:2009 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 010: Terminal lugs, ring shaped, tin plated, for crimping on copper conductors, temperature up to 150 °C for metric and inch stud series - Product standard". This standard covers: This standard defines the characteristics of tin plated copper ring shaped terminals for crimping on copper conductors. They are for use on both metric and inch dimension studs at temperatures up to 150 °C maximum. This standard should be used in conjunction with EN 3373-001.

This standard defines the characteristics of tin plated copper ring shaped terminals for crimping on copper conductors. They are for use on both metric and inch dimension studs at temperatures up to 150 °C maximum. This standard should be used in conjunction with EN 3373-001.

EN 3373-010:2009 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.

EN 3373-010:2009 has the following relationships with other standards: It is inter standard links to EN 2591-218:2002, EN 2591-219:2002, EN 2591-217:2002, EN 2591-307:2012, EN 2591-403:2025, EN 3373-002:2009. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN 3373-010:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

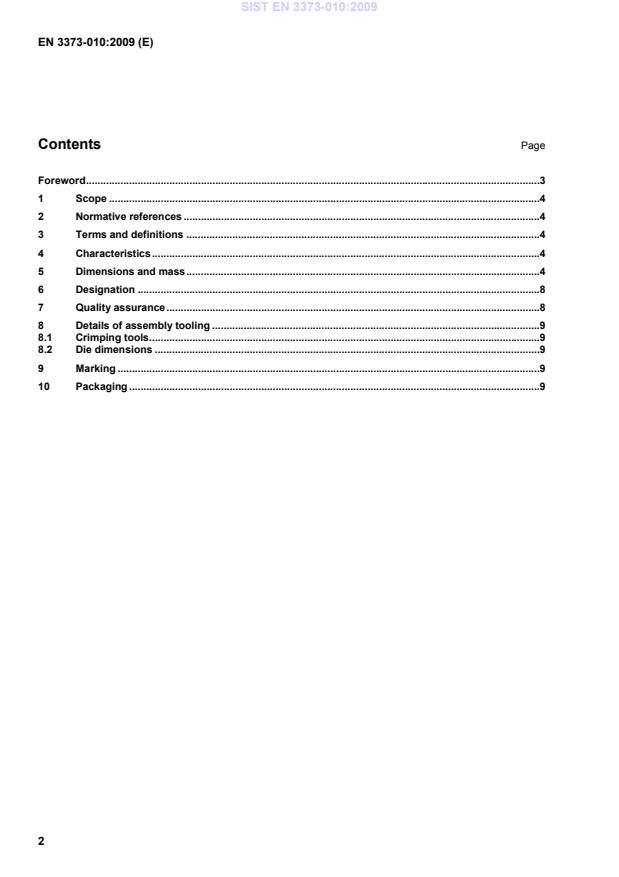

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Kabelschuhe und Verlängerungen für das Crimpen auf elektrische Leiter - Teil 010: Kabelschuhe, ringförmig, (verzinnt) für das Crimpen auf Kupferleitungen, Betriebstemperatur bis 150 °C für metrische und zöllige Gewindebolzen - ProduktnormSérie aérospatiale - Cosses et prolongateurs pour sertissage sur conducteurss électriques - Partie 010: Cosses, rondes, étamées pour sertissage sur conducteurs en cuivre, température jusqu'à 150 °C pour bornages filetés en métriques et en pouces - Norme de produitAerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 010: Terminal lugs, ring shaped, tin plated, for crimping on copper conductors, temperature up to 150 °C for metric and inch stud series - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3373-010:2009SIST EN 3373-010:2009en01-maj-2009SIST EN 3373-010:2009SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 3373-010
February 2009 ICS 49.060 English Version
Aerospace series - Terminal lugs and in-line splices for crimping on electric conductors - Part 010: Terminal lugs, ring shaped, tin plated, for crimping on copper conductors, temperature up to 150 °C for metric and inch stud series - Product standard
Série aérospatiale - Cosses et prolongateurs pour sertissage sur conducteurss électriques - Partie 010: Cosses, rondes, étamées pour sertissage sur conducteurs en cuivre, température jusqu'à 150 °C pour bornages filetés en mériques et en pouces - Norme de produit
Luft- und Raumfahrt - Kabelschuhe und Verlängerungen für das Crimpen auf elektrische Leiter - Teil 010: Kabelschuhe, ringförmig, (verzinnt) für das Crimpen auf Kupferleitungen, Betriebstemperatur bis 150 °C für metrische und zöllige Gewindebolzen - Produktnorm This European Standard was approved by CEN on 11 July 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 3373-010:2009: ESIST EN 3373-010:2009
...
