EN 13089:2011+A1:2015
(Main + Amendment)Mountaineering equipment - Ice-tools - Safety requirements and test methods
Mountaineering equipment - Ice-tools - Safety requirements and test methods
This European Standard specifies safety requirements and test methods for ice-tools for use in mountaineering including climbing, and as a buried anchor for protection against falls.
Bergsteigerausrüstung - Eisgeräte - Sicherheitstechnische Anforderungen und Prüfverfahren
Diese Europäische Norm legt sicherheitstechnische Anforderungen und Prüfverfahren für Eisgeräte fest, die beim Berg¬steigen, einschließlich Klettern, verwendet werden und als vergrabener Ankerpunkt zum Schutz gegen Absturz dienen.
Équipement d'alpinisme et d'escalade - Outils à glace - Exigences de sécurité et méthodes d'essai
La présente Norme européenne spécifie des exigences de sécurité et des méthodes d’essai relatives aux outils à glace utilisés dans la pratique de l’alpinisme et de l’escalade, ainsi que comme point d’ancrage enfoui dans la neige pour la protection contre les chutes.
Gorniška oprema - Orodje za led - Varnostne zahteve in preskusne metode
Ta evropski standard določa varnostne zahteve in preskusne metode za orodje za led za uporabo v gorništvu, vključno s plezanjem, in kot vkopano sidro za zaščito pred padci.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Gorniška oprema - Orodje za led - Varnostne zahteve in preskusne metodeBergsteigerausrüstung - Eisgeräte - Sicherheitstechnische Anforderungen und PrüfverfahrenÉquipement d'alpinisme et d'escalade - Outils à glace - Exigences de sécurité et méthodes d'essaiMountaineering equipment - Ice-tools - Safety requirements and test methods97.220.40Oprema za športe na prostem in vodne športeOutdoor and water sports equipmentICS:Ta slovenski standard je istoveten z:EN 13089:2011+A1:2015SIST EN 13089:2011+A1:2015en,fr,de01-september-2015SIST EN 13089:2011+A1:2015SLOVENSKI
STANDARDSIST EN 13089:20111DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13089:2011+A1
April 2015 ICS 97.220.40 Supersedes EN 13089:2011English Version
Mountaineering equipment - Ice-tools - Safety requirements and test methods
Équipement d'alpinisme et d'escalade - Outils à glace - Exigences de sécurité et méthodes d'essai
Bergsteigerausrüstung - Eisgeräte - Sicherheitstechnische Anforderungen und Prüfverfahren This European Standard was approved by CEN on 5 February 2011 and includes Amendment 1 approved by CEN on 19 March 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13089:2011+A1:2015 ESIST EN 13089:2011+A1:2015

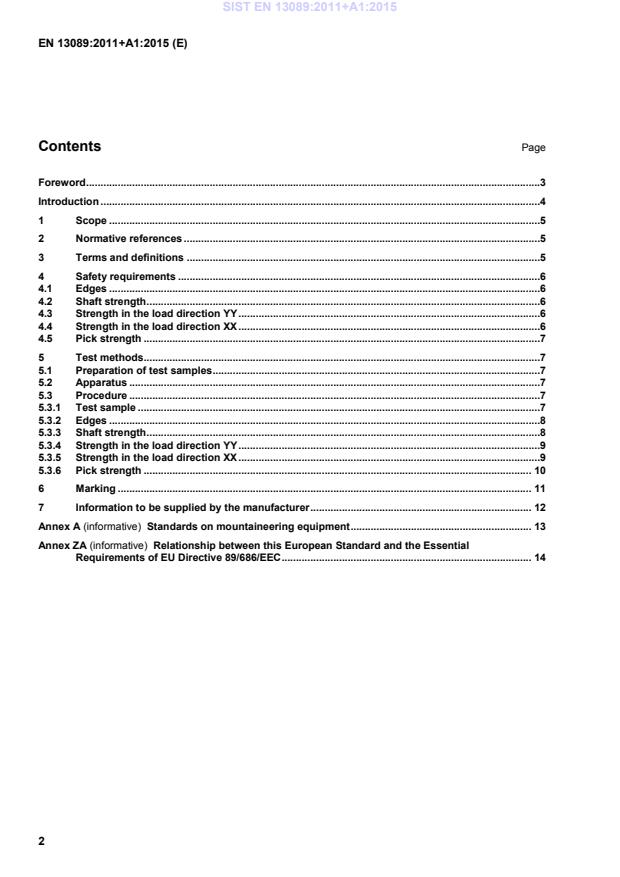

Standards on mountaineering equipment . 13 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 89/686/EEC . 14
Tape
Safety requirements and test methods 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 ice-tool hand held tool intended for movement on snow and/or ice and/or rock which can also be used as an anchor point or as a brake in snow and comprises at least a shaft and a pick NOTE See Figure 1. 3.2 type 1 ice-tool ice-tool with a shaft/pick connection intended for use in snow and/or ice 3.3 type 2 ice-tool ice-tool with a shaft/pick connection intended for use on rock, and/or snow, and/or ice 3.4 type 1 pick pick intended for use in snow and/or ice 3.5 type 2 pick pick intended for use on rock, and/or snow, and/or ice SIST EN 13089:2011+A1:2015
Key 1 Shaft of the ice-tool 2 Pick of the ice-tool Figure 1 — Main parts of an ice-tool 4 Safety requirements 4.1 Edges All edges of the ice-tool with which the user's hands can come into contact shall be free from burrs. The shaft of the ice tool has to be free of sharp edges. 4.2 Shaft strength When tested in accordance with 5.3.3, on removal of the load from the shaft the permanent deformation at the point of application of the load shall not exceed 3 mm or the calculated fK value. 4.3 Strength in the load direction YY When tested in the load direction Y
...
