EN 13071-1:2019

SLOVENSKI STANDARD
01-september-2019
Nadomešča:
SIST EN 13071-1:2008
SIST EN 13071-1:2008/AC:2010
Nepremični zabojniki za odpadke do 5000 l, ki se dvigujejo zgoraj in praznijo
spodaj - 1. del: Splošne zahteve
Stationary waste containers up to 5 000 l, top lifted and bottom emptied - Part 1: General
requirements
Stationäre Abfallsammelbehälter bis 5 000 l, mit Behälteraufnahme an der Oberseite und
Bodenentleerung - Teil 1: Allgemeine Anforderungen
Conteneurs fixes à déchets de capacité inférieure ou égale à 5000 l, levés par le haut et
vidés par le bas - Partie 1 : Exigences générales
Ta slovenski standard je istoveten z: EN 13071-1:2019
ICS:
13.030.40 Naprave in oprema za Installations and equipment
odstranjevanje in obdelavo for waste disposal and
odpadkov treatment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 13071-1
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2019
EUROPÄISCHE NORM
ICS 13.030.40 Supersedes EN 13071-1:2008
English Version
Stationary waste containers up to 5 000 l, top lifted and
bottom emptied - Part 1: General requirements
Conteneurs fixes à déchets de capacité inférieure ou Stationäre Abfallsammelbehälter bis 5 000 l, mit
égale à 5 000 l, levés par le haut et vidés par le bas - Behälteraufnahme an der Oberseite und
Partie 1 : Exigences générales Bodenentleerung - Teil 1: Allgemeine Anforderungen
This European Standard was approved by CEN on 19 May 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13071-1:2019 E
worldwide for CEN national Members.

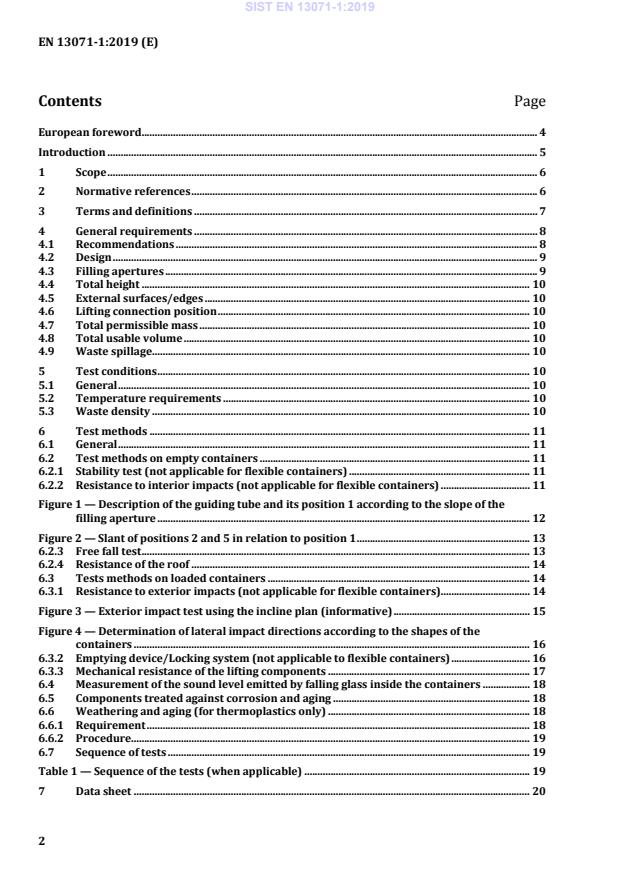

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 General requirements . 8
4.1 Recommendations . 8
4.2 Design . 9
4.3 Filling apertures . 9
4.4 Total height . 10
4.5 External surfaces/edges . 10
4.6 Lifting connection position . 10
4.7 Total permissible mass . 10
4.8 Total usable volume . 10
4.9 Waste spillage . 10
5 Test conditions . 10
5.1 General . 10
5.2 Temperature requirements . 10
5.3 Waste density . 10
6 Test methods . 11
6.1 General . 11
6.2 Test methods on empty containers . 11
6.2.1 Stability test (not applicable for flexible containers) . 11
6.2.2 Resistance to interior impacts (not applicable for flexible containers) . 11
Figure 1 — Description of the guiding tube and its position 1 according to the slope of the
filling aperture . 12
Figure 2 — Slant of positions 2 and 5 in relation to position 1 . 13
6.2.3 Free fall test . 13
6.2.4 Resistance of the roof . 14
6.3 Tests methods on loaded containers . 14
6.3.1 Resistance to exterior impacts (not applicable for flexible containers) . 14
Figure 3 — Exterior impact test using the incline plan (informative) . 15
Figure 4 — Determination of lateral impact directions according to the shapes of the
containers . 16
6.3.2 Emptying device/Locking system (not applicable to flexible containers) . 16
6.3.3 Mechanical resistance of the lifting components . 17
6.4 Measurement of the sound level emitted by falling glass inside the containers . 18
6.5 Components treated against corrosion and aging . 18
6.6 Weathering and aging (for thermoplastics only) . 18
6.6.1 Requirement . 18
6.6.2 Procedure. 19
6.7 Sequence of tests . 19
Table 1 — Sequence of the tests (when applicable) . 19
7 Data sheet . 20
8 Marking . 20
9 Test report . 20
Annex A (normative) Weathering test . 21
Bibliography . 22

European foreword
This document (EN 13071-1:2019) has been prepared by Technical Committee CEN/TC 183 “Waste
management”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by January 2020, and conflicting national standards shall
be withdrawn at the latest by January 2020.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13071-1:2008.
The main changes compared to the previous edition are listed below:
a) addition of an introduction;
b) addition of terminological entries for "container" (3.1), "flexible container" (3.17) and
"mechatronics" (3.18), while former entries for "type A-container" (3.15) and "type B-container"
were deleted;
c) addition of a new sub clause 4.1 "Recommendations" for installation, maintenance and cleaning of a
container;
d) alignment of the scope according to 4.1;
e) splitting up requirements for design of containers (4.2) and filling apertures (4.3) and addition of
further requirements for filling apertures depending on their height;
f) inclusion of a requirement in 4.6 that the lifting connection shall be positioned so that it can be
lifted from any direction;
g) addition of indications in clause 6 on which test methods apply to flexible containers.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Introduction
According to the European health and safety requirements, work equipment are designed and
constructed so that it can be operated without putting persons at risk. The manufacturer has to
consider the intended conditions of use, but also any reasonably foreseeable misuse.
For that purpose the manufacturer carries out a risk analysis in order to determine the hazards which
the operators and users are exposed to. The equipment will then be designed and constructed taking
into account the results of this assessment, by an iterative process of risk assessment and risk
reduction.
As specified in the guidance document "Classification of equipment used for lifting loads with lifting
machinery" (Machinery Working Group — January 2012), containers used for collecting and lifting bulk
material are not covered by Directive 2006/42/EC [1].
However, a large number of the hazards which the operators using such equipment and the persons
present in the vicinity of lifting/handling operations are exposed to are the same as those resulting
from the use of lifting appliances proper.
These are the reasons why CEN/TC 183 decided to include into this standard requirements intended to
support the corresponding essential health and safety requirements of Directive 2006/42/EC [1], in
particular those related to lifting operations (part 4 of Annex I).
1 Scope
This document specifies requirements of stationary containers, top lifted and bottom emptied, used for
collection of solid non-hazardous wastes, with capacity up to 5 000 l.
This document specifies general characteristics of such containers and their accessories, test methods
and safety requirements as well as recommendations for installation, maintenance and cleaning
operations.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 10346, Continuously hot-dip coated steel flat products for cold forming — Technical delivery
conditions
EN 22248, Packaging — Complete, filled transport packages — Vertical impact test by dropping
(ISO 2248)
EN ISO 105-B01, Textiles — Tests for colour fastness — Part B01: Colour fastness to light: Daylight
(ISO 105-B01)
EN ISO 1461, Hot dip galvanized coatings on fabricated iron and steel articles — Specifications and test
methods (ISO 1461)
EN ISO 2081, Metallic and other inorganic coatings — Electroplated coatings of zinc with supplementary
treatments on iron or steel (ISO 2081)
EN ISO 2244, Packaging — Complete, filled transport packages and unit loads — Horizontal impact tests
(ISO 2244)
EN ISO 4892-2, Plastics — Methods of exposure to laboratory light sources — Par0 2: Xenon-arc lamps
(ISO 4892-2)
ISO 48-2, Rubber, vulcanized or thermoplastic — Determination of hardness — Part 2: Hardness between
10 IRHD and 100 IRHD
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
container
top lifted, bottom emptied mobile receptacle, designated to collect/receive waste
3.2
dead mass
mass of the empty container including all attached components lifted together
Note 1 to entry: Dead mass is expressed in kilograms.
3.3
emptying device
part of the structure of the container to allow it to be emptied
3.4
emptying hatch(es)
opening part(s), if present, at the bottom of the container that enable(s) it to be emptied
3.5
lifting connection
structure fitted to the container to allow lifting and positioning
3.6
container handling system
lifting accessory connected to the crane in order to handle the designated waste container (and its
opening mechanism)
3.7
locking system
structure to maintain the emptying device closed
3.8
nominal load
load mass calculated from the container's usable volume and the waste density
3.9
nominal volume
volume declared by the manufacturer
3.10
test load
specific load defined and used in each test
3.11
total permissible mass
nominal load plus the dead mass of the container including all attached components lifted together
3.12
usable volume
volume of the inside of the container beneath the bottom of the filling aperture
3.13
filling aperture height
vertical distance between ground level and the bottom of the filling aperture(s)
3.14
total height
vertical distance between the bottom of the container when opened and the top of the lifting connection
3.15
container base dimensions
horizontal dimensions of the bottom of the container including all attached components lifted together
3.16
roof
top surface of the container or housing
3.17
flexible container
top lifted, bottom emptied mobile flexible receptacle, designated to collect/receive waste
3.18
mechatronics
mechanical and electronic device integrated on a waste container
4 General requirements
4.1 Recommendations
The installation site of a container shall be compatible with the collection operations. It means it shall
respect the following constraints:
— the maximum distance between the vertical axis of the lifting connection and the vertical axis of the
lifting crane shall not be more than 5 000 mm;
— the access of the collection vehicle shall be valid and safe at any time;
— the environment of the container, as well as the distance between the container and the parking
place of the collection vehicle shall be free of any obstacle, to allow safe collection operations: like
trees, urban furniture, electric wires, parking places, both horizontal and plain ground;
— at least once a year a control shall be conducted by expert party on the container and particularly
on all lifting and emptying accessories: emptying device, emptying hatch(es), lifting connection,
handling container system, locking system. For this purpose, the container shall be designed to
allow safe and easy access to these parts, and the supplier shall provide its recommendations for
these operations;
— internal and external cleaning operations shall be recommended, at least once a year;
— the customer shall verify that the collecting service uses the right dedicated equipment (crane,
lifting accessory, interface / lifting connections, …).
4.2 Design
The container shall be constructed so that when it is handled with a nominal load, it fits on a designated
lifting device. It shall be safely locked to the lifting accessory during the lifting operation.
The container shall not include any element that will result in collected materials being retained
thereby compromising complete emptying.
The container shall be constructed such that it can be easily dismantled at its end of life. An “end-of-life
notice” shall be provided, materials shall be marked in accordance with ISO standards.
There shall not exist any possibility of opening or closing the emptying hatches of the container without
...
