EN 13863-1:2003
(Main)Concrete pavements - Part 1: Test method for the determination of the thickness of a concrete pavement by survey method
Concrete pavements - Part 1: Test method for the determination of the thickness of a concrete pavement by survey method
This European Standard specifies a method for the non destructive determination of the thickness of a concrete pavement using a surveying procedure.
Fahrbahnbefestigungen aus Beton - Teil 1: Prüfverfahren zur Dickenbestimmung einer Fahrbahnbefestigung aus Beton durch Vermessung
Diese Norm legt ein Verfahren zur zerstörungsfreien Dickenbestimmung einer neuen Fahrbahnbefestigung aus Beton (Betondecke) durch Vermessung fest.
Revêtements en béton - Partie 1: Méthode d'essais pour la détermination de l'épaisseur de la dalle de béton par voie non destructive
Cette Norme européenne spécifie une méthode pour la détermination non destructive de l'épaisseur d'une dalle de béton par nivellement.
Betonska vozišča – 1. del: Preskusna metoda za ugotavljanje debeline betonskega vozišča z merjenjem
General Information
- Status
- Published
- Publication Date
- 14-Oct-2003
- Withdrawal Date
- 30-Mar-2005
- Technical Committee
- CEN/TC 227 - Road materials
- Current Stage
- 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
- Start Date
- 02-Sep-2025
- Completion Date
- 02-Sep-2025
- Directive
- 89/106/EEC - Construction products
Overview
EN 13863-1:2003 - Concrete pavements: Part 1 - specifies a non‑destructive, survey‑based test method for determining the thickness of a concrete pavement. Published by CEN (Technical Committee CEN/TC 227), this standard defines how to measure slab thickness by comparing elevations of the pavement surface and the underlying layer using levelling or vertical measurements to a taut cord.
Keywords: EN 13863-1:2003, concrete pavements, thickness determination, non‑destructive test, survey method, CEN.
Key topics and technical requirements
- Scope: Method for non‑destructive determination of pavement thickness using a surveying procedure.
- Terms: Defines profile (transverse section) and measuring points (equally spaced points within a profile).
- Equipment required:
- Levelling instrument
- Measuring ruler
- Thin nylon cord (taut cord set transverse to paving lane)
- Procedure:
- Measure elevations of the surface of the layer beneath the concrete pavement (Measurement 1) and of the finished concrete surface (Measurement 2).
- Measurements can be made along profiles or a defined grid; measuring points in each profile must be equally spaced.
- Measurements may be taken from a levelling instrument or by measuring vertical distance to a taut nylon cord.
- Recommended measuring points are at least 0.25 m from pavement edges; additional profiles at pavement break points (junctions, cross‑fall changes, roundabouts).
- Results and calculation: Thickness at each point equals Measurement 2 minus Measurement 1 (difference in elevation).
- Test report requirements must include:
- Reference to EN 13863-1:2003
- Concrete thickness at each measurement point (mm)
- For uniform designs: average thickness per profile and for the pavement
- For variable designs: distance from each point to a longitudinal paving edge
- Type of measuring equipment used
- Tolerance: Measurement tolerance is specified as ±1 mm.
Applications
- Quality control and verification of design thickness during construction of concrete pavements.
- Condition surveys and forensic assessment of existing slabs without destructive coring.
- Acceptance testing for contractors and project handover documentation.
- Maintenance planning where slab thickness affects structural assessment and rehabilitation choices.
Who uses this standard
- Pavement engineers and design offices
- Site inspectors and construction supervisors
- Road authorities and asset managers
- Testing laboratories performing non‑destructive pavement assessments
- Contractors responsible for concrete pavement installation and quality assurance
Related standards
- EN 13863 series (as referenced in the standard):
- EN 13863-2: Bond between two layers
- prEN 13863-3: Determination of slab thickness (related test methods)
- prEN 13863-4: Wear resistance to studded tyres
This concise guide outlines practical use of EN 13863-1:2003 for measuring concrete pavement thickness using a standardized, non‑destructive survey method.
Frequently Asked Questions
EN 13863-1:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Concrete pavements - Part 1: Test method for the determination of the thickness of a concrete pavement by survey method". This standard covers: This European Standard specifies a method for the non destructive determination of the thickness of a concrete pavement using a surveying procedure.
This European Standard specifies a method for the non destructive determination of the thickness of a concrete pavement using a surveying procedure.
EN 13863-1:2003 is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13863-1:2003 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 13863-1:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

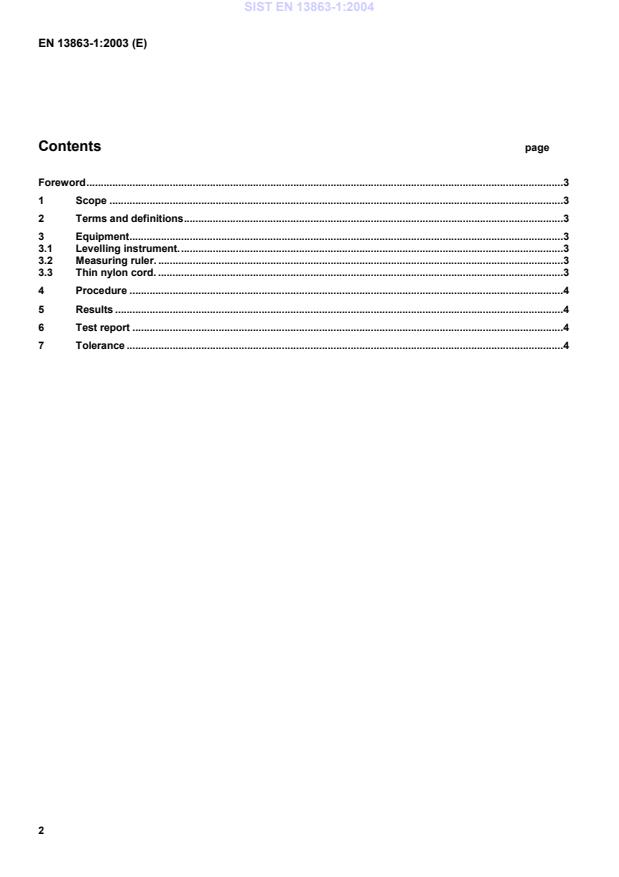

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Fahrbahnbefestigungen aus Beton - Teil 1: Prüfverfahren zur Dickenbestimmung einer Fahrbahnbefestigung aus Beton durch VermessungRevetements en béton - Partie 1: Méthode d'essais pour la détermination de l'épaisseur de la dalle de béton par voie non destructiveConcrete pavements - Part 1: Test method for the determination of the thickness of a concrete pavement by survey method93.080.20Materiali za gradnjo cestRoad construction materialsICS:Ta slovenski standard je istoveten z:EN 13863-1:2003SIST EN 13863-1:2004en01-junij-2004SIST EN 13863-1:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13863-1October 2003ICS 93.080.20English versionConcrete pavements - Part 1: Test method for the determinationof the thickness of a concrete pavement by survey methodRevêtement en béton - Méthodes d'essais - Partie 1:Détermination de l'épaisseur de la dalle de béton par voienon destructiveFahrbahnbefestigungen aus Beton - Teil 1: Prüfverfahrenzur Dickenbestimmung einer Fahrbahnbefestigung ausBeton durch VermessungThis European Standard was approved by CEN on 25 March 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and UnitedKingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13863-1:2003 ESIST EN 13863-1:2004
...
