EN 13166:2008

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za stavbe - Proizvodi iz fenolne pene (PF) - SpecifikacijaWärmedämmstoffe für Gebäude - Werkmäßig hergestellte Produkte aus Phenolharzschaum (PF) - SpezifikationProduits isolants thermiques pour le bâtiment - Produits manufacturés en mousse phénolique (PF) - SpécificationThermal insulation products for buildings - Factory made products of phenolic foam (PF) - Specification91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 13166:2008SIST EN 13166:2009en,fr,de01-februar-2009SIST EN 13166:2009SLOVENSKI
STANDARDSIST EN 13166:2002/AC:2006SIST EN 13166:2002/A1:2004SIST EN 13166:20021DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13166November 2008ICS 91.100.60Supersedes EN 13166:2001
English VersionThermal insulation products for buildings - Factory madeproducts of phenolic foam (PF) - SpecificationProduits isolants thermiques pour le bâtiment - Produitsmanufacturés en mousse phénolique (PF) - SpécificationWärmedämmstoffe für Gebäude - Werkmäßig hergestellteProdukte aus Phenolharzschaum (PF) - SpezifikationThis European Standard was approved by CEN on 11 October 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13166:2008: ESIST EN 13166:2009

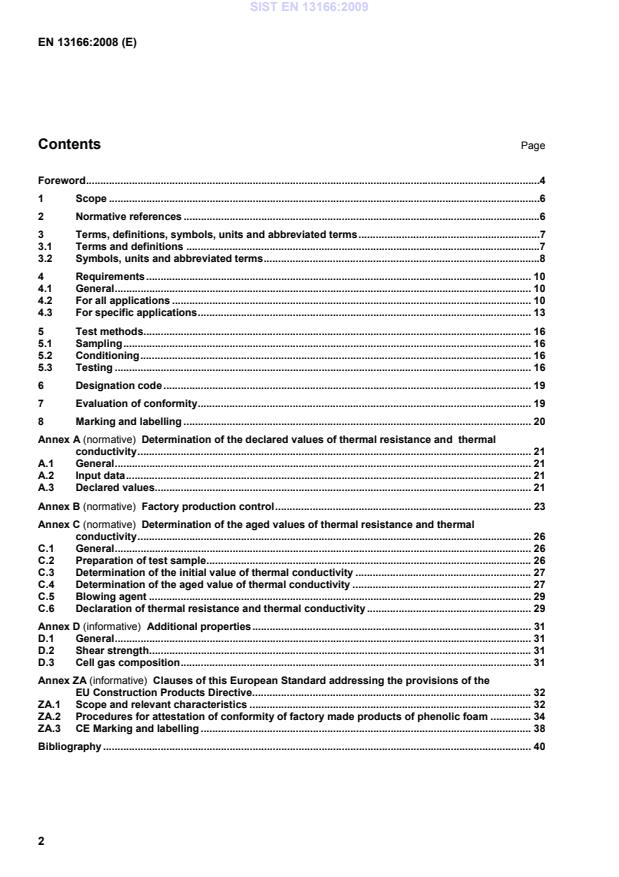

Determination of the declared values of thermal resistance and
thermal conductivity . 21 A.1 General . 21 A.2 Input data . 21 A.3 Declared values. 21 Annex B (normative)
Factory production control . 23 Annex C (normative)
Determination of the aged values of thermal resistance and thermal conductivity . 26 C.1 General . 26 C.2 Preparation of test sample . 26 C.3 Determination of the initial value of thermal conductivity . 27 C.4 Determination of the aged value of thermal conductivity . 27 C.5 Blowing agent . 29 C.6 Declaration of thermal resistance and thermal conductivity . 29 Annex D (informative)
Additional properties . 31 D.1 General . 31 D.2 Shear strength . 31 D.3 Cell gas composition . 31 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive. 32 ZA.1 Scope and relevant characteristics . 32 ZA.2 Procedures for attestation of conformity of factory made products of phenolic foam . 34 ZA.3 CE Marking and labelling . 38 Bibliography . 40
Figures
Figure ZA.1 — Example CE marking information . 39
EN 822, Thermal insulating products for building applications — Determination of length and width EN 823, Thermal insulating products for building applications — Determination of thickness EN 824, Thermal insulating products for building applications — Determination of squareness EN 825, Thermal insulating products for building applications — Determination of flatness EN 826, Thermal insulating products for building applications — Determination of compression behaviour EN 1602, Thermal insulating products for building applications — Determination of apparent density EN 1603, Thermal insulating products for building applications — Determination of dimensional stability under constant normal laboratory conditions (23 °C/50 % relative humidity) EN 1604, Thermal insulating products for building applications — Determination of dimensional stability under specified temperature and humidity conditions EN 1606, Thermal insulating products for building applications — Determination of compressive creep EN 1607, Thermal insulating products for building applications — Determination of tensile strength perpendicular to faces EN 1609, Thermal insulating products for building applications — Determination of short term water absorption by partial immersion EN 12086:1997, Thermal insulating products for building applications — Determination of water vapour transmission properties SIST EN 13166:2009

EN ISO 11925-2, Reaction to fire tests — Ignitability of building products subjected to direct impingement of flame – Part 2: Single-flame source test (ISO 11925-2:2002) ISO 12491, Statistical methods for quality control of building materials and components 3 Terms, definitions, symbols, units and abbreviated terms 3.1 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1.1 Terms and definitions as given in EN ISO 9229:2007 3.1.1.1 phenolic foam rigid cellular foam, the polymer structure of which is made primarily from the polycondensation of phenol, its homologues and/or derivatives, with aldehydes or ketones 3.1.1.2 board slab rigid or semi-rigid (insulation) product of rectangular shape and cross section in which the thickness is uniform and substantially smaller than the other dimensions NOTE Boards are usually thinner than slabs. They may also be supplied in tapered form. SIST EN 13166:2009

Dimensions in millimetres Dimensions Length Width < 1 250 ± 5,0 ± 3,0 1 250 to 2 000 ± 7,5 ± 7,5 2 001 to 4 000 ± 10,0 not applicable > 4 000 ± 15,0 not applicable
4.2.3 Thickness Thickness, d, shall be determined in accordance with EN 823. No test result shall deviate from the nominal thickness, dN, by more than the tolerance given in Table 2 for the labelled class. Table 2 — Classes for thickness tolerances
Dimensions in millimetres Nominal thickness Tolerance T1 T2 < 50 ± 2,0 ± 1,5 50 to 100 – 2,0 + 3,0 ± 1,5 > 100 – 2,0 + 5,0 ± 1,5
4.2.4 Squareness Squareness shall be determined in accordance with EN 824. The deviation from squareness on length and width, Sb, shall not exceed 10 mm/m. The deviation from squareness on thickness, Sd, shall not exceed 2 mm. SIST EN 13166:2009

Dimensions in millimetres Nominal thickness Tolerance < 50 ≤ 10,0 50 to 100 ≤ 7,5 > 100 ≤ 5,0
4.2.6 Dimensional stability 4.2.6.1 Dimensional stability under constant normal laboratory conditions Dimensional stability under constant normal laboratory conditions (23 °C/50 % relative humidity) shall be determined in accordance with EN 1603. The relative changes in length, ∆εl, and width, ∆εb, shall not exceed ± 0,5 %. The overall change in flatness, ∆S, shall not exceed the values given in Table 3 for the corresponding nominal thickness, dN. 4.2.6.2 Dimensional stability under specified temperature and humidity conditions Dimensional stability under specified temperature and humidity conditions shall be determined in accordance with EN 1604. The test shall be carried out after storage for 48 h at (23 ± 2) °C and (90 ± 5) % relative humidity. The relative changes in length, ∆εl, and width, ∆εb, shall not exceed ± 0,5 %. The relative change in thickness, ∆εd, shall not exceed ± 1,5 %. This test shall not be performed when the more severe test, described in 4.3.2.2 is carried out. 4.2.7 Bending behaviour The bending strength, σb, shall be determined in accordance with EN 12089. For handling purposes, products shall have a bending strength greater than 200 kPa. 4.2.8 Reaction to fire Reaction to fire classification (Euroclasses) shall be determined in accordance with EN 13501-1. 4.2.9 Durability characteristics 4.2.9.1 General The appropriate durability characteristics have been considered and are covered in 4.2.9.2, 4.2.9.3 and 4.2.9.4. 4.2.9.2 Durability of reaction to fire against ageing/degradation The reaction to fire performance of factory made products of phenolic foam does not change with time. SIST EN 13166:2009

Table 4 — Levels for compressive strength Level Requirement kPa CS(Y) 50 ≥ 50 CS(Y) 100 ≥ 100 CS(Y) 120 ≥ 120 CS(Y) 150 ≥ 150 CS(Y) 175 ≥ 175 CS(Y) 200 ≥ 200 CS(Y) 300 ≥ 300 CS(Y) 400 ≥ 400
4.3.4 Tensile strength perpendicular to faces Tensile strength perpendicular to faces, σmt, shall be determined in accordance with EN 1607. The value of tensile strength perpendicular to faces shall be declared in levels, TR, with steps of 20 kPa. No test result shall be less than the declared level. 4.3.5 Point load The effects of foot traffic shall be assessed by means of the determination of compressive strength in accordance with EN 826 (see 4.3.3). 4.3.6 Compressive creep Compressive creep, εct, and total thickness reduction, εt, shall be determined after at least one hundred and twenty two days of testing at a declared compressive stress, σc, given in steps of at least 1 kPa and the results extrapolated thirty times to obtain the declared levels in accordance with EN 1606. Compressive creep shall be declared in levels, i2, and the total thickness reduction shall be declared in levels, i1, with steps of 1 % at the declared stress. No test result shall exceed the declared levels at the declared stress. NOTE 1 Examples for declaration of levels for compressive creep. Level Test time Extrapolation time Declared stress Requirement days years kPa % CC(i1/i2%/10)σc 122 10 σc i1/i2 ≤ i CC(i1/i2 %/25)σc 304 25 σc i1/i2 ≤ i CC(i1/i2 %/50)σc 608 50 σc i1/i2 ≤ i SIST EN 13166:2009

4.3.7.2 Long term water absorption by partial immersion Long term water absorption by partial immersion, Wlp, shall be determined in accordance with EN 12087. No test result shall exceed the value given in Table 6 for the declared level. Table 6 — Levels for long term water absorption by partial immersion Level Requirement kg/m2 WL (P) 1 ≤ 3,00 WL (P) 2 ≤ 2,00 WL (P) 3 ≤ 1,50 WL (P) 4 ≤ 1,00 WL (P) 5 ≤ 0,50
4.3.8 Water vapour transmission Water vapour transmission properties shall be determined in accordance with EN 12086 and declared as the water vapour diffusion resistance factor, µ, for homogeneous products and the water vapour resistance, Z, for faced or non-homogeneous products. No test result of µ shall exceed the declared value and no test result of Z shall be less than the declared value. Level Requirement kg/m2 WS 1 ≤ 1,25 WS 2 ≤ 1,00 WS 3 ≤ 0,75 WS 4 ≤ 0,50 WS 5 ≤ 0,25 SIST EN 13166:2009

5 Test methods 5.1 Sampling Test specimens shall be taken from the same sample with a total area sufficient to cover the needed tests. The shorter side of the sample shall not be less than 300 mm or full size of the product whichever is smaller. 5.2 Conditioning No special conditioning of the test specimens is needed unless otherwise specified in the test standard except for the determination of initial thermal conductivity and apparent density. For the determination of initial thermal conductivity and apparent density the test specimens shall be conditioned in accordance with EN 12429 at (70 ± 2) °C, and then at (23 ± 2) °C and (50 ± 5) % relative humidity prior to testing. 5.3 Testing 5.3.1 General Table 7 gives the dimensions of the test specimens, the minimum number of test specimens required to get one test result and any specific conditions which are necessary. 5.3.2 Thermal resistance and thermal conductivity Thermal resistance and thermal conductivity shall be measured in accordance with EN 12667 or EN 12939 for thick products under the following conditions:  at a mean temperature of (10 ± 0,3) °C;  after conditioning in accordance with 5.2. NOTE Thermal resistance and thermal conductivity may also be measured at mean temperatures other than 10 °C, providing that the accuracy of the relationship between temperature and thermal properties is well documented. Thermal resistance and thermal conductivity shall be determined directly at measured thickness. In the event that this is not possible, they shall be determined by measurements on other thicknesses of the product providing that: SIST EN 13166:2009

– 20 °C EN 1604 200 × 200 3 – 4.3.3 Compressive strength EN 826 50 × 50 5 ≤ 50 mm thick 100 × 100 5 > 50 mm thick4.3.4 Tensile strength perpendicular to faces EN 1607 50 × 50 3 – 4.3.5 Point load See 4.3.3 – - – 4.3.6 Compressive creep EN 1606 50 × 50 3 ≤ 50 mm thick 100 × 100 3 > 50 mm thick4.3.7 Short term water absorption EN 1609 200 × 200 3 Method A Long term water absorption EN 12087 200 × 200 3 Method 1A 4.3.8 Water vapour transmission EN 12086 See 6.1 in EN 12086:1997 3 – 4.3.9 Apparent density EN 1602 200 × 200 3 – 4.3.10 Closed cell content EN ISO 4590 100 × 30 × 30 3 Method 2 4.3.11 Release of dangerous substances b – – – 4.3.12 Continuous glowing combustion b – – – a Full-size product thickness except for 4.2.8 and 4.3.10. b When drafting this standard, no European harmonized test method was available. SIST EN 13166:2009

For the EC certificate and declaration of conformity, as appropriate, see ZA.2.2. 8 Marking and labelling Products conforming to this standard shall be clearly marked, either on the product or on the label or on the packaging, with the following information:  product name or other identifying characteristic;  name or identifying mark and address of the manufacturer or his authorised representative;  shift or time of production and manufacturing plant or traceability code;  reaction to fire class;  declared thermal resistance;  declared thermal conductivity;  nominal thickness;  designation code as given in Clause 6;  type of facing, if any;  nominal length, nominal width;  number of pieces and area in the package, as appropriate. NOTE For CE marking and labelling, see ZA.3. SIST EN 13166:2009

Determination of the declared values of thermal resistance and
thermal conductivity A.1 General It is the responsibility of the manufacturer to determine the declared values of thermal resistance and thermal conductivity. He will have to demonstrate conformity of the product to its declared values. The declared values of thermal resistance and thermal conductivity of a product are the expected values of these properties during an economically reasonable working life under normal conditions, assessed through measured data at reference conditions. A.2 Input data The manufacturer shall have at least ten test results for thermal resistance or thermal conductivity, obtained from internal or external direct measurements in order to calculate the declared values. The direct thermal resistance or thermal conductivity measurements shall be carried out at regular intervals spread over a period of the last twelve months. If less than ten test results are available, the time period may be extended until ten test results are obtained, but with a maximum period of three years, within which the product and production conditions have not changed significantly. For new products the ten thermal resistance or thermal conductivity test results shall be carried out spread over a minimum period of ten days. The declared values shall be calculated according to the method given in A.3 and shall be recalculated at intervals not exceeding three months of production. A.3 Declared values A.3.1 General The derivation of the declared values RD and λD from the calculated values R90/90 and λ90/90 shall use the rules given in 4.2.1 which include the rounding conditions. A.3.2 Case where thermal resistance and thermal conductivity are declared The declared values RD and λD shall be derived from the calculated values R90/90 and λ90/90 which are determined using Equations A.1, A.2 and A.3. λ90/90 = λmean + k × sλ (A.1) 1)(12meani−−=∑=nsniλλλ (A.2) R90/90 = dN/λ90/90 (A.3) SIST EN 13166:2009
...
