ENV 1993-5:1998
(Main)Eurocode 3: Design of steel structures - Part 5: Piling
Eurocode 3: Design of steel structures - Part 5: Piling
(1)P This Part 5 of ENV 1993 provides principles and application rules for the structural design of bearing piles and sheet piles made of steel. (2) It also provides examples of detailing for foundation and retaining wall structures. (3)P The field of application includes: - steel piled foundations of civil engineering works on land and over water; - temporary or permanent structures necessary for the execution of steel piling: - temporary or permanent retaining structures composed of steel sheet piles, including all kinds of combined walls.
Eurocode 3: Bemessung und Konstruktion von Stahlbauten - Teil 5: Pfähle und Spundwände
Eurocode 3: Calcul des structures en acier - Partie 5: Pieux et palplanches
Eurocode 3: Projektiranje jeklenih konstrukcij - 5. del: Piloti in zagatne stene
General Information
- Status
- Withdrawn
- Publication Date
- 20-Jan-1998
- Withdrawal Date
- 27-Feb-2007
- Technical Committee
- CEN/TC 250 - Structural Eurocodes
- Drafting Committee
- CEN/TC 250/SC 3 - Eurocode 3: Design of steel structures
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 28-Feb-2007
- Completion Date
- 28-Feb-2007
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 22-Dec-2008
- Effective Date
- 28-Jan-2026
ENV 1993-5:2001
Get Certified
Connect with accredited certification bodies for this standard
ICC Evaluation Service
Building products evaluation and certification.
QAI Laboratories
Building and construction product testing and certification.
Aboma Certification B.V.
Specialized in construction, metal, and transport sectors.
Sponsored listings
Frequently Asked Questions
ENV 1993-5:1998 is a standard + national annex and/or foreword published by the European Committee for Standardization (CEN). Its full title is "Eurocode 3: Design of steel structures - Part 5: Piling". This standard covers: (1)P This Part 5 of ENV 1993 provides principles and application rules for the structural design of bearing piles and sheet piles made of steel. (2) It also provides examples of detailing for foundation and retaining wall structures. (3)P The field of application includes: - steel piled foundations of civil engineering works on land and over water; - temporary or permanent structures necessary for the execution of steel piling: - temporary or permanent retaining structures composed of steel sheet piles, including all kinds of combined walls.
(1)P This Part 5 of ENV 1993 provides principles and application rules for the structural design of bearing piles and sheet piles made of steel. (2) It also provides examples of detailing for foundation and retaining wall structures. (3)P The field of application includes: - steel piled foundations of civil engineering works on land and over water; - temporary or permanent structures necessary for the execution of steel piling: - temporary or permanent retaining structures composed of steel sheet piles, including all kinds of combined walls.
ENV 1993-5:1998 is classified under the following ICS (International Classification for Standards) categories: 91.010.30 - Technical aspects; 91.080.10 - Metal structures; 91.080.13 - Steel structures. The ICS classification helps identify the subject area and facilitates finding related standards.
ENV 1993-5:1998 has the following relationships with other standards: It is inter standard links to EN 1993-5:2007, EN 12063:1999. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ENV 1993-5:1998 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/BC/CEN/89/11. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
ENV 1993-5:1998 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
S L O V E N S K I SIST ENV 1993-5
prva izdaja
PREDSTANDARD
julij 2001
Eurocode 3: Projektiranje jeklenih konstrukcij – 5. del: Piloti in zagatne
stene (prevzet ENV 1993-5:1998 z metodo platnice)
Eurocode 3: Design of steel structures - Part 5: Piling
Eurocode 3: Calcul des structures en acier - Partie 5: Pieux et palplanches
Eurocode 3: Bemessung und Konstruktion von Stahlbauten - Teil 5: Pfähle und
Spundwände
Deskriptorji: inženirski objekti, jeklene konstrukcije, konstrukcijska jekla, piloti, zagatne stene,
projektiranje, računanje
Referenčna številka
ICS 91.010.30; 91.080.10 SIST ENV 1993-5:2001 ((sl),en)
Nadaljevanje na straneh od II do V in od 1 do 162
© Standard je založil in izdal Urad Republike Slovenije za meroslovje. Razmnoževanje ali kopiranje celote ali delov tega standarda ni
dovoljeno.

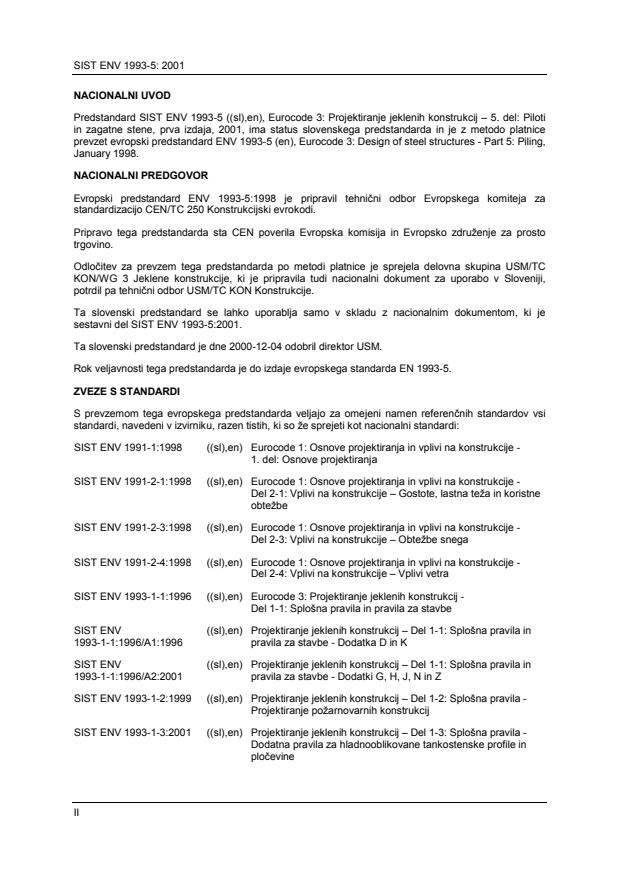

SIST ENV 1993-5: 2001
NACIONALNI UVOD
Predstandard SIST ENV 1993-5 ((sl),en), Eurocode 3: Projektiranje jeklenih konstrukcij – 5. del: Piloti
in zagatne stene, prva izdaja, 2001, ima status slovenskega predstandarda in je z metodo platnice
prevzet evropski predstandard ENV 1993-5 (en), Eurocode 3: Design of steel structures - Part 5: Piling,
January 1998.
NACIONALNI PREDGOVOR
Evropski predstandard ENV 1993-5:1998 je pripravil tehnični odbor Evropskega komiteja za
standardizacijo CEN/TC 250 Konstrukcijski evrokodi.
Pripravo tega predstandarda sta CEN poverila Evropska komisija in Evropsko združenje za prosto
trgovino.
Odločitev za prevzem tega predstandarda po metodi platnice je sprejela delovna skupina USM/TC
KON/WG 3 Jeklene konstrukcije, ki je pripravila tudi nacionalni dokument za uporabo v Sloveniji,
potrdil pa tehnični odbor USM/TC KON Konstrukcije.
Ta slovenski predstandard se lahko uporablja samo v skladu z nacionalnim dokumentom, ki je
sestavni del SIST ENV 1993-5:2001.
Ta slovenski predstandard je dne 2000-12-04 odobril direktor USM.
Rok veljavnosti tega predstandarda je do izdaje evropskega standarda EN 1993-5.
ZVEZE S STANDARDI
S prevzemom tega evropskega predstandarda veljajo za omejeni namen referenčnih standardov vsi
standardi, navedeni v izvirniku, razen tistih, ki so že sprejeti kot nacionalni standardi:
SIST ENV 1991-1:1998 ((sl),en) Eurocode 1: Osnove projektiranja in vplivi na konstrukcije -
1. del: Osnove projektiranja
SIST ENV 1991-2-1:1998 ((sl),en) Eurocode 1: Osnove projektiranja in vplivi na konstrukcije -
Del 2-1: Vplivi na konstrukcije – Gostote, lastna teža in koristne
obtežbe
SIST ENV 1991-2-3:1998 ((sl),en) Eurocode 1: Osnove projektiranja in vplivi na konstrukcije -
Del 2-3: Vplivi na konstrukcije – Obtežbe snega
SIST ENV 1991-2-4:1998 ((sl),en) Eurocode 1: Osnove projektiranja in vplivi na konstrukcije -
Del 2-4: Vplivi na konstrukcije – Vplivi vetra
SIST ENV 1993-1-1:1996 ((sl),en) Eurocode 3: Projektiranje jeklenih konstrukcij -
Del 1-1: Splošna pravila in pravila za stavbe
SIST ENV ((sl),en) Projektiranje jeklenih konstrukcij – Del 1-1: Splošna pravila in
1993-1-1:1996/A1:1996 pravila
...
