EN ISO 19903:2006

SLOVENSKI STANDARD
01-maj-2007
,QGXVWULMDQDIWHLQ]HPHOMVNHJDSOLQD1HSUHPLþQHEHWRQVNHVWUXNWXUHQDIWQLK
SORãþDGL,62
Petroleum and natural gas industries - Fixed concrete offshore structures (ISO
19903:2006)
Erdöl- und Erdgasindustrie - Feststehende Offshore-Betonkonstruktionen (ISO
19903:2006)
Industries du pétrole et du gaz naturel - Structures en mer fixes en béton (ISO
19903:2006)
Ta slovenski standard je istoveten z: EN ISO 19903:2006
ICS:
75.180.10 Oprema za raziskovanje in Exploratory and extraction
odkopavanje equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 19903
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2006
ICS 75.180.10
English Version
Petroleum and natural gas industries - Fixed concrete offshore
structures (ISO 19903:2006)
Industries du pétrole et du gaz naturel - Structures en mer Erdöl- und Erdgasindustrie - Feststehende Offshore-
fixes en béton (ISO 19903:2006) Betonkonstruktionen (ISO 19903:2006)
This European Standard was approved by CEN on 25 November 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 19903:2006: E
worldwide for CEN national Members.

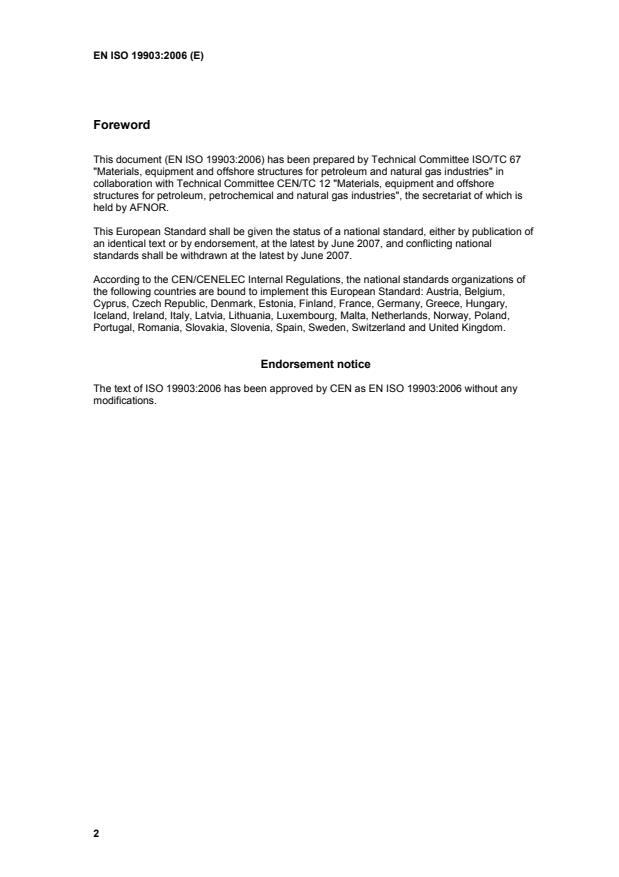

Foreword
This document (EN ISO 19903:2006) has been prepared by Technical Committee ISO/TC 67
"Materials, equipment and offshore structures for petroleum and natural gas industries" in
collaboration with Technical Committee CEN/TC 12 "Materials, equipment and offshore
structures for petroleum, petrochemical and natural gas industries", the secretariat of which is
held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by June 2007, and conflicting national
standards shall be withdrawn at the latest by June 2007.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 19903:2006 has been approved by CEN as EN ISO 19903:2006 without any
modifications.
INTERNATIONAL ISO
STANDARD 19903
First edition
2006-12-01
Petroleum and natural gas industries —
Fixed concrete offshore structures
Industries du pétrole et du gaz naturel — Structures en mer fixes en
béton
Reference number
ISO 19903:2006(E)
©
ISO 2006
ISO 19903:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

ISO 19903:2006(E)
Contents Page
Foreword. v
Introduction . vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Symbols and abbreviated terms . 8
4.1 Symbols . 8
4.2 Abbreviated terms . 10
5 General requirements. 11
5.1 General. 11
5.2 National requirements. 11
5.3 Overall planning requirements. 11
5.4 Functional requirements. 12
5.5 Structural requirements . 13
5.6 Design requirements . 14
6 Actions and action effects . 16
6.1 General. 16
6.2 Environmental actions . 17
6.3 Other actions. 22
6.4 Partial factors for actions . 27
6.5 Combinations of actions. 28
6.6 Exposure levels. 30
7 Structural analysis. 31
7.1 General. 31
7.2 General principles. 31
7.3 Physical representation . 34
7.4 Types of analyses. 38
7.5 Analyses requirements . 41
8 Concrete works . 46
8.1 General. 46
8.2 Design . 48
8.3 Materials . 51
8.4 Execution. 57
8.5 Geometrical tolerances . 70
8.6 Quality control — Inspection, testing and corrected actions . 73
9 Foundation design. 77
9.1 Introduction . 77
9.2 General. 77
9.3 Soil investigation . 78
9.4 Representative soil properties . 78
9.5 Partial factors for actions and materials . 78
9.6 Geotechnical design principles. 79
9.7 Bearing and sliding stability. 80
9.8 Soil reactions on structures . 81
9.9 Installation and removal. 81
9.10 Scour. 82
10 Mechanical systems . 82
ISO 19903:2006(E)
10.1 Introduction . 82
10.2 Permanent mechanical systems. 83
10.3 Mechanical systems — Temporary . 90
10.4 Attachments and penetrations . 93
10.5 Mechanical systems — Special considerations . 94
11 Marine operations and construction afloat . 95
11.1 General . 95
11.2 Engineering and planning. 96
12 Corrosion control. 96
12.1 Introduction . 96
12.2 Design for corrosion control. 98
12.3 Fabrication and installation of systems for corrosion control. 102
13 Topsides interface design. 103
13.1 Introduction . 103
13.2 Basis for design . 104
13.3 Deck/shaft structural connection . 104
13.4 Topsides — Structure mating. 105
13.5 Transportation, tow-to-field . 105
14 Inspection and condition monitoring. 105
14.1 General . 105
14.2 Objective . 105
14.3 Personnel qualifications. 106
14.4 Planning . 106
14.5 Documentation . 107
14.6 Important items related to inspection and condition monitoring . 108
14.7 Inspection and condition monitoring types . 111
14.8 Marking. 112
14.9 Guidance for inspection of special areas. 112
15 Assessment of existing structures . 115
15.1 General . 115
15.2 Structural assessment initiators . 116
Annex A (informative) Regional information . 117
Bibliography . 119

iv © ISO 2006 – All rights reserved

ISO 19903:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 19903 was prepared by Technical Committee ISO/TC 67, Materials, equipment and offshore structures
for petroleum, petrochemical and natural gas industries, Subcommittee SC 7, Offshore structures.
ISO 19903 is one of a series of standards for offshore structures. The full series consists of the following
International Standards.
⎯ ISO 19900, Petroleum and natural gas industries — General requirements for offshore structures
⎯ ISO 19901 (all parts), Petroleum and natural gas industries — Specific requirements for offshore
structures
1)
⎯ ISO 19902, Petroleum and natural gas industries — Fixed steel offshore structures
⎯ ISO 19903, Petroleum and natural gas industries — Fixed concrete offshore structures
⎯ ISO 19904-1, Petroleum and natural gas industries — Floating offshore structures — Part 1: Monohulls,
semi-submersibles and spars
⎯ ISO 19904-2, Petroleum and natural gas industries — Floating offshore structures — Part 2: Tension leg
2)
platforms
⎯ ISO 19905-1, Petroleum and natural gas industries — Site-specific assessment of mobile offshore
2)
units — Part 1: Jack-ups
⎯ ISO/TR 19905-2, Petroleum and natural gas industries — Site-specific assessment of mobile offshore
2)
units — Part 2: Jack-ups commentary
2)
⎯ ISO 19906, Petroleum and natural gas industries — Arctic offshore structures

1) To be published.
2) Under preparation.
ISO 19903:2006(E)
Introduction
The series of International Standards applicable to offshore structures, ISO 19900 to ISO 19906, constitutes a
common basis covering those aspects that address design requirements and assessments of all offshore
structures used by the petroleum and natural gas industries worldwide. Through their application the intention
is to achieve reliability levels appropriate for manned and unmanned offshore structures, whatever the type of
structure and nature or combination of the materials used.
It is important to recognize that structural integrity is an overall concept comprising models for describing
actions, structural analyses, design rules, safety elements, workmanship, quality control procedures and
national requirements, all of which are mutually dependent. The modification of one aspect of design in
isolation can disturb the balance of reliability inherent in the overall concept or structural system. The
implications involved in modifications, therefore, need to be considered in relation to the overall reliability of all
offshore structural systems.
The series of International Standards applicable to the various types of offshore structure is intended to
provide wide latitude in the choice of structural configurations, materials and techniques without hindering
innovation. Sound engineering judgement is therefore necessary in the use of these International Standards.
International Standard ISO 19903 was developed based on experience gained from the design, execution and
use of a number of fixed concrete platforms, in particular from more than 30 years of experience with such
structures in the North Sea. The background documents when developing this International Standard are from
the following types of documents:
⎯ national regulations and other requirements from the authorities;
⎯ regional standards;
⎯ national standards;
⎯ operator’s company specifications;
⎯ scientific papers and reports;
⎯ reports from inspection of structures in use.
This International Standard draws on the experience gained with fixed concrete offshore structures. This
experience shows that fixed concrete offshore structures perform well and are durable in the marine
environment. These structures are all unique, one-of-a-kind structures, purpose-made for a particular location
and a particular set of operating requirements. This is reflected in ISO 19903 by the fact that the standard
gives guidance rather than detailed prescriptive rules. This International Standard reflects in particular the
experience and the conditions in the North Sea and the east coast of Canada, and the design rules and
practices used there, but is intended for worldwide application.

vi © ISO 2006 – All rights reserved

INTERNATIONAL STANDARD ISO 19903:2006(E)

Petroleum and natural gas industries — Fixed concrete
offshore structures
1 Scope
This International Standard specifies requirements and provides recommendations applicable to fixed
concrete offshore structures for the petroleum and natural gas industries, and specifically addresses
a) the design, construction, transportation and installation of new structures, including requirements for
in-service inspection and possible removal of structures,
b) the assessment of structures in service, and
c) the assessment of structures for reuse at other locations.
This International Standard is intended to cover the engineering processes needed for the major engineering
disciplines to establish a facility for offshore operation. It can also be used for the design of floating concrete
[11] [12]
structures as specified in ISO 19904-1 (and the future ISO 19904-2 when published) and for arctic
[7]
structures (as specified in the future ISO 19906 when published).
In order to provide a standard that will be useful to the industry, a comprehensive treatment of some topics is
provided where there is currently no relevant reference. For such well-known topics as the design formulas for
concrete structural members, this International Standard is intended to be used in conjunction with a suitable
reference standard for basic concrete design (see 8.2.1). The designer can use suitable national or regional
design standards that provide the required level of safety. Only other ISO documents will be referenced
directly in the text.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 1920-3, Testing of concrete — Part 3: Making and curing test specimens
ISO 1920-4, Testing of concrete — Part 4: Strength of hardened concrete
ISO 2394, General principles on reliability for structures
ISO 4463-1, Measurement methods for building — Setting-out and measurement — Part 1: Planning and
organization, measuring procedures, acceptance criteria
ISO 6934 (all parts), Steel for the prestressing of concrete
ISO 6935 (all parts), Steel for the reinforcement of concrete
ISO 19900, Petroleum and natural gas industries — General requirements for offshore structures
ISO 19901-1, Petroleum and natural gas industries — Specific requirements for offshore structures — Part 1:
Metocean design and operating considerations
ISO 19903:2006(E)
ISO 19901-2, Petroleum and natural gas industries — Specific requirements for offshore structures — Part 2:
Seismic design procedures and criteria
ISO 19901-4, Petroleum and natural gas industries — Specific requirements for offshore structures — Part 4:
Geotechnical and foundation design considerations
ISO 19901-5, Petroleum and natural gas industries — Specific requirements for offshore structures — Part 5:
Weight control during engineering and construction
ISO 19901-6, Petroleum and natural gas industries — Specific requirements for offshore structures — Part 6:
3)
Marine operations
3)
ISO 19902, Petroleum and natural gas industries — Fixed steel offshore structures
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 19900 and the following apply.
NOTE Terms and definitions relevant for the use of this International Standard are also found in ISO 19901-1,
ISO 19901-2, ISO 19901-4 and ISO 19901-6 and in ISO 19902.
3.1
abnormal design situation
design situation in which conditions exceed conventionally specified design conditions and which is used to
mitigate against very remote events
−4
NOTE Abnormal design situations are used to provide robustness against events with a probability of typically 10
per annum or lower by avoiding, for example, gross overloading.
[ISO 19901-2]
3.2
abnormal level earthquake
ALE
intense earthquake of abnormal severity under the action of which the structure should not suffer complete
loss of integrity
NOTE The ALE event is comparable to the abnormal event in the design of fixed structures which are described in
ISO 19902 and ISO 19903. When exposed to the ALE, a manned structure is supposed to maintain structural and/or
floatation integrity for a sufficient period of time to enable evacuation to take place.
[ISO 19901-2]
3.3
accidental design situation
design situation involving exceptional conditions of the structure or its exposure
EXAMPLE Impact, fire, explosion, local failure or loss of intended differential pressure (e.g. buoyancy).
3.4
action
external load applied to the structure (direct action) or an imposed deformation or acceleration (indirect action)
NOTE 1 An imposed deformation can be caused by fabrication tolerances, settlement, temperature change or moisture
variation.
3) To be published.
2 © ISO 2006 – All rights reserved

ISO 19903:2006(E)
NOTE 2 An earthquake typically generates imposed accelerations.
[ISO 19900]
3.5
action effect
effect of action on structural components
EXAMPLE Internal force, moment, stress or strain.
[ISO 19900]
3.6
addition
finely divided material used in concrete in order to improve certain properties or to achieve special properties
NOTE This International Standard deals with two types of inorganic additions:
⎯ nearly inert additions (type I);
⎯ pozzolanic or latent hydraulic additions (type II).
3.7
admixture
material added during the mixing process of concrete in small quantities related to the mass of cement to
modify the properties of fresh or hardened concrete
3.8
after-damage design situation
design situation for which the condition of the structure reflects damage due to an accidental design situation
and for which the environmental conditions are specially defined
3.9
aggregate
granular mineral material suitable for use in concrete
NOTE Aggregate can be natural, artificial or recycled from material previously used in construction.
3.10
air cushion
air pumped into underbase compartments of the structure
NOTE Normally applied in order to reduce the draft and increase the freeboard of the structure and/or to alter the
structural loading.
3.11
atmospheric zone
part of the load-bearing structure that is above the splash zone
3.12
caisson
major portion of fixed concrete offshore structure, providing buoyancy during floating phases and the
possibility of oil storage within the structure
NOTE The caisson is generally divided into watertight compartments, which can be subdivided into
intercommunicating cells for structural reasons. The caisson can also be filled, or partly filled, with ballast water and solid
ballast.
ISO 19903:2006(E)
3.13
characteristic value of a material property
value of a material or product property having a prescribed probability of not being attained in a hypothetical
unlimited test series, a nominal value being used as the characteristic value in some circumstances
NOTE The characteristic material property generally corresponds to a specified fractile of the assumed statistical
distribution of the particular property of the material or product. Characteristic strength is normally defined as the value of
the strength below which 5 % of the population of all possible strength determinations of the material under consideration
are expected to fall or, alternatively, 95 % if an upper value is more severe.
3.14
critical shear zone
zone in which the shear stress is at a maximum in relation to the shear strength
3.15
concrete
material formed by mixing cement, coarse and fine aggregate and water, with or without the incorporation of
admixtures and additions, which develops its properties by hydration of the cement
3.16
condition monitoring
evaluation of the condition and behaviour of the load-bearing structure(s) in service using data from design,
inspection and instrumentation
3.17
construction afloat
fabrication, construction and related activities taking place on a structure that is afloat, normally at an inshore
location and restrained by a temporary mooring system
3.18
deck mating
marine operation in which the platform topsides is floated into position and connected to the substructure
NOTE This operation is normally conducted by ballasting and deballasting of the substructure.
3.19
deep water construction site
site for construction of the structure while afloat
NOTE The use of a deep water site might not always be required, depending on the construction method. It might or
might not be the same location as that where mating of topsides to the substructure takes place.
3.20
design rules
rules in accordance with the chosen reference standard for concrete design
NOTE See 8.2.
3.21
dynamic amplification factor
DAF
ratio of a dynamic action effect to the corresponding static action effect
NOTE An appropriately selected dynamic amplification factor can be applied to static actions to simulate the effects
of dynamic actions.
3.22
extreme level earthquake
ELE
earthquake with a severity which the structure should sustain without major damage
4 © ISO 2006 – All rights reserved

ISO 19903:2006(E)
NOTE The ELE event is comparable to the extreme environmental event in the design of fixed structures which are
described in ISO 19902 and ISO 19903. When exposed to an ELE, a structure is supposed to retain its full capacity for all
subsequent conditions.
[ISO 19901-2]
3.23
execution
all activities carried out for the physical completion of the work including procurement, inspection and
documentation thereof
NOTE The term covers work on site; it might also signify the fabrication of components off-site and their subsequent
erection on site.
3.24
exposure level
classification system used to define the requirements for a structure based on consideration of life safety and
of environmental and economic consequences of failure
NOTE The method for determining exposure levels is described in ISO 19902. An exposure level 1 platform is the
most critical and exposure level 3 the least. A normally manned platform which cannot be reliably evacuated before a
design event will be an exposure level 1 platform.
[ISO 19900]
3.25
finite element analysis
FEA
analysis method whereby a structure or a part thereof is subdivided into small elements of known or assumed
behaviour, then analysed by numerical matrix methods to determine action effects, static or dynamic
3.26
fixed concrete offshore structure
FCS
concrete structure designed to rest on the sea floor
NOTE Sufficient structural stability can be achieved through its own weight, or in combination with suction in skirt
compartments, or founding of the structure on piles into the seabed. It includes the mechanical outfitting of the structure.
3.27
fixed structure
structure that is bottom founded and transfers all actions on it to the seabed
[ISO 19900]
3.28
float-out
transfer of a major assembly from a dry construction site to a self-floating condition
NOTE Typically, it is the transfer of the lower part of the concrete structure from a flooded drydock.
3.29
global analysis
determination of a consistent set of either internal forces and moments or of stresses in a structure that are in
equilibrium with a defined set of actions on the entire structure and which depend on geometrical, structural
and material properties
NOTE For a global analysis of a transient situation (e.g. seismic), the internal response is part of the equilibrium.
ISO 19903:2006(E)
3.30
inspection
conformity evaluation by observation and judgement accompanied, as appropriate, by measurement, testing
or gauging to verify that the execution is in accordance with the project work specification
3.31
installation
marine operation in which the platform is positioned and set down on the sea floor at the offshore site
3.32
instrumentation
outfitting of a fixed concrete offshore structure with instruments for data measurement and recording
3.33
interface manual
document defining all interfaces between the various parties and disciplines involved in the design and
construction, ensuring that responsibilities, reporting and information routines, as appropriate, are established
and maintained
3.34
lightweight aggregate
aggregate of mineral origin having an oven-dry particle density u 2 000 kg/m or a loose oven-dry bulk
density u 1 200 kg/m
3.35
local analysis
determination of a consistent set of internal forces and moments, or stresses, in a cross-section of a structural
component, or in a subset of structural components forming part of the structural system, that are in
equilibrium with the boundary conditions
3.36
marine operation
planned and controlled vertical or horizontal movement of a structure or component thereof over, in or on
water
3.37
method statement
document stating the methods and procedures to be used to perform the work
3.38
normal-weight aggregate
3 3
aggregate with an oven-dry particle density between 2 000 kg/m and 3 000 kg/m
3.39
offshore site
offshore location where the structure is to be installed for its operational life
3.40
operations manual
document giving the requirements and restrictions related to a safe operation of the concrete structure and all
its systems
3.41
owner
representative of the companies which own a development
NOTE The owner will normally be the operator on behalf of co-licensees.
6 © ISO 2006 – All rights reserved

ISO 19903:2006(E)
3.42
primary structure
all main structural components (concrete or steelwork) that provide the structure’s main strength and stiffness
3.43
procedure
document that describes a specified way to carry out an activity or a process, the detailed sequence and inter-
relationships required for the completion of a particular task
3.44
project specification
document giving the overall technical requirements provided by the owner
3.45
project work specification
all information and technical requirements necessary for the execution of the works, includes documents and
drawings, etc. as well as references to relevant regulations, specifications, etc.
3.46
quality plan
document specifying which procedures and associated resources shall be applied by whom and when,
covering the entire project or defined parts of the project and all relevant products, processes or contracts
3.47
secondary structure
structural components that do not contribute significantly to the overall strength and stiffness of the structure
but which support individual items of equipment, transferring the actions thereon onto the primary structure
3.48
shaft
compartment extending from the caisson of the fixed concrete offshore structure to the topsides
NOTE A shaft is generally used to house and support the wells (drill shaft), mechanical systems (utility shaft) and
risers and J-tubes (riser shaft). The part of a shaft extending above a caisson is also often referred to as a leg.
3.49
skirts
structural components constructed in concrete and/or steel that extend from the foundation downwards and
penetrate into the seabed
NOTE Skirts are used to increase the capacity of the foundation to resist vertical and horizontal actions and improve
erosion resistance. Skirts can also be needed to form compartments facilitating the under-base grouting.
3.50
solid ballast
non-structural material added to a structure
NOTE Solid ballast is normally applied in order to increase the self weight of the structure or to lower the centre of
gravity for floating stability purposes.
3.51
splash zone
area of a structure that is frequently wetted due to waves and tidal variations
[ISO 19900]
3.52
structure
organized combination of connected parts designed to withstand actions and provide adequate rigidity
ISO 19903:2006(E)
[ISO 19900]
3.53
submerged zone
part of the structure that is normally submerged and exposed to the constant influence of sea water
3.54
subsidence
that part of the settlement of the structure that results from extraction of reservoir hydrocarbons and factors
other than the weight of the structure
3.55
summary report
document including the most important assumptions on which the design, construction and installation work is
based with regard to the load-bearing structure
3.56
topsides
structures and equipment placed on a supporting structure (fixed or floating) to provide some or all of a
platform’s functions
NOTE A separate fabricated deck or module support frame is part of the topsides.
[ISO 19900]
3.57
tow to field
marine operation in which the complete platform or structure is moved from the dry dock or inshore
construction site to the offshore site
3.58
works
construction work described in the project work specification
3.59
works certificate
mill certificate
document issued by the manufacturer or a testing institute certifying the materials delivered, and giving
⎯ test method, specifications and criteria (e.g. test standard used),
⎯ all relevant test data,
⎯ certification that the tests have been carried out on samples taken from the delivered products, and
⎯ all necessary information for identification of product, producer and purchaser.
NOTE A works certificate is normally required for construction materials that are not subject to an accepted
certification scheme.
4 Symbols and abbreviated terms
4.1 Symbols
A accidental action
A actual surface area to be protected
c
C total current capacity of the anodes
a
8 © ISO 2006 – All rights reserved

ISO 19903:2006(E)
D action due to imposed deformation
E environmental action
o
E design closed-circuit anode potential
a
o
E design protective potential
c
G permanent action
I anode current output
a
I initial current output
a,initial
I final current output
a,final
I current demand
c
I average current demand
c,average
I initial current demand
c,initial
I final current demand
c,final
L lap length
M , M , M six force components giving stresses in the plane of the member
x y xy
N , N , N
x y xy
R radius
R anode resistance
a
Q variable action
a mass content of the active addition (type II)
c cement mass content
c current capacity of an anode
a
f coating breakdown factor for any coated surfaces (f = 1 for bare steel)
c c
f design compressive strength of concrete
cd
f characteristic compressive strength of concrete
ck
f nominal compressive strength of concrete
cn
f characteristic strength of steel
yk
i design current density
c
k factor which takes into account the activity of a type II addition
m effective water/cement ratio
m total net anode mass
T
ISO 19903:2006(E)
n number of anodes
t thickness
u utilization factor of the anode
w water mass content in concrete
t design life of the cathodic protection system
f
ε anode material's electrochemical efficiency
ν Poisson ratio
γ partial factor for action taking account of model and geometrical uncertainties
F
γ partial factor for material resistance properties taking account of material, model and geometric
M
uncertainties
γ partial factor for permanent actions, also accounting for dimensional variations
G
γ partial factor for variable actions
Q
γ partial factor for environmental actions
E
γ partial factor for actions resulting from imposed deformations
D
γ partial factor for accidental actions
A
4.2 Abbreviated terms
AAR alkali aggregate reaction
ALE abnormal level earthquake
ALS accidental limit state
CCTV closed-circuit television
CFD computational fluid dynamics
ELE extreme level earthquake
FCS fixed concrete offshore structure
FLS fatigue limit state
GRP glass-fibre reinforced plastic
HAT highest astronomical tide
HAZOP hazard and operability analysis
HISC hydrogen-induced stress cracking
HVAC heating, ventilation and air conditioning
IC inspection class
10 © ISO 2006 – All rights reserved

ISO 19903:2006(E)
LAT lowest astronomical tide
MIC microbiologically induced corrosion
ROV remotely operated vehicle
SCC self-compacting concrete
SLS serviceability limit state
SRB sulfate-reducing bacteria
ULS ultimate limit state
5 General requirements
5.1 General
Fixed concrete offshore structures shall be designed in accordance with ISO 19900, this International
