EN ISO 18217
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2015
EUROPÄISCHE NORM
ICS 79.120.10 Supersedes EN 1218-4:2004+A2:2009
English Version
Safety of woodworking machines - Edge-banding machines
fed by chain(s) (ISO 18217:2015)
Sécurité des machines à bois - Machines à plaquer sur Sicherheit von Holzbearbeitungsmaschinen -
chant à alimentation par chaîne(s) (ISO 18217:2015) Kantenanleimmaschinen mit Kettenbandvorschub (ISO
18217:2015)
This European Standard was approved by CEN on 27 June 2015.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 18217:2015 E
worldwide for CEN national Members.

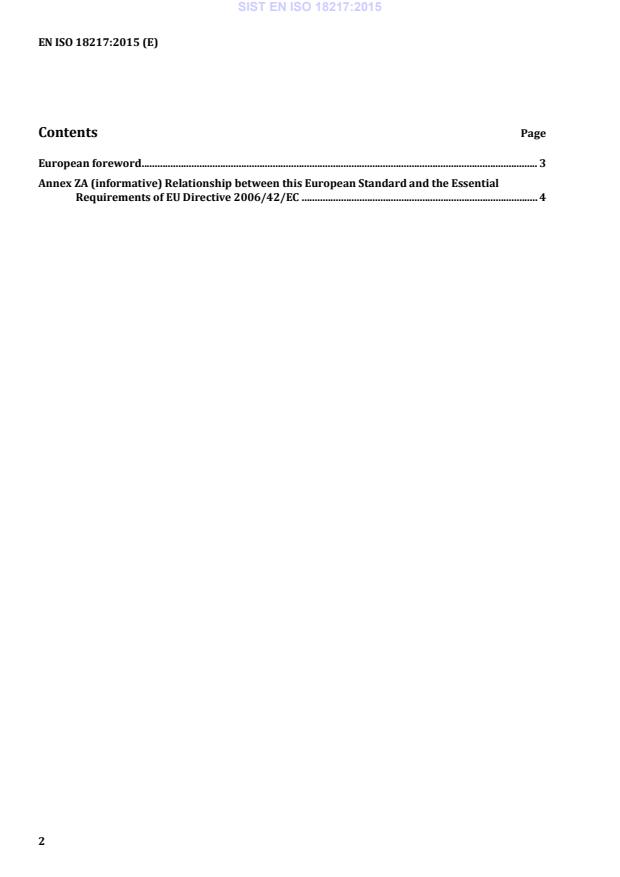

Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC . 4
European foreword
This document (EN ISO 18217:2015) has been prepared by Technical Committee ISO/TC 39 “Machine
tools” in collaboration with Technical Committee CEN/TC 142 “Woodworking machines - Safety” the
secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2016, and conflicting national standards shall
be withdrawn at the latest by March 2016.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent
rights.
This document supersedes EN 1218-4:2004+A2:2009.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Endorsement notice
The text of ISO 18217:2015 has been approved by CEN as EN ISO 18217:2015 without any modification.

Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC
This European Standard has been prepared under a mandate given to CEN by the European
Commission and the European Free Trade Association to provide one means of conforming to Essential
Requirements of the New Approach Machinery Directive 2006/42/EC.
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard confers, within the limits of the scope of this
standard, a presumption of conformity with the corresponding Essential Requirements of that Directive
and associated EFTA regulations.
WARNING Other requirements and other EU Directives may be applicable to the products falling within
the scope of this standard.
INTERNATIONAL ISO
STANDARD 18217
First edition
2015-08-15
Safety of woodworking machines —
Edge-banding machines fed by chain(s)
Sécurité des machines à bois — Machines à plaquer sur chant à
alimentation par chaîne(s)
Reference number
ISO 18217:2015(E)
©
ISO 2015
ISO 18217:2015(E)
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2015 – All rights reserved

ISO 18217:2015(E)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 2
3 Terms and definitions . 2
4 List of significant hazards . 7
5 Safety requirements and/or protective measures . 9
5.1 General . 9
5.2 Controls .10
5.2.1 Safety and reliability of control systems .10
5.2.2 Position of controls .10
5.2.3 Starting .11
5.2.4 Stop controls .11
5.2.5 Integrated feed.12
5.2.6 Mode selection .13
5.2.7 Overspeed control for milling tools .14
5.2.8 Failure of any power supply .14
5.2.9 Failure of the control circuits .15
5.2.10 Tele-service .15
5.3 Protection against mechanical hazards .15
5.3.1 Stability .15
5.3.2 Risk of break-up during operation .16
5.3.3 Tool holder and tool design .16
5.3.4 Braking .18
5.3.5 Devices to minimize the possibility or the effect of ejection or kick-back .18
5.3.6 Work-piece supports and guides .19
5.3.7 Prevention of access to moving parts .21
5.4 Protection against non-mechanical hazards .28
5.4.1 Fire .28
5.4.2 Noise .29
5.4.3 Emission of chips and dust.30
5.4.4 Electricity .31
5.4.5 Ergonomics and handling .31
5.4.6 Lighting .32
5.4.7 Pneumatics and hydraulics .32
5.4.8 Electromagnetic compatibility.32
5.4.9 Static electricity .32
5.4.10 Isolation .32
5.4.11 Maintenance .33
5.4.12 Errors of fitting .33
5.4.13 Heat .33
5.4.14 Substances .33
5.4.15 Artificial optical radiation .33
6 Information for use .33
6.1 Warning devices .33
6.2 Marking .34
6.3 Instruction handbook .35
Annex A (normative) Braking tests .39
Annex B (normative) Impact test method for guards .41
Annex C (normative) Stability test for displaceable machines .44
ISO 18217:2015(E)
Annex D (informative) Performance level required .45
Bibliography .47
iv © ISO 2015 – All rights reserved

ISO 18217:2015(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information.
The committee responsible for this document is ISO/TC 39, Machine tools, Subcommittee SC 4,
Woodworking machines.
ISO 18217:2015(E)
Introduction
This International Standard has been prepared to be a Harmonized Standard to provide one means of
conforming to the Essential Safety Requirements of the Machinery Directive of the European Union and
associated EFTA regulations.
This document is a type-C standard as defined in ISO 12100:2010.
The machinery concerned and the extent to which hazards, hazardous situations, and events are
covered are indicated in the scope of this International Standard.
When requirements of this type-C standard are different from those which are stated in type-A or
type–B standards, the requirements of this type-C standard take precedence over the requirements
of the other International Standards for machines that have been designed and built according to the
requirements of this type-C standard.
The requirements of this International Standard concern designers, manufacturers, suppliers, and
importers of machines described in the Scope.
This International Standard also includes a list of informative items to be provided by the
manufacturer to the user.
Common requirements for tooling are given in EN 847-1:2013 and EN 847-2:2013.
vi © ISO 2015 – All rights reserved

INTERNATIONAL STANDARD ISO 18217:2015(E)
Safety of woodworking machines — Edge-banding
machines fed by chain(s)
1 Scope
This International Standard deals with all significant hazards, hazardous situations, and events as
listed in Clause 4, which are relevant to edge banding machines fed by chains with manual loading and
unloading and maximum work-piece height capacity of 100 mm, when they are used as intended and
under the conditions foreseen by the manufacturer, including reasonably foreseeable misuse.
The work-piece is fed through the processing units by an integrated feed. Feeding chains also include
“feeding belts”.
For the purpose of this International Standard, an edge banding machine fed by chains is hereinafter
referred to as “machine”.
The machine is designed to process in one pass, one end (single end machine), or both ends (double end
machine) panels of wood materials with similar physical characteristics as wood, as well as gypsum
plaster boards.
Edges to be applied by the machine can be made of paper, melamine, plastic or composite materials,
aluminium or light alloy, veneer or solid wood.
This International Standard also applies to machines fitted with the following:
— auxiliary devices essential for edge banding machines fed by chains (see 3.1);
— sanding belt units;
— fixed or movable workpiece support;
— automatic tool changing;
— automatic panel returner.
This International Standard also includes information to be provided by the manufacturer to the user.
This International Standard does not deal with any hazards relating to the following:
a) systems for loading and unloading of the work-piece to a single machine other than automatic
panel returner;
b) single machine being used in combination with any other machine (as part of a line);
c) wireless mobile control sets;
d) additional equipment for grooving and for cutting by circular saw blade, installed out of the integral
enclosure and/or whose tools protrude out of the integral enclosure;
e) plasma unit, power laser unit, and hot-air-jet unit.
This International Standards applies to machines that are manufactured after the date of issue of this
International Standard.
ISO 18217:2015(E)
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 4413, Hydraulic fluid power — General rules and safety requirements for systems and their components
ISO 4414:2010, Pneumatic fluid power — General rules and safety requirements for systems and their
components
ISO 7960:1995, Airborne noise emitted by machine tools — Operating conditions for woodworking machines
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
ISO 13732-1:2006, Ergonomics of the thermal environment — Methods for the assessment of human
responses to contact with surfaces — Part 1: Hot surfaces
ISO 13849-1:2006, Safety of machinery — Safety-related parts of control systems — Part 1: General
principles for design
ISO 13850, Safety of machinery — Emergency stop — Principles for design
ISO 14118:2000, Safety of machinery — Prevention of unexpected start-up
ISO 14119:2013, Safety of machinery — Interlocking devices associated with guards — Principles for
design and selection
IEC 13856-2, Safety of machinery — Pressure sensitive protection devices — Part 2: General principles for
the design and testing of pressure sensitive edges and pressure sensitive bars
IEC 60204-1:2005, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
IEC 60439-1, Low-voltage switchgear and controlgear assemblies — Part 1: Type-tested and partially type-
tested assemblies
IEC 60529, Degrees of protection provided by enclosures (IP Code)
IEC 61310-1:2007, Safety of machinery — Indication, marking and actuation — Part 1: Requirements for
visual, acoustic and tactile signals
IEC 61496-2, Safety of machinery — Electro-sensitive protective equipment — Part 2: Particular
requirements for equipment using active opto-electronic protective devices (AOPDs)
EN 50370-1, Electromagnetic compatibility (EMC) — Product family standard for machine-tools —
Part 1: Emission
EN 50370-2, Electromagnetic compatibility (EMC) — Product family standard for machine-tools —
Part 2: Immunity
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12100:2010 and the
following apply.
2 © ISO 2015 – All rights reserved

ISO 18217:2015(E)
3.1
edge banding machine fed by chains
machine designed for bonding in one pass the edge band on one end of the work-piece (single end edge
banding machine) or on both ends of the work-piece (double end edge banding machine), consisting
of an edge banding zone with various units (e.g. heating, bonding, and pressing for flexible or solid
edges) and a zone for additional operations such as snipping, trimming, milling, sanding, polishing,
chamfering, etc., where, in addition the edge banding zone, can be preceded by a sizing/profiling zone
Note 1 to entry: The main parts of a single end machine and a double end machine and their terminology are
illustrated in Figure 1 and Figure 2, respectively.
Key
1 feed direction
2 top pressure beam
3 chain beam
4 controls
5 edge banding zone
6 additional operation zone
7 integral closure
Figure 1 — Example of a single end machine
3.2
material with similar physical characteristics to wood
wood-based material (e.g. chipboard, fibreboard, plywood) also when covered with plastic or light alloy
laminates/edges; cork, bone, rigid rubber, or plastic
3.3
integrated feed
feed mechanism for the work-piece or tool which is integrated with the machine and where the work-
piece or machine element with incorporated tool are held and controlled mechanically during the
machining operation
ISO 18217:2015(E)
3.4
ejection
unexpected movement of the work-piece or parts of it or part of the machine from the machine
during processing
3.5
run-up time
time elapsed from the actuation of the start control device until the spindle reaches the intended speed
Key
1 feed direction
2 top pressure beam
3 chain beam
4 controls
5 edge banding zone
6 additional operation zone
7 integral closure
8 machine halves
9 feed cross drive shaft
Figure 2 — Example of a double end machine
3.6
run-down time
time elapsed from the actuation of the stop control device to spindle stand still
3.7
machine actuator
power mechanism used to effect the motion of the machine
3.8
dynamic processing unit
unit which moves with the work-piece during processing and returns to its starting position ready for
the following (succeeding) work-piece
Note 1 to entry: An example of dynamic processing unit is shown in Figure 3.
4 © ISO 2015 – All rights reserved

ISO 18217:2015(E)
3.9
machine half
part of a machine consisting of a frame, chain beam, top pressure beam, and working units
Note 1 to entry: Each machine half processes one, different, end of the work-piece. One or both machine halves
are capable of being moved to accept work-pieces of different dimensions.
Key
1 dynamic processing unit (e.g. sniper saw)
2 feed direction
3 movement zone
Figure 3 — Example of a dynamic processing unit
3.10
integral enclosure (double and single end machines)
guarding designed to fit close to the machine and provide a measure of sound attenuation and where
certain setting adjustments may be available outside the enclosure
Note 1 to entry: Each machine half is provided with separate guarding and on the adjustable machine half/halves
this guarding moves with it when adjustment is made for work-piece width.
3.11
displaceable machine
machine which is located on the floor, stationary during use and equipped with a device, normally
wheels, which allow it to be moved between locations
3.12
automatic panel returner
Powered system that brings the panel from the machine end to the loading position
Note 1 to entry: See Figure 5.
3.13
tele-service
machine diagnosis (including trouble-shooting), software update and tele-control from a remote
service site
ISO 18217:2015(E)
3.14
safety-related embedded software
SRESW
firmware
system software
software that is part of the system supplied by the control manufacturer and which is not accessible for
modification by the user of the machinery
Note 1 to entry: Firmware or system software are examples of embedded software (ISO 13849-1:2006, 3.1.37).
Note 2 to entry: Manufacturer means manufacturer of the system.
Note 3 to entry: For example, the operating system of a speed monitoring device.
3.15
safety-related application software
SRASW
software specific to the application, implemented by the machine manufacturer, and generally
containing logic sequences, limits, and expressions that control the appropriate inputs, outputs,
calculations, and decisions necessary to meet the SRP/CS requirements
[SOURCE: ISO 13849-1:2006, 3.1.36]
3.16
safety-related part of a control system
SRP/CS
part of a control system that responds to safety-related input signals and generates safety-related
output signals
Note 1 to entry: The combined safety-related parts of a control system start at the point where the safety-related
input signals are initiated (including e.g. the actuating cam and the roller of the position switch) and end at the
output of the power control elements (including, for example, the main contacts of the contactor).
[SOURCE: ISO 13849-1:2006, 3.1.1]
3.17
safety function
function of the machine whose failure can result in an immediate increase of the risk
[SOURCE: ISO 13849-1:2006, 3.1.20]
3.18
information from the supplier
statements, sales literature, leaflets, or other where a manufacturer (supplier) declares either
the characteristics of e.g. a material or product or the compliance of the material or product to a
relevant standard
3.19
performance level
PL
discrete level used to specify the ability of safety-related parts of control systems to perform a safety
function under foreseeable conditions
[SOURCE: ISO 13849-1:2006, 3.1.23]
3.20
operational stop
stop control that does not cut off the energy supply to the actuators, where the stop condition is
monitored and maintained
6 © ISO 2015 – All rights reserved

ISO 18217:2015(E)
3.21
power-on control device
control device that enables providing power to machines actuators
EXAMPLE Powering auxiliary circuit.
Note 1 to entry: Power-on is not intended as the main switch.
3.22
MODE 1: automatic mode
condition for automatic processing, where all safeguards of the machine are in place and functional and
some or all machine actuators are activated
3.23
MODE 2: adjustment mode
condition for adjustment of tools and other processing units, where feed of the work-piece is possible
under hold-to-run control only
3.24
MODE 3: fine adjustment mode
condition for fine adjustment of tools and other processing units, where opening of parts of the
peripheral enclosure is permitted for a limited period of time, while the tools, other processing units,
and the feed are running
4 List of significant hazards
This Clause contains all significant hazards, hazardous situations, and events (see ISO 12100:2010)
identified by risk assessment as significant for the machines, as defined in the scope and which require
action to eliminate or reduce the risk. This International Standard deals with these significant hazards
by defining safety requirements and/or measures or by reference to relevant standards.
These hazards are listed in Table 1.
ISO 18217:2015(E)
Table 1 — List of significant hazards
No Hazards, hazardous situations, and ISO 12100:2010 Relevant subclause of
hazardous events this International
Standard
1 Mechanical hazards related to
— machine parts or workpieces:
a) shape; 6.2.2.1, 6.2.2.2, 6.3 5.3.2, 5.3.3, 5.3.7, Annex B
b) relative location; 5.2.2, 5.2.5, 5.3.5, 5.3.6,
5.3.7, 5.4.5, 6.3
c) mass and velocity (kinetic energy of 5.2.7, 5.3.7, Annex B
elements in controlled or uncontrolled
motion);
d) mechanical strength. 5.3.2, 5.3.3
— accumulation of energy inside the machinery:
e) liquids and gases under pressure 6.2.10, 6.3.5.4 5.3.3, 5.4.7, Annex B
1.1 Crushing hazard 5.3.6, 5.3.7
1.2 Shearing hazard 5.3.6, 5.3.7
1.3 Cutting or severing hazard 5.3.3, 5.3.4, 5.3.7
1.4 Entanglement hazard 5.3.3, 5.3.4, 5.3.6, 5.3.7
1.5 Drawing-in or trapping hazard 5.3.7
1.6 Impact hazard 5.3.7
1.8 Friction or abrasion hazard 5.3.4
1.9 High pressure fluid injection or ejection 6.2.10 5.3.4, 5.4.11
hazard
2 Electrical hazards due to:
2.1 Contact of persons with live parts (direct 6.2.9, 6.3.5.4 5.4.4, 5.4.14
contact)
2.2 Contact of persons with parts which have 6.2.9 5.4.4, 5.4.11
become live under faulty conditions (indirect
contact)
2.4 Electrostatic phenomena 6.2.9 5.4.9
3 Thermal hazards resulting in:
3.1 Burns, scalds, and other injuries by a possible 6.2.4 5.4.13, 5.4.14
contact of persons with objects or materials
with an extreme high or low temperature, by
flames or explosions and also by the radiation
of heat sources
3.2 Damage to health by hot or cold working 6.2.4 5.4.13, 5.4.14
environment
4 Hazards generated by noise, resulting in:
4.1 Hearing loss (deafness), other physiological 6.2.2.2, 6.3 5.4.2
disorders (loss of balance, loss of awareness)
4.2 Interference with speech communication, 6.2.2.2, 6.3 5.4.2
acoustic signals.
7 Hazards generated by materials and substances (and their constituent elements) processed or
used by the machinery
7.1 Hazards from contact with or inhalation of 6.2.3, 6.2.4 5.4.3, 5.4.14, 6.3
harmful fluids and dusts
8 © ISO 2015 – All rights reserved

ISO 18217:2015(E)
Table 1 (continued)
No Hazards, hazardous situations, and ISO 12100:2010 Relevant subclause of
hazardous events this International
Standard
7.2 Fire hazard 6.2.4 5.4.1, 5.4.3
8 Hazards generated by neglecting ergonomic principles in machinery design related to:
8.1 Unhealthy postures or excessive effort 6.2.7, 6.2.8, 6.2.11.12, 5.2.2, 5.4.5, 6.3
6.3.5.5, 6.3.5.6
8.2 Hand-arm or foot-leg anatomy 6.2.8.3 5.2.2, 5.4.5, 6.3
8.4 Local lighting 6.2.8.6 5.4.6, 6.3
8.6 Human error, human behaviour 6.2.8.1, 6.2.11.8, 6.2.11.10, 5.4.12, 6.3
6.3.5.2, 6.4
8.7 Design, location, or identification of manual 6.2.8.7, 6.2.11.8 5.2.2
controls
8.8 Design or location of visual display units 6.2.8.8, 6.4.2 5.2.2
9 Combination of hazards 6.3.2.1 5.2.6, 5.2.7
10 Unexpected start up, unexpected overrun/overspeed (or any similar malfunction) from:
10.1 Failure/disorder of the control system 6.2.11, 6.3.5.4 5.2.1, 5.2.9
10.2 Restoration of energy supply after an inter- 6.2.11.4 5.2.8, 5.4.7, 5.4.10
ruption
10.3 External influences on electrical equipment 6.2.11.11 5.4.4, 5.4.8
10.6 Errors made by the operator (due to mis- 4.9 5.2.1, 5.4.5, 6.3
match of machinery with human characteris-
6.2.8, 6.2.11.8, 6.2.11.10,
tics and abilities, see 8.6)
6.3.5.2, 6.4
11 Impossibility of stopping the machine in 6.2.11.1, 6.2.11.3, 6.3.5.2 5.2.2, 5.2.5, 5.2.7
the best possible conditions
13 Failure of the power supply 6.2.11.1, 6.2.11.4 5.2.8
14 Failure of the control circuit 6.2.11, 6.3.5.4 5.2.9
15 Errors of fitting 6.2.7, 6.4.5 5.4.12, 6.3
16 Break-up during operation 6.2.3 5.3.2
17 Falling or ejected objects or fluids 6.2.3, 6.2.10 5.2.7, 5.3.5, 5.4.4, 6.3,
Annex B
18 Loss of stability/overturning of machinery 6.3.2.6 5.3.1
19 Slip, trip, and fall hazards in relationship 6.3.5.6 6.3
with machinery (because of their mechan-
ical nature)
5 Safety requirements and/or protective measures
5.1 General
The machine shall comply with the safety requirements and/or protective measures of Clause 5.
In addition, the machine should be designed according to the principles of ISO 12100:2010 for hazards
relevant but not significant, which are not dealt with by this International Standard (e.g. sharp edges of
the machine frame).
See ISO 12100:2010, 6.2 for guidance in connection with risk reduction by design and see ISO 12100:2010,
6.3 for safeguarding measures.
ISO 18217:2015(E)
5.2 Controls
5.2.1 Safety and reliability of control systems
For the design and implementation of any safety function, either realized in electric, pneumatic,
hydraulic, or mechanic technology, the appropriate requirements of ISO 13849-1:2006 shall apply.
Machine safety functions are implemented and ensured through Safety-related Parts of the Control
System (SRP/CS) that shall achieve a relevant minimum Performance Level (PL) required. This
requirement is given for each safety function in the relevant subclause of Clause 5.
Table D.1 shows PL for each safety function at a glance. However, Clause 5 subclauses text remains
r
the sole proper normative reference for the full requirements and explanations, which might not be
summarized enough to fit in Table D.1.
Wherever in this International Standard PL is mentioned, the requirements for PL refer to
ISO 13849-1:2006.
Verification: By checking the relevant drawings and/or circuit diagrams and inspection of the machine,
evaluation of the achieved performance level according to ISO 13849-1:2008, 4.5.
5.2.2 Position of controls
The main electrical control devices of the machine for power-on, starting a tool spindle, other processing
spindles, normal stopping, integrated feed, top pressure beam movement, machine half movement, and
mode selection shall be located together and situated such that the loading position can be seen.
Additional control devices for starting, operational/normal stopping (if provided) may be
duplicated/provided on mobile control sets with cable connection or wireless taking account of the
requirements of 5.2.4.3 for emergency stop.
When a wireless control set loses its connection to the machine, a normal stop shall be automatically
activated.
Hold-to-run control devices shall be located so that the operator, when actuating them, can see the
controlled movements [see 5.2.6.2 c)].
No reset function control devices, no control devices for power-on, and no mode selection shall be
positioned on mobile control sets.
Emergency stop controls shall be fitted at the following locations:
a) on each mobile or fixed set of controls;
b) at the loading and unloading positions of each machine half as long as there is no set of controls;
c) not more than 0,5 m from each hold-to-run device;
d) inside each enclosure where a mode selection switch is provided (see 5.2.6) and positioned with a
maximum distance of 2 m from each other;
e) at the loading area for glue and edges when outside a specific enclosure.
NOTE A single emergency stop control can fulfil, by virtue of its installed position, the function of more than
one of the above requirements. If two of the above locations can be reached from each other, only one emergency
stop control can be provided.
As an exception to b), emergency stop control at the unloading position is not required on single-end
machines with a maximum length of workpiece support of 2 m.
Verification: By checking the relevant drawings and/or circuit diagrams, inspection of the machine, and
relevant functional testing of the machine.
10 © ISO 2015 – All rights reserved

ISO 18217:2015(E)
5.2.3 Starting
A power-on control device shall be provided and protected against unintended actuation (e.g. shrouded).
Power-on activation in automatic mode shall only be possible when all safeguards are in place and
functional. This is achieved by the interlocking arrangements described in 5.3.7.
NOTE 1 For power enabling in MODE 2 and MODE 3, see 5.2.6.
Process start or restart shall only be possible after power-on activation.
NOTE 2 No PL is required for process starting and restarting.
When power is supplied to a tool spindle drive motor and any other processing spindle drive motor, this
shall be indicated permanently or through the request of the operator, e.g. by a light signal near to the
start control or integrated in the start button, or by using a two position switch or through the operator
interrogating the control computer.
In machines provided with MODE 2, it shall be possible to start each spindle drive and feed drive separately.
Closure of movable interlocked guards shall not lead to an automatic restart of hazardous movements.
The SRP/CS for power-on control shall achieve at least PL = c.
The SRP/CS for starting spindle drives and feed drive shall achieve at least PL = b.
Verification: By checking the relevant drawings and/or circuit diagrams, inspection, and relevant
functional testing on the machine.
5.2.4 Stop controls
5.2.4.1 Normal stop
A stop control shall be fitted, which, when actuated, stops all machine actuators except glue heater and
cuts power to them once stopping is complete, unless STO in accordance with EN 61800-5-2:2007 is used.
When STO is provided in accordance with EN 61800-5-2:2007, no disconnection by contactor is required.
NOTE For normal stopping of PDS(SR) (power drive system, safety-related), see EN 61800–5-2:2007, 4.2.2.2
for “safe torque off (STO)” and EN 61800–5-2:2007, 4.2.2.3 for “safe stop 1 (SS1)”.
For machine actuators stopped in stop category 0 according IEC 60204-1:2005, power shall be cut to these
actuators except work-piece clamping (if fitted) unless STO according to EN 61800-5-2:2007 is used.
For machine actuators stopped in stop category 1, the stopping sequence shall be the following:
— cut power to these machine actuators except work-piece clamping (if fitted) unless STO according
to EN 61800-5-2:2007 is used and actuate the brakes;
— cut power to brakes (if electrical brake is fitted) after tool spindle has come to rest, e.g. by using
a time delay.
The SRP/CS for normal stopping initiation shall achieve at least PL = c.
The above requirements shall be satisfied at the level of the control circuits. If a time-delay device is
used, the time delay shall achieve at least PL = c and shall at least be more than the maximum run-down
time of the machine and either the time delay shall be fixed or the adjustment mechanism shall be sealed.
Verification: By checking the relevant drawings and/or circuit diagrams, inspection, and relevant
functional testing of the machine.
ISO 18217:2015(E)
5.2.4.2 Operational stop
If an operational stop function is provided for intervention in the machine while drive systems remain
under control, the following requirements shall apply.
The stop function provided (e.g. cycle stop) shall be of category 2 in accordance with the requirements
of IEC 60204-1:2005, 9.2.2 actuated in conjunction with standstill monitoring and the SRP/CS for
standstill monitoring shall achieve at least PL = c.
NOTE For operational stop of PDS(SR), see EN 61800–5-2:2007, 4.2.3.1 for “safe operating stop (SOS)” and
EN 61800–5-2:2007, 4.2.2.4 for “safe stop 2 (SS2)”.
When initiated, the stopping sequence shall be the following:
a) stop the axes movements;
b) stop spindle rotation and actuate the brake (if provided);
c) when braking seq
...
