EN 3155-046:2007
(Main)Aerospace series - Electrical contacts used in elements of connection - Part 046: Contacts, electrical, male, type A, double crimping, class S - Product standard
Aerospace series - Electrical contacts used in elements of connection - Part 046: Contacts, electrical, male, type A, double crimping, class S - Product standard
This standard specifies the required characteristics, tests and tooling, applicable to male electrical contacts 046, type A, double crimping, class S, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated female contact is defined in EN 3155-047.
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 046: Elektrische Stiftkontakte, Typ A, doppelt gecrimpt, Klasse S - Produktnorm
Diese Norm legt die Anforderungen, Prüfungen und Werkzeuge für elektrische Stiftkontakte 046, Typ A, doppelte Crimpausführung, Klasse S, zur Verwendung in Verbindungselementen nach EN 3155 002 fest.
Sie ist in Verbindung mit EN 3155 001 anzuwenden.
Der zugehörige Buchsenkontakt ist in EN 3155 047 festgelegt.
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 046 : Contacts électriques, mâles, type A, double sertissage, classe S - Norme de produit
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 046. del: Kontakti, električni, moški 044, tip A, dvojno zaključeni, razred S - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 03-Apr-2007
- Withdrawal Date
- 30-Oct-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 30-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview - EN 3155-046:2007 (Aerospace series)
EN 3155-046:2007 is a CEN product standard for male electrical contacts (type A), double‑crimping, class S, intended for aerospace elements of connection. It defines the required characteristics, tests and tooling for contact 046 and is to be used together with EN 3155-001 (technical specification) and EN 3155-002 (list and utilization of contacts). The matching female contact is specified in EN 3155-047.
Key topics and technical requirements
- Scope and application: Male electrical contacts 046, type A, double crimping, class S for aerospace connector elements.
- Dimensions and mass: Dimensions and tolerances are given in millimetres (see the standard’s figure and tables for size codes and detailed geometry).
- Material and protective plating:
- Body: copper alloy.
- Plating: nickel undercoat with minimum gold thickness 1.27 µm; selective protection is not permitted.
- Permissible conductors and ratings:
- Typical data from the standard: conductor cross‑section 0.4 mm2 (AWG 22), insulation max ø 1.25 mm, rated test current 5 A.
- Cable preparation:
- Stripped length specified (example: 2.9 mm ± 0.3 mm for listed sizes).
- Tooling and handling:
- Crimping and extraction tooling shall conform to MIL‑DTL‑22520 and MIL‑I‑81969 (positioners and insertion/extraction tool references provided in the standard).
- Test programme: Tests referenced to EN 2591 and EN 3155-001 include:
- Visual and dimensional inspection
- Contact resistance (low level and at rated current)
- Voltage proof and insulation resistance
- Temperature endurance (e.g., 1 000 h at 200 °C)
- Mechanical endurance, shock, vibration
- Salt mist, fluid resistance
- Tensile strength of crimped connections and gauge insertion/extraction forces
Applications - who uses this standard
- Aerospace OEMs and suppliers specifying or manufacturing aerospace electrical contacts and connector assemblies.
- Connector designers, electrical engineers and procurement teams ensuring part conformity and interchangeability.
- Test laboratories and quality/inspection departments performing acceptance and environmental testing.
- Tooling suppliers and maintenance technicians selecting crimping and removal tools for AWG 22 size contacts.
Related standards
- EN 3155-001 - Technical specification (must be used together)
- EN 3155-002 - List and utilization of contacts
- EN 3155-047 - Associated female contact (type A double crimping)
- EN 2591 - Aerospace electrical/optical connection test methods
- MIL‑DTL‑22520, MIL‑I‑81969 - Crimping and extraction tooling guidance
This standard is essential for ensuring reliable, qualified male contacts in aerospace connector systems and for maintaining interoperability, testability and traceability across manufacturers and maintenance organizations.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3155-046:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical contacts used in elements of connection - Part 046: Contacts, electrical, male, type A, double crimping, class S - Product standard". This standard covers: This standard specifies the required characteristics, tests and tooling, applicable to male electrical contacts 046, type A, double crimping, class S, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated female contact is defined in EN 3155-047.
This standard specifies the required characteristics, tests and tooling, applicable to male electrical contacts 046, type A, double crimping, class S, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated female contact is defined in EN 3155-047.
EN 3155-046:2007 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3155-046:2007 has the following relationships with other standards: It is inter standard links to EN 3155-001:2025, EN 2591:1992, EN 3155-002:2024, EN 3155-047:2007, EN 3682-001:2013, EN 2591-220:2005, EN 2591-227:2015. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3155-046:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

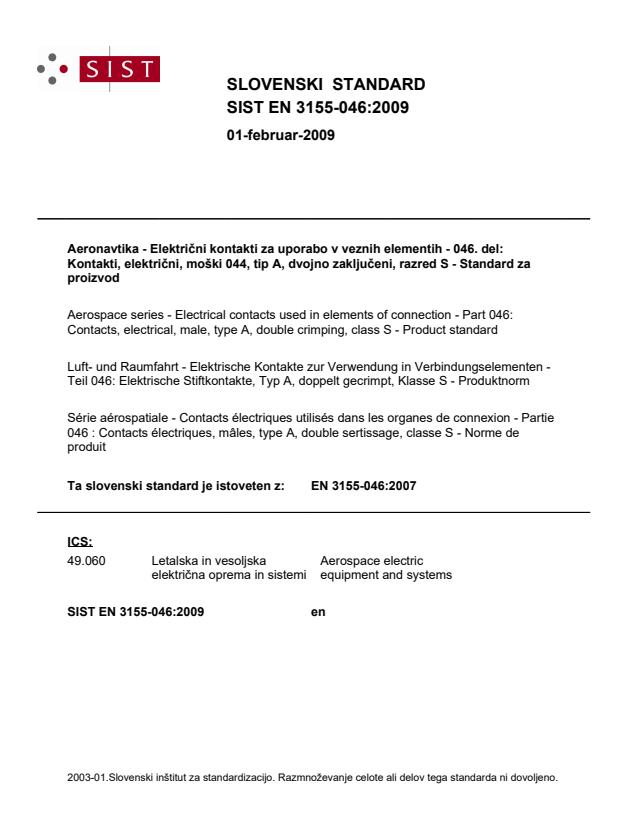

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.SURL]YRGLuft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 046: Elektrische Stiftkontakte, Typ A, doppelt gecrimpt, Klasse S - ProduktnormSérie aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 046 : Contacts électriques, mâles, type A, double sertissage, classe S - Norme de produitAerospace series - Electrical contacts used in elements of connection - Part 046: Contacts, electrical, male, type A, double crimping, class S - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3155-046:2007SIST EN 3155-046:2009en01-februar-2009SIST EN 3155-046:2009SLOVENSKI
STANDARD

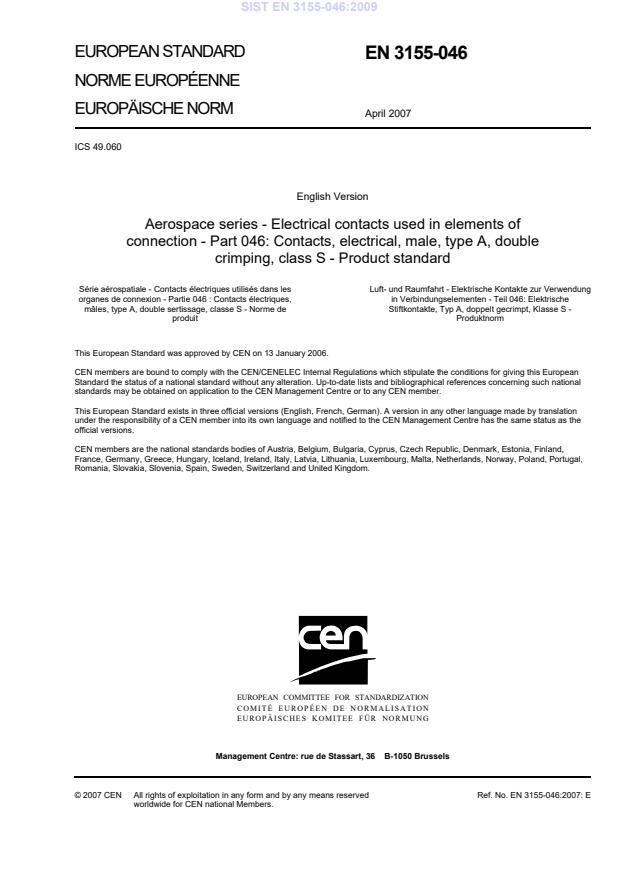

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3155-046April 2007ICS 49.060 English VersionAerospace series - Electrical contacts used in elements ofconnection - Part 046: Contacts, electrical, male, type A, doublecrimping, class S - Product standardSérie aérospatiale - Contacts électriques utilisés dans lesorganes de connexion - Partie 046 : Contacts électriques,mâles, type A, double sertissage, classe S - Norme deproduitLuft- und Raumfahrt - Elektrische Kontakte zur Verwendungin Verbindungselementen - Teil 046: ElektrischeStiftkontakte, Typ A, doppelt gecrimpt, Klasse S -ProduktnormThis European Standard was approved by CEN on 13 January 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3155-046:2007: ESIST EN 3155-046:2009
...
