EN 3733-005:2007
(Main)Aerospace series - Connector, optical, circular, single channel, coupled by self-locking ring, operating temperature 150 °C continuous - Part 005: Receptacle, connector, two hole fixing cable according to EN 4532, product standard
Aerospace series - Connector, optical, circular, single channel, coupled by self-locking ring, operating temperature 150 °C continuous - Part 005: Receptacle, connector, two hole fixing cable according to EN 4532, product standard
This standard specifies the characteristics of receptacle connectors with two hole fixing in the family of circular single channel fibre optic connectors incorporating ferrules for aerospace series single core optical cable in accordance with EN 4532.
Connector interface dimensions, table of tests and qualification approval requirements, are contained in the Technical Specification EN 3733-001. EN 3733-002, List of product standards, includes the listings of product types, codification and applicable combinations of product types.
Luft- und Raumfahrt - Optischer Rundsteckverbinder, einpolig, selbstsichernde Schraubkupplung, Betriebstemperatur 150 °C konstant - Teil 005: Fester Steckverbinder mit Zweilochbefestigung für Kabel nach EN 4532, Produktnorm
Diese Norm legt die Eigenschaften von festen Steckverbindern mit Zweilochbefestigung und mit Stift in der Familie der einpoligen LWL Rundsteckverbinder für einadrige optische Kabel nach EN 4532 zur Anwen¬dung in der Luft und Raumfahrt fest.
Die Maße des Steckgesichts, eine Tabelle mit Prüfungen sowie Anforderungen für die Bauartzulassung sind in den Technischen Lieferbedingungen EN 3733 001 enthalten. EN 3733 002, Übersicht über die Produkt¬normen, enthält ein Verzeichnis der Bauarten der Erzeugnisse, die Kodierung und anwendbare Kombina¬tionen der Erzeugnisbauarten.
Série aérospatiale - Connecteur optique circulaire monovoie, à accouplement par bague filetée, température d'utilisation 150 °C continu - Partie 005 : Embase à collerette à fixation par deux trous pour câble selon EN 4532, norme de produit
Aeronavtika - Konektor, optični, okrogli, enokanalni, priključen s samozaklepnim obročem, s stalno delovno temperaturo do 150 °C - 005. del: Podlaga, konektor, pritrditev z dvema luknjama v skladu z EN 4532, standard za proizvod
General Information
- Status
- Published
- Publication Date
- 11-Dec-2007
- Withdrawal Date
- 29-Jun-2008
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 30-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3733-005:2007 is a CEN product standard for an aerospace series circular single-channel optical receptacle - a two-hole fixing connector designed for single-core fibre optic cable to EN 4532. The standard defines required characteristics for a self-locking ring coupled connector rated for continuous operation at 150 °C, including mechanical interfaces, materials and allowable optical performance when mated with compatible EN 4532 cables.
Key Topics
- Scope and compatibility
- Receptacle connector with two-hole fixing for EN 4532 single-core optical cable.
- Compatibility rules and allowable plug/receptacle combinations are referenced (see EN 3733-002).
- Mechanical dimensions and mounting
- Interface and panel cut-out dimensions are specified (figures referenced in standard); terminated mass ≤ 14.0 g.
- Front and rear mounting details, panel thickness limits and two-hole fixing arrangements.
- Materials and construction
- Connector shell: nickel‑copper alloy (specified in the standard).
- Ferrule incorporation for single-core fibre per EN 4532.
- Optical and environmental requirements
- Insertion loss limits: initial ≤ 0.6 dB; post‑conditioning ≤ 0.85 dB (measured at 810 nm, overfill launch).
- Discontinuity threshold and limits: discontinuity threshold set at 0.85 dB; discontinuities > 20 ns addressed in test criteria.
- Mechanical strength and cable retention
- Axial tensile load test (200 N), cable pulling, cyclic flexing, torsion and axial compression tests with specified loads and cycles.
- Qualification and tests
- Environmental tests: damp heat (cyclic), shock (300 g method A), vibration (random & high-level gunfire spectra per MIL‑STD‑810F modifications).
- Detailed test methods and qualification/approval requirements are contained in EN 3733-001 and EN 2591 series.
Applications
- Designed for aerospace and defence electrical/optical systems where a robust, high-temperature single-channel circular fibre connector is required.
- Typical users:
- Aerospace component designers and connector manufacturers.
- Systems integration and harness engineers specifying panel-mounted fibre receptacles.
- Qualification, test and procurement teams validating connector performance to aerospace standards.
- Use cases: avionics, heliborne systems, military platforms and any application needing a compact, high-temperature rated single-core optical receptacle with two-hole panel fixing.
Related Standards
- EN 3733-001 (Technical specification - interfaces, tests, qualification)
- EN 3733-002 (List of product standards, codification)
- EN 3733-003, -007, -009 (related product standards in the series)
- EN 4532 (Aerospace single-core optical cable)
- EN 2591 series (Aerospace test methods)
- MIL‑STD‑810F (referenced for high-level vibration/gunfire spectra)
Keywords: EN 3733-005:2007, aerospace fiber optic connector, circular optical receptacle, EN 4532 cable, 150 °C operating temperature, connector dimensions, connector qualification tests.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3733-005:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Connector, optical, circular, single channel, coupled by self-locking ring, operating temperature 150 °C continuous - Part 005: Receptacle, connector, two hole fixing cable according to EN 4532, product standard". This standard covers: This standard specifies the characteristics of receptacle connectors with two hole fixing in the family of circular single channel fibre optic connectors incorporating ferrules for aerospace series single core optical cable in accordance with EN 4532. Connector interface dimensions, table of tests and qualification approval requirements, are contained in the Technical Specification EN 3733-001. EN 3733-002, List of product standards, includes the listings of product types, codification and applicable combinations of product types.
This standard specifies the characteristics of receptacle connectors with two hole fixing in the family of circular single channel fibre optic connectors incorporating ferrules for aerospace series single core optical cable in accordance with EN 4532. Connector interface dimensions, table of tests and qualification approval requirements, are contained in the Technical Specification EN 3733-001. EN 3733-002, List of product standards, includes the listings of product types, codification and applicable combinations of product types.
EN 3733-005:2007 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3733-005:2007 has the following relationships with other standards: It is inter standard links to EN 3733-001:2009, EN 2591:1992, EN 4532:2009, EN 2591-100:2024, EN 3733-009:2006, EN 3733-007:2007, EN 3733-108:2008, EN 3733-002:2008, EN 3733-101:2008, EN 4533-004:2018, EN 3733-003:2008. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3733-005:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Connector, optical, circular, single channel, coupled by self-locking ring, operating temperature 150 °C continuous - Part 005: Receptacle, connector, two hole fixing cable according to EN 4532, product standardYRGSérie aérospatiale - Connecteur optique circulaire monovoie, à accouplement par bague filetée, température d'utilisation 150 °C continu - Partie 005 : Embase à collerette à fixation par deux trous pour câble selon EN 4532, norme de produitLuft- und Raumfahrt - Optischer Rundsteckverbinder einpolig, Schraubkupplung, Betriebstemperatur 150 °C konstant - Teil 005: Fester Steckverbinder, Zweilochbefestigung für Kabel nach EN 4532, ProduktnormTa slovenski standard je istoveten z:EN 3733-005:2007SIST EN 3733-005:2008en49.060ICS:SLOVENSKI

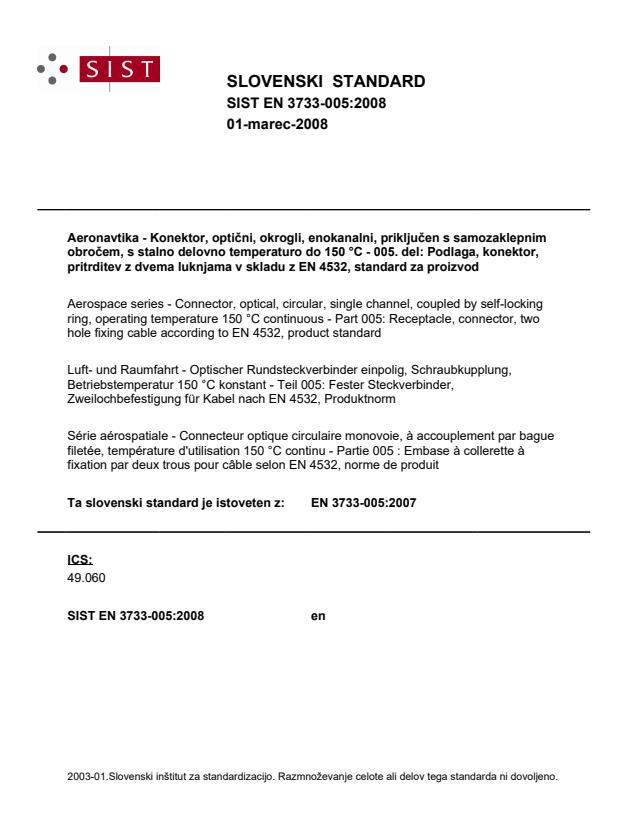

STANDARDSIST EN 3733-005:200801-marec-2008

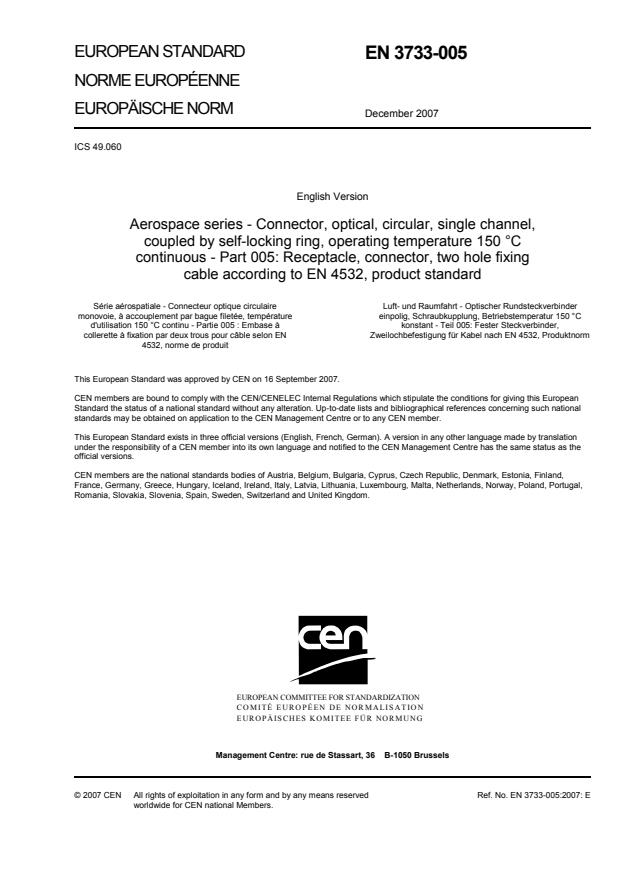

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
