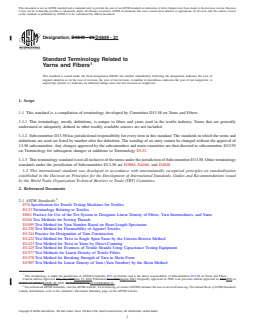

ASTM D4849-21

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

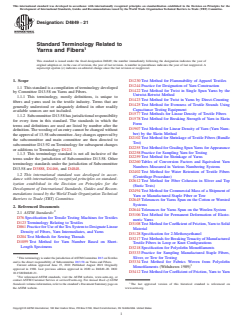

Designation: D4849 − 20 D4849 − 21
Standard Terminology Related to
Yarns and Fibers
This standard is issued under the fixed designation D4849; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This standard is a compilation of terminology developed by Committee D13.58 on Yarns and Fibers.
1.1.1 This terminology, mostly definitions, is unique to fibers and yarns used in the textile industry. Terms that are generally
understood or adequately defined in other readily available sources are not included.
1.1.2 Subcommittee D13.58 has jurisdictional responsibility for every item in this standard. The standards in which the terms and
definitions are used are listed by number after the definition. The wording of an entry cannot be changed without the approval of
13.58 subcommittee. Any changes approved by the subcommittee and main committee are then directed to subcommittee D13.92
on Terminology for subsequent changes or additions to Terminology D123.
1.1.3 This terminology standard is not all inclusive of the terms under the jurisdiction of Subcommittee D13.58. Other terminology
standards under the jurisdiction of Subcommittee D13.58 are D3888, D4466, and D4848.
1.2 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D76 Specification for Tensile Testing Machines for Textiles
D123 Terminology Relating to Textiles
D861 Practice for Use of the Tex System to Designate Linear Density of Fibers, Yarn Intermediates, and Yarns
D204 Test Methods for Sewing Threads
D1059 Test Method for Yarn Number Based on Short-Length Specimens
D1230 Test Method for Flammability of Apparel Textiles
D1244 Practice for Designation of Yarn Construction
D1422 Test Method for Twist in Single Spun Yarns by the Untwist-Retwist Method
D1423 Test Method for Twist in Yarns by Direct-Counting
D1425 Test Method for Evenness of Textile Strands Using Capacitance Testing Equipment
D1577 Test Methods for Linear Density of Textile Fibers
D1578 Test Method for Breaking Strength of Yarn in Skein Form
D1907 Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method
This terminology is under the jurisdiction of ASTM Committee D13 on Textiles and is the direct responsibility of Subcommittee D13.58 on Yarns and Fibers.
Current edition approved May 15, 2020June 15, 2021 Published June 2020August 2021 Originally approved in 1988. Last previous edition approved in 20182020 as
D4849–13 (2018). D4849–20. DOI: 10.1520/D4849-20.10.1520/D4849-21.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

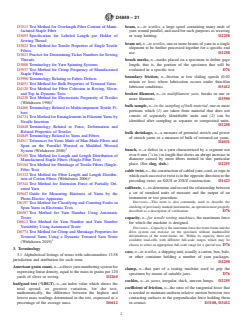

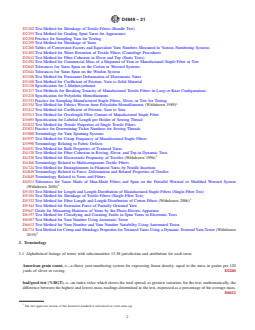

D4849 − 21
D2102 Test Method for Shrinkage of Textile Fibers (Bundle Test)
D2255 Test Method for Grading Spun Yarns for Appearance
D2258 Practice for Sampling Yarn for Testing
D2259 Test Method for Shrinkage of Yarns
D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems
D2402 Test Method for Water Retention of Textile Fibers (Centrifuge Procedure)
D2612 Test Method for Fiber Cohesion in Sliver and Top (Static Tests)
D2494 Test Method for Commercial Mass of a Shipment of Yarn or Manufactured Staple Fiber or Tow
D2645 Tolerances for Yarns Spun on the Cotton or Worsted Systems
D2644 Tolerances for Yarns Spun on the Woolen System
D3106 Test Method for Permanent Deformation of Elastomeric Yarns
D3108 Test Method for Coefficient of Friction, Yarn to Solid Material
D3128 Specification for 2-Methoxyethanol
D3217 Test Methods for Breaking Tenacity of Manufactured Textile Fibers in Loop or Knot Configurations
D3218 Specification for Polyolefin Monofilaments
D3333 Practice for Sampling Manufactured Staple Fibers, Sliver, or Tow for Testing
D3334 Test Method for Fabrics Woven from Polyolefin Monofilaments (Withdrawn 1989)
D3412 Test Method for Coefficient of Friction, Yarn to Yarn
D3513 Test Method for Overlength Fiber Content of Manufactured Staple Fiber
D3693 Specification for Labeled Length per Holder of Sewing Thread
D3822 Test Method for Tensile Properties of Single Textile Fibers
D3823 Practice for Determining Ticket Numbers for Sewing Threads
D3888 Terminology for Yarn Spinning Systems
D3937 Test Method for Crimp Frequency of Manufactured Staple Fibers
D3990 Terminology Relating to Fabric Defects
D4031 Test Method for Bulk Properties of Textured Yarns
D4120 Test Method for Fiber Cohesion in Roving, Sliver, and Top in Dynamic Tests
D4238 Test Method for Electrostatic Propensity of Textiles (Withdrawn 1996)
D4466 Terminology Related to Multicomponent Textile Fibers
D4724 Test Method for Entanglements in Filament Yarns by Needle Insertion
D4848 Terminology Related to Force, Deformation and Related Properties of Textiles
D4849 Terminology Related to Yarns and Fibers
D4911 Tolerances for Yarns Made of Man-Made Fibers and Spun on the Parrallel Worsted or Modified Worsted System
(Withdrawn 2000)
D5103 Test Method for Length and Length Distribution of Manufactured Staple Fibers (Single-Fiber Test)
D5104 Test Method for Shrinkage of Textile Fibers (Single-Fiber Test)
D5332 Test Method for Fiber Length and Length Distribution of Cotton Fibers (Withdrawn 2006)
D5344 Test Method for Extension Force of Partially Oriented Yarn
D5647 Guide for Measuring Hairiness of Yarns by the Photo-Electric Apparatus
D6197 Test Method for Classifying and Counting Faults in Spun Yarns in Electronic Tests
D6587 Test Method for Yarn Number Using Automatic Tester
D6612 Test Method for Yarn Number and Yarn Number Variability Using Automated Tester
D6774 Test Method for Crimp and Shrinkage Properties for Textured Yarns Using a Dynamic Textured Yarn Tester (Withdrawn
2019)
3. Terminology
3.1 Alphabetical listings of terms with subcommittee 13.58 jurisdiction and attribution for each term.
American grain count, n—a direct yarn numbering system for expressing linear density, equal to the mass in grains per 120
yards of sliver or roving. D2260
bad/good test (%BGT), n—an index value which shows the total spread, or greatest variation, for the test; mathematically, the
difference between the highest and lowest mass readings determined in the test, expressed as a percentage of the average mass.
D6612
The last approved version of this historical standard is referenced on www.astm.org.

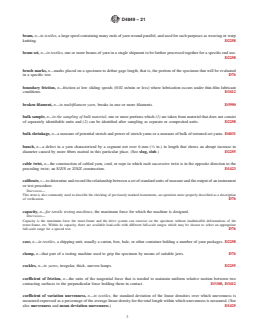

D4849 − 21
beam, n—in textiles, a large spool containing many ends of yarn wound parallel, and used for such purposes as weaving or warp
knitting. D2258
beam set, n—in textiles, one or more beams of yarn in a single shipment to be further processed together for a specific end use.
D2258
bench marks, n—marks placed on a specimen to define gage length, that is, the portion of the specimen that will be evaluated
in a specific test. D76
boundary friction, n—friction at low sliding speeds (0.02 m/min or less) where lubrication occurs under thin-film lubricant
conditions. D3412
broken filament, n—in multifilament yarn, breaks in one or more filaments. D3990
bulk sample, n—in the sampling of bulk material, one or more portions which (1) are taken from material that does not consist
of separately identifiable units and (2) can be identified after sampling as separate or composited units. D2258
bulk shrinkage, n—a measure of potential stretch and power of stretch yarns or a measure of bulk of textured-set yarns. D4031
bunch, n—a defect in a yarn characterized by a segment not over 6 mm ( ⁄4 in.) in length that shows an abrupt increase in
diameter caused by more fibers matted in this particular place. (See slug, slub.) D2255
cable twist, n—the construction of cabled yarn, cord, or rope in which each successive twist is in the opposite direction to the
preceding twist; an S/Z/S or Z/S/Z construction. D1423
calibrate, v—to determine and record the relationship between a set of standard units of measure and the output of an instrument
or test procedure.
DISCUSSION—
This term is also commonly used to describe the checking of previously marked instruments, an operation more properly described as a description
of verification. D76
capacity, n—for tensile testing machines, the maximum force for which the machine is designed.
DISCUSSION—
Capacity is the maximum force the tester-frame and the drive system can exercise on the specimen without inadmissible deformations of the
tester-frame, etc. Within its capacity, there are available load-cells with different full-scale ranges which may be chosen to select an appropriate
full-scale range for a special test. D76
case, n—in textiles, a shipping unit, usually a carton, box, bale, or other container holding a number of yarn packages. D2258
clamp, n—that part of a testing machine used to grip the specimen by means of suitable jaws. D76
cockles, n—in yarns, irregular, thick, uneven lumps. D2255
coefficient of friction, n—the ratio of the tangential force that is needed to maintain uniform relative motion between two
contacting surfaces to the perpendicular force holding them in contact. D3108, D3412
coefficient of variation unevenness, n—in textiles, the standard deviation of the linear densities over which unevenness is
measured expressed as a percentage of the average linear density for the total length within which unevenness is measured. (See
also unevenness and mean deviation unevenness.) D1425

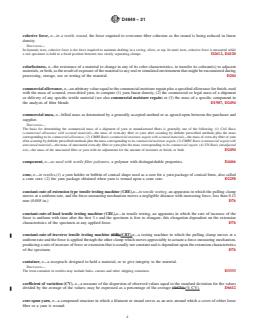

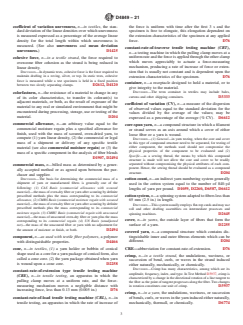

D4849 − 21
cohesive force, n—in a textile strand, the force required to overcome fiber cohesion as the strand is being reduced in linear
density.
DISCUSSION—
In dynamic tests, cohesive force is the force required to maintain drafting in a roving, silver, or top. In static tests, cohesive force is measured while
a test specimen is held in a fixed position between two slowly separating clamps. D2612, D4120
colorfastness, n—the resistance of a material to change in any of its color characteristics, to transfer its colorant(s) to adjacent
materials, or both, as the result of exposure of the material to any real or simulated environment that might be encountered during
processing, storage, use or testing of the material. D204
commercial allowance, n—an arbitrary value equal to the commercial moisture regain plus a specified allowance for finish, used
with the mass of scoured, oven-dried yarn, to compute (1) yarn linear density, (2) the commercial or legal mass of a shipment
or delivery of any specific textile material (see also commercial moisture regain) or (3) the mass of a specific component in
the analysis of fiber blends D1907, D2494
commercial mass, n—billed mass as determined by a generally accepted method or as agreed upon between the purchaser and
supplier.
DISCUSSION—
The basis for determining the commercial mass of a shipment of yarn or manufactured fibers is generally one of the following: (1) CAS Basis
(commercial allowance with scoured material)—the mass of oven-dry fiber or yarn after scouring by definite prescribed methods plus the mass
corresponding to its commercial allowance, (2) CMRS Basis (commercial moisture regain with scoured material)—the mass of oven-dry fiber or yarn
after scouring by definite prescribed methods plus the mass corresponding to its commercial moisture regain. (3) CMRU Basis (commercial regain with
unscoured material)—the mass of unscoured oven-dry fiber or yarn plus the mass corresponding to its commercial regain. (4) UN Basis (unadjusted
net)—the mass of the unscoured fiber or yarn with no adjustment for the amount of moisture or finish, or both. D2494
component, n—as used with textile fiber polymers, a polymer with distinguishable properties. D4466
cone, n—in textiles,(1) a yarn holder or bobbin of conical shape used as a core for a yarn package of conical form, also called
a cone core. (2) the yarn package obtained when yarn is wound upon a cone core. D2258
constant-rate-of-extension type tensile testing machine (CRE),n—in tensile testing, an apparatus in which the pulling clamp
moves at a uniform rate, and the force-measuring mechanism moves a negligible distance with increasing force, less than 0.13
mm (0.005 in.) D76
constant-rate-of-load tensile testing machine (CRL),n—in tensile testing, an apparatus in which the rate of increase of the
force is uniform with time after the first 3 s and the specimen is free to elongate, this elongation dependent on the extension
characteristics of the specimen at any applied force. D76
constant-rate-of-traverse tensile testing machine (CR),(CRT),n—a testing machine in which the pulling clamp moves at a
uniform rate and the force is applied through the other clamp which moves appreciably to actuate a force-measuring mechanism,
producing a rate of increase of force or extension that is usually not constant and is dependent upon the extension characteristics
of the specimen. D76
container, n—a receptacle designed to hold a material, or to give integrity to the material.
DISCUSSION—
The term container in textiles may include bales, cartons and other shipping containers. D3333
coefficient of variation (CV), n—a measure of the dispersion of observed values equal to the standard deviation for the values
divided by the average of the values; may be expressed as a percentage of the average (%CV).(% CV). D6612
core-spun yarn, n—a compound structure in which a filament or strand serves as an axis around which a cover of either loose
fiber or a yarn is wound.
D4849 − 21
DISCUSSION—
(1) General—in yarn testing, when the core and cover in this type of compound structure need to be separated, for testing of either component, the
methods used should not compromise the physical properties of the component to be evaluated: and (2) Specific—as a sewing thread, the means by
which this compound structure is made will not allow the core and cover to be readily separated without compromising the physical attributes of each
component. Hence, the sewing thread should be evaluated as a compound structure. D204
cotton count, n—an indirect yarn numbering system generally used in the cotton system equal to the number of 840-yd lengths
of yarn per pound. D1059, D2260, D6587, D6612
cotton system, n—a spinning system adapted to fibers less than 65 mm (2.5 in.) in length.
DISCUSSION—
This system usually employs flat-top cards and may use roll and other drafting assemblies on intermediate processes and spinning machines. D2645
cover, n—in yarns, the outside layer of fibers that form the surface of a yarn. D2255
covered yarn, n—a compound structure which contains distinguishable inner and outer fibrous elements which can be different.
D204
CRE—abbreviation for constant-rate-of-extension. D76
crimp, n—in a textile strand, the undulations, waviness, or succession of bend, curls, or waves in the strand induced either
naturally, mechanically, or chemically.
DISCUSSION—
Crimp has many characteristics, among which are its amplitude, frequency, index, and type. In Test Method D3937, crimp is characterized by a change
in the directional rotation of a line tangent to the fiber as the point of tangent progresses along the fiber. Two changes in rotation constitutes one unit
of crimp. D3937
crimp, n—in a yarn, the undulations, waviness, or succession of bends, curls, or waves in the yarn induced either naturally,
mechanically, thermall, or chemically. D6774
crimp contraction, n—an indicator of crimp capacity or a characterization of a yarn’s ability to contract under tension. D4031,
D6774
crimp development medium, n—for testing of textured yarn, an environment that allows the temporary set of fiber crimp to
be overcome and that allows the filaments to assume their permanently set configuration. D4031
crimp frequency, n—in manufactured staple fibers, the number of crimps or waves per unit length of extended or straightened
fiber. D3937
crimp index, n—an indirect measure of the amplitude of the crimp.
DISCUSSION—
Crimp index is calculated as the difference in distance between two points on the fiber as it lies in an unstretched condition in one plane and the distance
between the same two points when the fiber is straightened under a specified tension expressed as a percentage of the unstretched distance. To improve
reproducibility, the unstretched distance may be measured under a specified, very low tension to align the fiber in one plane. D3937
crimp recovery, n—a measure of the ability of a yarn to return to its original crimped state after being subjected to tension.
D4031
CRL—abbreviation for constant-rate-of-loading. D76
CRT—abbreviation for constant-rate-of-traverse. D76
D4849 − 21
cut, n—in asbestos and glass yarns, the number of 100-yd lengths of yarn per pound; an indirect yarn numbering system. D1059,
D2260
cut, n—in wool yarns, the number of 300-yd lengths of yarn per pound; an indirect yarn numbering system. D1059, D2260
denier, n—the unit of linear density, equal to the mass in grams of 9000 m of fiber, yarn, or other textile strand that is used in
a direct yarn numbering system. (See also linear density) D1059, D2260, D6587, D6612
density frequency variability (DFV), n—an index of the spacing of irregularities; mathematically, the number of times the
measured mass crosses over the mean mass line from higher-to-lower values or lower-to-higher values divided by the distance
over which the count is made. D6612
density spread (%DS), n—a value which indicates the degree to which the mass varies from its average; mathematically, the
average of the differences between the maximum and minimum values within specified subsections, expressed as a percent based
on an overall average. D6612
direct cabling technology, n—a single-step manufacturing systems that produces a twist-balanced cabled yarn (2 fold) from
twistless single yarns.
DISCUSSION—
Direct cabling of yarn is carried out in a one-step twisting operation as compared to conventional cabling of yarn that is carried out in multiple twist
operations. D1423
direct yarn numbering system, n—a system that expresses the linear density of yarn in mass per unit length.
DISCUSSION—
The preferred units of measurements for the direct yarn measuring system are grams and meters. Tex (weight in grams for 1000 metres) and Denier
(weight in grams for 9000 metres) are recommended to show linear density in the direct numbering system. These can be calculated by dividing the
mass of a yarn by its length. Conversion factors to convert between direct and indirect numbering systems can be found in Standard Tables D2260.
D1059, D1907, D2260
direction of twist, n—the right or left direction of the helix formed in a twisted strand as indicated by superimposition of the
capital letter “S” or “Z.”
DISCUSSION—
Yarn has an S twist if when the yarn is held in a vertical position, the visible spirals or helices around the central axis conform in direction of slope
to the central portion of the letter “S” and Z twist if the invisible spirals or helices conform in direction of slope to the central portion of the letter
“Z”. When two or more yarns, either single or plied are twisted together, the letters “S” and “Z” are used in a similar manner to indicate the direction
of the last twist inserted. D1422, D1423
draw ratio (DR), n—the relation of the final length per unit mass to original length per unit mass of a material resulting from
drawing. D3218, D5344
draw texturing, n—for processing thermoplastic fibers, the simultaneous or sequential process of drawing and imparting crimp,
thus producing increased molecular orientation and increased bulk.
DISCUSSION—
The drawing and texturing stages may occur in separate, usually consecutive, zones of a machine (sequential draw texturing) or together in the same
zone (simultaneous draw texturing). D5344
D4849 − 21
drawing, n—in textile processing, the process of stretching or attenuating a material to increase the length per unit mass.
DISCUSSION—
This process orients the molecular chains in the length direction of a monofilament or partially oriented yarn. D3218, D5344
effective carriage mass, n—in CRL-type tensile testing machine, the force actually applied to a specimen by the mass of the
carriage, plus any added masses. D76
effective fiber length, n—in vibroscope test for linear density, that portion of the fiber free to vibrate between fixed supports
or holders. D1577
effective gage length, n—in tensile testing, the estimated length of the specimen subjected to a strain equal to that observed for
the true gage length.
DISCUSSION—
The effective gage length can be calculated using the following equation:
G 5 G 3E /E (1)
E N N T
where:
G = effective gage length
E
G = nominal gage length
N
E = percent elongation based on the nominal gage length, and
N
E = percent elongation based on the true gage length.
T
D76
elastomeric yarn, n—a nontextured yarn which can be stretched repeatedly at room temperature to at least twice its original
length and which after removal of the tensile force will immediately and forcibly return to approximately its original length.
DISCUSSION—
The elastic properties of yarn are produced by the use of filaments, or a core, made from polymers having a special chemical composition or molecular
structure, for example, filaments made from spandex or from cut or extruded rubber. D3106
electric constant, n—in textile capacitance testing, the change in the electrical field as measured by the sensors (capacitors) of
an evenness instrument when a non-conductive textile strand travels between capacitor plates.
DISCUSSION—
The dielectric change is measured as the ratio of the amount of stored energy between the capacitors, without a strand, as compared to the movement
of a strand through the sensor zone, and it is in direct proportion to the variation recorded on the diagram chart. D1425
electrostatic decay half-life, n—in textiles, the time in minutes for the maximum voltage induced on the textile to be reduced
to one half of the maximum voltage by the various decay mechanisms: conduction and ionization of the air. D4238
electrostatic propensity, n—the capacity of a nonconducting material to acquire and hold an electrical charge by induction (by
means of corona discharge) or by triboelectric means (rubbing with another material). D4238
end, n—an individual silver, roving, yarn, or cord.
DISCUSSION—
For yarns, one of the one or more continuous, multiple parallel lengths of yarn which may be wound on a yarn package or beam. For example, two
lengths of yarn wrapped parallel on a single bobbin constitute two yarn ends, likewise, one thousand lengths of yarn wrapped parallel on a single beam
constitutes one thousand yarn ends. D2258
entanglement, n—the extent or degree to which the filaments in a yarn are interlocked and cannot be readily separated.
DISCUSSION—
There are two kinds of entanglements, intermediary (loose) node and hard (tight) node. Intermediary nodes are pulled out easily under tension or
separated by a needle. Test Method D4724 measures the presence of hard nodes in which the interlocking or interlacing is compact pulling the yarn
bundle together. D4724
D4849 − 21
evaluator, n—a part of, or an attachment to, an unevenness testing instrument, which automatically gives an estimate of R .
u
D1425
evenness, CV%, n—in textiles, the coefficient of variation derived from the ratio of the standard deviation of the variation in
mass of a specified strand length (L ), over the total variation in mass in the length capacitance zone (L ).
s c
DISCUSSION—
For strands with normal mass variation distribution, the relationship between CV% and U% is multiplied by 1.25 (this conversion is an approximation
and should not be used as a substitute for actual measurements). Although both CV% and U% are used as values of evenness, CV% is considered more
accurate. CV% is gradually replacing U% as the only calculated measurement of evenness. D1425
extension, n—the change in length of a material due to stretching. D5344
extension force, n—the force required to stretch a material to a given length. D5344
fabric package, n—a length of fabric in a form suitable for handling, storing, or shipping.
DISCUSSION—
Fabric packages may be unsupported, such as when folded in cases, or supported, such as on tubes, bolts, or creels. Fabric packages are frequently
referred to as rolls or pieces. D2258
fiber beard, n—as related to variegated length long staple yarns, the graphic representation, which uses a slope to show the
random length staple, from the longest length staple to the shortest length staple that are made from the tow of a continuous
filament yarn.
DISCUSSION—
The graphic representation in Fig. A shows how the fiber beard of variegated length long staple has random lengths that typically range from 100 mm
to 300 mm. This can be compared to the short staple fiber beard (having fiber length of approximately 50 mm) shown in Fig. B. While the variegated
length long staple (VLLS) fiber is processed using modified worsted spinning technology, the short staple fiber is processed using ring spinning
technology, the same as used for cotton fiber. (See variegated length long staple (VLLS) yarn.)
D4849 − 21
Fig. A
Fig. B
fiber beard, n—in length testing of fibers, fibers caught randomly on a comb which are subsequently straightened and
parallelized without stretching or damaging. D3513
fiber chip, n—in manufactured textiles, staple fibers that are massed together as a unit and that maintain a single geometry or
alignment. D3937
fiber cohesion, n—in textiles, the resistance to separation of fibers in contact with one another.
DISCUSSION—
This resistance is due to the combined effects of the surface characteristic, length, crimp, finish, and linear density of the fibers. Cohesion should not
be confused with adhesion or sticking together as in a glutinous substance. D2612, D4120
filament yarn, n—a yarn composed of (continuous) filaments assembled with or without twist. D3822, D4724
final twist, n—the number of turns per unit length in a single yarn component of a plied yarn or the plied yarn component of
a cabled yarn as the component lies in the more complex structure. (syn. “as-is” twist) D1423
frayed, adj—in textiles, a worn condition characterized by damaged yarn surfaces, projecting yarn ends, hairiness, etc. D5647
friction, n—the resistance to the relative motion of one body sliding, rolling, or flowing over another body with which it is in
contact.
D4849 − 21
DISCUSSION—
There are two frictional properties exhibited between any pair of surfaces: static friction and kinetic friction. Test Methods D3108 and D3412 both
measure the coefficient of friction for kinetic friction. D3108, D3412
fundamental resonant frequency, n—in linear density testing, the lowest frequency at which free oscillations can exist in a
fiber tensioned between two fixed points. D1577
fuzz, n—untangled fiber ends that protrude from the surface of a yarn or fabric.
DISCUSSION—
Fuzz should not be confused with “cover”. D2255
fuzzy, adj—characterized by a hairy appearance due to broken fibers or filaments. (Syn. hairiness) D5647
generic class, n—as used with textile fibers, a grouping having similar chemical compositions or specific chemical
characteristics. D4466
gloss, n—the luminous fractional reflectance of a material in the specular direction. (See specular gloss) D3334
grain, n—in yarn spinning, a direct yarn numbering system for sliver, top or roving, equal to the mass in grains of 120 yds. (See
American grain count) D2260
grain, n—in measuring mass, 1/7000 lb avoirdupois D2260
greige thread, n—undyed or unfinished sewing thread in the state following final plying or equivalent step in a processing
sequence, such as extruding, texurizing or braiding. D204, D3823
grex, n—an obsolete direct numbering system for fiber yarn or other textile strand equal to the mass in grams per 10 000 m
D1059, D2260
grip, v—in tensile testing, to hold, grasp, or secure, for example, to grip the specimen by the jaws of the clamps. D76
growth, n—an increase in one or more dimensions of an object or a material. D204
hairiness, n—or yarns, an overall condition characterized by filaments or fibers protruding from the yarn surface and uniformly
distributed along the yarn length. (Compare wild fibers.) D5647
hawser twist, n—the construction of cabled yarn, cord, or rope in which the single and first-ply twist are in the same direction
and the second-ply twist is in the opposite direction, and S/S/Z or Z/Z/S construction. D1423
heat shrinkage, n—a decrease in one or more dimensions of an object or material exposed to heat. D3128
heatset yarn , n—in a textured yarn, a yarn that is subjected to secondary heat during the texturing process, which is designed
to reduce the torque and bulk shrinkage.
DISCUSSION—
The characteristics of heatset yarns are a function of the temperature, time, and length of exposure to the heat source.
imperfections, n—in textile evenness testing, the individual number of thick places, thin places, and neps of a sample strand
length measured by a capacitive evenness tester at selected sensitivity settings for each imperfection category. D1425
indirect yarn numbering system, n—a system that expresses the linear density of yarn in length per unit mass.
D4849 − 21
DISCUSSION—
The preferred units of measurements for the indirect yarn measuring system are yards and pounds. Cotton count (number of 840 yard lengths per
pound), worsted count (number of 560 yard lengths per pound), metric count (number of 1000 metre lengths per kilogram), woolen run (number of
1600 yard lengths per pound) and number of yards per pound are commonly used in the indirect numbering system. These can be calculated by dividing
the number of specified lengths of a yarn by its unit of mass. Conversion factors to convert between indirect and direct numbering systems can be found
in Standard Tables D2260 D1059, D1907, D2260
integrator, n—in textile unevenness testing, a device that calculates the coefficient of variation unevenness or the mean deviation
unevenness.
DISCUSSION—
The terms “integrator” and “integration" as applied to textile unevenness testing do not imply integration in the strict mathematical sense. The type
integrator, linear or quadratic, must be carefully selected depending upon a known irregularity of the material; that is, purely random or purely periodic.
D1425
jaw face, n—in tensile testing machines, the surface of a jaw which in the absence of a liner contacts the specimen. D76
jaw liner, n—in tensile testing machines, any material placed between the jaw face and the specimen to improve the holding
power of the jaws. D76
jaws, n—in tensile testing machines, the elements of a clamp which grip the specimen. D76
kinetic friction, n—friction developed between two bodies in motion. (Compare static friction.) D3108
laboratory sample, n—a portion of material taken to represent the lot sample, or the original material, and used in the laboratory
as a source of test specimens. D2258
lateral, adj—a descriptive term for a textile fiber composed of two or more polymers at least two of which have a continuous
longitudinal external surface. D4849
lea, n—in cotton yarns, the number of 120-yd length
...
