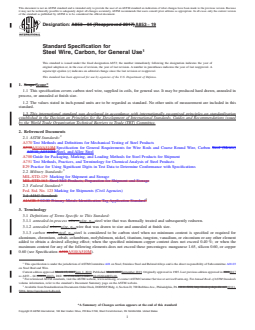

ASTM A853-19

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: A853 − 04 (Reapproved 2017) A853 − 19
Standard Specification for
Steel Wire, Carbon, for General Use
This standard is issued under the fixed designation A853; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope Scope*
1.1 This specification covers carbon steel wire, supplied in coils, for general use. It may be produced hard drawn, annealed in
process, or annealed at finish size.
1.2 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this
standard.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
A370 Test Methods and Definitions for Mechanical Testing of Steel Products
A510A510/A510M Specification for General Requirements for Wire Rods and Coarse Round Wire, Carbon Steel (Metric)
A0510_A0510M Steel, and Alloy Steel
A700 Guide for Packaging, Marking, and Loading Methods for Steel Products for Shipment
A751 Test Methods, Practices, and Terminology for Chemical Analysis of Steel Products
E29 Practice for Using Significant Digits in Test Data to Determine Conformance with Specifications
2.2 Military Standards:
MIL-STD-129 Marking for Shipment and Storage
MIL-STD-163 Steel Mill Products, Preparation for Shipment and Storage
2.3 Federal Standard:
Fed. Std. No. 123 Marking for Shipments (Civil Agencies)
2.4 AIAG Standard:
AIAGB-5 02.00 Primary Metals Identification Tag Application Standard
3. Terminology
3.1 Definitions of Terms Specific to This Standard:
3.1.1 annealed-in-process wire—wire, n—steel wire that was thermally treated and subsequently redrawn.
3.1.2 annealed wire—wire, n—wire that was drawn to size and annealed at finish size.
3.1.3 carbon steel—steel, n—steel is considered to be carbon steel when no minimum content is specified or required for
aluminum, chromium, cobalt, columbium, molybdenum, nickel, titanium, tungsten, vanadium, or zirconium or any other element
added to obtain a desired alloying effect; when the specified minimum copper content does not exceed 0.40 %; or when the
maximum content for any of the following elements does not exceed these percentages: manganese 1.65, silicon 0.60, or copper
0.60 (see Specification A510A510/A510M).
This specification is under the jurisdiction of ASTM Committee A01 on Steel, Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee A01.03
on Steel Rod and Wire.
Current edition approved March 15, 2017Sept. 1, 2019. Published March 2017September 2019. Originally approved in 1985. Last previous edition approved in 20102017
as A853 – 04 (2010).(2017). DOI: 10.1520/A0853-04R17.10.1520/A0853-19.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from Standardization Documents Order Desk, DODSSP, Bldg. 4, Section D, 700 Robbins Ave., Philadelphia, PA 19111-5098, http://dodssp.daps.dla.mil.19111-
5094, https://quicksearch.dla.mil.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

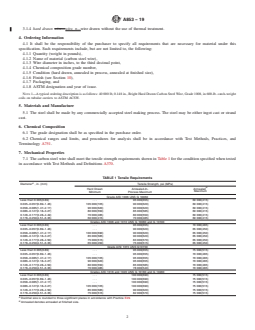

A853 − 19
3.1.4 hard drawn wire—wire, n—wire drawn without the use of thermal treatment.
4. Ordering Information
4.1 It shall be the responsibility of the purchaser to specify all requirements that are necessary for material under this
specification. Such requirements include, but are not limited to, the following:
4.1.1 Quantity (weight in pounds),
4.1.2 Name of material (carbon steel wire),
4.1.3 Wire diameter in inches, to the third decimal point,
4.1.4 Chemical composition grade number,
4.1.5 Condition (hard drawn, annealed in process, annealed at finished size),
4.1.6 Finish (see Section 10),
4.1.7 Packaging, and
4.1.8 ASTM designation and year of issue.
NOTE 1—A typical ordering description is as follows: 40 000 lb, 0.148 in., Bright Hard Drawn Carbon Steel Wire, Grade 1008, in 600-lb. catch-weight
coils on tubular carriers to ASTM ACSW.
5. Materials and Manufacture
5.1 The steel shall be made by any commercially accepted steel making process. The steel may be either ingot cast or strand
cast.
6. Chemical Composition
6.1 The grade designation shall be as specified in the purchase order.
6.2 Chemical ranges and limits, and procedures for analysis shall be in accordance with Test Methods, Practices, and
Terminology A751.
7. Mechanical Properties
7.1 The carbon steel wire shall meet the tensile strength requirements shown in Table 1 for the condition specified when tested
in accordance with Test Methods and Definitions A370.
TABLE 1 Tensile Requirements
A
Diameter , in. (mm) Tensile Strength, psi (MPa)
B
Hard Drawn Annealed-In- Annealed
Maximum
Minimum Process Maximum
Grade AISI 1006 UNS G 10060
Less than 0.035(0.89) . . . 95 000(655) 60 000(415)
0.035–0.057(0.89–1.46) 105 000(725) 90 000(620) 60 000(415)
0.058–0.085(1.47–2.17) 90 000(620) 90 000(620) 60 000(415)
0.086–0.127(2.18–3.27) 80 000(550) 85 000(585) 60 000(415)
0.128–0.177(3.28–4.49) 70 000(485) 80 000(550) 60 000(415)
0.178–0.250(4.51–6.35) 60 000(415) 70 000(485) 60 000(415)
Grades AISI 1008 and 1010 UNS G 10080 and G 10100
Less than 0.035(0.89) . . . 95 000(655) 70 000(485)
0.035–0.057(0.89–1.46) . . . 90 000(620) 65 000(450)
0.058–0.085(1.47–2.17) 100 000(690) 90 000(620) 65 000(450)
0.086–0.127(2.18–3.27) 85 000(585) 90 000(620) 65 000(450)
0.128–0.177(3.28–4.50) 75 000(515) 83 000(570) 65 000(450)
0.178–0.250(4.51–6.35) 65 000(450) 75 000(515) 65 000(450)
Grade AISI 1015 UNS G10150
Less than 0.035(0.89) . . . 95 000(655) 75 000(515)
0.035–0.057(0.89–1.46) . . . 95 000(655) 70 000(485)
0.058–0.085(1.47–2.17) 105 000(725) 95 000(655) 70 000(485)
0.086–0.127(2.18–3.27) 90 000(620) 95 000(655) 70 000(485)
0.128–0.177(3.28–4.50)
...
