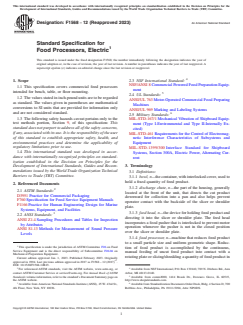

ASTM F1568-12(2023)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: F1568 − 12 (Reapproved 2023) An American National Standard
Standard Specification for
Food Processors, Electric
This standard is issued under the fixed designation F1568; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 2.3 NSF International Standard:
NSF/ANSI 8 Commercial Powered Food Preparation Equip-
1.1 This specification covers commercial food processors
ment
intended for bench, table, or floor mounting.
2.4 UL Standards:
1.2 The values stated in inch-pound units are to be regarded
ANSI/UL 763 Motor-Operated Commercial Food Preparing
as standard. The values given in parentheses are mathematical
Machines
conversions to SI units that are provided for information only
ANSI/UL 969 Marking and Labeling Systems
and are not considered standard. 6
2.5 Military Standards:
1.3 The following safety hazards caveat pertains only to the
MIL-STD-167/1 Mechanical Vibration of Shipboard Equip-
test methods portion, Section 9, of this specification: This
ment (Type I-Environmental and Type II-Internally Ex-
standard does not purport to address all of the safety concerns,
cited)
if any, associated with its use. It is the responsibility of the user
MIL-STD-461 Requirements for the Control of Electromag-
of this standard to establish appropriate safety, health, and
netic Interference Characteristics of Subsystems and
environmental practices and determine the applicability of
Equipment
regulatory limitations prior to use.
MIL-STD-1399/300 Interface Standard for Shipboard
1.4 This international standard was developed in accor-
Systems, Section 300A, Electric Power, Alternating Cur-
dance with internationally recognized principles on standard-
rent
ization established in the Decision on Principles for the
3. Terminology
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
3.1 Definitions:
Barriers to Trade (TBT) Committee.
3.1.1 bowl, n—the container, with interlocked cover, used to
hold a fixed quantity of food product.
2. Referenced Documents
3.1.2 discharge chute, n—the part of the housing, generally
2.1 ASTM Standards:
located at the front of the unit, that directs the cut product
D3951 Practice for Commercial Packaging
downward for collection into a pan and also helps prevent
F760 Specification for Food Service Equipment Manuals
operator contact with the backside of the slicer or shredder
F1166 Practice for Human Engineering Design for Marine
plate.
Systems, Equipment, and Facilities
3.1.3 feed head, n—the device for holding food product and
2.2 ANSI Standards:
directing it into the slicer or shredder plate. The feed head
ANSI Z1.4 Sampling Procedures and Tables for Inspection
incorporates a food pusher that is interlocked to prevent motor
by Attributes
operation whenever the pusher is not in the closed position
ANSI S1.13 Methods for Measurement of Sound Pressure
over the slicer or shredder plate.
Levels
3.1.4 food processor, n—machine that reduces food product
to a small particle size and uniform geometric shape. Reduc-
This specification is under the jurisdiction of ASTM Committee F26 on Food
tion of food product is accomplished by the continuous,
Service Equipment and is the direct responsibility of Subcommittee F26.04 on
manual feeding of uncut food product into contact with a
Mechanical Preparation Equipment.
rotating plate or slicing/shredding a quantity of food product in
Current edition approved Jan. 1, 2023. Published February 2023. Originally
ε1
approved in 1994. Last previous edition approved in 2017 as F1568 – 12 (2017) .
DOI: 10.1520/F1568-12R23.
2 4
For referenced ASTM standards, visit the ASTM website, www.astm.org, or Available from NSF International, P.O. Box 130140, 789 N. Dixboro Rd., Ann
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Arbor, MI 48113-0140.
Standards volume information, refer to the standard’s Document Summary page on Available from comm2000, 1414 Brook Dr., Downers Grove, IL 60515,
the ASTM website. http://www.shopulstandards.com.
3 6
Available from American National Standards Institute (ANSI), 25 W. 43rd St., Available from Standardization Documents Order Desk, Bldg. 4 Section D, 700
4th Floor, New York, NY 10036. Robbins Ave., Philadelphia, PA 19111-5094, Attn: NPODS.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

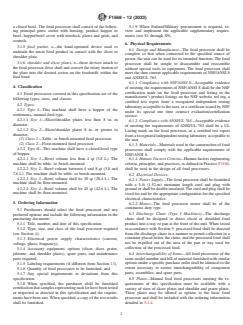

F1568 − 12 (2023)
a closed bowl. The food processor shall consist of the follow- 5.1.9 When Federal/Military procurement is required, re-
ing principal parts: motor with housing, product hopper or view and implement the applicable supplementary require-
bowl, hopper/bowl cover with interlock, plates and grids, and ments (see S1 through S9).
controls.
6. Physical Requirements
3.1.5 food pusher, n—the hand-operated device used to
6.1 Design and Manufacture—The food processor shall be
maintain the uncut food product in contact with the slicer or
complete so that when connected to the specified source of
shredder plate.
power, the unit can be used for its intended function. The food
3.1.6 shredder and slicer plates, n—these devices attach to
processor shall be simple to disassemble and reassemble
the food processor drive shaft and convert the rotary motion of
without special tools or equipment. The food processor shall
the plate into the desired action on the foodstuffs within the
meet the then current applicable requirements of NSF/ANSI 8
feed head.
and ANSI/UL 763.
6.1.1 Compliance with NSF/ANSI 8—Acceptable evidence
4. Classification
of meeting the requirements of NSF/ANSI 8 shall be the NSF
certification mark on the food processor and listing in the
4.1 Food processors covered in this specification are of the
manufacturer’s product listings on the NSF website, nsf.org, a
following types, sizes, and classes:
certified test report from a recognized independent testing
4.2 Types:
laboratory acceptable to the user, or a certificate issued by NSF
4.2.1 Type I—This machine shall have a hopper of the
under its special one time contract evaluation/certification
continuous, manual-feed type.
service.
4.2.1.1 Size 1—Slicer/shredder plates less than 8 in. in
6.1.2 Compliance with ANSI/UL 763—Acceptable evidence
diameter.
of meeting the requirements of ANSI/UL 763 shall be a UL
4.2.1.2 Size 2—Slicer/shredder plates 8 in. or greater in
Listing mark on the food processor, or a certified test report
diameter.
from a recognized independent testing laboratory acceptable to
(1) Class 1—Table- or bench-mounted food processor.
the user.
(2) Class 2—Floor-mounted food processor.
6.1.3 Materials—Materials used in the construction of food
4.2.2 Type II—This machine shall have a closed-bowl type
processors shall comply with the applicable requirements of
of hopper.
NSF/ANSI 8.
4.2.2.1 Size 1—Bowl volume less than 4 qt (3.8 L). The
6.1.4 Human Factors Criteria—Human factors engineering
machine shall be table- or bench-mounted.
criteria, principles, and practices, as defined in Practice F1166,
4.2.2.2 Size 2—Bowl volume between 4 and 8 qt (3.8 and shall be used in the design of all food processors.
7.6 L). The machine shall be table- or bench-mounted.
6.2 Electrical Devices:
4.2.2.3 Size 3—Bowl volume shall be 30 qt (28.4 L). The
6.2.1 Power Supply—The food processor shall be furnished
machine shall be floor-mounted.
with a 5-ft (1.52-m) minimum length cord and plug with
4.2.2.4 Size 4—Bowl volume shall be 45 qt (42.6 L). The
ground or shall be double-insulated. The cord and plug shall be
machine shall be floor-mounted.
sized for and be the appropriate configuration for the specified
electrical characteristics.
5. Ordering Information
6.2.2 Motor—The food processor motor shall be of the
continuous duty type.
5.1 Purchasers should select the food processor and any
preferred options and include the following information in the 6.3 Discharge Chute (Type I Machines)—The discharge
purchasing document: chute shall be designed to direct sliced or shredded food
product into a tray or pan at the front of the unit. When tested
5.1.1 Title, number, and date of this specification,
in accordance with Section 9, processed food shall be directed
5.1.2 Type, size, and class of the food processor required
from the discharge chute in a manner to permit collection in a
(see Section 4),
container placed below the chute, and the processed food shall
5.1.3 Electrical power supply characteristics (current,
not be expelled out of the area of the pan or tray used for
voltage, phase, frequency),
collection of the processed food.
5.1.4 Accessory equipment, options (slicer, dicer, grater,
6.4 Interchangeability of Items—All food processors of the
julienne, and shredder plates), spare parts, and maintenance
parts required, same model number and bill of material furnished with similar
options under a specific purchase order shall be identical to the
5.1.5 Labeling requirements (if different from Section 13),
extent necessary to ensure interchangeability of component
5.1.6 Quantity of food processors to be furnished, and
parts, assemblies, and spare parts.
5.1.7 Any special requirements or deviations from this
specification.
6.5 Plates—Manual feed food processors meeting the re-
5.1.8 When specified, the purchaser shall be furnished quirements of this specification must be available with a
certification that samples representing each lot have been tested variety of sizes of slicer plates and shredder and grater plates.
or inspected as directed in this specification and the require- These plates may be offered as options to the basic food
ments have been met. When specified, a copy of the test results processor and shall be included with the ordering information
shall be furnished. detailed in 5.1.4.

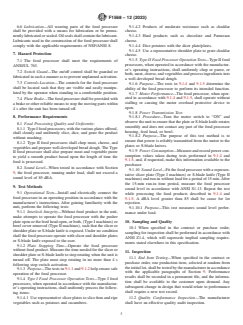

F1568 − 12 (2023)
6.6 Lubrication—All wearing parts of the food processor 9.1.4.2 Products of moderate resistance such as cheddar
shall be provided with a means for lubrication or be perma- cheese.
nently lubricated or sealed. Oil seals shall contain the lubricant. 9.1.4.3 Hard products such as chocolate and Parmesan
Lubricants used in the construction of the food processor shall cheese.
comply with the applicable requirements of NSF/ANSI 8. 9.1.4.4 Dice potatoes with the dicer plate/plates.
9.1.4.5 Use a representative shredder plate to grate cheddar
7. Hazard Protection
cheese.
9.1.5 Type II Food Processor Operation Tests—Type II food
7.1 The food processor shall meet the requirements of
processors, when operated in accordance with the manufactur-
ANSI/UL 763.
er’s operating instructions, shall uniformly chop or puree, or
7.2 Switch Guard—The on/off control shall be guarded or
both, meat, cheese, and vegetables and process ingredients into
fabricated in such a manner as to prevent unplanned activation.
a well-developed bread dough.
7.3 Controls Location—The controls for the food processor
9.1.6 Purpose—The tests in 9.1.4 and 9.1.5 determine the
shall be located such that they are visible and easily manipu-
ability of the food processor to perform its intended function.
lated by the operator when standing in a comfortable position.
9.1.7 Motor Performance—The food processor, when oper-
ated in accordance with 9.1.4 and 9.1.5, shall operate without
7.4 Plate Brake—The food processor shall be provided with
stalling or causing the motor overload protective device to
a brake or other reliable means to stop the moving parts within
open.
4 s after the unit has been turned off.
9.1.8 Power Transmission Test:
8. Performance Requirements 9.1.8.1 Procedure—Turn the motor switch to “ON” and
observe the unit to ensure that the plate or S-blade knife rotates
8.1 Food Processing Quality and Uniformity:
smoothly and does not contact any part of the food processor
8.1.1 Type I food processors, with the various plates offered,
housing, feed head, or bowl.
shall cleanly and uniformly slice, dice, and grate the product
9.1.8.2 Purpose—The purpose of this test method is to
without mushing.
ensure that power is reliably transmitted from the motor to the
8.1.2 Type II food processors shall chop meat, cheese, and
plates or S-blade knives.
vegetables and prepare well-developed bread dough. The Type
9.1.9 Power Consumption—Measure and record power con-
II food processor shall also prepare meat and vegetable puree
sumption values taken during tests performed in 9.1.4 and
to yield a smooth product based upon the length of time the
9.1.5, and, if requested, make this information available to the
food is processed.
purchaser.
8.2 Sound Level—When tested in accordance with Section
9.1.10 Sound Level—Fit the food processor with a represen-
9, the food processor, running under load, shall not exceed a
tative slicer plate (Type I machines) or S-blade knife (Type II
sound level of 85 dBA.
machines) and run-in without load for a period of 15 min. After
the 15-min run-in time period, measure the food processor
9. Test Methods
sound level in accordance with
...
