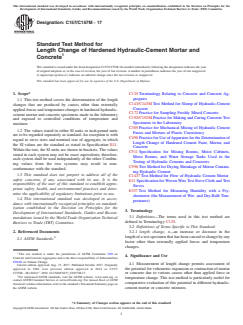

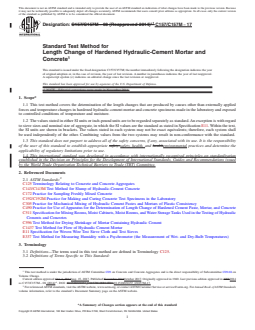

ASTM C157/C157M-17

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
´1
Designation: C157/C157M − 08 (Reapproved 2014) C157/C157M − 17
Standard Test Method for
Length Change of Hardened Hydraulic-Cement Mortar and
Concrete
This standard is issued under the fixed designation C157/C157M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
ε NOTE—Editorial corrections were made in November 2014.
1. Scope*
1.1 This test method covers the determination of the length changes that are produced by causes other than externally applied
forces and temperature changes in hardened hydraulic-cement mortar and concrete specimens made in the laboratory and exposed
to controlled conditions of temperature and moisture.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. An exception is with regard
to sieve sizes and nominal size of aggregate, in which the SI values are the standard as stated in Specification E11. Within the text,
the SI units are shown in brackets. The values stated in each system may not be exact equivalents; therefore, each system shall
be used independently of the other. Combining values from the two systems may result in non-conformance with the standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
C125 Terminology Relating to Concrete and Concrete Aggregates
C143/C143M Test Method for Slump of Hydraulic-Cement Concrete
C172 Practice for Sampling Freshly Mixed Concrete
C192/C192M Practice for Making and Curing Concrete Test Specimens in the Laboratory
C305 Practice for Mechanical Mixing of Hydraulic Cement Pastes and Mortars of Plastic Consistency
C490 Practice for Use of Apparatus for the Determination of Length Change of Hardened Cement Paste, Mortar, and Concrete
C511 Specification for Mixing Rooms, Moist Cabinets, Moist Rooms, and Water Storage Tanks Used in the Testing of Hydraulic
Cements and Concretes
C596 Test Method for Drying Shrinkage of Mortar Containing Hydraulic Cement
C1437 Test Method for Flow of Hydraulic Cement Mortar
E11 Specification for Woven Wire Test Sieve Cloth and Test Sieves
E337 Test Method for Measuring Humidity with a Psychrometer (the Measurement of Wet- and Dry-Bulb Temperatures)
3. Terminology
3.1 Definitions—The terms used in this test method are defined in Terminology C125.
3.2 Definitions of Terms Specific to This Standard:
This test method is under the jurisdiction of ASTM Committee C09 on Concrete and Concrete Aggregates and is the direct responsibility of Subcommittee C09.68 on
Volume Change.
Current edition approved Oct. 1, 2014Aug. 15, 2017. Published November 2014October 2017. Originally approved in 1940. Last previous edition approved in 20082014
ε1
as C157/C157M – 08 (2014) . DOI: 10.1520/C0157_C0157M-08R14E01.10.1520/C0157_C0157M-17.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

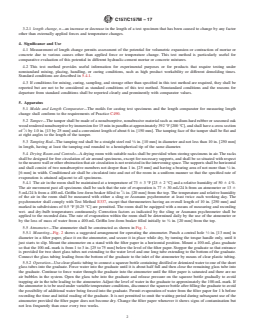

C157/C157M − 17
3.2.1 length change, n—an increase or decrease in the length of a test specimen that has been caused to change by any factor
other than externally applied forces and temperature changes.
4. Significance and Use
4.1 Measurement of length change permits assessment of the potential for volumetric expansion or contraction of mortar or
concrete due to various causes other than applied force or temperature change. This test method is particularly useful for
comparative evaluation of this potential in different hydraulic-cement mortar or concrete mixtures.

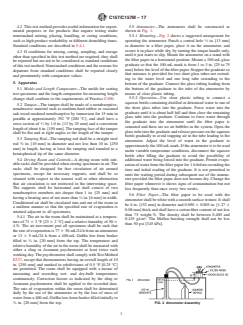

4.2 This test method provides useful information for experimental purposes or for products that require testing under
nonstandard mixing, placing, handling, or curing conditions, such as high product workability or different demolding times.
Standard conditions are described in 5.4.1.
4.3 If conditions for mixing, curing, sampling, and storage other than specified in this test method are required, they shall be
reported but are not to be considered as standard conditions of this test method. Nonstandard conditions and the reasons for
departure from standard conditions shall be reported clearly and prominently with comparator values.
5. Apparatus
5.1 Molds and Length Comparator—The molds for casting test specimens and the length comparator for measuring length
change shall conform to the requirements of Practice C490.
5.2 Tamper—The tamper shall be made of a nonabsorptive, nonabrasive material such as medium-hard rubber or seasoned oak
wood rendered nonabsorptive by immersion for 15 min in paraffin at approximately 392 °F [200 °C], and shall have a cross section
of ⁄2 by 1.0 in. [13 by 25 mm] and a convenient length of about 6 in. [150 mm]. The tamping face of the tamper shall be flat and
at right angles to the length of the tamper.
5.3 Tamping Rod—The tamping rod shall be a straight steel rod ⁄8 in. [10 mm] in diameter and not less than 10 in. [250 mm]
in length, having at least the tamping end rounded to a hemispherical tip of the same diameter.
5.4 Drying Room and Controls—A drying room with suitable racks shall be provided when storing specimens in air. The racks
shall be designed for free circulation of air around specimens, except for necessary supports, and shall be so situated with respect
to the nearest wall or other obstruction that air circulation is not restricted in the intervening space. The supports shall be horizontal
and shall consist of two nonabsorptive members not deeper than 1 in. [25 mm] and having a bearing area of not more than ⁄4 in.
[6 mm] in width. Conditioned air shall be circulated into and out of the room in a uniform manner so that the specified rate of
evaporation is attained adjacent to all specimens.
5.4.1 The air in the room shall be maintained at a temperature of 73 6 3 °F [23 6 2 °C] and a relative humidity of 50 6 4 %.
The air movement past all specimens shall be such that the rate of evaporation is 77 6 30-mL/24 h from an atmometer or 13 6
5-mL/24 h from a 400-mL Griffin low-form beaker filled to ⁄4 in. [20 mm] from the top. The temperature and relative humidity
of the air in the room shall be measured with either a sling or Assmann psychrometer at least twice each working day. The
psychrometer shall comply with Test Method E337, except that thermometers having an overall length of 10 in. [250 mm] and
marked in subdivisions of 0.5 °F [0.25 °C] are permitted. The room shall be equipped with a means of measuring and recording
wet- and dry-bulb temperatures continuously. Correction factors as indicated by the sling or Assmann psychrometer shall be
applied to the recorded data. The rate of evaporation within the room shall be determined daily by the use of the atmometer or
by the loss of mass of water from a 400-mL Griffin low-form beaker filled initially to ⁄4 in. [20 mm] from the top.
5.5 Atmometer—The atmometer shall be constructed as shown in Fig. 1.
5.5.1 Mounting—Fig. 2 shows a suggested arrangement for operating the atmometer. Punch a central hole ⁄2 in. [13 mm] in
diameter in a filter paper, place it on the atmometer, and secure it in place while dry, by turning the torque handle only, until it
just starts to slip. Mount the atmometer on a stand with the filter paper in a horizontal position. Mount a 100-mL glass graduate
so that the 100-mL mark is from 1 to 3 in. [25 to 75 mm] below the level of the filter paper. Stopper the graduate so that entrance
is provided for two short glass tubes not extending to the water level and one long tube extending to the bottom of the graduate.
Connect the glass tubing leading from the bottom of the graduate to the inlet of the atmometer by means of clear plastic tubing.
5.5.2 Operation—Use clear plastic tubing to connect a squeeze bottle containing distilled or deionized water to one of the short
glass tubes into the graduate. Force water into the graduate until it is about half full and then close the remaining glass tube into
the graduate. Continue to force water through the graduate into the atmometer until the filter paper is saturated and there are no
air bubbles in the system. Open the glass tube into the graduate and release pressure on the squeeze bottle gradually to avoid
trapping air in the tube leading to the atmometer. Adjust the level of water in the graduate to approximately the 100-mL mark. If
the atmometer is to be used under variable temperature conditions, disconnect the squeeze bottle after filling the graduate to avoid
the possibility of additional water being forced into the graduate. Permit evaporation of water from the filter paper for 1 h before
recording the time and initial reading of the graduate. It is not permitted to omit the waiting period during subsequent use of the
atmometer provided the filter paper does not become dry. Change the filter paper whenever it shows signs of contamination but
not less frequently than once every two weeks.
C157/C157M − 17

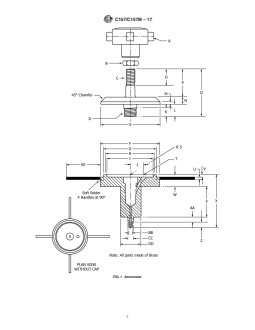

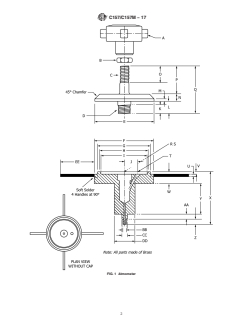

FIG. 1 Atmometer
C157/C157M − 17

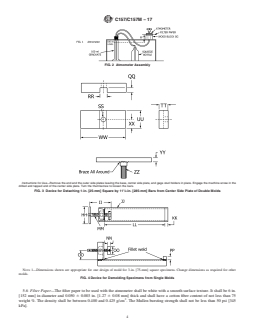

FIG. 2 Atmometer Assembly
Instructions for Use—Remove the end and the outer side plates leaving the base, center side plate, and gage stud holders in place. Engage the machine screw in the
drilled and tapped end of the center side plate. Turn the thumbscrew to loosen the bars.

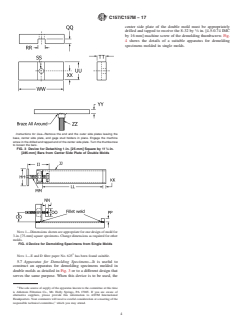

FIG. 3 Device for Detaching 1-in. [25-mm] Square by 11 ⁄4-in. [285-mm] Bars from Center Side Plate of Double Molds
NOTE 1—Dimensions shown are appropriate for one design of mold for 3-in. [75-mm] square specimens. Change dimensions as required for other
molds.
FIG. 4 Device for Demolding Specimens from Single Molds
5.6 Filter Paper—The filter paper to be used with the atmometer shall be white with a smooth surface texture. It shall be 6 in.
[152 mm] in diameter and 0.050 6 0.003 in. [1.27 6 0.08 mm] thick and shall have a cotton fiber content of not less than 75
weight %. The density shall be between 0.400 and 0.425 g/cm . The Mullen bursting strength shall not be less than 50 psi [345
kPa].
C157/C157M − 17
NOTE 1—E and D filter paper No. 625 has been found suitable.
5.7 Apparatus for Demolding Specimens—It is useful to construct an apparatus for demolding specimens molded in double
molds as detailed in Fig. 3 or to a different design that serves the same purpose. When this device is to be used, the center side
plate of the double mold must be appropriately drilled and tapped to receive the 8-32 by ⁄8 in. [4.5-0.74 IMC by 16 mm] machine
screw of the demolding thumbscrew. Fig. 4 shows the details of a suitable apparatus for demolding specimens molded in single
molds.
The sole source of supply of the apparatus known to the committee at this time is Ahlstrom Filtration Co., Mt. Holly Springs, PA 17065. If you are aware of alternative
suppliers, please provide this information to ASTM International Headquarters. Your comments will receive careful consideration at a meeting of the responsible technical
committee, which you may attend.
C157/C157M − 17
ASTM C157 FIGURES
Figure Di- SI Units Inch-Pound Units
mensions
A Adjustable torque handle Adjustable torque handle
1.4–1.7 Nm 12–15 in.lb
B Jam nut Jam nut
10–15 IMC ⁄8-in.–16 NC
C 10-mm diameter 1.5 IMC Thd. ⁄8-in. dia–16 NC Thd.
D 12-mm diameter 1.5 IMC Thd. ⁄2-in. dia–20 NC Thd.
E 64-mm diameter 2.50-in. diameter
F 64-mm diameter 2.50-in. diameter
G 57-mm diameter 2.25-in. diameter
H 52-mm diameter 2.06-in. diameter
I 51-mm diameter 2.00-in. diameter
J 14 mm 0.56 in.
K 8 mm 0.31 in.
L 13 mm 0.50 in.
M 3 mm 0.125 in.
N 8 mm 0.31 in.
O 19 mm 0.75 in.
P 32 mm 1.25 in.
Q 53 mm 2.06 in.
1 29
R 1.5-mm drill through 11.5-mm C’ ⁄16-in. drill through ⁄64-in. C’ drill
drill
1 1
32-mm deep tap 12-mm 1.5-mm 1 ⁄4-in. deep tap ⁄2-in.–20 Thd
IMF Thd
3 5 1
S 19 mm deep 16 mm C’ bore 6 ⁄4-in. deep ⁄8-in. C’ bore ⁄4 in.
mm deep deep
3 1
T 5-mm drill 3-mm deep C’ drill ⁄16-in. drill ⁄8-in. deep C’ drill
at 60° as shown at 60° as shown
through to center tapped hole through to center tapped hole
U 3 mm 0.12 in. diameter
V 2 mm 0.09 in.
W 10 mm 0.40 in.
X 60 mm 2.36 in.
Y 35 mm 1.37 in.
Z 6 mm 0.25 in.
AA 6 mm 0.25 in.
BB 4 mm 0.15 in.
CC 6 mm 0.25 in.
DD 23 mm 0.87 in.
EE 38 mm 1.50 in.
FF 25 to 75 mm 1 to 3 in.
GG 35 mm high 1.37 in. high
HH 100 mm 4 in.
II 130 mm 5 in.
JJ 8 cm–6.1 kg/m channel 3 in.–4.1 lb/ft channel
KK 20 mm ⁄4 in.
LL 330 mm 13 in.
MM 14–2.0 IMC Thd. ⁄2 in.–12 Thd.
NN 20 mm ⁄4 in.
OO 50 mm 2 in.
PP 20 mm ⁄4 in.
QQ 60 mm ⁄4 in.
RR 10 mm ⁄8 in.
SS Drill Cl. hole for Drill Cl. hole for
4.5–0.75 IMC machine screw 8–32 in. machine screw
TT 13 mm ⁄2 in.
UU 25 mm 1 in.
VV 30 mm 1- ⁄16 in.
WW 60 mm 2- ⁄8 in.
XX 12.5 mm ⁄2 in.
YY 6-mm diameter steel rod ⁄4-in. diameter steel rod
ZZ 4.5–0.75 IMC × 16-mm machine 8–32 × ⁄8-in. machine screw
screw
6. Sampling
6.1 Take samples according to the applicable provisions of Practice C192/C192M from batches of hydraulic-cement mortar or
concrete made in the laboratory (Note 2).
NOTE 2—When collecting samples in nonstandard conditions, such as field concrete, it is suggested that Practice C172 be followed. Field cast
specimens can show up to twice as much drying shrinkage as laboratory cast specimens from the same materials and proportions.
7. Test Specimens
7.1 Mortar—The test specimen for
...
