ASTM A299/A299M-17(2022)
(Specification)Standard Specification for Pressure Vessel Plates, Carbon Steel, Manganese-Silicon
Standard Specification for Pressure Vessel Plates, Carbon Steel, Manganese-Silicon
ABSTRACT
This specification covers manganese-silicon carbon steel plates for use in welded boilers and other pressure vessels. Plates under this specification are produced in two grades. The steel shall be killed and shall conform to the fine austenitic grain size requirement. Tension test shall be made to conform to the requirements specified.
SCOPE
1.1 This specification2 covers manganese-silicon carbon steel plates for use in welded boilers and other pressure vessels.
1.2 Plates under this specification are produced in two grades. The specified minimum yield strength decreases for thicknesses over 1 in. [25 mm].
1.3 The maximum thickness of plates is limited only by the capacity of the composition to meet the specified mechanical property requirements.
1.4 For plates produced from coil and furnished without heat treatment or with stress relieving only, the additional requirements, including additional testing requirements and the reporting of additional test results, of Specification A20/A20M apply.
1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Aug-2022
- Technical Committee
- A01 - Steel, Stainless Steel and Related Alloys
- Drafting Committee
- A01.11 - Steel Plates for Boilers and Pressure Vessels
Relations
- Effective Date
- 01-Nov-2023
- Effective Date
- 01-Nov-2023
- Effective Date
- 01-Nov-2023
- Effective Date
- 01-Mar-2018
- Effective Date
- 15-Nov-2017
- Effective Date
- 01-Nov-2017
- Effective Date
- 01-Nov-2015
- Effective Date
- 01-Oct-2014
- Effective Date
- 01-Oct-2013
- Effective Date
- 01-Mar-2012
- Effective Date
- 01-Mar-2012
- Effective Date
- 01-Mar-2012
- Effective Date
- 01-Nov-2011
- Effective Date
- 01-Oct-2010
- Effective Date
- 01-Oct-2009
Overview
ASTM A299/A299M-17(2022) is a standard specification developed by ASTM International for pressure vessel plates made from carbon steel alloyed with manganese and silicon. This standard details the requirements for steel plates used in the fabrication of welded boilers and other pressure-containing vessels. The specification covers two grades of steel designed for optimal strength and durability under pressure. It includes stringent criteria for chemical composition, mechanical properties, manufacturing, and testing, ensuring that the plates meet reliability and safety standards vital for pressure vessel applications.
Key Topics
- Material Grades and Strength: The standard specifies two grades of manganese-silicon carbon steel. Each grade is defined by its minimum yield and tensile strength, with strength requirements adjusted based on plate thickness.
- Chemical Composition: Plates must adhere to strict limits for carbon, manganese, phosphorus, sulfur, and silicon, ensuring material uniformity. Both heat and product analyses must meet composition criteria.
- Mechanical Properties: Tension tests are required on specimens to confirm compliance with required tensile and yield strengths, as well as elongation values. These properties are crucial for performance in high-pressure environments.
- Heat Treatment: Plates up to 2 inches thick are typically supplied as-rolled but can also be ordered normalized or stress relieved. Plates over 2 inches in thickness must be normalized.
- Unit Systems: The standard recognizes both inch-pound and SI units. It is critical that users do not mix units within a single specification to avoid nonconformance.
- Supplementary Requirements: When specified by the purchaser, additional tests such as ultrasonic examinations, vacuum treatment, and impact testing can be applied for greater assurance of quality and suitability for specialized applications.
Applications
ASTM A299/A299M-17(2022) pressure vessel plates are integral to industries that require robust materials for constructing safe and reliable welded boilers and pressure vessels. Key application areas include:
- Power Generation: Used in boiler manufacturing for steam-powered plants due to their strength and resistance to high pressure.
- Petrochemical and Chemical Processing: Essential for storage vessels and reactors handling hazardous or pressurized substances.
- Oil & Gas Industry: Applied in gas and oil storage and transportation systems requiring large, pressurized vessels.
- Industrial Manufacturing: Utilized wherever there is a need for pressure-retaining equipment fabricated from steel plate.
The standard ensures that manufacturers and end-users have clear guidance on the specifications required for these safety-critical components, reducing risk and supporting compliance with industry regulations.
Related Standards
ASTM A299/A299M references and works in conjunction with several other ASTM standards and related industry specifications, including:
- ASTM A20/A20M: General requirements for steel plates used in pressure vessel applications, providing detailed procedures for testing, dimensional tolerances, and repair rules.
- ASTM A435/A435M: Procedures for straight-beam ultrasonic examination of steel plates to detect internal flaws.
- ASTM A577/A577M: Ultrasonic angle-beam examination methods for further quality assurance.
- ASTM A578/A578M: Examination of rolled steel plates by straight-beam ultrasonic methods for special applications.
- ASME SA-299/SA-299M: Boiler and pressure vessel code applications referencing ASTM A299/A299M criteria.
Ensuring your compliance to ASTM A299/A299M-17(2022) and related standards guarantees the quality, strength, and performance of carbon steel manganese-silicon plates used in pressure vessel manufacturing worldwide. For the most updated documentation and purchase, consult the ASTM International website.
Get Certified
Connect with accredited certification bodies for this standard
Element Materials Technology
Materials testing and product certification.
Inštitut za kovinske materiale in tehnologije
Institute of Metals and Technology. Materials testing, metallurgical analysis, NDT.
Sponsored listings
Frequently Asked Questions
ASTM A299/A299M-17(2022) is a technical specification published by ASTM International. Its full title is "Standard Specification for Pressure Vessel Plates, Carbon Steel, Manganese-Silicon". This standard covers: ABSTRACT This specification covers manganese-silicon carbon steel plates for use in welded boilers and other pressure vessels. Plates under this specification are produced in two grades. The steel shall be killed and shall conform to the fine austenitic grain size requirement. Tension test shall be made to conform to the requirements specified. SCOPE 1.1 This specification2 covers manganese-silicon carbon steel plates for use in welded boilers and other pressure vessels. 1.2 Plates under this specification are produced in two grades. The specified minimum yield strength decreases for thicknesses over 1 in. [25 mm]. 1.3 The maximum thickness of plates is limited only by the capacity of the composition to meet the specified mechanical property requirements. 1.4 For plates produced from coil and furnished without heat treatment or with stress relieving only, the additional requirements, including additional testing requirements and the reporting of additional test results, of Specification A20/A20M apply. 1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification. 1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification covers manganese-silicon carbon steel plates for use in welded boilers and other pressure vessels. Plates under this specification are produced in two grades. The steel shall be killed and shall conform to the fine austenitic grain size requirement. Tension test shall be made to conform to the requirements specified. SCOPE 1.1 This specification2 covers manganese-silicon carbon steel plates for use in welded boilers and other pressure vessels. 1.2 Plates under this specification are produced in two grades. The specified minimum yield strength decreases for thicknesses over 1 in. [25 mm]. 1.3 The maximum thickness of plates is limited only by the capacity of the composition to meet the specified mechanical property requirements. 1.4 For plates produced from coil and furnished without heat treatment or with stress relieving only, the additional requirements, including additional testing requirements and the reporting of additional test results, of Specification A20/A20M apply. 1.5 The values stated in either inch-pound units or SI units are to be regarded separately as standard. Within the text, the SI units are shown in brackets. The values stated in each system are not exact equivalents; therefore, each system must be used independently of the other. Combining values from the two systems may result in nonconformance with the specification. 1.6 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM A299/A299M-17(2022) is classified under the following ICS (International Classification for Standards) categories: 77.140.30 - Steels for pressure purposes; 77.140.50 - Flat steel products and semi-products. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM A299/A299M-17(2022) has the following relationships with other standards: It is inter standard links to ASTM A578/A578M-17(2023), ASTM A435/A435M-17(2023), ASTM A577/A577M-17(2023), ASTM A20/A20M-18, ASTM A20/A20M-17, ASTM A578/A578M-17, ASTM A20/A20M-15, ASTM A20/A20M-14, ASTM A20/A20M-13, ASTM A577/A577M-90(2012), ASTM A435/A435M-90(2012), ASTM A578/A578M-07(2012), ASTM A20/A20M-11, ASTM A20/A20M-10, ASTM A20/A20M-09. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM A299/A299M-17(2022) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

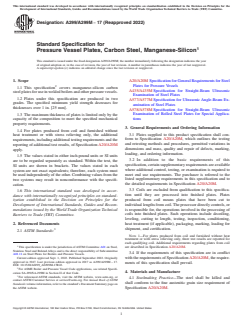

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: A299/A299M −17 (Reapproved 2022)
Standard Specification for
Pressure Vessel Plates, Carbon Steel, Manganese-Silicon
This standard is issued under the fixed designationA299/A299M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope A20/A20M SpecificationforGeneralRequirementsforSteel
Plates for Pressure Vessels
1.1 This specification covers manganese-silicon carbon
A435/A435M Specification for Straight-Beam Ultrasonic
steelplatesforuseinweldedboilersandotherpressurevessels.
Examination of Steel Plates
1.2 Plates under this specification are produced in two
A577/A577M Specification for Ultrasonic Angle-Beam Ex-
grades. The specified minimum yield strength decreases for
amination of Steel Plates
thicknesses over 1 in. [25 mm].
A578/A578M Specification for Straight-Beam Ultrasonic
Examination of Rolled Steel Plates for Special Applica-
1.3 The maximum thickness of plates is limited only by the
capacity of the composition to meet the specified mechanical tions
property requirements.
3. General Requirements and Ordering Information
1.4 For plates produced from coil and furnished without
3.1 Plates supplied to this product specification shall con-
heat treatment or with stress relieving only, the additional
form to Specification A20/A20M, which outlines the testing
requirements,includingadditionaltestingrequirementsandthe
and retesting methods and procedures, permitted variations in
reporting of additional test results, of Specification A20/A20M
dimensions and mass, quality and repair of defects, marking,
apply.
loading, and ordering information.
1.5 The values stated in either inch-pound units or SI units
3.2 In addition to the basic requirements of this
are to be regarded separately as standard. Within the text, the
specification, certain supplementary requirements are available
SI units are shown in brackets. The values stated in each
where additional control, testing, or examination is required to
system are not exact equivalents; therefore, each system must
meet end use requirements. The purchaser is referred to the
be used independently of the other. Combining values from the
listed supplementary requirements in this specification and to
two systems may result in nonconformance with the specifi-
the detailed requirements in Specification A20/A20M.
cation.
3.3 Coils are excluded from qualification to this specifica-
1.6 This international standard was developed in accor-
dance with internationally recognized principles on standard- tion until they are processed into finished plates. Plates
produced from coil means plates that have been cut to
ization established in the Decision on Principles for the
individuallengthsfromcoil.Theprocessordirectlycontrols,or
Development of International Standards, Guides and Recom-
is responsible for, the operations involved in the processing of
mendations issued by the World Trade Organization Technical
coils into finished plates. Such operations include decoiling,
Barriers to Trade (TBT) Committee.
leveling, cutting to length, testing, inspection, conditioning,
heat treatment (if applicable), packaging, marking, loading for
2. Referenced Documents
shipment, and certification.
2.1 ASTM Standards:
NOTE 1—For plates produced from coil and furnished without heat
treatment or with stress relieving only, three test results are reported for
each qualifying coil. Additional requirements regarding plates from coil
This specification is under the jurisdiction of ASTM Committee A01 on Steel,
are described in Specification A20/A20M.
Stainless Steel and Related Alloys and is the direct responsibility of Subcommittee
3.4 If the requirements of this specification are in conflict
A01.11 on Steel Plates for Boilers and Pressure Vessels.
Current edition approved Sept. 1, 2022. Published September 2022. Originally
with the requirements of Specification A20/A20M, the require-
approved in 1947. Last previous edition approved in 2017 as A299/A299M – 17.
ments of this specification shall prevail.
DOI: 10.1520/A0299_A0299M-17R22.
For ASME Boiler and Pressure Vessel Code applications, see related Specifi-
4. Materials and Manuf
...
