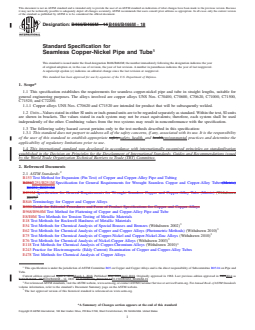

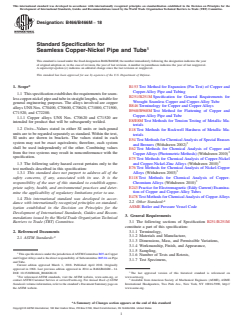

Designation: B466/B466M − 14 B466/B466M − 18
Standard Specification for
Seamless Copper-Nickel Pipe and Tube
This standard is issued under the fixed designation B466/B466M; the number immediately following the designation indicates the year
of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval.
A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope*
1.1 This specification establishes the requirements for seamless copper-nickel pipe and tube in straight lengths, suitable for
general engineering purposes. The alloys involved are copper alloys UNS Nos. C70400, C70600, C70620, C71000, C71500,
C71520, and C72200.
1.1.1 Copper alloys UNS Nos. C70620 and C71520 are intended for product that will be subsequently welded.
1.2 Units—Values stated in either SI units or inch-pound units are to be regarded separately as standard. Within the text, SI units
are shown in brackets. The values stated in each system may not be exact equivalents; therefore, each system shall be used
independently of the other. Combining values from the two systems may result in nonconformance with the specification.
1.3 The following safety hazard caveat pertains only to the test methods described in this specification:
1.3.1 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
B153 Test Method for Expansion (Pin Test) of Copper and Copper-Alloy Pipe and Tubing
B251B251/B251M Specification for General Requirements for Wrought Seamless Copper and Copper-Alloy Tube (Metric)
B0251_B0251M
B251M Specification for General Requirements for Wrought Seamless Copper and Copper-Alloy Tube (Metric) (Withdrawn
2017)
B846 Terminology for Copper and Copper Alloys
B950 Guide for Editorial Procedures and Form of Product Specifications for Copper and Copper Alloys
B968/B968M Test Method for Flattening of Copper and Copper-Alloy Pipe and Tube
E8/E8M Test Methods for Tension Testing of Metallic Materials
E18 Test Methods for Rockwell Hardness of Metallic Materials
E54 Test Methods for Chemical Analysis of Special Brasses and Bronzes (Withdrawn 2002)
E62 Test Methods for Chemical Analysis of Copper and Copper Alloys (Photometric Methods) (Withdrawn 2010)
E75 Test Methods for Chemical Analysis of Copper-Nickel and Copper-Nickel-Zinc Alloys (Withdrawn 2010)
E76 Test Methods for Chemical Analysis of Nickel-Copper Alloys (Withdrawn 2003)
E118 Test Methods for Chemical Analysis of Copper-Chromium Alloys (Withdrawn 2010)
E243 Practice for Electromagnetic (Eddy Current) Examination of Copper and Copper-Alloy Tubes
E478 Test Methods for Chemical Analysis of Copper Alloys
This specification is under the jurisdiction of ASTM Committee B05 on Copper and Copper Alloys and is the direct responsibility of Subcommittee B05.04 on Pipe and
Tube.
Current edition approved April 1, 2014March 1, 2018. Published May 2014April 2018. Originally approved in 1968. Last previous edition approved in 20092014 as
B466/B466M – 09.B466/B466M – 14. DOI: 10.1520/B0466_B0466M-1410.1520/B0466_B0466M-18
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
*A Summary of Changes section appears at the end of this standard
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
B466/B466M − 18

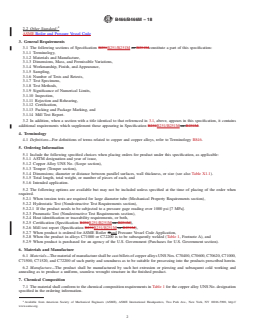

2.2 Other Standard:
ASME Boiler and Pressure Vessel Code
3. General Requirements
3.1 The following sections of Specification B251B251/B251M or B251Mconstitute a part of this specification:
3.1.1 Terminology,
3.1.2 Materials and Manufacture,
3.1.3 Dimensions, Mass, and Permissible Variations,
3.1.4 Workmanship, Finish, and Appearance,
3.1.5 Sampling,
3.1.6 Number of Tests and Retests,
3.1.7 Test Specimens,

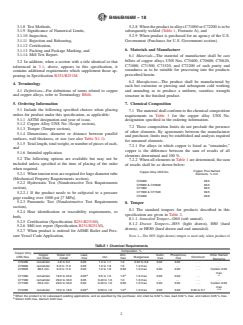

3.1.8 Test Methods,
3.1.9 Significance of Numerical Limits,
3.1.10 Inspection,
3.1.11 Rejection and Rehearing,
3.1.12 Certification,
3.1.13 Packing and Package Marking, and
3.1.14 Mill Test Report.
3.2 In addition, when a section with a title identical to that referenced in 3.1, above, appears in this specification, it contains
additional requirements which supplement those appearing in Specification B251B251/B251M or B251M.
4. Terminology
4.1 Definitions—For definitions of terms related to copper and copper alloys, refer to Terminology B846.
5. Ordering Information
5.1 Include the following specified choices when placing orders for product under this specification, as applicable:
5.1.1 ASTM designation and year of issue,
5.1.2 Copper Alloy UNS No. (Scope section),
5.1.3 Temper (Temper section),
5.1.4 Dimensions; diameter or distance between parallel surfaces, wall thickness, or size (see also Table X1.1).
5.1.5 Total length, total weight, or number of pieces of each, and
5.1.6 Intended application.
5.2 The following options are available but may not be included unless specified at the time of placing of the order when
required.
5.2.1 When tension tests are required for large diameter tube (Mechanical Property Requirements section),
5.2.2 Hydrostatic Test (Nondestructive Test Requirements section),
5.2.2.1 If the product needs to be subjected to a pressure gage reading over 1000 psi [7 MPa].
5.2.3 Pneumatic Test (Nondestructive Test Requirements section),
5.2.4 Heat identification or traceability requirements, or both,
5.2.5 Certification (Specification B251B251/B251M or B251M),
5.2.6 Mill test report (Specification B251B251/B251M or B251M),
5.2.7 When product is ordered for ASME Boiler &and Pressure Vessel Code Application,
5.2.8 When the product in alloys C71000 or C72200 is to be subsequently welded (Table 1, Footnote A), and
5.2.9 When product is purchased for an agency of the U.S. Government (Purchases for U.S. Government section).
6. Materials and Manufacture
6.1 Materials—The material of manufacture shall be cast billets of copper alloys UNS Nos. C70400, C70600, C70620, C71000,
C71500, C71520, and C72200 of such purity and soundness as to be suitable for processing into the products prescribed herein.
6.2 Manufacture—The product shall be manufactured by such hot extrusion or piercing and subsequent cold working and
annealing as to produce a uniform, seamless wrought structure in the finished product.
7. Chemical Composition
7.1 The material shall conform to the chemical composition requirements in Table 1 for the copper alloy UNS No. designation
specified in the ordering information.
Available from American Society of Mechanical Engineers (ASME), ASME International Headquarters, Two Park Ave., New York, NY 10016-5990, http://
www.asme.org.
B466/B466M − 18

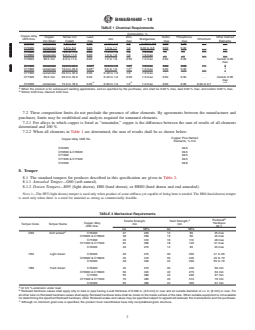

TABLE 1 Chemical Requirements
Composition, %
Copper Alloy
Copper Nickel incl Lead, Zinc, Sulfur, Phosphorus, Other Named
UNS Nos. Iron Manganese Chromium
incl Silver Cobalt max max max max Elements
C70400 remainder 4.8 to 6.2 0.05 1.3 to 1.7 1.0 0.30 to 0.8 0.02 0.02 . . . . . .
C70400 remainder 4.8 to 6.2 0.05 1.3 to 1.7 1.0 0.30 to 0.8 0.02 0.02 . . . . . .
C70600 remainder 9.0 to 11.0 0.05 1.0 to 1.8 1.0 1.0 max . . . . . . . .
C70600 remainder 9.0 to 11.0 0.05 1.0 to 1.8 1.0 1.0 max . . . . . . . .
C70620 86.5 min 9.0 to 11.0 0.02 1.0 to 1.8 0.50 1.0 max 0.02 0.02 . . . Carbon 0.05
max
A A A
C71000 remainder 19.0 to 23.0 0.05 0.5 to 1.0 1.0 1.0 max 0.02 0.02 . . .
A A A
C71000 remainder 19.0 to 23.0 0.05 0.5 to 1.0 1.0 1.0 max 0.02 0.02 . . .
C71500 remainder 29.0 to 33.0 0.05 0.40 to 1.0 1.0 1.0 max . . . . . . . .
C71520 65.0 min 29.0 to 33.0 0.02 0.40 to 1.0 0.50 1.0 max 0.02 0.02 . . . Carbon 0.05
max
A A A,B
C72200 remainder 15.0 to 18.0 0.05 0.50 to 1.0 1.0 1.0 max 0.02 0.02 0.30 to 0.7
A
When the product is for subsequent welding applications, and so specified by the purchaser, zinc shall be 0.50 % max, lead 0.02 % max, and carbon 0.05 % max.
B
Silicon 0.03 max, titanium 0.03 max.
7.2 These composition limits do not preclude the presence of other elements. By agreements between the manufacturer and
purchaser, limits may be established and analysis required for unnamed elements.
7.2.1 For alloys in which copper is listed as “remainder,” copper is the difference between the sum of results of all elements
determined and 100 %.
7.2.2 When all elements in Table 1 are determined, the sum of results shall be as shown below:
Copper Plus Named
Copper Alloy UNS No.
Elements, % min
C70400 99.5
C70600 & C70620 99.5
C71000 99.5
C71500 & C71520 99.5
C72200 99.8
8. Temper
8.1 The standard tempers for products described in this specification are given in Table 2.
8.1.1 Annealed Temper—O60 (soft anneal).
8.1.2 Drawn Tempers—H55 (light drawn), H80 (hard drawn), or HE80 (hard drawn and end annealed).
NOTE 1—The H55 (light drawn) temper is used only when product of some stiffness yet capable of being bent is needed. The H80 (hard drawn) temper
is used only when there is a need for material as strong as commercially feasible.

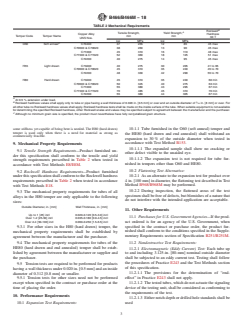

TABLE 2 Mechanical Requirements
B
Rockwell
A
Tensile Strength,
Yield Strength,
Copper Alloy Hardness
Temper Code Temper Name min min
30 T
UNS Nos.
ksi MPa ksi MPa
C
O60 Soft anneal C70400 37 255 12 85 45 max
C70600 & C70620 38 260 13 90 45 max
C71000 45 310 16 110 48 max
C71500 & C71520 52 360 18 125 51 max
C72200 40 275 14 95 45 max
H55 Light drawn C70400 40 275 30 205 41 to 65
C70600 & C70620 45 310 35 240 45 to 70
C72200 48 330 42 290 55 to 70
H80 Hard drawn C70400 45 310 35 240 60 min
C70600 & C70620 50 345 40 275 63 min
C71000 55 380 43 295 67 min
C71500 & C71520 70 485 45 310 70 min
C72200 55 380 44 305 67 min
A
At 0.5 % extension under load.
B 5
Rockwell hardness values shall apply only to tube or pipe having a wall thickness of 0.020 in. [0.5 mm] or over and an outside diameter of ⁄16 in. [8 mm] or over. For
all other tube no Rockwell hardness values shall apply. Rockwell hardness tests shall be made on the inside surface of the tube. When suitable equipment is not available
for determining the specified Rockwell hardness, other Rockwell scales and values may be specified subject to agreement between the manufacturer and the purchaser.
C
Although no minimum grain size is specified, the product must nevertheless have fully recrystallized grain structure.
B466/B466M − 18

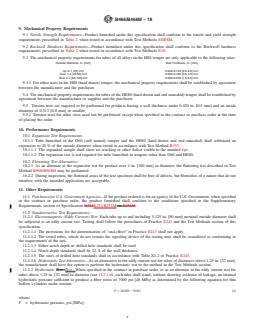

9. Mechanical Property Requirements
9.1 Tensile Strength Requirements—Product furnished under this specification shall conform to the tensile and yield strength
requirements prescribed in Table 2 when tested in accordance with Test Methods E8/E8M.
9.2 Rockwell Hardness Requirements—Product furnished under this specification shall conform to the Rockwell hardness
requirements prescribed in Table 2 when tested in accordance with Test Methods E18.
9.3 The mechanical property requirements for tubes of all alloys in the H80 temper are only applicable to the following sizes:
Outside Diameter, in. [mm] Wall Thickness, in. [mm]
Up to 1 [25] incl 0.020-0.120 [0.5-3.0] incl
Over 1-2 [25-50] incl 0.035-0.180 [0.9-4.5] incl
Over 2-4 [50-100] incl 0.060-0.250 [1.5-6.5] incl
9.3.1 For other sizes in the H80 (hard drawn) temper, the mechanical property requirements shall be established by agreement
between the manufacturer and the purchaser.
9.4 The mechanical property requirements for tubes of the HE80 (hard drawn and end annealed) temper shall be established by
agreement between the manufacturer or supplier and the purchaser.
9.5 Tension tests are required to be performed for products having a wall thickness under 0.020 in. [0.5 mm] and an inside
diameter of 0.312 [0.8 mm] or smaller.
9.5.1 Tension tests for other sizes need not be performed except when specified in the contract or purchase order at the time
of placing the order.
10. Performance Requirements
10.1 Expansion Test Requirements:
10.1.1 Tube furnished in the O60 (soft anneal) temper and the HE80 (hard drawn and end annealed) shall withstand an
expansion to 30 % of the outside diameter when tested in accordance with Test Method B153.
10.1.1.1 The expanded sample shall show no cracking or other defect visible to the unaided eye.
10.1.1.2 The expansion test is not required for tube furnished in tempers other than O60 and HE80.
10.2 Flattening Test Alternative:
10.2.1 As an alternate to the expansion test for product over 4 in. [100 mm] in diameter, the flattening test described in Test
Method B968/B968M may be performed.
10.2.2 During inspection, the flattened areas of the test specimen shall be free of defects, but blemishes of a nature that do not
interfere with the intended application are acceptable.

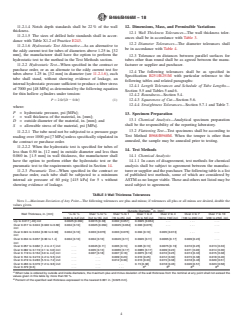

11. Other Requirements
11.1 Purchases for U.S. Government Agencies—If the product ordered is for an agency of the U.S. Government, when specified
in the contract or purchase order, the product furnished shall conf
...
