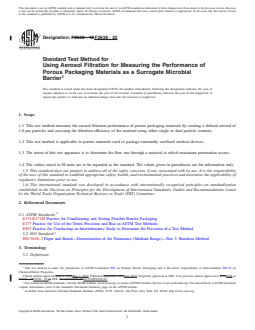

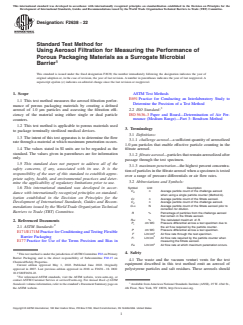

Designation: F2638 − 18 F2638 − 22
Standard Test Method for
Using Aerosol Filtration for Measuring the Performance of
Porous Packaging Materials as a Surrogate Microbial
Barrier
This standard is issued under the fixed designation F2638; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method measures the aerosol filtration performance of porous packaging materials by creating a defined aerosol of
1.0 μm particles and assessing the filtration efficiency of the material using either single or dual particle counters.
1.2 This test method is applicable to porous materials used to package terminally sterilized medical devices.
1.3 The intent of this test apparatus is to determine the flow rate through a material at which maximum penetration occurs.
1.4 The values stated in SI units are to be regarded as the standard. The values given in parentheses are for information only.
1.5 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of
regulatory limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
E171/E171M Practice for Conditioning and Testing Flexible Barrier Packaging
E177 Practice for Use of the Terms Precision and Bias in ASTM Test Methods
E691 Practice for Conducting an Interlaboratory Study to Determine the Precision of a Test Method
2.2 ISO Standard:
ISO 5636–3 Paper and Board—Determination of Air Permeance (Medium Range)—Part 3: Bendtsen Method
3. Terminology
3.1 Definitions:
This test method is under the jurisdiction of ASTM Committee F02 on Primary Barrier Packaging and is the direct responsibility of Subcommittee F02.15 on
Chemical/Safety Properties.
Current edition approved Sept. 1, 2018May 1, 2022. Published September 2018June 2022. Originally approved in 2007. Last previous edition approved in 20122018 as
ɛ1
F2638 – 12F2638 – 18. . DOI: 10.1520/F2638-18.10.1520/F2638-22.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Available from American National Standards Institute (ANSI), 25 W. 43rd St., 4th Floor, New York, NY 10036, http://www.ansi.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2638 − 22

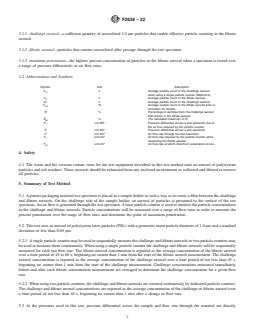

3.1.1 challenge aerosol—a sufficient quantity of aerosolized 1.0 μm particles that enable effective particle counting in the filtrate
aerosol.
3.1.2 filtrate aerosol—particles that remain aerosolized after passage through the test specimen.
3.1.3 maximum penetration—the highest percent concentration of particles in the filtrate aerosol when a specimen is tested over
a range of pressure differentials or air flow rates.
3.2 Abbreviations and Symbols:
Symbol Unit Description
C n Average particle count of the challenge aerosol
S
when using a single particle counter (Method A).
C n Average particle count of the filtrate aerosol.
F
C n Average particle count of the challenge aerosol.
C
C N Average particle count of the filtrate aerosol prior to
LR
correction for dilution.
R % Percentage of particles from the challenge aerosol
that remain in the filtrate aerosol.
R % The calculated maximum of R.
M
P cm WC Pressure differential across a test specimen due to
the air flow required by the particle counter.
P cm WC Pressure differential across a test specimen.
F L/m/cm Air flow rate through the test specimen.
F L/m/cm Air flow rate required by the particle counter when
measuring the filtrate aerosol.
F L/m/cm Air flow rate at which maximum penetration occurs.
M
4. Safety

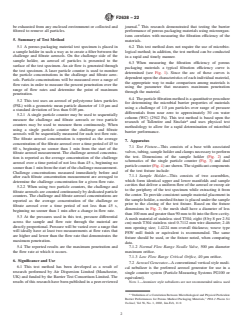

4.1 The waste and the vacuum venturi vents for the test equipment described in this test method emit an aerosol of polystyrene
particles and salt residues. These aerosols should be exhausted from any enclosed environment or collected and filtered to remove
all particles.
5. Summary of Test Method
5.1 A porous packaging material test specimen is placed in a sample holder in such a way as to create a filter between the challenge
and filtrate aerosols. On the challenge side of the sample holder, an aerosol of particles is presented to the surface of the test
specimen. An air flow is generated through the test specimen. A laser particle counter is used to monitor the particle concentrations
in the challenge and filtrate aerosols. Particle concentrations will be measured over a range of flow rates in order to measure the
percent penetration over the range of flow rates and determine the point of maximum penetration.
5.2 This test uses an aerosol of polystyrene latex particles (PSL) with a geometric mean particle diameter of 1.0 μm and a standard
deviation of less than 0.05 μm.
5.2.1 A single particle counter may be used to sequentially measure the challenge and filtrate aerosols or two particle counters may
be used to measure them continuously. When using a single particle counter the challenge and filtrate aerosols will be sequentially
measured for each test flow rate. The filtrate aerosol concentration is reported as the average concentration of the filtrate aerosol
over a time period of 45 to 60 s, beginning no sooner than 1 min from the start of the filtrate aerosol measurement. The challenge
aerosol concentration is reported as the average concentration of the challenge aerosol over a time period of not less than 45 s,
beginning no sooner than 1 min from the start of the challenge measurement. Challenge concentrations measured immediately
before and after each filtrate concentration measurement are averaged to determine the challenge concentration for a given flow
rate.
5.2.2 When using two particle counters, the challenge and filtrate aerosols are counted continuously by dedicated particle counters.
The challenge and filtrate aerosol concentrations are reported as the average concentration of the challenge or filtrate aerosol over
a time period of not less than 45 s, beginning no sooner than 1 min after a change in flow rate.
5.3 At the pressures used in this test, pressure differential across the sample and flow rate through the material are directly
F2638 − 22
proportional. Pressure will be varied over a range that will ideally have at least two measurements at flow rates that are higher and
lower than the flow rate that demonstrates the maximum penetration.
5.4 The reported results are the maximum penetration and the flow rate at which it occurs.
6. Significance and Use
6.1 This test method has been developed as a result of research performed by Air Dispersion Limited (Manchester, UK) and
funded by the Barrier Test Consortium Limited. The results of this research have been published in a peer-reviewed journal. This
research demonstrated that testing the barrier performance of porous packaging materials using microorganisms correlates with
measuring the filtration efficiency of the materials.
6.2 This test method does not require the use of microbiological method; in addition, the test method can be conducted in a rapid
and timely manner.
6.3 When measuring the filtration efficiency of porous packaging materials a typical filtration efficiency curve is determined (see
Fig. 1). Since the arc of these curves is dependent upon the characteristics of each individual material, the appropriate way to make
comparison among materials is using the parameter that measures maximum penetration through the material.
6.4 The particle filtration method is a quantitative procedure for determining the microbial barrier properties of materials using
a challenge of 1.0 μm particles over range of pressure differentials from near zero to approximately 30 cm water column (WC)
(2942 Pa). This test method is based upon the research of Tallentire and Sinclair and uses physical test methodology to allow for
a rapid determination of microbial barrier performance.
NOTE 1—The point of maximum penetration is indicated by the upward pointing triangle.

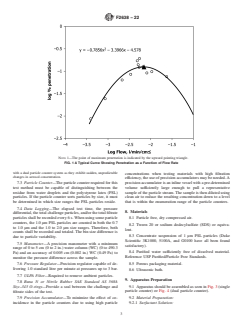

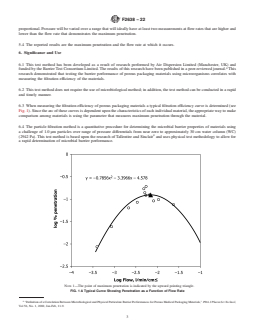

FIG. 1 A Typical Curve Showing Penetration as a Function of Flow Rate
“Definition of a Correlation Between Microbiological and Physical Particulate Barrier Performances for Porous Medical Packaging Materials,” PDA J Pharm Sci Technol,
Vol 56, No. 1, 2002, Jan-Feb, 11-9.
F2638 − 22
7. Apparatus
7.1 Test Fixture—This consists of a base with associated valves, tubing, sample holder and clamps necessary to perform the test.
Dimensions of the sample holder (Fig. 2) and schematics of the single particle counter (Fig. 3) and dual particle counter (Fig. 4)
are shown. The significant components of the text fixture include:
7.1.1 Sample Holder—This consists of two assemblies, which form identical upper and lower manifolds and sample cavities that
deliver a uniform flow of the aerosol or sweep air to the periphery of the test specimen while extracting it from the center. To
provide consistent sample material placement in the sample holder, a meshed fixture is placed under the sample prior to the closing
of the test fixture. Based on the fixture dimensions in Fig. 2; the mesh shall have a diameter of less than 100 mm and greater than
90 mm to fit into the flow cavity. A mesh material of stainless steel T304; eight (8 by 8 per 2.54 cm) mesh T304 stainless steel
0.7112 mm wire diameter; 2.46 mm opening size; 1.4224 mm overall thickness; weave type PSW mill finish or equivalent is
recommended. The same fixture should be used, or the fixture noted, when comparing data.
7.1.2 Normal Flow Range Needle Valve, 500 μm diameter maximum orifice.
7.1.3 Low Flow Range Critical Orifice, 40 μm orifice.
NOTE 1—Dimensions of the cavity in mm. The configuration of the top and bottom cavity is identical.

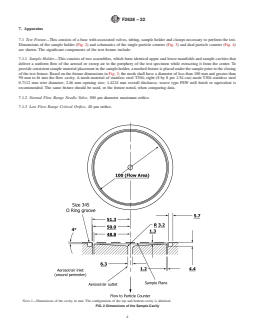

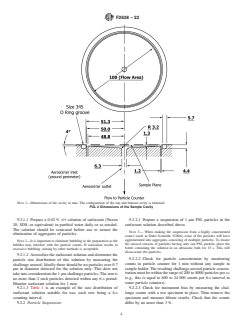

FIG. 2 Dimensions of the Sample Cavity
F2638 − 22
FIG. 3 Equipment Configuration for a Single Particle Counter—Method A
7.2 Aerosol Generator—A conventional vertical style medical nebulizer is the preferred aerosol generator for use in a single
counter system (Particle Measuring Systems PG100 or equivalent).
NOTE 1—Atomizer style nebulizers are not recommended unless used with a dual particle counter system as they exhibit sudden, unpredictable changes
in aerosol concentration.
7.3 Particle Counter—The particle counter required for this test method must be capable of distinguishing between the residue
from water droplets and the polystyrene latex (PSL) particles. If the particle counter sorts particles by size, it must be determined
in which size ranges the PSL particles reside.
7.4 Data Logging—The elapsed test time, the pressure differential, the total challenge particles, and/or the total filtrate particles
F2638 − 22
FIG. 4 Equipment Configuration for Dual Particle Counters—Method B
shall be recorded every 6 s. When using some particle counters, the 1.0 μm PSL particles are counted in both the 0.7 to 1.0 μm
and the 1.0 to 2.0 μm size ranges. Therefore, both counts shall be recorded and totaled. The bin size difference is due to particle
variability.
7.5 Manometer—A precision manometer with a minimum range of 0 to 5 cm (0 to 2 in.) water column (WC) (0 to 490.3 Pa) and
an accuracy of 0.005 cm (0.002 in.) WC (0.49 Pa) to monitor the pressure difference across the sample.
7.6 Pressure Regulator—Precision regulator capable of delivering 1.0 standard litre per minute at pressures up to 3 bar.
7.7 ULPA Filter—Required to remove ambient particles.
F2638 − 22
7.8 Buna N or Nitrile Rubber SAE Standard AS 568A Size–345 O-rings—Provide a seal between the challenge and filtrate sides
of the test.
7.9 Precision Accumulator—To minimize the effect of coincidence in the particle counters due to using high particle
concentrations when testing materials with high filtration efficiency, the use of precision accumulators may be needed. A precision
accumulator is an inline vessel with a pre-determined volume sufficiently large enough to pull a representative sample of the
particle stream. The sample is then diluted using clean air to reduce the resulting concentration down to a level that is within the
enumeration range of the particle counters.
8. Materials
8.1 Particle free, dry compressed air.
8.2 Tween 20 or sodium dodecylsulfate (SDS) or equivalent.
8.3 Concentrate suspension of 1 μm PSL particles (Duke Scientific 3K1000, 5100A, and G0100 have all been found satisfactory).
8.4 Purified water sufficiently free of dissolved material. Reference USP Purified/Particle Free Standards.
8.5 Porous packaging material.
8.6 Ultrasonic bath.
9. Apparatus Preparation
9.1 Apparatus should be assembled as seen in Fig. 3 (single particle counter) or Fig. 4 (dual particle counter).
9.2 Material Preparation:
9.2.1 Surfactant Solution:
9.2.1.1 Prepare a 0.02 % v/v solution of surfactant (Tween 20, SDS, or equivalent) in purified water daily or as needed. The
solution should be sonicated before use to ensure the elimination of aggregates of particles.
NOTE 2—It is important to eliminate bubbling in the preparation as the bubbles may interfere with the particle counts. If sonication results in excessive
bubbling, mixing by other methods is acceptable.
9.2.1.2 Aerosolize the surfactant solution and determine the particle size distribution of this solution by measuring the challenge
aerosol. Ideally there should be no particles over 0.7 μm in diameter detected for the solution only. This does not take into
consideration the 1 μm challenge particles. The aim is no more than 2 such particles detected within any 6-s period. Monitor
surfactant solution for 1 min.
9.2.1.3 Table 1 is an example of the size distribution of surfactant solution suitable for use, each row being a 6-s counting interval.
9.2.2 Particle Suspension:
TABLE 1 Example of Particle Counts Generated from 0.02 %
Surfactant in Acceptably Purified Water
0.1 0.2 0.3 0.4 0.5 0.7 1.0 2.0
μm μm μm μm μm μm μm μm
852 176 36 19 4 0 0 0
879 179 45 15 2 1 0 0
808 155 38 12 1 0 0 0
802 176 37 14 2 0 0 0
828 178 37 14 1 0 0 0
F2638 − 22
9.2.2.1 Prepare a suspension of 1 μm PSL particles in the surfactant solution described above.
NOTE 3— When making the suspension from a highly concentrated source (such as Duke Scientific 5100A) some of the particles will have agglomerated
into aggregates consisting of multiple particles. To ensure the aerosol consists of particles having only one PSL particle, place the bottle containing the
solution in an ultrasonic bath for 15 s. This will disassociate the particles.
9.2.2.2 Check for particle concentration by monitoring counts in particle counter for 1 min without any sample in sample holder.
The resulting challenge aerosol particle concentration must be within the range of 200 to 8000 particles per cc (e.g., this is equal
to 600 to 24 000 counts per 6-s interval in some particle counters).
9.2.2.3 Check for instrument bias by measuring the challenge counts with a test specimen in place. Then remove the specimen
and measure filtrate results. Check that the counts differ by no more than 3 %.
NOTE 4—If concentrations higher than 8000 particles per cc are used, there will be significant errors due to coincidence (counting two particles as a single
particle) in the particle counter detector.
10. Sample Preparation
10.1 The handling of test materials and environmental exposure immediately prior to testing should be considered and noted if
necessary. If sample materials are pre-conditioned, reference Practice E171/E171M.
10.2 Cut a sample of porous barrier material no less than 120 mm (the area of the sample exposed to the aerosol is 100 mm in
diameter) in any dimension so that it completely covers the O-ring in the lower half of the sample holder. The sample must cover
the entire circumference of the seal O-ring. Before the sample is placed in the holder, cover the flow cavity area with a mesh
material as described in 7.1.1. Critical dimensions of the exposure chamber are shown in Fig. 2.
11. Test Procedures
11.1 Method A Single Particle Counter—Procedure when using a single particle counter. Fig. 5 shows an example of the particle
count results of a typical single measurement with readings every 6 s.
11.1.1 When only a single particle counter is in use, it must be switched between the challenge and filtrate aerosol. Therefore, an
estimate must be made of the challenge aerosol concentration at the time of the filtrate measurement.
11.1.2 Set up equipment for 1 particle counter mode, use 0.7 to 1.0 μm and 1.0 to 2.0 μm bin data, record manometer data every
6 s. Record pressure drop across sample during each 6-s sample length while counting particles in filtrate stream.
11.1.3 Test distilled water/surfactant to ensure water is clean as described in 9.2.1.
11.1.4 Prepare appropriate concentration (200 to 8000 particles/mL) of PSL suspension and confirm that the particle counts are
within 3 % as described in 9.2.2.3.
11.1.5 Open sample holder, place mesh on flow cavity, then place sample in the sample holder.
11.1.6 Select Low Flow range. Changing flow rates from low to high versus high to low avoids the potential for blocking and
blinding of sample materials, which can lead to misleading results.
11.1.7 Start aerosol flow, set particle counter to Count Challenge.
11.1.8 Close the venturi needle valve and increase inlet air pressure to 3 bar, open the needle valve until pressure differential across
the sample is 2 cm WC. Allow system to stabilize for at least 1 min before collecting challenge counts for no less than 45 s (45
to 60 s). Set the particle counter to Filtrate. Allow the system to stabilize for at least 2 min before collecting filtrate counts for no
less than 45 s (45 to 60 s) and record pressure. Set the particle counter back to Challenge, allow the system to stabilize for at least
1 min before collecting challenge counts again for no less than 45 s (45 to 60 s).
11.1.9 Adjust the venturi needle valve to increase the pressure differential across the sample by a factor of 2. If challenge particles
have not just been counted, collect data for no less than 45 s (45 to 60 s). Set the particle counter to Filtrate. Allow the system
F2638 − 22
FIG. 5 Example of Data Produced from a Single Measurement Utilizing a Single Particle Counter
to stabilize for at least 2 min before collecting filtrate counts for no less than 45 s (45 to 60 s) and record pressure. Set the particle
counter back to Challenge, allow the system to stabilize for at least 1 min before collecting challenge counts again for no less than
45 s (45 to 60 s). Continue to increase pressure differential by a factor of 2 until a maximum penetration value has been detected
or the venturi needle valve is closed. The pressure differential may be adjusted to the next value during the second count of
challenge particles. If maximum penetration va
...
