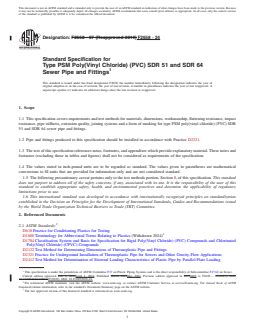

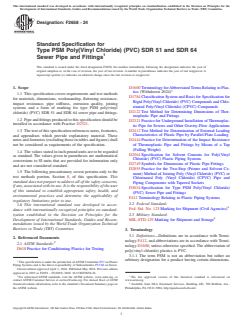

ASTM F2658-24

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: F2658 − 07 (Reapproved 2019) F2658 − 24
Standard Specification for
Type PSM Poly(Vinyl Chloride) (PVC) SDR 51 and SDR 64
Sewer Pipe and Fittings
This standard is issued under the fixed designation F2658; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This specification covers requirements and test methods for materials, dimensions, workmanship, flattening resistance, impact
resistance, pipe stiffness, extrusion quality, joining systems and a form of marking for type PSM poly(vinyl chloride) (PVC) SDR
51 and SDR 64 sewer pipe and fittings.
1.2 Pipe and fittings produced to this specification should be installed in accordance with Practice D2321.
1.3 The text of this specification references notes, footnotes, and appendixes which provide explanatory material. These notes and
footnotes (excluding those in tables and figures) shall not be considered as requirements of the specification.
1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical
conversions to SI units that are provided for information only and are not considered standard.
1.5 The following precautionary caveat pertains only to the test methods portion, Section 8, of this specification. This standard
does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this
standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory
limitations prior to use.
1.6 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D618 Practice for Conditioning Plastics for Testing
D1600 Terminology for Abbreviated Terms Relating to Plastics (Withdrawn 2024)
D1784 Classification System and Basis for Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated
Poly(Vinyl Chloride) (CPVC) Compounds
D2122 Test Method for Determining Dimensions of Thermoplastic Pipe and Fittings
D2321 Practice for Underground Installation of Thermoplastic Pipe for Sewers and Other Gravity-Flow Applications
D2412 Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading
This specification is under the jurisdiction of ASTM Committee F17 on Plastic Piping Systems and is the direct responsibility of Subcommittee F17.62 on Sewer.
Current edition approved Feb. 1, 2019April 1, 2024. Published March 2019May 2024. Previous edition approved in 20132019 as F2658 – 07(2013). DOI:
10.1520/F2658-07R19.07(2019). DOI: 10.1520/F2658-24.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
Standardsvolume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2658 − 24

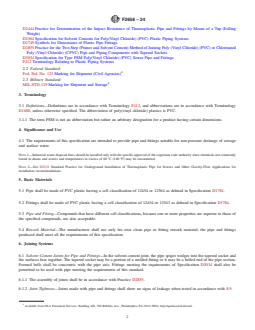

D2444 Practice for Determination of the Impact Resistance of Thermoplastic Pipe and Fittings by Means of a Tup (Falling
Weight)
D2564 Specification for Solvent Cements for Poly(Vinyl Chloride) (PVC) Plastic Piping Systems
D2749 Symbols for Dimensions of Plastic Pipe Fittings
D2855 Practice for the Two-Step (Primer and Solvent Cement) Method of Joining Poly (Vinyl Chloride) (PVC) or Chlorinated
Poly (Vinyl Chloride) (CPVC) Pipe and Piping Components with Tapered Sockets
D3034 Specification for Type PSM Poly(Vinyl Chloride) (PVC) Sewer Pipe and Fittings
F412 Terminology Relating to Plastic Piping Systems
2.2 Federal Standard:
Fed. Std. No. 123 Marking for Shipment (Civil Agencies)
2.3 Military Standard:
MIL-STD-129 Marking for Shipment and Storage
3. Terminology
3.1 Definitions—Definitions are in accordance with Terminology F412, and abbreviations are in accordance with Terminology
D1600, unless otherwise specified. The abbreviation of poly(vinyl chloride) plastics is PVC.
3.1.1 The term PSM is not an abbreviation but rather an arbitrary designation for a product having certain dimensions.

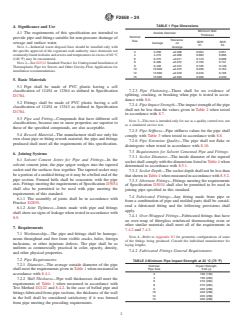

4. Significance and Use
4.1 The requirements of this specification are intended to provide pipe and fittings suitable for non-pressure drainage of sewage
and surface water.
NOTE 1—Industrial waste disposal lines should be installed only with the specific approval of the cognizant code authority since chemicals not commonly
found in drains and sewers and temperatures in excess of 60 °C (140 °F) may be encountered.
NOTE 2—See D2321 Standard Practice for Underground Installation of Thermoplastic Pipe for Sewers and Other Gravity-Flow Applications for
installation recommendations.
5. Basic Materials
5.1 Pipe shall be made of PVC plastic having a cell classification of 12454 or 12364 as defined in Specification D1784.
5.2 Fittings shall be made of PVC plastic having a cell classification of 12454 or 13343 as defined in Specification D1784.
5.3 Pipe and Fitting—Compounds that have different cell classifications, because one or more properties are superior to those of
the specified compounds, are also acceptable.
5.4 Rework Material—The manufacturer shall use only his own clean pipe or fitting rework material; the pipe and fittings
produced shall meet all the requirements of this specification.
6. Joining Systems
6.1 Solvent Cement Joints for Pipe and Fittings—In the solvent cement joint, the pipe spigot wedges into the tapered socket and
the surfaces fuse together. The tapered socket may be a portion of a molded fitting or it may be a belled end of the pipe section.
Formed bells shall be concentric with the pipe axis. Fittings meeting the requirements of Specification D3034 shall also be
permitted to be used with pipe meeting the requirements of this standard.
6.1.1 The assembly of joints shall be in accordance with Practice D2855.
6.1.2 Joint Tightness—Joints made with pipe and fittings shall show no signs of leakage when tested in accordance with 8.9.
Available from DLA Document Services, Building 4/D, 700 Robbins Ave., Philadelphia, PA 19111-5094, http://quicksearch.dla.mil.
F2658 − 24

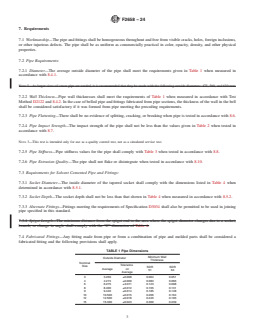

7. Requirements
7.1 Workmanship—The pipe and fittings shall be homogeneous throughout and free from visible cracks, holes, foreign inclusions,
or other injurious defects. The pipe shall be as uniform as commercially practical in color, opacity, density, and other physical
properties.
7.2 Pipe Requirements:
7.2.1 Diameter—The average outside diameter of the pipe shall meet the requirements given in Table 1 when measured in
accordance with 8.4.1.
NOTE 3—As larger sizes of sewer pipe are needed, it is recommended that they be made with the following outside diameters: 475, 560, and 630 mm.
7.2.2 Wall Thickness—Pipe wall thicknesses shall meet the requirements of Table 1 when measured in accordance with Test
Method D2122 and 8.4.2. In the case of belled pipe and fittings fabricated from pipe sections, the thickness of the wall in the bell
shall be considered satisfactory if it was formed from pipe meeting the preceding requirements.
7.2.3 Pipe Flattening—There shall be no evidence of splitting, cracking, or breaking when pipe is tested in accordance with 8.6.
7.2.4 Pipe Impact Strength—The impact strength of the pipe shall not be less than the values given in Table 2 when tested in
accordance with 8.7.
NOTE 3—This test is intended only for use as a quality control test, not as a simulated service test.
7.2.5 Pipe Stiffness—Pipe stiffness values for the pipe shall comply with Table 3 when tested in accordance with 8.8.
7.2.6 Pipe Extrusion Quality—The pipe shall not flake or disintegrate when tested in accordance with 8.10.
7.3 Requirements for Solvent Cemented Pipe and Fittings:
7.3.1 Socket Diameter—The inside diameter of the tapered socket shall comply with the dimensions listed in Table 4 when
determined in accordance with 8.5.1.
7.3.2 Socket Depth—The socket depth shall not be less than that shown in Table 4 when measured in accordance with 8.5.2.
7.3.3 Alternate Fittings—Fittings meeting the requirements of Specification D3034 shall also be permitted to be used in joining
pipe specified in this standard.
7.3.4 Spigot Length—The minimum distance from the spigot end to the area where the spigot diameter changes due to a socket,
branch, or change in angle shall comply with the “C” dimension of Table 4.
7.4 Fabricated Fittings—Any fitting made from pipe or from a combination of pipe and molded parts shall be considered a
fabricated fitting and the following provisions shall apply.
TABLE 1 Pipe Dimensions
Minimum Wall
Outside Diameter
Thickness
Nominal
Tolerance
Size
SDR SDR
Average on
51 64
Average
3 3.250 ±0.008 0.064 0.051
4 4.215 ±0.009 0.083 0.066
6 6.275 ±0.011 0.123 0.098
8 8.400 ±0.012 0.165 0.131
9 9.440 ±0.014 0.185 0.148
10 10.500 ±0.015 0.206 0.164
12 12.500 ±0.018 0.245 0.195
15 15.300 ±0.023 0.300 0.239
F2658 − 24

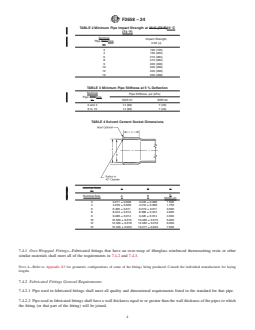

TABLE 2 Minimum Pipe Impact Strength at 23°C (73°F)23 °C
(73 °F)
Nominal
Impact Strength,
Pipe Size,Size
ft·lbf (J)
in.
3 100 (135)
4 150 (203)
6 210 (284)
8 210 (284)
9 220 (299)
10 220 (299)
12 220 (299)
15 220 (299)
TABLE 3 Minimum Pipe Stiffness at 5 % Deflection
Nominal
Pipe Stiffness, psi (kPa)
Pipe Size,Size
SDR 51 SDR 64
in.
3 and 4 14 (99) 7 (49)
6 to 15 14 (99) 7 (49)
TABLE 4 Solvent Cement Socket Dimensions
Nominal Size,
A B C
in.
C
Nominal Size A B
Minimum
3 3.271 ± 0.008 3.245 ± 0.008 1.500
4 4.235 ± 0.009 4.210 ± 0.009 1.750
6 6.305 ± 0.011 6.270 ± 0.011 3.000
8 8.424 ± 0.012 8.388 ± 0.012 4.000
9 9.486 ± 0.014 9.426 ± 0.014 4.500
10 10.530 ± 0.015 10.485 ± 0.015 5.000
12 12.536 ± 0.018 12.482 ± 0.018 6.000
15 15.346 ± 0.023 15.277 ± 0.023 7.500
7.4.1 Over-Wrapped Fittings—Fabricated fittings that have an over-wrap of fiberglass reinforced thermosetting resin or other
similar materials shall meet all of the requirements in 7.4.2 and 7.4.3.
NOTE 4—Refer to Appendix X3 for geometric configurations of some of the fittings being produced. Consult the individual manufacturer for laying
lengths.
7.4.2 Fabricated Fittings General Requirements:
7.4.2.1 Pipe used in fabricated fittings shall meet all quality and dimensional requirements listed in the standard for that pipe.
7.4.2.2 Pipe used in fabricated fittings shall have a wall thickness equal to or greater than the wall thickness of the pipes to which
the fitting (or that part of the fitting) will be joined.
F2658 − 24
7.4.2.3 No part of the spur or branch shall protrude into the waterway of the fitting more than 0.070 in.
7.4.2.4 All edges and joints exposed to sewage shall be rounded and free from any rough parts that could catch solids.
7.4.2.5 No fitting shall have an inside diameter dimension smaller than the base inside diameter listed in Table X1.1 for that pipe
size and DR.
7.4.2.6 All welds and solvent cement joints shall be sound and free of visible defects.
7.4.3 Fabrication Joint Test Requirements:
7.4.3.1 These test requirements apply only to tee, wye, and bend fabricated fittings that are manufactured using fabrication
methods that join together a combination of pipe sections or pipe sections and molded parts to form a fitting configuration. Other
fitting configurations using the same manufacturing procedures as those tested successfully shall be suitable for sale and use.
Fittings fabricated from a single-piece of pipe to form Bends and Sweeps shall not be subject to this requirement.
NOTE 5—A brittle fitting may violently fragment during testing. To preclude serious injury or death, suitable and appropriate safety procedures shall be
used during any test procedure.
7.4.3.2 Fabricated fittings shall be supported along the fitting centerline on a flat wooden block or blocks as shown in Figs. 1 and
2.
(1) The width of the wooden blocks shall be not less than 66 % of the nominal fitting body size being tested for fabricated
fittings up to 18 in. and 12 in. (305 mm) in width for nominal body sizes over 18 in.
(2) The thickness of the wooden blocks shall be neither less than, nor more than 1 in. (25.4 mm) greater than the difference
between the largest outside diameter on the bell and the outside of the body being tested.
(3) The wooden blocks shall stop 1 6 ⁄8 in. (25.4 6 3.2 mm) from the fitting bells and when required for bends shall be mitered
as indicated in Fig. 2 so that the wooden blocks cover the entire centerline of the fabricated fitting being tested.
NOTE 6—The wooden blocks shall be made from an available softwood and the type of wood shall be noted on the test report.
NOTE 7—When comparative testing is being performed between labs the same type of softwood blocks shall be used.
7.4.4 Deflect the fabricated fitting by applying the load, calculated from the values given in Table 5 to the body of the fitting as
shown in Fig. 1. The body length for this calculation shall not include any part of a taper or transitional area between the fitting
body and the bell as shown in Fig. 2. Apply the calculated load at a constant rate over a 1 to 2 min period and then maintain the
load for 5 (five) minutes. The calculated load required shall be applied to a second wooden block or blocks that are located along
the fitting centerline on top of the fitting as shown in Fig. 2.

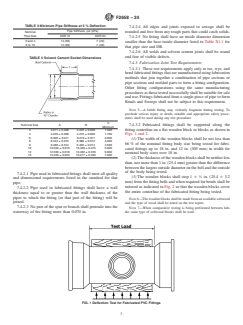

FIG. 1 Deflection Test for Fabricated PVC Fittings
F2658 − 24

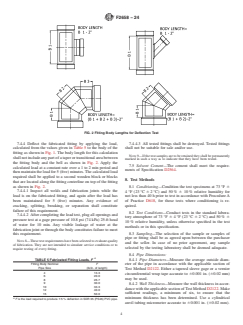

FIG. 2 Fitting Body Lengths for Deflection Test
A
TABLE 5 Fabricated Fitting Loads, F
Fitting Body Nominal
F
Pipe Size,Size
(lb/in. of length)
in.
4 13.3
6 20.0
8 26.7
9 30.0
10 33.3
12 40.0
15 50.0
A
F is the load r
...
