ASTM D6753/D6753M-02(2023)
(Specification)Standard Specification for Coal Tar Adhesive
Standard Specification for Coal Tar Adhesive
ABSTRACT
This specification covers coal tar adhesive with or without polymer modification suitable for brush, spray, squeegee and trowel application to coal tar built up and coal tar modified bitumen membrane roofings and flashings. The adhesive shall be classified as: Type I and Type II. Coal tar adhesive shall consist of a processed coal tar base, volatile solvents, mineral stabilizers, with or without polymer modifiers excluding asbestos, mixed to a smooth consistency. The following test methods shall be performed to conform with the requirements of the material: nonvolatile matter; water; ash; lap shear strength; and peel strength.
SCOPE
1.1 This specification covers coal tar adhesive with or without polymer modification suitable for brush, spray, squeegee, and trowel application to coal tar built-up and coal tar modified bitumen membrane roofings and flashings.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 30-Jun-2023
- Technical Committee
- D08 - Roofing and Waterproofing
Relations
- Effective Date
- 01-May-2018
- Effective Date
- 01-Nov-2017
- Effective Date
- 01-Jul-2011
- Effective Date
- 01-Oct-2010
- Effective Date
- 01-Apr-2004
- Effective Date
- 10-May-1998
Overview
ASTM D6753/D6753M-02(2023) Standard Specification for Coal Tar Adhesive is an internationally recognized standard developed by ASTM International. This specification covers coal tar adhesives - with or without polymer modification - intended for brush, spray, squeegee, and trowel applications. The standard is primarily applicable to coal tar built-up and coal tar modified bitumen membrane roofings and flashings. ASTM D6753/D6753M provides critical guidelines to ensure adhesives meet performance, consistency, and safety requirements, enabling reliable use in roofing construction and repair.
Key Topics
- Adhesive Types:
- Type I: Designed for brush, squeegee, or spray applications in field sheet membrane installation.
- Type II: Formulated for heavy brushing or trowel use, typically in the repair or installation of roof flashings.
- Material Composition:
- Made from a processed coal tar base, blended with volatile solvents, mineral stabilizers, and optional polymer modifiers (excluding asbestos).
- Must be mixed to a smooth consistency for ease of application.
- Physical Requirements:
- Specified minimum content of non-volatile matter and maximum water content.
- Defined limits for ash content in the nonvolatile matter.
- Adhesion properties measured by peel strength and lap shear strength at various conditioning times and temperatures.
- Testing & Uniformity:
- Adhesive samples must remain uniform with no separation or settling after 72 hours at room temperature.
- Performance must be verified using standardized test methods for nonvolatile matter, water content, ash, lap shear strength, and peel strength.
Applications
Coal tar adhesive, as defined in ASTM D6753/D6753M, is widely utilized in the construction and maintenance of roofing systems where coal tar built-up or coal tar modified bitumen membranes are used. Its primary applications include:
- Installation of Membranes: Adhesives are applied by brush, spray, squeegee, or trowel to bond membrane sheets in the field or along seams.
- Flashings: Ensures watertight seals around penetrations, edges, and roof details using heavy-duty or trowel-grade adhesives.
- Roof Repairs: Type II adhesives are ideal for patching or reinforcing coal tar roofing and flashings, providing lasting adhesion and flexibility.
- Compatibility: Specifically designed for use with coal tar systems to maintain chemical and physical integrity over time.
By following ASTM D6753/D6753M, manufacturers, contractors, and inspectors can ensure that coal tar adhesives will deliver predictable performance, durability, and safety in roofing projects.
Related Standards
Those using ASTM D6753/D6753M may also reference the following standards to ensure comprehensive quality control and compatibility:
- ASTM D903: Test Method for Peel or Stripping Strength of Adhesive Bonds. Used for measuring adhesive bond resistance.
- ASTM D6511/D6511M: Test Methods for Solvent Bearing Bituminous Compounds. Provides procedures for sampling, conditioning, and testing adhesive strength.
- ASTM D449: Standard Specification for Asphalt Used in Dampproofing and Waterproofing.
- ASTM D312: Specification for Asphalt Used in Roofing.
Understanding and applying these related ASTM roofing and adhesive standards helps ensure the proper performance of coal tar adhesives in diverse roofing environments and aligns with international best practices in construction and waterproofing.
Keywords: coal tar adhesive, ASTM D6753, membrane roofing adhesive, lap shear strength, peel strength, roofing flashings, polymer modification, bitumen roofing, roofing adhesive standards.
Get Certified
Connect with accredited certification bodies for this standard
Smithers Quality Assessments
US management systems and product certification.
DIN CERTCO
DIN Group product certification.
Sponsored listings
Frequently Asked Questions
ASTM D6753/D6753M-02(2023) is a technical specification published by ASTM International. Its full title is "Standard Specification for Coal Tar Adhesive". This standard covers: ABSTRACT This specification covers coal tar adhesive with or without polymer modification suitable for brush, spray, squeegee and trowel application to coal tar built up and coal tar modified bitumen membrane roofings and flashings. The adhesive shall be classified as: Type I and Type II. Coal tar adhesive shall consist of a processed coal tar base, volatile solvents, mineral stabilizers, with or without polymer modifiers excluding asbestos, mixed to a smooth consistency. The following test methods shall be performed to conform with the requirements of the material: nonvolatile matter; water; ash; lap shear strength; and peel strength. SCOPE 1.1 This specification covers coal tar adhesive with or without polymer modification suitable for brush, spray, squeegee, and trowel application to coal tar built-up and coal tar modified bitumen membrane roofings and flashings. 1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification covers coal tar adhesive with or without polymer modification suitable for brush, spray, squeegee and trowel application to coal tar built up and coal tar modified bitumen membrane roofings and flashings. The adhesive shall be classified as: Type I and Type II. Coal tar adhesive shall consist of a processed coal tar base, volatile solvents, mineral stabilizers, with or without polymer modifiers excluding asbestos, mixed to a smooth consistency. The following test methods shall be performed to conform with the requirements of the material: nonvolatile matter; water; ash; lap shear strength; and peel strength. SCOPE 1.1 This specification covers coal tar adhesive with or without polymer modification suitable for brush, spray, squeegee, and trowel application to coal tar built-up and coal tar modified bitumen membrane roofings and flashings. 1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM D6753/D6753M-02(2023) is classified under the following ICS (International Classification for Standards) categories: 83.180 - Adhesives. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM D6753/D6753M-02(2023) has the following relationships with other standards: It is inter standard links to ASTM D6511/D6511M-18, ASTM D903-98(2017), ASTM D6511/D6511M-06(2011)e1, ASTM D903-98(2010), ASTM D903-98(2004), ASTM D903-98. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM D6753/D6753M-02(2023) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

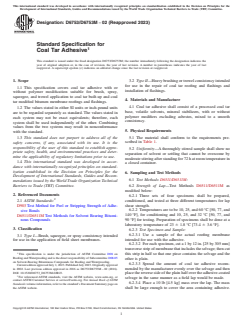

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: D6753/D6753M − 02 (Reapproved 2023)
Standard Specification for
Coal Tar Adhesive
This standard is issued under the fixed designation D6753/D6753M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3.2 Type II—Heavy brushing or trowel consistency intended
for use in the repair of coal tar roofing and flashings and
1.1 This specification covers coal tar adhesive with or
installation of flashings.
without polymer modification suitable for brush, spray,
squeegee, and trowel application to coal tar built-up and coal
4. Materials and Manufacture
tar modified bitumen membrane roofings and flashings.
4.1 Coal tar adhesive shall consist of a processed coal tar
1.2 The values stated in either SI units or inch-pound units
base, volatile solvents, mineral stabilizers, with or without
are to be regarded separately as standard. The values stated in
polymer modifiers excluding asbestos, mixed to a smooth
each system may not be exact equivalents; therefore, each
consistency.
system shall be used independently of the other. Combining
values from the two systems may result in nonconformance
5. Physical Requirements
with the standard.
5.1 The material shall conform to the requirements pre-
1.3 This standard does not purport to address all of the
scribed in Table 1.
safety concerns, if any, associated with its use. It is the
responsibility of the user of this standard to establish appro-
5.2 Uniformity—A thoroughly stirred sample shall show no
priate safety, health, and environmental practices and deter-
separation of solvent or settling that cannot be overcome by
mine the applicability of regulatory limitations prior to use.
moderate stirring after standing for 72 h at room temperature in
1.4 This international standard was developed in accor-
a closed container.
dance with internationally recognized principles on standard-
ization established in the Decision on Principles for the
6. Sampling and Test Methods
Development of International Standards, Guides and Recom-
6.1 Test Methods D6511/D6511M:
mendations issued by the World Trade Organization Technical
Barriers to Trade (TBT) Committee.
6.2 Strength of Lap—Test Methods D6511/D6511M as
modified below:
2. Referenced Documents
6.2.1 Three sets of four specimens shall be prepared,
conditioned, and tested at three different temperatures for lap
2.1 ASTM Standards:
shear strength.
D903 Test Method for Peel or Stripping Strength of Adhe-
6.2.2 Temperatures are to be 10, 25, and 60 °C [50, 77, and
sive Bonds
D6511/D6511M Test Methods for Solvent Bearing Bitumi- 140 °F], for conditioning and 10, 25, and 32 °C [50, 77, and
90 °F] for testing. Preparation of specimens shall be done at a
nous Compounds
laboratory temperature of 23 6 1.8 °C [73.4 6 3.6 °F].
3. Classification
6.2.3 Test Specimen and Sample:
6.2.3.1 Use a sample of the actual roofing membrane
3.1 Type I—Brush, squeegee, or spray consistency intended
intended for use with the adhesive.
for use in the application of field sheet membranes.
6.2.3.2 For each specimen, cut a 1 by 12 in. [25 by 305 mm]
transverse strip of membrane that includes the selvage; then cut
This specification is under the jurisdiction of ASTM Committee D08 on this strip in half so that one piece contains the selvage and the
Roofing and Waterproofing and is the direct responsibility of Subcommittee D08.05
other is plain.
on Solvent-Bearing Bituminous Compounds for Roofing and Waterproofing.
6.2.3.3 Spread the amount of coal tar adhesive recom-
Current edition approved July 1, 2023. Published July 2023. Originally approved
mended by the manufacturer evenly over the selvage and then
in 2002. Last previous edition approved in 2016 as D6753/D6753M – 02 (2016).
DOI: 10.1520/D6753_D6753M-02R23.
place the reverse side of the plain half over the adhesive-coated
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
selvage in t
...
