SIST EN 480-13:2015
(Main)Admixtures for concrete, mortar and grout - Test methods - Part 13: Reference masonry mortar for testing mortar admixtures
Admixtures for concrete, mortar and grout - Test methods - Part 13: Reference masonry mortar for testing mortar admixtures
This European Standard specifies the constituent materials, the composition and the mixing procedure to produce a reference masonry mortar with a prescribed consistence for testing mortar admixtures as defined in EN 934-3. It also describes the determination of the water reduction of the test mix compared to the control mix.
Zusatzmittel für Beton, Mörtel und Einpressmörtel - Prüfverfahren - Teil 13: Referenz-Baumörtel für die Prüfung von Zusatzmitteln für Mauerwerksmörtel
Diese Europäische Norm legt die Bestandteile, die Zusammensetzung und das Mischverfahren für die Herstellung eines Referenz Baumörtels mit Normkonsistenz für die Prüfung von Zusatzmitteln für Mörtel fest, wie sie in EN 934 3 definiert sind. Sie beschreibt auch die Bestimmung der Herabsetzung des Wasseranteils der Prüf¬mischung im Vergleich zur Kontrollmischung.
Adjuvants pour béton, mortier et coulis - Méthodes d'essai - Partie 13: Mortier à maçonner de référence pour les essais menés sur les adjuvants de mortier
La présente norme européenne spécifie les constituants, la composition et la méthode de malaxage pour la confection d’un mortier à maçonner de référence ayant une consistance prescrite destiné à la réalisation d’essais sur les adjuvants pour mortiers conformément à l'EN 934 3. Elle décrit également la méthode de détermination de la réduction de la teneur en eau du mortier adjuvanté par rapport au mortier témoin.
Kemijski dodatki za beton, malto in injekcijsko maso - Metode preskušanja - 13. del: Referenčna malta za zidanje za preskušanje kemijskih dodatkov za malte
General Information
- Status
- Published
- Public Enquiry End Date
- 29-Dec-2014
- Publication Date
- 16-Jun-2015
- Technical Committee
- BBB - Concrete, reinforced concrete and prestressed concrete
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 04-Jun-2015
- Due Date
- 09-Aug-2015
- Completion Date
- 17-Jun-2015
Relations
- Effective Date
- 01-Jul-2015
Overview
SIST EN 480-13:2015 is a key European Standard developed by CEN that specifies the requirements and test methods for producing a reference masonry mortar. This mortar is specifically designed for testing mortar admixtures as defined in EN 934-3. The standard outlines the constituent materials, mix proportions, and mixing procedures to achieve a mortar with a prescribed consistence. Additionally, it provides guidance on determining the water reduction when comparing a test mix containing admixtures with a control mix without admixtures.
This standard is essential for manufacturers, testing laboratories, and researchers involved in the development and quality control of mortar admixtures used in concrete, mortar, and grout applications.
Key Topics
Constituent Materials:
- Cement: Requires CEM I cement of strength class 42.5 or 52.5 complying with EN 197-1, with specified chemical composition and fineness.
- Sand: Natural sand with a defined grading and relative density between 2.5 and 2.8, oven-dry.
- Mixing Water: Water meeting the requirements of EN 1008, ensuring purity suitable for mortar mixing.
Reference Masonry Mortar:
- A standardized mix is produced both as a control (without admixture) and a test mix (with admixture).
- Consistence is measured according to EN 1015-4, aiming for a controlled consistency level (40 ± 5 mm).
- Air content of control mix should not exceed 5% by volume (EN 1015-7 method A).
Mixing Procedure:
- Detailed steps including conditioning materials to 20 ± 2°C, staged addition of water and admixture, and specific mixing times with both low and high speeds to ensure homogeneity.
- Procedures accommodate testing after standing and extended mixing conditions.
Water Reduction Calculation:
- Water reduction is calculated to assess admixture efficiency, especially for air-entraining and plasticizing admixtures.
- The formula compares water quantities of control and test mixes, expressed as a percentage.
Test Reporting:
- Requirements for comprehensive documentation including cement and sand details, mixing parameters, water content, air content, admixture dosage, and water reduction results.
Applications
- Mortar Admixture Testing: Provides a controlled reference mortar for evaluating the performance of admixtures, ensuring reliability in research and quality control.
- Product Development: Assists manufacturers in formulating new admixtures with predictable effects on mortar properties such as water reduction and workability.
- Quality Assurance: Enables laboratories to conduct consistent, repeatable tests that comply with European norms, vital for regulatory compliance and product certification.
- Construction Materials Research: Supports innovation in masonry mortar by providing a standardized testing environment for admixture effects on fresh and hardened mortar.
Related Standards
- EN 934-3: Defines the specifications, conformity, and marking for admixtures used in masonry mortar, closely linked with EN 480-13 for test methods.
- EN 196 Series (EN 196-1, EN 196-2, EN 196-6): Methods of testing cement, including strength determination, chemical analysis, and fineness measurement-critical for specifying cement used in reference mortar.
- EN 197-1: Cement composition and performance requirements establishing the baseline for cement used in reference mixes.
- EN 1015-4 and EN 1015-7: Methods for determining mortar consistence and air content, respectively, used as standard procedures in mortar testing.
- EN 1008: Specifies quality and suitability of mixing water for concrete and mortar, ensuring reproducible test results.
Adhering to SIST EN 480-13:2015 helps standardize mortar admixture testing across Europe, improving product reliability and facilitating harmonized quality control in the construction industry. This standard is indispensable for professionals focusing on mortar performance enhancement through admixtures and contributes to the advancement of sustainable and efficient masonry construction practices.
Frequently Asked Questions
SIST EN 480-13:2015 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Admixtures for concrete, mortar and grout - Test methods - Part 13: Reference masonry mortar for testing mortar admixtures". This standard covers: This European Standard specifies the constituent materials, the composition and the mixing procedure to produce a reference masonry mortar with a prescribed consistence for testing mortar admixtures as defined in EN 934-3. It also describes the determination of the water reduction of the test mix compared to the control mix.
This European Standard specifies the constituent materials, the composition and the mixing procedure to produce a reference masonry mortar with a prescribed consistence for testing mortar admixtures as defined in EN 934-3. It also describes the determination of the water reduction of the test mix compared to the control mix.
SIST EN 480-13:2015 is classified under the following ICS (International Classification for Standards) categories: 91.100.10 - Cement. Gypsum. Lime. Mortar; 91.100.30 - Concrete and concrete products. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 480-13:2015 has the following relationships with other standards: It is inter standard links to SIST EN 480-13:2009+A1:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN 480-13:2015 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2015
1DGRPHãþD
SIST EN 480-13:2009+A1:2011
.HPLMVNLGRGDWNL]DEHWRQPDOWRLQLQMHNFLMVNRPDVR0HWRGHSUHVNXãDQMD
GHO 5HIHUHQþQDPDOWD]D]LGDQMH]DSUHVNXãDQMHNHPLMVNLKGRGDWNRY]DPDOWH
Admixtures for concrete, mortar and grout - Test methods - Part 13: Reference masonry
mortar for testing mortar admixtures
Zusatzmittel für Beton, Mörtel und Einpressmörtel - Prüfverfahren - Teil 13: Referenz-
Baumörtel für die Prüfung von Zusatzmitteln für Mauerwerksmörtel
Adjuvants pour béton, mortier et coulis - Méthodes d'essai - Partie 13: Mortier à
maçonner de référence pour les essais menés sur les adjuvants de mortier
Ta slovenski standard je istoveten z: EN 480-13:2015
ICS:
91.100.10 Cement. Mavec. Apno. Malta Cement. Gypsum. Lime.
Mortar
91.100.30 Beton in betonski izdelki Concrete and concrete
products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 480-13
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2015
ICS 91.100.10 Supersedes EN 480-13:2009+A1:2011
English Version
Admixtures for concrete, mortar and grout - Test methods - Part
13: Reference masonry mortar for testing mortar admixtures
Adjuvants pour béton, mortier et coulis - Méthodes d'essai - Zusatzmittel für Beton, Mörtel und Einpressmörtel -
Partie 13: Mortier à maçonner de référence pour les essais Prüfverfahren - Teil 13: Referenz-Baumörtel für die Prüfung
menés sur les adjuvants de mortier von Zusatzmitteln für Mauerwerksmörtel
This European Standard was approved by CEN on 10 April 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 480-13:2015 E
worldwide for CEN national Members.

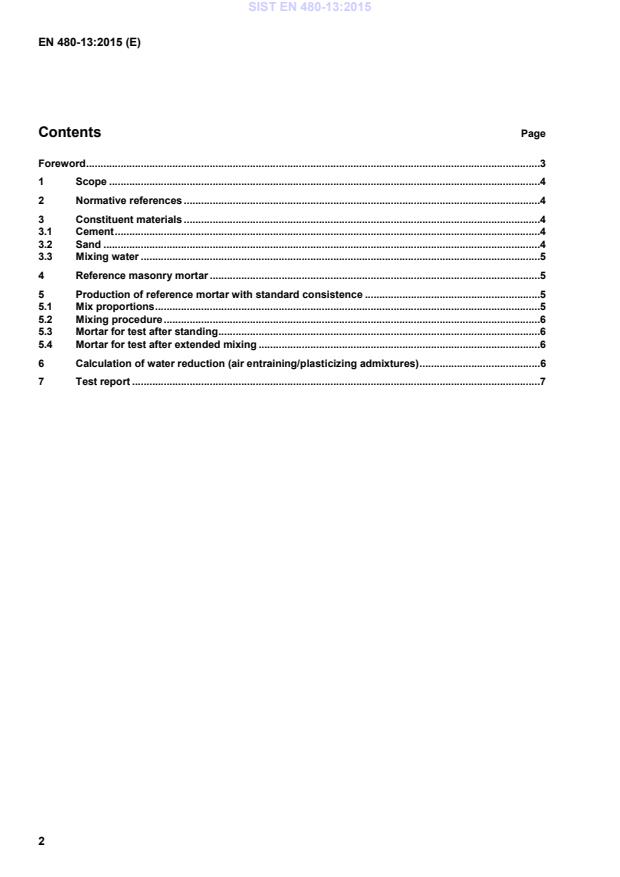

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Constituent materials .4
3.1 Cement .4
3.2 Sand .4
3.3 Mixing water .5
4 Reference masonry mortar .5
5 Production of reference mortar with standard consistence .5
5.1 Mix proportions .5
5.2 Mixing procedure .6
5.3 Mortar for test after standing .6
5.4 Mortar for test after extended mixing .6
6 Calculation of water reduction (air entraining/plasticizing admixtures) .6
7 Test report .7
Foreword
This document (EN 480-13:2015) has been prepared by Technical Committee CEN/TC 104 “Concrete and
related products”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by December 2015, and conflicting national standards shall be withdrawn
at the latest by December 2015.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 480-13:2009+A1:2011.
This standard differs from EN 480-13:2009+A1:2011 as follows:
a) Subclause 3.1 has been updated with regard to requirements for the specific surface of cement used.
b) It has been revised editorially.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Li
...
