SIST EN 4180:2004
(Main)Aerospace series - Circular tubes, for fluids in titanium and titanium alloys - Wide tolerances - Diameter 4 mm < D < 40 mm - Dimensions
Aerospace series - Circular tubes, for fluids in titanium and titanium alloys - Wide tolerances - Diameter 4 mm < D < 40 mm - Dimensions
This standard specifies the dimensions and tolerances of:
Circular tubes, for fluids
in titanium and titanium alloys
Wide tolerances
Diameter 4 mm * D * 40 mm
for aerospace applications.
Luft- und Raumfahrt - Runde Leitungsrohre aus Titan und Titanlegierungen - Weite Toleranzen - Durchmesser 4 mm L D L 40 mm - Maße
Diese Norm legt die Maße und Toleranzen von
runden Leitungsrohren
aus Titan und Titanlegierungen
Weite Toleranzen
Durchmesser 4 mm * D * 40 mm
für die Luft- und Raumfahrt fest.
Série aérospatiale - Tubes circulaires, pour canalisations en titane et alliages de titane - Tolérances larges - Diametres 4 mm < D < 40 mm - Dimensions
La présente norme spécifie les dimensions et les tolérances des :
Tubes circulaires, pour canalisations
en titane et alliages de titane
Tolérances larges
Diamètres 4 mm £ D £ 40 mm
pour applications aérospatiales.
Aerospace series - Circular tubes, for fluids in titanium and titanium alloys - Wide tolerances - Diameter 4 mm < D < 40 mm - Dimensions
General Information
Overview
EN 4180:2001 is a CEN aerospace standard that specifies dimensions and wide tolerances for circular tubes made from titanium and titanium alloys intended for fluid systems. It covers tubes with outside diameters from 4 mm to 40 mm and provides recommended nominal sizes, linear mass data and the tolerances needed for aerospace applications. EN 4180 is part of the EN metallic materials series for aerospace and is linked to the general organization described in EN 4258.
Key topics and requirements
- Scope: Circular tubes for fluids in titanium and titanium alloys, wide tolerances, diameters 4 mm ≤ D ≤ 40 mm.
- Recommended dimensions and mass: Nominal diameter/thickness combinations and linear mass (kg/m) are provided in tabulated form (calculated using a reference density of 4.5 kg/dm3).
- Dimensional tolerances
- Diameter tolerances:
- 4 mm ≤ D ≤ 18 mm: ±0.06 mm
- 18 mm < D ≤ 30 mm: ±0.08 mm
- 30 mm < D ≤ 40 mm: ±0.10 mm
- Wall thickness tolerances:
- a ≤ 1 mm: ±0.10 mm
- a > 1 mm: ±0.05 mm
- Diameter tolerances:
- Length: Orders must specify whether tubes are supplied in fixed or random lengths; when random, minimum and maximum lengths shall be defined by the purchaser.
- Geometric tolerances
- Straightness, roundness and eccentricity are controlled and measured per EN 3848.
- Roundness deviation must fall within the outside diameter tolerances.
- Eccentricity must be contained within the wall thickness tolerances.
- Form and measurement: Form definitions and measurement methods are referenced to EN 3848; normative links include ISO 2964 for metric tube dimensions.
Applications and who uses it
- Typical applications: aerospace fluid systems - hydraulic lines, fuel and pneumatic tubing, environmental control and other fluid conveyance where lightweight, corrosion-resistant titanium tubing is required.
- Primary users:
- Aerospace designers and systems engineers specifying tubing for aircraft and spacecraft.
- Manufacturers and suppliers of titanium tubing and semi-finished products.
- Procurement and quality engineers verifying dimensional and geometric conformity.
- Test labs performing straightness, roundness and eccentricity checks.
Related standards
- ISO 2964 - Aerospace tubing outside diameters and thicknesses (metric dimensions)
- EN 3848 - Method of measuring form deviations (straightness, roundness, eccentricity)
- EN 4258 - Organization of aerospace metallic material standards (series links)
Keywords: EN 4180:2001, circular tubes, titanium tubes, aerospace tubing, tube dimensions, tube tolerances, diameter 4–40 mm, titanium alloys.
Frequently Asked Questions
SIST EN 4180:2004 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Circular tubes, for fluids in titanium and titanium alloys - Wide tolerances - Diameter 4 mm < D < 40 mm - Dimensions". This standard covers: This standard specifies the dimensions and tolerances of: Circular tubes, for fluids in titanium and titanium alloys Wide tolerances Diameter 4 mm * D * 40 mm for aerospace applications.
This standard specifies the dimensions and tolerances of: Circular tubes, for fluids in titanium and titanium alloys Wide tolerances Diameter 4 mm * D * 40 mm for aerospace applications.
SIST EN 4180:2004 is classified under the following ICS (International Classification for Standards) categories: 49.080 - Aerospace fluid systems and components. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase SIST EN 4180:2004 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2004
Aerospace series - Circular tubes, for fluids in titanium and titanium alloys - Wide
tolerances - Diameter 4 mm < D < 40 mm - Dimensions
Aerospace series - Circular tubes, for fluids in titanium and titanium alloys - Wide
tolerances - Diameter 4 mm < D < 40 mm - Dimensions
Luft- und Raumfahrt - Runde Leitungsrohre aus Titan und Titanlegierungen - Weite
Toleranzen - Durchmesser 4 mm L D L 40 mm - Maße
Série aérospatiale - Tubes circulaires, pour canalisations en titane et alliages de titane -
Tolérances larges - Diametres 4 mm < D < 40 mm - Dimensions
Ta slovenski standard je istoveten z: EN 4180:2001
ICS:
49.080 /HWDOVNLLQYHVROMVNL Aerospace fluid systems and
KLGUDYOLþQLVLVWHPLLQGHOL components
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 4180
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2001
ICS 49.080
English version
Aerospace series - Circular tubes, for fluids in titanium and
titanium alloys - Wide tolerances - Diameter 4 mm D 40 mm
- Dimensions
Série aérospatiale - Tubes circulaires, pour canalisations Luft- und Raumfahrt - Runde Leitungsrohre aus Titan und
en titane et alliages de titane - Tolérances larges - Titanlegierungen - Weite Toleranzen - Durchmesser 4 mm
Diamètres 4 mm D 40 mm - Dimensions D 40 mm - Maße
This European Standard was approved by CEN on 2 May 2001.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,
Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2001 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4180:2001 E
worldwide for CEN national Members.

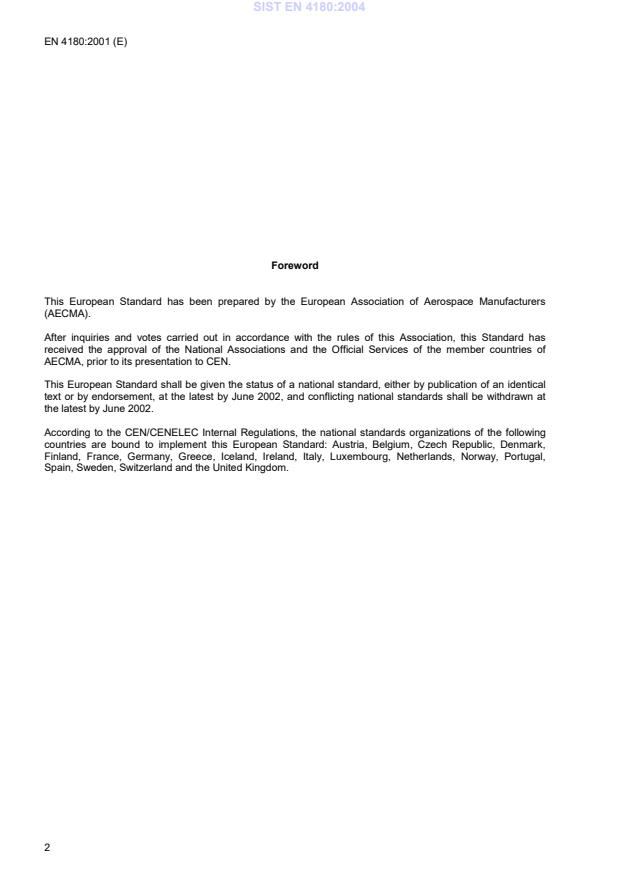

Foreword
This European Standard has been prepared by the European Association of Aerospace Manufacturers
(AECMA).
After inquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
AECMA, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by June 2002, and conflicting national standards shall be withdrawn at
the latest by June 2002.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark,
Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal,
Spain, Sweden, Switzerland and the United Kingdom.
0 Introduction
This standard is part of the series of EN metallic material standards for aerospace applications. The general
