Inductive components - Reliability management

This document is applicable to inductive components (chokes and transformers) based on magnetically soft materials. These are components based especially on laminated iron sheets, iron powder materials (including alloys), as well as ferrites and amorphous or crystalline metal band cores.
Winding assemblies mean wire winding assemblies as well as multilayer and stacking technologies of planar technology including coils based on non-magnetic materials. Discrete type components and the different types of surface mount inductive components (SMD) are also considered in this document.
The reliability of assemblies of inductive components based on several technologies such as glued types, types with clamps (clips), impregnated (varnished) types as well as (vacuum) potted types can also be checked with this document.
The subsequent determinations can be applied either for the primary qualification of inductive components or for all manners of requalification examinations (design, process, change of production facility). They can also be applied for the monitoring of products out of actual manufacturing processes.
This document sets up a broad basis of electric and mechanical criteria of failure test procedures.
If manufacturers advertise compliance with this standard in their data sheets, customers can request data to demonstrate compliance with this standard. The customers can also request the product to be in compliance with this standard by a recognised body.
Customers and manufacturers can elect to perform additional testing and acceptance criteria different than those defined in this standard.

Induktive Bauelemente - Zuverlässigkeitsmanagement

Composants inductifs - Gestion de la fiabilité

L'IEC 62211:2017 établit une large base de critères électriques et mécaniques de procédures d’essais de défaillance. Le présent document est applicable aux composants inductifs (inductances de lissage et transformateurs) utilisant des matériaux magnétiques doux. Il s’agit des composants fondés essentiellement sur des tôles de fer laminées, de matériaux en poudre de fer (et alliages apparentés), ainsi que des ferrites et noyaux à bandes métalliques amorphes ou cristallines.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) Intégration du choc continu et du choc mécanique dans les conditions d’essai;
b) Modification des références normatives dans le Tableau 3.

Induktivne komponente - Obvladovanje zanesljivosti

Ta dokument se uporablja za induktivne komponente (dušilke in transformatorje), ki temeljijo na mehkomagnetnih materialih. Te komponente temeljijo predvsem na laminiranih železnih ploščah, materialih iz železovega prahu (vključno z zlitinami) ter feritih in jedrih iz amorfnih ali kristalnih kovinskih pasov.
Sestavi navitja pomenijo sestave navitja žice ter večslojne in zlagalne tehnologije planarne tehnologije, vključno z zvitki, ki temeljijo na nemagnetnih materialih. Ta dokument obravnava tudi diskretne komponente in različne vrste površinsko montiranih induktivnih komponent (SMD).
V tem dokumentu je mogoče preveriti tudi zanesljivost sestavov induktivnih komponent, ki temeljijo na več tehnologijah, kot so lepljene vrste, vrste z objemkami (sponkami), impregnirane (premazane) vrste in (vakuumske) zalite vrste.
Naknadna določevanja se lahko uporabijo za primarno kvalifikacijo induktivnih komponent ali za vse načine preiskav prekvalifikacije (načrtovanje, obdelava, spreminjanje in proizvodnja). Uporabijo se lahko tudi za nadzorovanje izdelkov izven dejanskih proizvodnih postopkov.
Ta dokument postavlja široko osnovo električnih in mehanskih meril postopkov preskušanja odpovedi.
Če proizvajalci v tehničnih listih oglašujejo skladnost s tem standardom, lahko kupci zahtevajo podatke, ki dokazujejo skladnost s tem standardom. Kupci lahko zahtevajo tudi, da skladnost izdelka s tem standardom potrdi ustrezen organ.
Kupci in proizvajalci lahko izberejo dodatna merila za preskušanje in merila sprejemljivosti, ki se razlikujejo od meril, ki jih določa ta standard.

General Information

Status
Published
Publication Date
06-Aug-2017
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
11-May-2017
Due Date
16-Jul-2017
Completion Date
07-Aug-2017

Relations

Buy Standard

Standard
EN 62211:2017
English language
18 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 62211:2017
01-september-2017
1DGRPHãþD
SIST EN 62211:2004
Induktivne komponente - Obvladovanje zanesljivosti
Inductive components - Reliability management
Induktive Bauelemente - Zuverlässigkeitsmanagement
Composants inductifs - Gestion de la fiabilité
Ta slovenski standard je istoveten z: EN 62211:2017
ICS:
29.100.10 Magnetne komponente Magnetic components
SIST EN 62211:2017 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 62211:2017

---------------------- Page: 2 ----------------------

SIST EN 62211:2017


EUROPEAN STANDARD EN 62211

NORME EUROPÉENNE

EUROPÄISCHE NORM
April 2017
ICS 29.100.10 Supersedes EN 62211:2004
English Version
Inductive components - Reliability management
(IEC 62211:2017)
Composants inductifs - Gestion de la fiabilité Induktive Bauelemente - Zuverlässigkeitsmanagement
(IEC 62211:2017) (IEC 62211:2017)
This European Standard was approved by CENELEC on 2017-02-10. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 62211:2017 E

---------------------- Page: 3 ----------------------

SIST EN 62211:2017
EN 62211:2017

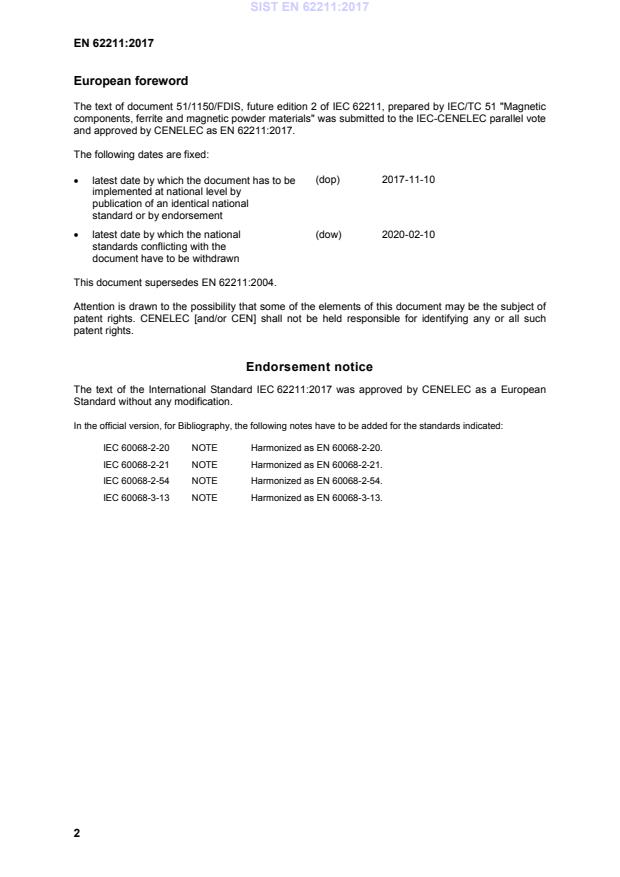

European foreword
The text of document 51/1150/FDIS, future edition 2 of IEC 62211, prepared by IEC/TC 51 "Magnetic
components, ferrite and magnetic powder materials" was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN 62211:2017.

The following dates are fixed:
(dop) 2017-11-10
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2020-02-10
standards conflicting with the
document have to be withdrawn

This document supersedes EN 62211:2004.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.

Endorsement notice
The text of the International Standard IEC 62211:2017 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60068-2-20 NOTE Harmonized as EN 60068-2-20.
IEC 60068-2-21 NOTE Harmonized as EN 60068-2-21.
IEC 60068-2-54 NOTE Harmonized as EN 60068-2-54.
IEC 60068-3-13 NOTE Harmonized as EN 60068-3-13.
2

---------------------- Page: 4 ----------------------

SIST EN 62211:2017
EN 62211:2017
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu

Publication Year Title EN/HD Year

IEC 60068-2-1 -  Environmental testing - Part 2-1: Tests - EN 60068-2-1 -
Test A: Cold
IEC 60068-2-2 -  Environmental testing - Part 2-2: Tests - EN 60068-2-2 -
Test B: Dry heat
IEC 60068-2-6 -  Environmental testing - Part 2-6: Tests - EN 60068-2-6 -
Test Fc: Vibration (sinusoidal)
IEC 60068-2-14 -  Environmental testing - Part 2-14: Tests - EN 60068-2-14 -
Test N: Change of temperature
IEC 60068-2-27 -  Environmental testing - Part 2-27: Tests - EN 60068-2-27 -
Test Ea and guidance: Shock
IEC 60068-2-30 -  Environmental testing - Part 2-30: Tests - EN 60068-2-30 -
Test Db: Damp heat, cyclic (12 h + 12 h
cycle)
IEC 60068-2-58 -  Environmental testing - Part 2-58: Tests - EN 60068-2-58 -
Test Td: Test methods for solderability,
resistance to dissolution of metallization
and to soldering heat of surface mounting
devices (SMD)
IEC 60068-2-78 -  Environmental testing - Part 2-78: Tests - EN 60068-2-78 -
Test Cab: Damp heat, steady state
IEC 60424 Series Ferrite cores - Guidelines on the limits of EN 60424 Series
surface irregularities
IEC 61007 (mod) 1994 Transformers and inductors for use in EN 61007 1997
electronic and telecommunication
equipment - Measuring methods and test
procedures
IEC 61248 Series Transformers and inductors for use in EN 61248 Series
electronic and telecommunication
equipment

3

---------------------- Page: 5 ----------------------

SIST EN 62211:2017

---------------------- Page: 6 ----------------------

SIST EN 62211:2017



IEC 62211

®


Edition 2.0 2017-01




INTERNATIONAL



STANDARD



















Inductive components – Reliability management




























INTERNATIONAL

ELECTROTECHNICAL


COMMISSION





ICS 29.100.10 ISBN 978-2-8322-3771-7



  Warning! Make sure that you obtained this publication from an authorized distributor.


® Registered trademark of the International Electrotechnical Commission

---------------------- Page: 7 ----------------------

SIST EN 62211:2017
– 2 – IEC 62211:2017 © IEC 2017
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Component families . 6
5 Test samples . 7
5.1 Classification by application . 7
5.2 Numbering of samples and content of test report . 7
5.3 Pre-treatment of test samples . 8
5.3.1 Magnetic pre-treatment . 8
5.3.2 Mechanical pre-treatment . 8
5.3.3 Exposure to reflow temperature profile . 8
6 Failure criteria . 8
7 Test conditions and specification of the minimum requirements . 11
8 Test sequence . 14
9 Test evaluation . 14
Bibliography . 15

Table 1 – General mechanical failure criteria . 9
Table 2 – Electrical failure criteria . 10
Table 3 – Test conditions . 12

---------------------- Page: 8 ----------------------

SIST EN 62211:2017
IEC 62211:2017 © IEC 2017 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

INDUCTIVE COMPONENTS – RELIABILITY MANAGEMENT

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62211 has been prepared by IEC technical committee 51:
Magnetic components, ferrite and magnetic powder materials.
This second edition cancels and replaces the first edition published in 2003. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) continuous shock and mechanical shock are integrated in the test conditions;
b) the normative references in Table 3 are changed.

---------------------- Page: 9 ----------------------

SIST EN 62211:2017
– 4 – IEC 62211:2017 © IEC 2017
The text of this standard is based on the following documents:
FDIS Report on voting
51/1150/FDIS 51/1158/RVD

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

---------------------- Page: 10 ----------------------

SIST EN 62211:2017
IEC 62211:2017 © IEC 2017 – 5 –
INDUCTIVE COMPONENTS – RELIABILITY MANAGEMENT



1 Scope
This document is applicable to inductive components (chokes and transformers) based on
magnetically soft materials. These are components based especially on laminated iron sheets,
iron powder materials (including alloys), as well as ferrites and amorphous or crystalline metal
band cores.
Winding assemblies mean wire winding assemblies as well as multilayer and stacking
technologies of planar technology including coils based on non-magnetic materials. Discrete
type components and the different types of surface mount inductive components (SMD) are
also considered in this document.
The reliability of assemblies of inductive components based on several technologies such as
glued types, types with clamps (clips), impregnated (varnished) types as well as (vacuum)
potted types can also be checked with this document.
The subsequent determinations can be applied either for the primary qualification of inductive
components or for all manners of requalification examinations (design, process, change of
production facility). They can also be applied for the monitoring of products out of actual
manufacturing processes.
This document sets up a broad basis of electric and mechanical criteria of failure test
procedures.
If manufacturers advertise compliance with this standard in their data sheets, customers can
request data to demonstrate compliance with this standard. The customers can also request
the product to be in compliance with this standard by a recognised body.
Customers and manufacturers can elect to perform additional testing and acceptance criteria
different than those defined in this standard.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60068-2-1, Environmental testing – Part 2-1: Tests – Test A: Cold
IEC 60068-2-2, Environmental testing – Part 2-2: Tests – Test B: Dry heat
IEC 60068-2-6, Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)
IEC 60068-2-14, Environmental testing – Part 2-14: Tests – Test N: Change of temperature
IEC 60068-2-27, Environmental testing – Part 2-27: Tests – Test Ea and guidance: Shock
IEC 60068-2-30, Environmental testing – Part 2-30: Tests – Test Db: Damp heat, cyclic
(12 h + 12 h cycle)

---------------------- Page: 11 ----------------------

SIST EN 62211:2017
– 6 – IEC 62211:2017 © IEC 2017
IEC 60068-2-58, Environmental testing – Part 2-58: Tests – Test Td: Test methods for
solderability, resistance to dissolution of metallization and to soldering heat of surface
mounting devices (SMD)
IEC 60068-2-78, Environmental testing – Part 2-78: Tests – Test Cab: Damp heat, steady
state
IEC 60424 (all parts), Ferrite cores – Guidelines on the limits of surface irregularities
IEC 61007:1994, Transformers and inductors for use in electronic and telecommunication
equipment – Measuring methods and test procedures
IEC 61248 (all parts), Transformers and inductors for use in electronic and telecommunication
equipment
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
reliability
component level reliability of the inductive component in the
customer's electrical circuit application
3.2
reliability tests
sequence of tests performed on an individual component, each specific
test being designed to represent conditions under which the component is expected to
operate in end applications
Note 1 to entry: Categories of test levels are organised to be consistent for typical applications.
3.3
reliability tests
sequence of tests performed on a collection of components as arranged in a
specific end application under working conditions
3.4
component family
group of components characterised by the same common features, for example the same
magnetic base material, the same core size and the same winding type
4 Component families
In a similar way to the qualification rules contained in IEC 61248 (all parts), reliability tests
can be performed on typical samples representing families of inductive components.
A family of inductive components is defined on the basis of:
• the same application class as specified in IEC 61248 (all parts);

---------------------- Page: 12 ----------------------

SIST EN 62211:2017
IEC 62211:20
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
