SIST EN 54-2:1997/A1:2007

SLOVENSKI STANDARD
01-marec-2007
Sistemi za odkrivanje in javljanje požara ter alarmiranje - 2. del: Požarna centrala
Fire detection and fire alarm systems - Part 2: Control and indicating equipment
Brandmeldeanlagen - Teil 2: Brandmelderzentralen
Systemes de détection et d'alarme incendie - Partie 2: Equipement de contrôle et de
signalisation
Ta slovenski standard je istoveten z: EN 54-2:1997/A1:2006
ICS:
13.220.20 3RåDUQD]DãþLWD Fire protection
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 54-2:1997/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2006
ICS 13.220.20
English Version
Fire detection and fire alarm systems - Part 2: Control and
indicating equipment
Systèmes de détection et d'alarme incendie - Partie 2: Brandmeldeanlagen - Teil 2: Brandmelderzentralen
Equipement de contrôle et de signalisation
This amendment A1 modifies the European Standard EN 54-2:1997; it was approved by CEN on 27 April 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this
amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references concerning such
national standards may be obtained on application to the Central Secretariat or to any CEN member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 54-2:1997/A1:2006: E
worldwide for CEN national Members.

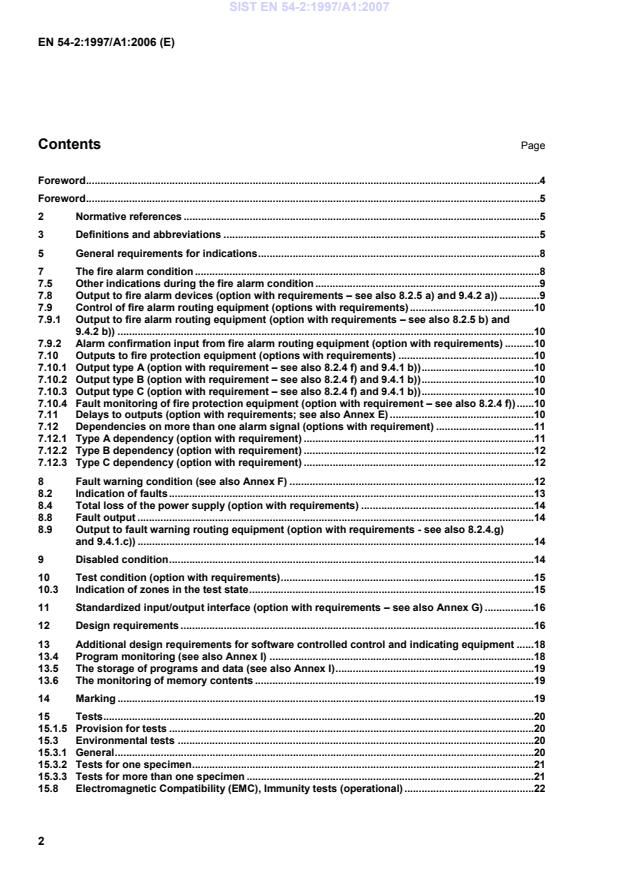

Contents Page
Foreword.4
Foreword.5
2 Normative references .5
3 Definitions and abbreviations .5
5 General requirements for indications.8
7 The fire alarm condition .8
7.5 Other indications during the fire alarm condition.9
7.8 Output to fire alarm devices (option with requirements – see also 8.2.5 a) and 9.4.2 a)) .9
7.9 Control of fire alarm routing equipment (options with requirements).10
7.9.1 Output to fire alarm routing equipment (option with requirements – see also 8.2.5 b) and
9.4.2 b)) .10
7.9.2 Alarm confirmation input from fire alarm routing equipment (option with requirements) .10
7.10 Outputs to fire protection equipment (options with requirements) .10
7.10.1 Output type A (option with requirement – see also 8.2.4 f) and 9.4.1 b)).10
7.10.2 Output type B (option with requirement – see also 8.2.4 f) and 9.4.1 b)).10
7.10.3 Output type C (option with requirement – see also 8.2.4 f) and 9.4.1 b)).10
7.10.4 Fault monitoring of fire protection equipment (option with requirement – see also 8.2.4 f)).10
7.11 Delays to outputs (option with requirements; see also Annex E) .10
7.12 Dependencies on more than one alarm signal (options with requirement) .11
7.12.1 Type A dependency (option with requirement) .11
7.12.2 Type B dependency (option with requirement) .12
7.12.3 Type C dependency (option with requirement) .12
8 Fault warning condition (see also Annex F) .12
8.2 Indication of faults.13
8.4 Total loss of the power supply (option with requirements) .14
8.8 Fault output .14
8.9 Output to fault warning routing equipment (option with requirements - see also 8.2.4.g)
and 9.4.1.c)) .14
9 Disabled condition.14
10 Test condition (option with requirements).15
10.3 Indication of zones in the test state.15
11 Standardized input/output interface (option with requirements – see also Annex G) .16
12 Design requirements .16
13 Additional design requirements for software controlled control and indicating equipment .18
13.4 Program monitoring (see also Annex I) .18
13.5 The storage of programs and data (see also Annex I).19
13.6 The monitoring of memory contents .19
14 Marking .19
15 Tests.20
15.1.5 Provision for tests .20
15.3 Environmental tests .20
15.3.1 General.20
15.3.2 Tests for one specimen.21
15.3.3 Tests for more than one specimen .21
15.8 Electromagnetic Compatibility (EMC), Immunity tests (operational).22
Annex A (informative) Explanation of access levels .25
Annex B (informative) Optional functions with requirements and alternatives .26
Annex E (informative) Delays to outputs .27
Annex H (informative) Integrity of transmission paths .29
Annex I (informative) Design requirements for software controlled control and indicating
equipment.30
Bibliography.40

Foreword
This document (EN 54-2:1997/A1:2006) has been prepared by Technical Committee CEN/TC 72 “Fire
detection and fire alarm systems”, the secretariat of which is held by BSI.
This Amendment to the European Standard EN 54-2:1997 shall be given the status of a national standard,
either by publication of an identical text or by endorsement, at the latest by April 2007, and conflicting national
standards shall be withdrawn at the latest by December 2007.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
Amendment 1 to this standard improves the additional requirements for software controlled equipment and
makes a number of miscellaneous changes, to correct errors and better reflect the current state of the art. It
also replaces the descriptions of the individual electromagnetic compatibility immunity tests with a reference to
the EMC Product Family Standard EN 50130-4, makes editorial and technical changes to generally improve
clarity, and updates the normative references.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.
Foreword
Replace Date of Withdrawal to read
December 2007
2 Normative references
Clause 2: Delete the existing text and substitute
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 54-1:1996, Fire detection and fire alarm systems — Part 1: Introduction
EN 54-4:1997, Fire detection and fire alarm systems — Part 4: Power supply equipment
EN 54-7:2000, Fire detection and fire alarm systems - Part 7: Smoke detectors - Point detectors using
scattered light, transmitted light or ionization
EN 50130-4:1995, Alarm systems — Part 4: Electromagnetic compatibility — Product family standard:
Immunity requirements for components of fire, intruder and social alarm systems
EN 60068-1:1994, Environmental testing - Part 1: General and guidance (IEC 60068-1:1988 + Corrigendum
1988 + A1:1992)
EN 60068-2-1:1993, Environmental testing; part 2: tests; tests A: cold (IEC 60068-2-1:1990)
EN 60068-2-6:1995, Environmental testing - Part 2: Tests - Tests Fc: Vibration (sinusoidal) (IEC 60068-2-
6:1995 + Corrigendum 1995)
EN 60068-2-47:2005, Environmental testing - Part 2-47: Test Mounting of specimens for vibration, impact and
similar dynamic tests (IEC 60068-2-47:2005)
EN 60068-2-75:1997, Environmental testing - Part 2: Tests - Test Eh: Hammer tests (IEC 60068-2-75:1997)
EN 60068-2-78:2001, Environmental testing — Part 2-78: Tests, Test Cab: Damp heat, steady state (IEC
60068-2-78:2001)
EN 60529:1991, Degrees of protection provided by enclosures (IP code) (IEC 60529:1989)
EN 60721-3-3:1995, Classification of environmental conditions - Part 3: Classification of groups of
environmental parameters and their severities - Section 3: Stationary use at weatherprotected locations (IEC
60721-3-3:1994)
3 Definitions and abbreviations
Delete 3.1.1 until 3.1.22 and substitute
3.1.1
Deleted (numbering kept)
3.1.2
addressable point
point that can be individually identified at the CIE
3.1.3
alphanumeric display
indicator that is capable of giving information by the display of messages consisting of text and/or numeric
characters
3.1.4
functional condition
state of the CIE characterised by mandatory indication(s)
NOTE The functional conditions recognized in this European Standard are the following:
- fire alarm condition, when a fire alarm is indicated,
- fault warning condition, when a fault is indicated,
- disabled condition, when the disablement of functions is indicated,
- test condition, when the testing of functions is indicated,
- quiescent condition, when the CIE is powered by a power supply conforming to EN 54-4 and no other
functional condition is indicated.
3.1.5
detection circuit
transmission path that connects points to the CIE
3.1.6
earth fault
unwanted connection between earth potential and any part of the CIE, transmission paths to the CIE, or
transmission paths between parts of the CIE
3.1.7
field
sub-division of a window
3.1.8
indicator
device which can change its state to give information
3.1.9
Deleted (numbering kept)
3.1.10
Deleted (numbering kept)
3.1.11
non-volatile memory
memory elements that do not require the presence of an energy source for the retention of their contents
3.1.12
point
component connected to a detection circuit that is able to transmit or receive information in relation to fire
detection
EXAMPLE Items A or D of Figure 1 of EN 54-1:1996
3.1.13
program
software necessary for a CIE to comply with at least the requirements of this European Standard, including
initialising data, reset and interrupt vectors, operating code, and declarations
3.1.14
Deleted (numbering kept)
3.1.15
running data
alterable data subject to temporary modification during operation, either automatically or by manual controls
3.1.16
separate
physically separate, and exclusively provided for the purpose or purposes stated in this European Standard
3.1.17
silencing
switching off the audible signal of a sounding device that is capable of being re-sounded by a new event
3.1.18
site specific data
alterable data required for the CIE to operate in a defined system configuration
3.1.19
transmission path
physical connection, external to the cabinet of the CIE, for the transmission of information and/or power
between the CIE and other components of a fire detection and fire alarm system (as defined in EN 54-1:1996),
and/or between parts of a CIE contained in different cabinets
3.1.20
volatile memory
memory elements that require the presence of an energy source for the retention of their contents
3.1.21
window
area of the alphanumeric display used for information relating to one functional condition at a given time
NOTE A window may be realized either by mechanical separation or under software control.
3.1.22
zone
geographical sub-division of the protected premises in which one or more points are installed and for which a
common zonal indication is provided
3.1.23
module
part of the program that fulfils specified functions
3.1.24
first alarm signal
signal from a fire detector which is interpreted as a fire alarm, but following which the CIE enters a first alarm
state
3.1.25
first alarm state
state of the CIE following the receipt of a first alarm signal during which mandatory functions of the CIE may
be inhibited
3.1.26
confirmation alarm signal
signal from a fire detector or manual call point which terminates a first alarm state
3.1.27
integrated PSE
PSE within other equipment where it is not possible for the manufacturer to specify the output voltage range(s)
of the PSE and the input voltage range(s) of that equipment and where its repair involves replacement of a
part or the whole of the other equipment
In 3.2 add at the end
PSE: power supply equipment.
5 General requirements for indications
Delete the last bullet point in 5.1.1 and substitute
 test condition (if provided).
Delete the last bullet point in 5.1.2 and substitute
 test condition (if provided).
7 The fire alarm condition
Delete 7.1.5 and substitute
7.1.5 The mandatory indications and outputs shall not be falsified by multiple fire signals received from the
same or different detection circuits, resulting from the simultaneous operation of two points and/or the
operation of further points.
Delete 7.3.2 c) and substitute
c) the total number of zones in alarm shall be displayed;
Delete 7.3.2 d) and substitute
d) zones in alarm, but not currently indicated, shall be capable of being displayed at access level 1. A single
manual action shall be required for the display of each additional zone in alarm. Either individual fields, or
the whole alarm window, may be temporarily suppressed to permit the display of additional zones in alarm.
However, the display shall meet the requirements of 7.3.2 a), 7.3.2 b) and 7.3.2 c) within 30 s following
the last interrogation.
Add in 7.4.1 after the last sentence
The silencing of the audible indication may be accompanied by changes in the visible indications of fire or fault,
provided that the conditions are still indicated as required in this standard (e.g. the indication of light emitting
indicators may change from flashing to steady, or the information given on an alphanumeric display may be
updated).
Delete 7.4.3 and substitute
7.4.3 The audible indication shall re-sound for each new zone in alarm.
Delete 7.5 and substitute
7.5 Other indications during the fire alarm condition
7.5.1 If faults, disablements or tests are indicated by means of one or more light emitting indicators, and
such indications are suppressed in the fire alarm condition, it shall be possible to reveal these by means of a
manual operation at access level 1 or 2.
7.5.2 If the fire alarm indications are on an alphanumeric display, the following shall apply to the display of
other information on the alphanumeric display:
a) information not related to the fire alarm condition shall be suppressed, unless the display has more than
one window, one of which is exclusively reserved for fire alarm indications,
b) suppressed indications of faults, disablements and tests shall be capable of being displayed, at any time,
by manual operations at access level 1 or 2, which are different from, or additional to that specified in
7.3.2 d) to display zones in fire alarm, and which are capable of displaying faults, disablements and tests
independently,
c) either individual fields, or the whole fire alarm window, may be temporarily suppressed to permit the
display of faults, disablements and tests. However, the display shall meet the requirements of 7.3.2 a),
7.3.2 b) and 7.3.2 c) within 30 s following the last interrogation.
Delete 7.6.1 and substitute
7.6.1 The CIE shall be capable of being reset from the fire alarm condition. This shall only be possible by
means of a separate manual control, at access level 2. This control shall be used only for reset and may be
the same as that used for reset from the fault warning condition.
Delete 7.7.2 and substitute
7.7.2 Unless 7.11 and/or 7.12 apply, the CIE shall activate all mandatory outputs within 3 s of the indication
of a fire alarm condition.
Delete 7.7.3 and substitute
7.7.3 Unless 7.11 applies, the CIE shall activate all mandatory outputs within 10 s of the activation of any
manual call point.
Delete 7.8 and substitute
7.8 Output to fire alarm devices (option with requirements – see also 8.2.5 a) and 9.4.2 a))
The CIE may have provision for the automatic transmission of fire alarm signals to fire alarm devices (item C
of Figure 1 of EN 54-1:1996). In this case the following shall apply:
a) it shall be possible to silence the fire alarm devices at access level 2,
b) following silencing, it shall be possible to re-sound the fire alarm devices at access level 2,
c) the fire alarm devices shall not be silenced automatically,
d) it shall be possible to configure the CIE at access level 3 to automatically re-sound the fire alarm devices
following an alarm in another zone.
Delete 7.9 and substitute
7.9 Control of fire alarm routing equipment (options with requirements)
7.9.1 Output to fire alarm routing equipment (option with requirements – see also 8.2.5 b) and 9.4.2
b))
The CIE may have provision for the automatic transmission of fire alarm signals to fire alarm routing
equipment (item E of Figure 1 of EN 54-1:1996). In this case the transmission of the signal shall be indicated
by means of a separate light emitting indicator and/or an alphanumeric display. The indication shall remain
until the fire alarm condition is reset.
7.9.2 Alarm confirmation input from fire alarm routing equipment (option with requirements)
If 7.9.1 applies, the CIE may have an input which is capable of receiving signals from fire alarm routing
equipment (item E of Figure 1 of EN 54-1:1996). In this case the reception of the signals shall be indicated by
means of a separate light emitting indicator and/or an alphanumeric display. The light emitting indicator may
replace the indicator of 7.9.1. The indication shall remain until the fire alarm condition is reset.
Delete 7.10 and substitute
7.10 Outputs to fire protection equipment (options with requirements)
7.10.1 Output type A (option with requirement – see also 8.2.4 f) and 9.4.1 b))
The CIE may have provision for the transmission of fire alarm signals to controls for automatic fire protection
equipment (item G of Figure 1 of EN 54-1:1996).
7.10.2 Output type B (option with requirement – see also 8.2.4 f) and 9.4.1 b))
The CIE may have provision for the transmission of fire alarm signals to controls for automatic fire protection
equipment (item G of Figure 1 of EN 54-1:1996). In this case the transmission of the signal shall be indicated
by means of a separate light emitting indicator and/or an alphanumeric display. The indication shall be at least
common to all items G, and shall not be suppressed during the fire alarm condition.
7.10.3 Output type C (option with requirement – see also 8.2.4 f) and 9.4.1 b))
The CIE may have provision for the transmission of fire alarm signals to controls for automatic fire protection
equipment (item G of Figure 1 of EN 54-1:1996). In this case the reception of a confirmatory signal from G
shall be indicated by means of a separate light emitting indicator and/or an alphanumeric display. The
indication shall be at least common to all items G, and shall not be suppressed during the fire alarm condition.
7.10.4 Fault monitoring of fire protection equipment (option with requirement – see also 8.2.4 f))
The CIE may have provision to receive fault warning signals from controls for automatic fire protection
equipment (item G of Figure 1 of EN 54-1:1996). These faults shall be indicated by means of a separate light
emitting indicator and/or an alphanumeric display. The indication shall be at least common to all items G, and
shall not be suppressed during the fire alarm condition. The indicator may be the same as that of 8.2.4 f).
Delete 7.11 and substitute
7.11 Delays to outputs (option with requirements; see also Annex E)
7.11.1 The CIE may have provision to delay the activation of outputs to fire alarm devices (item C of Figure 1
of EN 54-1:1996) and/or to fire alarm routing equipment (item E of Figure 1 of EN 54-1:1996) and/or to
controls for automatic fire protection equipment (item G of Figure 1 of EN 54-1:1996). In these cases at least
the following shall apply:
a) the operation of delays to outputs to C and G shall be configurable at access level 3 to apply to:
 fire detectors, and/or,
 manual call points, and/or,
 individual zones;
b) the operation of delays to outputs to E shall be configurable at access level 3, to apply to:
 fire detectors, and/or,
 individual zones;
c) the delay times shall be configurable at access level 3, in increments not exceeding 1 min, up to a
maximum of 10 min;
d) it shall be possible to override the delays and immediately activate delayed outputs by means of a manual
operation at access level 1 and/or by means of a signal from a manual call point;
e) the delay to one output signal shall not affect the activation of other outputs.
7.11.2 If 7.11.1 applies, the CIE may have provision to switch on and switch off the delayed operation of
outputs. In this case the following shall apply:
a) it shall be possible to switch on and switch off delays, by means of a manual operation at access level 2,
b) there may be provision to automatically switch on and/or switch off delays by means of a programmable
timer, which shall be configurable at access level 3,
c) the mode of operation when delays are switched on shall be visibly indicated by means of a separate
light emitting indicator and/or an alphanumeric display. The indication shall not be suppressed during the
fire alarm condition.
Delete 7.12 and substitute
7.12 Dependencies on more than one alarm signal (options with requirement)
7.12.1 Type A dependency (option with requirement)
Following the receipt of a first alarm signal from a fire detector, the entry to the fire alarm condition may be
inhibited until the receipt of a confirmation alarm signal from the same fire detector, or from a fire detector in
the same zone. In this case, the first alarm state need not be indicated, and the following shall apply:
a) the mode of operation shall be configurable at access level 3 for individual zones;
b) reception of a confirmation alarm signal shall not be inhibited for more than 60 s following the receipt of
the first alarm signal. The manufacturer may specify a time shorter than 60 s. In this case, this
specification shall be tested and verified;
c) the first alarm state shall be automatically cancelled within 30 min of the receipt of the first alarm signal;
d) information on the values of the configured delay times shall be accessible at access level 2 or 3.
7.12.2 Type B dependency (option with requirement)
Following the receipt of a first alarm signal from a fire detector, the entry to the fire alarm condition may be
inhibited until the receipt of a confirmation alarm signal from the same fire detector and/or from another fire
detector, which may be in the same or a different zone. In this case the following shall apply:
a) the mode of operation shall be configurable at access level 3 for at least individual zones;
b) the first alarm state shall be indicated by means of:
 an audible indication as in 12.10 which may be the same as that in the fire alarm condition or fault
warning condition;
 a visible indication of the affected zone, which may be the same as that for indication of zone in
alarm as in 7.3. The General Fire Alarm Indicator shall not be illuminated;
c) it shall be possible to manually cancel the first alarm state at access level 2. This may be done with the
same control as is used for reset from the fire alarm condition or fault warning condition;
d) the CIE may have provision to automatically cancel the first alarm state after a time interval which shall
not be less than 5 min;
e) if the mode of operation is configured to accept a confirmation alarm signal from the same fire detector,
this shall not be inhibited for more than 4 min following the receipt of the first alarm signal.
7.12.3 Type C dependency (option with requirement)
Following the receipt of a fire alarm signal from a fire detector or a manual call point, the CIE shall enter the
fire alarm condition, but may have provision to inhibit the activation of outputs until a second alarm signal is
received from another fire detector or manual call point, which may be in the same or another zone. In this
case it shall be possible to configure the mode of operation at access level 3 to apply individually to each of
the following (where provided):
 output to fire alarm devices (item C of Figure 1 of EN 54-1:1996), as in 7.8,
 output to fire alarm routing equipment (item E of Figure 1 of EN 54-1:1996), as in 7.9,
 output to fire protection equipment (item G of Figure 1 of EN 54-1:1996), as in 7.10.
Delete 7.13 a) and substitute
a) re-initialisation of the counter shall be possible at access level 4. In the event of the CIE being de-
energised the data shall be retained for at least 14 days.
8 Fault warning condition (see also Annex F)
Delete 8.1.2 and substitute
8.1.2 The CIE shall be capable of simultaneously recognising all of the faults specified in 8.2 and (if
provided) in 8.3, with the exception that the recognition of a fault in a given zone or function may be prevented
by one or more of the following:
a) the presence of fire alarm signals from the same zone,
b) the disablement of the corresponding zone or function,
c) the testing of the corresponding zone or function,
d) the activation of the output to a transmission path which is exclusively used to transmit signals to:
 fire alarm devices (item C of Figure 1 of EN 54-1:1996) or,
 fire alarm routing equipment (item E of Figure 1 of EN 54-1:1996) or,
 controls for automatic fire protection equipment (item G of Figure 1 of EN 54-1:1996) or,
 fault warning routing equipment (item J of Figure 1 of EN 54-1:1996).
Delete the title of 8.2 and substitute
8.2 Indication of faults
Delete the following text in 8.2.1
8.2.1 The presence of faults in specified functions shall be indicated without prior manual intervention. The
fault warning condition is established when the following are present:
and substitute
8.2.1 The presence of a fault, as specified in 8.2.4, 8.2.5, 8.2.6 and, if provided, 8.3 shall be indicated
without prior manual intervention. The fault warning condition is established when the following are present:
Delete 8.2.1 b) and substitute
b) a visible indication for each recognised fault;
Delete 8.2.2 and substitute
8.2.2 If the indication of 8.2.1 b) is by means of separate light emitting indicators, these may be the same as
those used to indicate disablement and/or testing of the corresponding zones or functions, provided that the
fault indication is distinguishable from the disablement and test indications (see also 10.3 and 12.7.3).
Delete the bullet points in 8.2.4 a) and substitute
 a short circuit in a detection circuit;
 an interruption in a detection circuit;
 the removal of a point;
Delete 8.2.4 c) and substitute
c) an indication, at least common to any single earth fault which affects a mandatory function, and which is
not otherwise indicated as a fault of a supervised function;
Delete 8.2.4 f) and substitute
f) an indication of any short circuit or interruption, at least common to all transmission paths, which affects
the transmission of signals to or reception of signals from controls for automatic fire protection equipment
(item G of Figure 1 of EN 54-1:1996).
Delete 8.4 and substitute
8.4 Total loss of the power supply (option with requirements)
In the event of the loss of the main power source (as specified in EN 54-4), the CIE may have provision to
recognise and indicate the failure of the standby power source to a point where it may no longer be possible to
fulfil mandatory functions of this European Standard. In this case at least an audible indication, as in 12.10,
shall be given for a period of at least one hour.
Delete 8.5 a) and substitute
a) a system fault shall be visibly indicated by means of the General Fault Warning Indicator and a separate
light emitting indicator. These indications shall not be suppressed by any other functional condition of the
CIE and shall remain until a manual reset and/or another manual operation at access level 2 or 3;
Delete 8.6.1 and substitute
8.6.1 The audible indication of faults under 8.2 and, if provided, 8.3, shall be capable of being silenced
manually at access level 1 or 2. The same manual operation may be used as that for silencing the audible
indication in the fire alarm condition.
Delete 8.6.3 and substitute
8.6.3 If previously silenced, the audible indication shall re-sound for each newly recognised fault.
Delete the first sentence in 8.7.1 and substitute
8.7.1 Indications of faults as under 8.2 and, if provided, 8.3, shall be capable of being reset.
Delete 8.8 and substitute
8.8 Fault output
The CIE shall have an output which signals the fault warning condition. This may be the output specified in 8.9.
The output signal shall be given if the CIE is de-energised.
Delete 8.9 and substitute
8.9 Output to fault warning routing equipment (option with requirements - see also 8.2.4.g)
and 9.4.1.c))
The CIE may have provision for the transmission of fault signals to fault warning routing equipment (item J of
Figure 1 of EN 54-1:1996). This output shall signal the fault warning condition. The output signal shall also be
given if the CIE is de-energised.
9 Disabled condition
Delete 9.3.1 and substitute
9.3.1 Disablements shall either be indicated within 2 s of the completion of the manual operation, or where
a disablement cannot be completed within 2 s, it shall be indicated within 2 s that the disabling process is
running.
Delete 9.3.2 and substitute
9.3.2 The same light emitting indicator may be used as that for the indication of the corresponding fault (see
8.2.1 b), although the indication shall be distinguishable (see also 12.7.3). The same light emitting indicator
and the same indication may be used to indicate a disabled zone and a zone under test.
Delete 9.3.3 b) and substitute
b) suppressed disablement indications shall be capable of being displayed by means of a manual operation
at access level 1 or 2 which interrogates only disablement indications.
Delete 9.4.1 b) and substitute
b) output signals and/or transmission paths to controls for automatic fire protection equipment (item G of
Figure 1 of EN 54-1:1996);
Add in 9.4.1 c) after “EN 54-1”
“:1996”
Add in 9.4.1 after the last paragraph
The disablement and re-enablement of output signals and/or transmission paths to G shall be by means of a
common control and/or individual controls. An indication shall be provided for each output signal and/or
transmission path to G that is capable of being disabled. If only a common control is provided the indication
shall be given by either a common indication and/or individual indications of disablement.
Delete 9.4.2 a) and substitute
a) output signals and/or transmission paths to fire alarm devices (item C of Figure 1 of EN 54-1:1996);
Delete 9.4.2 c) no substitution
Add in 9.4.2 after the last paragraph
The disablement and re-enablement of output signals and/or transmission paths to C shall be by means of a
common control and/or individual controls. An indication shall be provided for each output signal and/or each
transmission path to C that is capable of being individually disabled. If only a common control is provided the
indication shall be given by either a common indication and/or individual indications of disablement.
Add 9.5 d)
d) If all addressable points in a zone are disabled this shall be indicated as a zone disablement.
10 Test condition (option with requirements)
Delete 10.1 b) and substitute
b) a test state shall only be entered and cancelled by a manual operation, at access level 2 or 3;
Delete 10.3 and substitute
10.3 Indication of zones in the test state
10.3.1 Entry to test states shall either be indicated within 2 s of the completion of the manual operation, or
where the entry cannot be completed within 2 s, it shall be indicated within 2 s that the process is running.
10.3.2 Zones in the test state shall be visibly indicated, by means of a separate light emitting indicator for
each zone and/or an alphanumeric display. The same light emitting indicator and the same indication may be
used to indicate a zone under test and a disabled zone.
10.3.3 If the indication is on an alphanumeric display, which cannot simultaneously indicate all of the tests
because of its limited capacity, at least the following shall apply:
a) the presence of test indications which have been suppressed shall be indicated,
b) suppressed test indications shall be capable of being displayed, by means of a manual operation at
access level 1 or 2 which interrogates only test indications.
11 Standardized input/output interface (option with requirements – see also
Annex G)
Insert in 11 a) at the end of the bulleted list a new bullet point
 the disablement and re-enablement of output signals to fire protection equipment (item G of Figure 1
of EN 54-1:1996).
Insert in 11 b) at the end of the bulleted list a new bullet point
 the disablement and re-enablement of output signals to fire protection equipment (item G of Figure 1
of EN 54-1:1996).
12 Design requirements
Delete 12.1 b) and substitute
b) that the components of the CIE have been selected for the intended purpose, and are expected to
operate within their specification when the environmental conditions outside the cabinet of the CIE
comply with class 3k5 of EN 60721-3-3:1995.
Delete the second bullet point in 12.2.1 c) and substitute
 specified means to limit the consequences of faults (see 12.5.2);
Delete 12.3.1 and substitute
12.3.1 The cabinet of the CIE shall be of robust construction, consistent with the method of installation
recommended in the documentation. It shall meet at least classification IP30 of EN 60529:1991 at access
level 2.
Delete 12.5.2 and substitute
12.5.2 Means, specified and provided, to limit the consequences of faults (short circuit or interruption) on a
transmission path shall ensure that the function of remaining operational devices is re-established within 300 s
following the occurrence of the fault.
The manufacturer may specify a time shorter than 300 s. In this case, this specification shall be tested and
verified.
NOTE For further explanation, see Annex H.
Delete 12.5.3 and substitute
12.5.3 If the manufacturer's documentation shows that a CIE contained in more than one cabinet may be
installed in locations distributed within the protected premises, then means shall be specified and provided
which ensure that a short circuit or an interruption in any transmission path between the cabinets does not
affect more than one function (see Annex H) in more than one zone, for longer than 300 s following the
occurrence of the fault.
The manufacturer may specify a time shorter than 300 s. In this case, this specification shall be tested and
verified.
Delete 12.5.4 and substitute
12.5.4 If the CIE is designed to be used with a power supply (item L of Figure 1 of EN 54-1:1996) contained
in a separate cabinet, then an interface shall be provided for at least two transmission paths to the power
supply, such that a short circuit or an interruption in one transmission path does not prevent the supply of
power to the CIE.
Delete 12.6.1 and substitute
12.6.1 Four access levels shall be provided on the CIE from access level 1 (most accessible) to access level
4 (least accessible). Controls at a given access level shall not be accessible at a lower access level.
Delete the first part of 12.7.2 and substitute
12.7.2 If flashing indications are used, both the on period and the off period shall be greater than or equal to
0,25 s, and the frequencies of flash shall not be less than:
Delete 12.8.4 and substitute
12.8.4 A field shall be capable of containing either:
a) at least 16 characters where the display of a fire alarm uses a cross-reference to other information to
identify the location or,
b) at least 40 characters, where the display is intended to include the complete information on the location
of a fire alarm.
Delete 12.8.5 and substitute
12.8.5 Mandatory indications on an alphanumeric display shall be legible for at least one hour following the
display of a new indication of fire or fault, at 0,8 m distance, in ambient light intensities from 5 lux to 500 lux, at
any angle from the normal to the plane of the display up to
 22,5 degrees when viewed from each side,
 15 degrees when viewed from above and below.
The indications shall be legible for at least one hour following the display of a new indication of fire and for at
least 5 minutes for faults. Following this, the indications shall be legible at 100 lux to 500 lux, at the above
distance and angles. It shall be possible to re-establish the legibility at 5 lux to 500 lux by means of a manual
operation at access level 1.
Delete in 12.9.1 a) the second bullet point and substitute
 the transmission of fire alarm signals to or reception of alarm confirmationsignals from fire alarm
routing equipment (item E of Figure 1 of EN 54-1:1996);
Delete in 12.9.1 a) the third bullet point and substitute
 the transmission of fire alarm signals to or reception of alarm confirmation signals from controls for
automatic fire protection equipment (item G of Figure 1 of EN 54-1:1996).
Delete in 12.9.1 b) the fourth bullet point and substitute
 the transmission of fault warning signals to fault warning routing equipment (item J of Figure 1 of
EN 54-1:1996).
Add in 12.9.1 b) a fifth bullet point
 delays to outputs as under 7.11.2;
13 Additional design requirements for software controlled control and indicating
equipment
Delete in 13.2.1 a) the last indent and substitute
The functional description of the main program flow shall be explained using a clear methodology
appropriate to the nature of the software, e.g. graphical represe
...
