Aerospace series - Clips, spring tension - Technical specification

This standard specifies the characteristics, qualification and acceptance requirements for spring tension clips for the support of electrical harnesses, in alloy steel for aerospace applications.
It is applicable whenever referenced.

Luft- und Raumfahrt - Federklammern - Technische Lieferbedingungen

Diese Norm legt die Eigenschaften sowie die Qualifikations- und Annahmebedingungen für Federklammern aus legiertem Stahl zur Halterung von elektrischen Kabelbündeln für Anwendungen in der Luft- und Raumfahrt fest.
Sie ist immer dann anzuwenden, wenn auf sie verwiesen wird.

Aerospace series - Clips, spring tension - Technical specification

General Information

Status
Published
Publication Date
30-Apr-2004
ICS
49.030.50 - Washers and other locking elements
Technical Committee
I08 - Imaginarni 08
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-May-2004
Due Date
01-May-2004
Completion Date
01-May-2004
Ref Project
EN 4585:2003 - Aerospace series - Clips, spring tension - Technical specification

Overview

EN 4585:2003 - "Aerospace series - Clips, spring tension - Technical specification" (CEN) defines the characteristics, qualification and acceptance requirements for alloy-steel spring tension clips used to support electrical harnesses in aerospace applications. The standard applies whenever referenced in procurement or design documents and sets out test methods, sampling plans and marking/packaging requirements to ensure repeatable performance and airworthiness-compatible quality.

Key topics and technical requirements

  • Scope and materials: Spring tension clips in alloy steel for electrical harness retention; material conformity must be verified by chemical analysis or supplier certificate.
  • Quality assurance: Defines qualification (initial) and acceptance (batch) inspection regimes, including sample sizes and test allocation. Qualification is performed on each clip type/size (five samples as a baseline).
  • Dimensional and surface control: Gauging to the product definition; surface roughness per ISO 4288 and visual/non‑destructive inspection (penetrant testing per ISO 3452) to exclude cracks, seams, laps and harmful inclusions.
  • Retention resistance: Minimum radial retention forces specified by nominal clip size (see Figure 1 of EN 4585). Tests use a stainless-steel mandrel (Ra = 1.6 µm per ISO 4288) installed radially into the clip; tensile test machines measure pull‑out force.
  • Corrosion resistance: Clips must survive 50 cycles of immersion in (3.5 ± 0.1)% NaCl solution (8–10 min immersion, then dried to complete 1 h) without cracking, pitting, or intergranular attack when mounted on the mandrel.
  • Reusability (thermal cycling): Clips must retain specified retention force after thermal cycling at the maximum operating temperature (±10 °C) for repeated cycles; removal and retention checks are specified at set intervals.
  • Packaging & identification: Batch marking, labelling (part number, quantity, batch), and packaging to prevent corrosion or damage during handling and storage.
  • Sampling & AQL: Acceptance sampling plans reference ISO 2859‑1 with Acceptance Quality Limits (AQLs) tailored for defect severity (critical/major/minor).

Applications and who uses it

  • Aerospace hardware manufacturers and subcontractors producing or specifying spring tension clips for wiring harnesses.
  • Design and electrical-harness engineers choosing clips for routing, retention and vibration resilience.
  • Quality engineers and test laboratories performing qualification and batch acceptance tests.
  • Procurement teams and OEMs requiring compliance in supply contracts and part specifications.

Related standards

  • EN 9133 (aerospace quality systems - qualification procedure for standard parts)
  • TR 4586 (design recommendations for spring tension clips)
  • TR 4587 (assembly recommendations)
  • ISO 2859‑1, ISO 3452, ISO 4288 (sampling, penetrant testing, surface texture)

EN 4585:2003 ensures reliable harness retention through defined mechanical, corrosion and sampling requirements - essential for aerospace safety, traceability and supplier control.

Frequently Asked Questions

SIST EN 4585:2004 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Clips, spring tension - Technical specification". This standard covers: This standard specifies the characteristics, qualification and acceptance requirements for spring tension clips for the support of electrical harnesses, in alloy steel for aerospace applications. It is applicable whenever referenced.

This standard specifies the characteristics, qualification and acceptance requirements for spring tension clips for the support of electrical harnesses, in alloy steel for aerospace applications. It is applicable whenever referenced.

SIST EN 4585:2004 is classified under the following ICS (International Classification for Standards) categories: 49.030.50 - Washers and other locking elements. The ICS classification helps identify the subject area and facilitates finding related standards.

SIST EN 4585:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

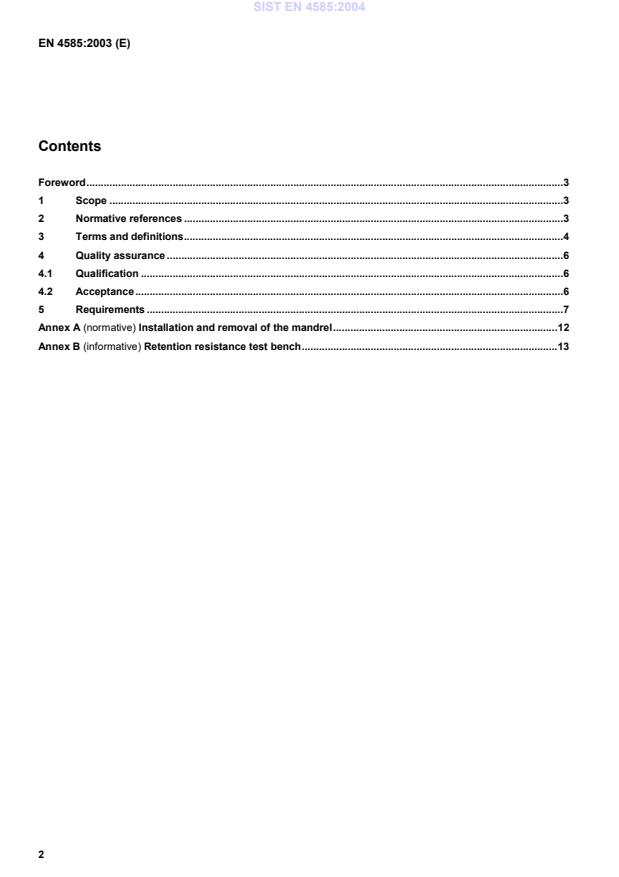

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Clips, spring tension - Technical specificationLuft- und Raumfahrt - Federklammern - Technische LieferbedingungenAerospace series - Clips, spring tension - Technical specification49.030.50Podložke in drugi blokirni elementiWashers and other locking elementsICS:Ta slovenski standard je istoveten z:EN 4585:2003SIST EN 4585:2004en01-maj-2004SIST EN 4585:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 4585February 2003ICS 49.030.50English versionAerospace series - Clips, spring tension - Technical specificationThis European Standard was approved by CEN on 1 November 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovak Republic, Spain, Sweden, Switzerland andUnited Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 4585:2003 ESIST EN 4585:2004

1)Published as AECMA Technical Repor1 at the date of publication of this standardSIST EN 4585:2004
...
