Mechanical structures for electrical and electronic equipment - Aisle containment for IT cabinets - Part 2: Details of air flow, air separation and air cooling requirements (IEC 62966-2:2020)

This part of IEC 62966, dedicated to aisle containment techniques for information technology
(IT) equipment typically used in data centres, describes the quantification of its air tightness, in
particular the air loss ratio that describes the content of the volumetric flow not used for cooling
the IT equipment. This ratio provides an index of efficiency, being inversely proportional to
efficiency (the lower this ratio, the higher the efficiency). This document provides methods to
measure an aisle containment air leakage rate and defines a classification system for aisle
containment leakage.
This document defines:
a) the measurement of the air leakage of the individual components of an aisle containment;
b) a method for calculating the air leakage of an aisle containment based on its individual
components;
c) a method for calculating the air leakage rate of an aisle containment in relation to the utilised
IT equipment;
d) a classification system for aisle containment leakage.

Mechanische Bauweisen für elektrische und elektronische Einrichtungen – Gangeinhausung für IT-Schränke – Teil 2: Einzelheiten zu Luftstrom-, Lufttrennungs- und Luftkühlungsanforderungen (IEC 62966-2:2020)

Structures mécaniques pour équipements électriques et électroniques - Confinement d’allées pour les baies informatiques - Partie 2: Détails des exigences relatives au flux d’air, à la séparation des flux d’air et au refroidissement par air (IEC 62966-2:2020)

IEC 62966-2:2020 est dédiée aux techniques de confinement pour les équipements informatiques typiquement utilisés dans les centres de données, décrit la quantification de leur étanchéité, et plus particulièrement le taux de fuite d’air, qui définit le débit volumique qui ne sert pas à refroidir les équipements informatiques. Ce taux constitue un indice de rendement, fonctionnant à proportionnalité inverse (plus le taux diminue, plus le rendement augmente). Le présent document donne des méthodes pour mesurer le taux de fuite d’air d’un confinement, et définit un système de classification des fuites du confinement.
Le présent document définit:
- la mesure des fuites d’air des composants individuels d’un confinement;
- une méthode de calcul des fuites d’air d’un confinement, basée sur ses composants individuels;
- une méthode de calcul du taux de fuite d’air d’un confinement, en fonction des équipements informatiques utilisés;
- un système de classification des fuites du confinement.

Mehanske konstrukcije za električno in elektronsko opremo - Omejitev prehoda za IT-omarice - 2. del: Podrobnosti o zahtevah za pretok, ločevanje in hlajenje zraka (IEC 62966-2:2020)

General Information

Status
Published
Publication Date
08-Oct-2020
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
07-Oct-2020
Due Date
12-Dec-2020
Completion Date
09-Oct-2020

Buy Standard

Standard
EN IEC 62966-2:2020 - BARVE
English language
27 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN IEC 62966-2:2020
01-december-2020
Mehanske konstrukcije za električno in elektronsko opremo - Omejitev prehoda za
IT-omarice - 2. del: Podrobnosti o zahtevah za pretok, ločevanje in hlajenje zraka
(IEC 62966-2:2020)
Mechanical structures for electrical and electronic equipment - Aisle containment for IT
cabinets - Part 2: Details of air flow, air separation and air cooling requirements (IEC
62966-2:2020)
Mechanische Bauweisen für elektrische und elektronische Einrichtungen –
Gangeinhausung für IT-Schränke – Teil 2: Einzelheiten zu Luftstrom-, Lufttrennungs-
und Luftkühlungsanforderungen (IEC 62966-2:2020)
Structures mécaniques pour équipements électriques et électroniques - Confinement
d’allées pour les baies informatiques - Partie 2: Détails des exigences relatives au flux
d’air, à la séparation des flux d’air et au refroidissement par air (IEC 62966-2:2020)
Ta slovenski standard je istoveten z: EN IEC 62966-2:2020
ICS:
31.240 Mehanske konstrukcije za Mechanical structures for
elektronsko opremo electronic equipment
SIST EN IEC 62966-2:2020 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 62966-2:2020

---------------------- Page: 2 ----------------------
SIST EN IEC 62966-2:2020


EUROPEAN STANDARD EN IEC 62966-2

NORME EUROPÉENNE

EUROPÄISCHE NORM
September 2020
ICS 31.240

English Version
Mechanical structures for electrical and electronic equipment -
Aisle containment for IT cabinets - Part 2: Details of air flow, air
separation and air cooling requirements
(IEC 62966-2:2020)
Structures mécaniques pour équipements électriques et Mechanische Bauweisen für elektrische und elektronische
électroniques - Confinement d'allées pour les baies Einrichtungen - Gangeinhausung für IT-Schränke - Teil 2:
informatiques - Partie 2: Détails des exigences relatives au Einzelheiten zu Luftstrom-, Lufttrennungs- und
flux d'air, à la séparation des flux d'air et au refroidissement Luftkühlungsanforderungen
par air (IEC 62966-2:2020)
(IEC 62966-2:2020)
This European Standard was approved by CENELEC on 2020-08-19. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 62966-2:2020 E

---------------------- Page: 3 ----------------------
SIST EN IEC 62966-2:2020
EN IEC 62966-2:2020 (E)

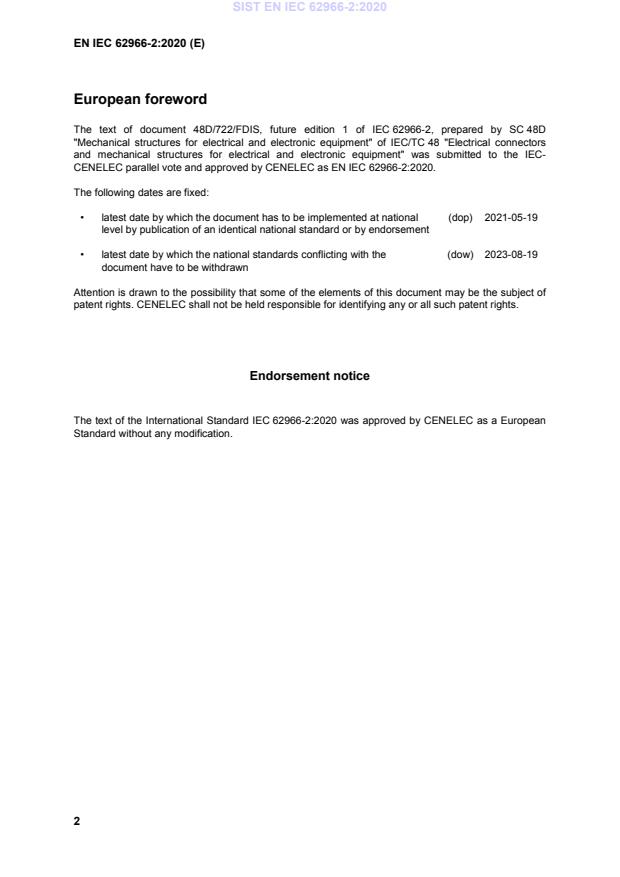

European foreword
