SIST EN 16592:2023
(Main)Packaging - Rigid plastic containers - PET finish 29/25 (12,6)
Packaging - Rigid plastic containers - PET finish 29/25 (12,6)
This document specifies the design and dimensions of the 29 mm screw finish with three (3) thread starts for flat waters and non-carbonated beverages.
This document applies to finishes designated as PET finishes 29/25 (12,6). The dimension (12,6) is the height in millimetres from the top of finish to the bottom of the support ledge.
This finish can be used for aseptic filling and filling which utilizes nitrogen pressure where the internal overpressure does not exceed 1 bar maximum.
This finish is designed to accept only a tamper evident plastic closure, including those with an attachment feature.
Verpackung - Formstabile Kunststoffbehälter - PET-Verschlussmundstück 29/25 (12,6)
Dieses Dokument legt die Konstruktion und die Maße für ein 29 mm-Schraubverschlussmundstück mit drei (3) Gewindegängen für stilles Wasser und kohlensäurefreie Getränke fest.
Dieses Dokument gilt für Verschlussmundstücke als PET-Verschlussmundstücke 29/25 (12,6). Das Maß (12,6) ist die Höhe, in Millimeter, von der Oberkante des Verschlussmundstückes bis zur Unterseite des Halsstützrings.
Dieses Verschlussmundstück kann zur aseptischen Befüllung und zur Befüllung mithilfe von Stickstoffdruck verwendet werden, wobei der innere Überdruck 1 bar nicht überschreiten darf.
Dieses Verschlussmundstück ist dafür ausgelegt, ausschließlich Kunststoffverschlüsse mit Originalitäts-sicherung einschließlich Varianten mit Anbindungselement aufzunehmen.
Emballage - Récipients en plastique rigide - Bague PET 29/25 (12,6)
Le présent document spécifie la conception et les dimensions de la bague à vis de 29 mm à trois (3) filets pour le bouchage des eaux plates et des boissons non carbonatées.
Il est applicable aux bagues désignées « bagues PET 29/25 (12,6) ». La dimension (12,6) est la hauteur, en millimètres, entre le sommet de la bague et le bas de la collerette de préhension.
La bague peut être utilisée pour le remplissage aseptique et pour le remplissage avec utilisation d’azote sous pression, la surpression interne n’excédant pas 1 bar.
Cette bague est prévue pour recevoir uniquement une capsule en plastique avec témoin d’effraction, y compris une capsule restant attachée à la bouteille lors de l’utilisation.
Embalaža - Toge plastične posode - PET-grla 29/25 (12,6)
Ta evropski standard določa zasnovo in mere za navojno grlo s premerom 29 mm ter trojnim (3) začetkom navoja za negazirano vodo in negazirane napitke. To grlo je namensko grlo PET 29/25 (12,6).
To grlo je mogoče uporabljati za aseptično polnjenje in polnjenje z dodajanjem dušika (notranji nadtlak nižji od največ 1 bara). Mera (12,6) je višina v milimetrih od vrha grla do dna podpornega okrajka.
Grlu se lahko doda le plastičen čep, ki varuje pred nedovoljenim odpiranjem. Pri prvem odpiranju se obroček, ki varuje pred nedovoljenim odpiranjem, loči od lupine čepa in ostane na grlu steklenice ali pa se, kot pri povratnih steklenicah, pretrga, vendar ostane pritrjen na lupino čepa.
General Information
- Status
- Published
- Public Enquiry End Date
- 02-Jan-2002
- Publication Date
- 07-Dec-2022
- Technical Committee
- EPO - Packaging - sales and grouped
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 17-Nov-2022
- Due Date
- 22-Jan-2023
- Completion Date
- 08-Dec-2022
Relations
- Effective Date
- 01-Jan-2023
Overview
EN 16592:2022 is the CEN standard that specifies the design and dimensional requirements for the 29 mm screw finish with three thread starts, designated PET finish 29/25 (12,6). The notation (12,6) denotes the vertical height in millimetres from the top of the finish to the bottom of the support ledge. This finish is intended for bottles used for flat water and non-carbonated beverages and is suitable for aseptic and nitrogen-assisted filling processes where internal overpressure does not exceed 1 bar.
Key benefits include consistent closure fit, reliable sealing performance for top/side/inside seals, and compatibility with tamper‑evident plastic closures (including attached caps).
Key Topics
- Design scope: 29 mm screw finish with three (3) thread starts spaced 120° apart.
- Critical dimensions: height X = 12,6 mm (top to bottom of support ledge); preform diameter under the support ledge indicated as Ø28,00 mm.
- Thread geometry:
- Lead: 6,5 mm (travel per turn)
- Thread run-in/run-out radii: 6,25 mm
- 180° of full thread per lead
- Tolerances and weight:
- General tolerance for other radii: ±0,13 mm
- Weight at height 12,6 mm: 2,42 g (using density = 1,335 g/cm³)
- Finish quality requirements:
- Smooth finish free of defects affecting sealing
- Flash not to exceed 0,13 mm per side and shall not be continuous
- Control diameter on blown bottle must be defect-free up to 4 mm down the internal bore and across the sealing surface
- Capping/closure requirements:
- Designed to accept only tamper‑evident plastic closures
- Allows attached caps
- Out-of-parallel sealing surface tolerance: 0,13 mm maximum
- Thread mismatch at mould seam: ≤ 0,10 mm
- No overhang between specified diameters; limited flush step allowed (0,15 mm on one side)
Applications
This finish is primarily used where consistent closure performance is critical:
- Bottled flat water and non-carbonated beverages
- Aseptic filling lines and nitrogen‑assisted filling (internal overpressure ≤ 1 bar)
- Bottle manufacturers, preform designers, closure suppliers and bottling line engineers seeking standardized neck geometry for trouble-free capping and tamper‑evident solutions
Practical considerations: maintain tight control of the preform diameter under the support ledge for reliable capping; ensure capping equipment is properly adjusted and maintained.
Related Standards
- EN 16592:2022 supersedes earlier edition EN 16592:2014 and aligns with CEN/TC 261 packaging guidance.
- Relevant guidance and datasheets referenced in the standard include Cetie data sheets (e.g., FS18.00, DT23.03) and Cetie Guide N°5 for closure application on PET bottles.
For implementation, consult the full EN 16592:2022 text and national standards bodies for official national adoption and any additional implementation notes.
Frequently Asked Questions
SIST EN 16592:2023 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Packaging - Rigid plastic containers - PET finish 29/25 (12,6)". This standard covers: This document specifies the design and dimensions of the 29 mm screw finish with three (3) thread starts for flat waters and non-carbonated beverages. This document applies to finishes designated as PET finishes 29/25 (12,6). The dimension (12,6) is the height in millimetres from the top of finish to the bottom of the support ledge. This finish can be used for aseptic filling and filling which utilizes nitrogen pressure where the internal overpressure does not exceed 1 bar maximum. This finish is designed to accept only a tamper evident plastic closure, including those with an attachment feature.
This document specifies the design and dimensions of the 29 mm screw finish with three (3) thread starts for flat waters and non-carbonated beverages. This document applies to finishes designated as PET finishes 29/25 (12,6). The dimension (12,6) is the height in millimetres from the top of finish to the bottom of the support ledge. This finish can be used for aseptic filling and filling which utilizes nitrogen pressure where the internal overpressure does not exceed 1 bar maximum. This finish is designed to accept only a tamper evident plastic closure, including those with an attachment feature.
SIST EN 16592:2023 is classified under the following ICS (International Classification for Standards) categories: 55.100 - Bottles. Pots. Jars. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 16592:2023 has the following relationships with other standards: It is inter standard links to SIST EN 16592:2015. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN 16592:2023 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2023
Nadomešča:
SIST EN 16592:2015
Embalaža - Toge plastične posode - PET-grla 29/25 (12,6)
Packaging - Rigid plastic containers - PET finish 29/25 (12,6)
Verpackung - Formstabile Kunststoffbehälter - PET-Verschlussmundstück 29/25 (12,6)
Emballage - Récipients en plastique rigide - Bague PET 29/25 (12,6)
Ta slovenski standard je istoveten z: EN 16592:2022
ICS:
55.100 Steklenice. Lonci. Kozarci Bottles. Pots. Jars
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 16592
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2022
EUROPÄISCHE NORM
ICS 55.100 Supersedes EN 16592:2014
English Version
Packaging - Rigid plastic containers - PET finish 29/25
(12,6)
Emballage - Récipients en plastique rigide - Bague PET Verpackung - Formstabile Kunststoffbehälter - PET-
29/25 (12,6) Verschlussmundstück 29/25 (12,6)
This European Standard was approved by CEN on 19 September 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16592:2022 E
worldwide for CEN national Members.

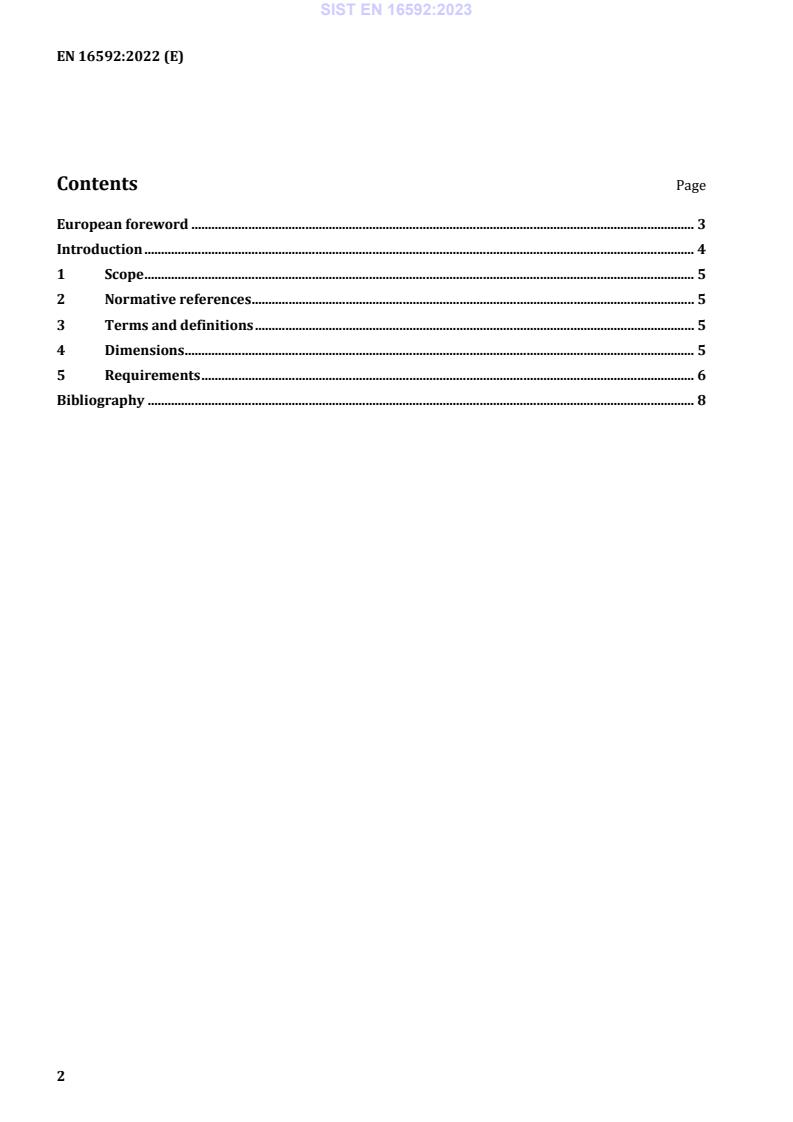

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Dimensions. 5
5 Requirements . 6
Bibliography . 8
European foreword
This document (EN 16592:2022) has been prepared by Technical Committee CEN/TC 261 “Packaging”,
the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2023, and conflicting national standards shall be
withdrawn at the latest by April 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 16592:2014.
In comparison with the previous edition, the following technical modifications have been made:
— the explanations about the tamper evident feature have been removed from the scope;
— the possibility of having an attached cap is now mentioned;
— in Figure 1: removal from the tolerance on the neck diameter Ø28.00, the dimension is now
indicated Ø (28.00); a straight cylindrical zone of 3,50 mm is indicated unde
...
