SIST EN 12730:2015
(Main)Flexible sheets for waterproofing - Bitumen, plastic and rubber sheets for roof waterproofing - Determination of resistance to static loading
Flexible sheets for waterproofing - Bitumen, plastic and rubber sheets for roof waterproofing - Determination of resistance to static loading
This European Standard specifies a test for puncture by static loading for roofing membranes. Mechanical stress on membranes varies from static long-term loads to dynamic short-term loads. This method represents the static category of load where the stress is applied over a period of time.
This European Standard may also be applied for waterproofing.
Abdichtungsbahnen - Bitumen-, Kunststoff- und Elastomerbahnen für Dachabdichtungen - Bestimmung des Widerstandes gegen statische Belastung
Diese Europäische Norm legt ein Prüfverfahren zur Bestimmung der Perforation bei statischer Belastung von Dachabdichtungsbahnen fest. Die mechanische Belastung auf Bahnen variiert von statischen Langzeitbelastungen bis zu dynamischen Kurzzeitbelastungen. Dieser Versuch repräsentiert die statische Belastung, bei der eine Perforation durch ruhende Lasten verursacht wird.
Diese Europäische Norm kann auch für andere Abdichtungen angewendet werden.
Feuilles souples d'étanchéité - Feuilles d'étanchéité de toitures bitumineuses, plastiques et élastomères - Détermination de la résistance au poinçonnement statique
Cette norme européenne définit un essai de détermination de la résistance au poinçonnement statique des feuilles d'étanchéité de toitures. La gamme des contraintes mécaniques exercées sur les feuilles s'étend du chargement statique à long terme au chargement dynamique à court terme. Cet essai représente le cas d'une charge statique produisant une contrainte mécanique étalée dans le temps.
Cette norme peut également être utilisée dans d'autres domaines de l'étanchéité.
Hidroizolacijski trakovi - Bitumenski, polimerni in elastomerni trakovi za tesnjenje streh - Ugotavljanje odpornosti proti statičnim obremenitvam
General Information
- Status
- Published
- Public Enquiry End Date
- 29-Oct-2014
- Publication Date
- 13-May-2015
- Technical Committee
- VLA - Water proofing
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 16-Apr-2015
- Due Date
- 21-Jun-2015
- Completion Date
- 14-May-2015
Relations
- Effective Date
- 01-Jun-2015
Overview
EN 12730:2015 defines a standardized laboratory test for the resistance to static loading (puncture by static loading) of flexible sheets for roof waterproofing - including bitumen, plastic and rubber sheets. Developed by CEN, the method characterises how membranes behave under concentrated, long‑term mechanical stress (static loads applied over time). The standard applies to factory-produced sheets (pre‑installation) and can also be used for waterproofing products beyond roofing.
Key topics and technical requirements
- Test principle: a 10 mm diameter steel ball puncturing tool applies a concentrated load through a loading rod and discs onto a membrane laid on either a soft or hard support.
- Test methods:
- Method A (soft support) - represents unprotected sheets; downward movement limited to 40 mm.
- Method B (hard support) - loose-laid on concrete paving slab to simulate rigid substrate.
- Method C (soft support, protection layer) - for sheets that require protective layers; downward movement limited to 10 mm.
- Apparatus details: calibrated loading rod (2 kg mass), loading discs (3 kg and 5 kg), ball puncturing tool hardened to ~50 HRC, guide rail, clamp/frame and supports.
- Supports: soft support is EPS (CS(10)150) sized 300×300×50 mm (see EN 13163); hard support is concrete slab 300×300×40 mm.
- Specimens & conditioning: three specimens per loading stage; specimen sizes 550×550 mm (Methods A/C) and 300×300 mm (Method B); conditioned at (23 ± 2) °C for ≥24 h.
- Loading procedure: loads applied in 5 kg steps starting at 5 kg up to 20 kg; each loading interval held for 24 h.
- Leak detection: vacuum/pressure device (≥20 mm inner diameter) and 15 kPa pressure difference; no visible bubbles within 60 s = not punctured.
- Result expression: the maximum load not causing leakage in 3/3 specimens for the chosen method.
Practical applications and users
- Manufacturers use EN 12730:2015 for product development, quality control and compliance claims on static puncture resistance.
- Third‑party test laboratories perform certified testing for CE marking and technical data sheets.
- Specifiers, architects and roofing contractors reference results when selecting membranes for roofs subject to static loads (e.g., foot traffic, mounted equipment, temporary scaffolding).
- Procurement and certification bodies use the standard to verify product suitability in tendering and compliance processes.
Related standards
- EN 13163 - EPS specification (soft support material)
- EN 13416 - Sampling rules for flexible sheets
- Relevant product standards for bitumen, plastic and rubber roofing sheets (for full performance context)
EN 12730:2015 provides a clear, reproducible method to assess static puncture resistance, enabling consistent product classification and informed decisions in roofing and waterproofing specifications.
Frequently Asked Questions
SIST EN 12730:2015 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Flexible sheets for waterproofing - Bitumen, plastic and rubber sheets for roof waterproofing - Determination of resistance to static loading". This standard covers: This European Standard specifies a test for puncture by static loading for roofing membranes. Mechanical stress on membranes varies from static long-term loads to dynamic short-term loads. This method represents the static category of load where the stress is applied over a period of time. This European Standard may also be applied for waterproofing.
This European Standard specifies a test for puncture by static loading for roofing membranes. Mechanical stress on membranes varies from static long-term loads to dynamic short-term loads. This method represents the static category of load where the stress is applied over a period of time. This European Standard may also be applied for waterproofing.
SIST EN 12730:2015 is classified under the following ICS (International Classification for Standards) categories: 91.060.20 - Roofs; 91.100.50 - Binders. Sealing materials. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 12730:2015 has the following relationships with other standards: It is inter standard links to SIST EN 12730:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN 12730:2015 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Abdichtungsbahnen - Bitumen-, Kunststoff- und Elastomerbahnen für Dachabdichtungen - Bestimmung des Widerstandes gegen statische BelastungFeuilles souples d'étanchéité - Feuilles d'étanchéité de toitures bitumineuses, plastiques et élastomères - Détermination de la résistance au poinçonnement statiqueFlexible sheets for waterproofing - Bitumen, plastic and rubber sheets for roof waterproofing - Determination of resistance to static loading91.100.50Veziva. Tesnilni materialiBinders. Sealing materials91.060.20StreheRoofsICS:Ta slovenski standard je istoveten z:EN 12730:2015SIST EN 12730:2015en,fr,de01-junij-2015SIST EN 12730:2015SLOVENSKI
STANDARDSIST EN 12730:20011DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12730
April 2015 ICS 91.100.50 Supersedes EN 12730:2001English Version
Flexible sheets for waterproofing - Bitumen, plastic and rubber sheets for roof waterproofing - Determination of resistance to static loading
Feuilles souples d'étanchéité - Feuilles d'étanchéité de toitures bitumineuses, plastiques et élastomères - Détermination de la résistance au poinçonnement statique Abdichtungsbahnen - Bitumen-, Kunststoff- und Elastomerbahnen für Dachabdichtungen - Bestimmung des Widerstandes gegen statische Belastung This European Standard was approved by CEN on 1 February 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 12730:2015 ESIST EN 12730:2015

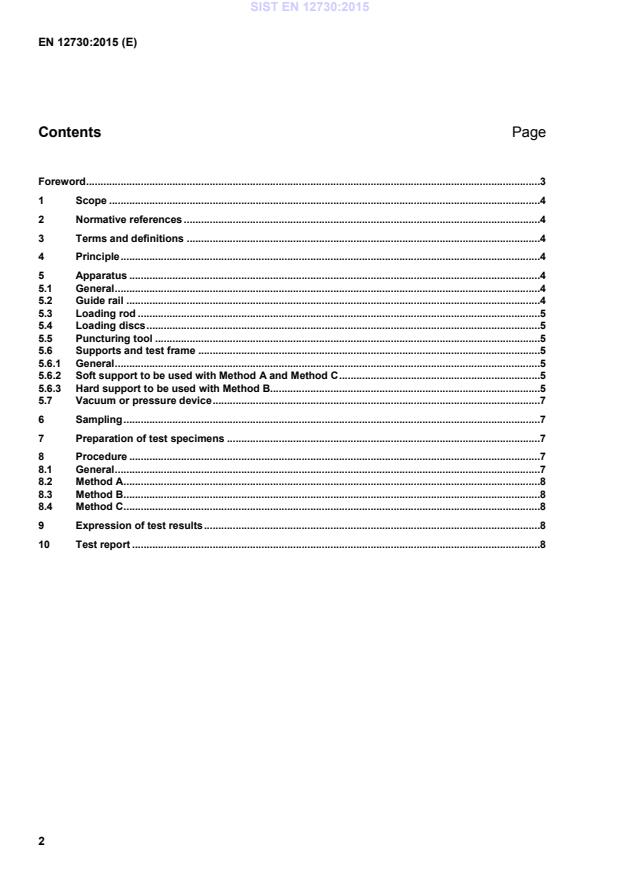

Foreword .3 1 Scope .4 2 Normative references .4 3 Terms and definitions .4 4 Principle .4 5 Apparatus .4 5.1 General .4 5.2 Guide rail .4 5.3 Loading rod .5 5.4 Loading discs .5 5.5 Puncturing tool .5 5.6 Supports and test frame .5 5.6.1 General .5 5.6.2 Soft support to be used with Method A and Method C .5 5.6.3 Hard support to be used with Method B.5 5.7 Vacuum or pressure device .7 6 Sampling .7 7 Preparation of test specimens .7 8 Procedure .7 8.1 General .7 8.2 Method A .8 8.3 Method B .8 8.4 Method C .8 9 Expression of test results .8 10 Test report .8
...
The SIST EN 12730:2015 standard focuses on the evaluation of the resistance of flexible sheets for waterproofing, specifically bitumen, plastic, and rubber sheets used in roofing applications, to static loading. Its clearly defined scope highlights the importance of determining the puncture resistance of roofing membranes, which is critical for ensuring long-term durability and performance under static conditions. One of the key strengths of the SIST EN 12730:2015 standard is its comprehensive testing method, which simulates mechanical stress through long-term static loading. This addresses a significant aspect of waterproofing systems since roofing membranes often experience prolonged stress from environmental factors, rather than just immediate, dynamic impacts. By grounding the method in the static category of load, the standard provides a reliable means to predict the behavior and longevity of waterproofing materials in real-world applications. Furthermore, the relevance of this standard extends beyond roofing applications to other waterproofing solutions, making it a versatile tool for manufacturers and suppliers in the construction industry. By adhering to the SIST EN 12730:2015 standard, stakeholders can ensure compliance with European regulations, promote high-quality products, and enhance consumer trust in waterproofing systems. In summary, SIST EN 12730:2015 serves as an essential guideline for assessing the resilience of roofing and waterproofing membranes against static loading, establishing a foundation for quality assurance and performance reliability in flexible sheets for waterproofing.
La norme SIST EN 12730:2015 constitue un reference essentielle dans le domaine de l’étanchéité des toitures, spécifiquement pour les membranes flexibles en bitume, plastiques et caoutchouc. Son ample portée concerne la détermination de la résistance à la charge statique, ce qui est crucial pour garantir la durabilité et la fiabilité des systèmes d'étanchéité. Parmi ses points forts, cette norme offre une méthode d'essai standardisée qui permet d’évaluer la résistance au perforation des membranes de toiture sous des charges mécaniques statiques. Cela est particulièrement pertinent car les membranes de toit subissent différentes formes de stress, allant des charges statiques à long terme à des charges dynamiques à court terme. En se concentrant sur la catégorie des charges statiques, la norme garantit une évaluation précise qui aide les fabricants et les utilisateurs à choisir des produits adaptés à des conditions spécifiques. De plus, la norme SIST EN 12730:2015 est pertinente non seulement pour les membranes de toiture, mais elle peut également être appliquée à d'autres applications d’étanchéité. Cela élargit son champ d'application et sa valeur dans diverses industries. En intégrant ces tests dans le développement de nouveaux produits, les fabricants peuvent assurer une qualité supérieure et une conformité aux exigences réglementaires. En somme, la SIST EN 12730:2015 s'établit comme une référence cruciale, alliant rigueur scientifique et applicabilité pratique, ce qui la rend indispensable pour les professionnels dans le secteur de l'étanchéité.
SIST EN 12730:2015 표준은 지붕 방수용 비트umen, 플라스틱 및 고무 시트를 위한 다양한 유형의 유연 시트의 정적 하중에 대한 저항성을 평가하는 테스트 방법을 상세히 규정하고 있습니다. 이 표준의 범위는 방수 멤브레인에 대한 정적 하중에 의한 천공 시험을 포함하며, 이는 기계적 스트레스가 장기적인 정적 하중에서 동적 짧은 하중까지 다양함을 고려합니다. 이 표준의 강점은 주어진 테스트 방법이 시간이 지남에 따라 적용되는 스트레스의 정적 범주를 대표한다는 점입니다. 이는 건축자재의 품질을 판단하는 데 있어 중요하며, 특히 방수 상비성의 신뢰도를 높이는 데 기여합니다. 따라서 SIST EN 12730:2015는 지붕 방수 분야에서의 적용 가능성이 매우 높아, 업계 전문가들에게 필수적인 기준으로 자리 잡고 있습니다. 또한, 이 표준은 방수 작업의 품질을 보장하기 위해 필요한 기술적 요구 사항을 충족하도록 하여 시공 품질을 향상시키고, 제품의 내구성 및 신뢰성을 보장합니다. 따라서 SIST EN 12730:2015는 효율적인 방수 시스템 설계와 시공에 필수적인 매개체로 작용하며, 관련 업계와 소비자에게도 중대한 의미를 지닙니다.
SIST EN 12730:2015は、屋根防水用のビチューメン、プラスチック、およびゴムシートに関する柔軟シートの標準化文書であり、静的荷重に対する耐性を評価するためのテストを規定しています。この標準は、屋根膜の穿刺試験に焦点を当てており、静的な長期荷重から動的な短期荷重にわたる機械的ストレスに対応します。具体的には、負荷が一定の時間にわたって適用される静的な負荷のカテゴリを代表しています。 この標準の強みは、屋根防水膜の性能評価に対する明確な指針を提供している点です。特に、屋根の防水に使用される材料の物理的特性を確認するための信頼性の高い方法を示しています。SIST EN 12730:2015のテスト方法は、さまざまな施工状況における膜の耐久性を評価するための効果的な手段であり、これにより市場のニーズに応じた品質保証が実現されます。 また、この標準は、水防止技術の向上に寄与し、安全で持続可能な建築環境を促進します。屋根の防水に関連するあらゆるプロジェクトにおいて、SIST EN 12730:2015の適用は、実用的かつ重要な情報を提供し、業界全体の信頼性向上に貢献します。このように、SIST EN 12730:2015は、屋根防水に関する基準でありながら、その適用範囲は広く、防水業界において不可欠な役割を果たしています。
Die SIST EN 12730:2015 ist ein bedeutendes Dokument, das sich mit flexiblen Bahnen für die Abdichtung, insbesondere mit Bitumen-, Kunststoff- und Gummibahnen für die Dachabdichtung, beschäftigt. Der spezifische Schwerpunkt dieser Norm liegt auf der Bestimmung der Widerstandsfähigkeit gegen statische Belastungen, was für die langfristige Haltbarkeit und Zuverlässigkeit von Dachabdichtungen von entscheidender Bedeutung ist. Der Geltungsbereich dieser Norm umfasst eine Testmethode, die einen Puncture-Test bei statischer Belastung an Dachmembranen definiert. Diese Norm ist besonders relevant, da sie nicht nur aktuelle Anforderungen an die Zementierung und Langlebigkeit von Dachsystemen berücksichtigt, sondern auch die unterschiedlichen mechanischen Beanspruchungen, denen die Membranen ausgesetzt sind. Insbesondere behandelt sie die statischen Langzeitbelastungen, die über längere Zeiträume auf die Membranen einwirken können. Ein herausragendes Merkmal der SIST EN 12730:2015 ist ihre umfassende Anwendbarkeit, da die Testmethode nicht nur auf Dachabdichtungen, sondern auch auf andere Bereiche der Abdichtungen angewendet werden kann. Diese Flexibilität macht die Norm äußerst relevant für Hersteller und Planer, die dafür sorgen müssen, dass ihre Produkte den hohen Anforderungen an die Widerstandsfähigkeit und Langlebigkeit entsprechen. Die Stärken dieser Norm liegen somit in ihrer klaren Struktur, die es Fachleuten ermöglicht, die statischen Belastungen zu quantifizieren und entsprechende Materialien auszuwählen. Zudem fördert die Norm die Standardisierung innerhalb der Branche, wodurch ein einheitliches Qualitätsniveau gewährleistet wird. Das Ergebnis ist eine erhöhte Sicherheit bei der Anwendung von Abdichtungssystemen, die essenziell ist, um die Integrität von Bauwerken zu gewährleisten. Insgesamt stellt die SIST EN 12730:2015 eine wesentliche Ressource für alle Beteiligten im Bereich der Dachabdichtung dar und setzt Maßstäbe für die Qualität und Leistung von flexiblen Abdichtungsbahnen.
