Aerospace series - Heat-resisting alloy X4NiCrTiMoV26-15 (1.4980) - Solution treated and precipitation treated - Bars and sections - a or D ≤ 100 mm - Rm ≥ 900 MPa

This document specifies the requirements relating to:
Heat-resisting alloy X6NiCrTiMoV26-15 (1.4980)
Consumable electrode remelted
Solution treated and precipitation treated
Bars and sections
a or D ≤ 100 mm
Rm ≥ 900 MPa
for aerospace applications.
W.nr: 1.4980.
ASD-STAN designation: FE-PA2601.

Luft- und Raumfahrt - Hochwarmfeste Legierung X4NiCrTiMoV26-15 (1.4980) - Lösungsgeglüht und ausscheidungsgehärtet - Stangen und Profile - a oder D ≤ 100 mm - Rm ≥ 900 MPa

No Scope available

Série aérospatiale - Alliage résistant à chaud X4NiCrTiMoV26-15 (1.4980) - Mis en solution et précipité - Barres et profilés - a ou D ≤ 100 mm - Rm ≥ 900 MPa

Le présent document spécifie les exigences relatives à :
Alliage résistant à chaud X6NiCrTiMoV26-15 (1.4980)
Refondu à l'électrode consommable
Mis en solution et précipité
Barres et profilés
a ou D ≤ 100 mm
Rm ≥ 900 MPa
pour les applications aérospatiales.
W.nr : 1.4980.
Désignation ASD-STAN : FE-PA2601.

Aeronavtika - Toplotno odporna zlitina X4NiCrTiMoV26-15 (1.4980) - Topilno žarjena in izločevalno utrjena - Palice in profili - a ali D ≤ 100 mm - Rm ≥ 900 MPa

General Information

Status
Published
Public Enquiry End Date
30-Jul-2024
Publication Date
07-Jan-2026
ICS
49.025.05 - Ferrous alloys in general
Technical Committee
I13 - Imaginarni 13
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
05-Jan-2026
Due Date
12-Mar-2026
Completion Date
08-Jan-2026
Ref Project
EN 4315:2025 - Aerospace series - Heat-resisting alloy X6NiCrTiMoV26-15 (1.4980) - Consumable electrode remelted - Solution treated and precipitation treated - Bars and sections - a or D ≤ 100 mm - Rm ≥ 900 MPa

Relations

Replaces
SIST EN 4315:2007 - Aerospace series - Heat resisting alloy FE-PA2601 (X6NiCrTiMoV26-15) - Solution treated and precipitation treated, bar and section a or D <= 100 mm, Rm >= 900 MPa
Effective Date
28-Sep-2022

Overview

EN 4315 (prEN 4315:2024 / referenced as EN 4315:2025) is a CEN aerospace-series material standard that specifies requirements for the heat‑resisting nickel‑base alloy W.nr 1.4980 used in aerospace applications. The draft identifies the alloy as X4NiCrTiMoV26‑15 (W.nr 1.4980); the user-supplied title uses X6NiCrTiMoV26‑15 - verify the final normative designation in the published edition. The standard covers consumable-electrode remelted material in the form of bars and sections (rolled or extruded) with maximum cross-section a or D ≤ 100 mm and a minimum tensile strength Rm ≥ 900 MPa.

Key topics and requirements

  • Alloy and melting: High‑nickel, chromium‑titanium‑molybdenum‑vanadium heat‑resisting alloy, consumable electrode remelted for improved cleanliness and homogeneity. W.nr: 1.4980.
  • Forms and dimensions: Bars and sections produced by rolling or extrusion; limit dimension a or D ≤ 100 mm.
  • Heat treatments:
    • Solution treatment: 980 °C ± 10 °C, t ≥ 1 h, followed by oil or water quench (OQ/WQ).
    • Precipitation treatment (when required): 720 °C ± 10 °C, t ≥ 16 h / AC.
  • Mechanical properties (delivery/acceptance):
    • Tensile strength Rm ≥ 900 MPa
    • Proof stress Rp0.2 ≥ 590 MPa (where applicable)
    • Elongation A ≥ 13%, reduction of area ≥ 20%
    • Hardness: lower limits for solution treated and specified range for precipitation treated conditions per the table in the standard.
  • Testing and inspection:
    • Test pieces, sampling and mechanical tests per EN 4700‑002.
    • Non‑destructive testing: Ultrasonic testing (UT) Class 2 for internal imperfections; visual inspection (VT) for external imperfections.
    • Grain size requirement and optional macrostructure inspection to be agreed on order.
  • Qualification and delivery: Product qualification per EN 2043; technical specification and delivery conditions referenced to EN 4700‑002.

Applications and users

  • Intended for aerospace high‑temperature components where high tensile strength and heat resistance are required (e.g., structural or engine parts subject to elevated temperatures).
  • Primary users: materials engineers, procurement/specification writers, aerospace manufacturers, heat‑treatment and quality engineers, and suppliers of semi‑finished nickel‑base products who need compliance with aerospace material standards.

Related standards

  • EN 4700‑002 - Technical specification for bars and sections (wrought products)
  • EN 2043 - Qualification of semi‑finished products (non‑forgings/castings)
  • EN 4258 - Organization of aerospace metallic standards
  • EN 4500‑003 - Rules for drafting heat‑resisting alloy material standards

Keywords: EN 4315, X4NiCrTiMoV26‑15, 1.4980, consumable electrode remelted, solution treated, precipitation treated, bars and sections, aerospace alloy, Rm ≥ 900 MPa.

Frequently Asked Questions

SIST EN 4315:2026 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Heat-resisting alloy X4NiCrTiMoV26-15 (1.4980) - Solution treated and precipitation treated - Bars and sections - a or D ≤ 100 mm - Rm ≥ 900 MPa". This standard covers: This document specifies the requirements relating to: Heat-resisting alloy X6NiCrTiMoV26-15 (1.4980) Consumable electrode remelted Solution treated and precipitation treated Bars and sections a or D ≤ 100 mm Rm ≥ 900 MPa for aerospace applications. W.nr: 1.4980. ASD-STAN designation: FE-PA2601.

This document specifies the requirements relating to: Heat-resisting alloy X6NiCrTiMoV26-15 (1.4980) Consumable electrode remelted Solution treated and precipitation treated Bars and sections a or D ≤ 100 mm Rm ≥ 900 MPa for aerospace applications. W.nr: 1.4980. ASD-STAN designation: FE-PA2601.

SIST EN 4315:2026 is classified under the following ICS (International Classification for Standards) categories: 49.025.05 - Ferrous alloys in general. The ICS classification helps identify the subject area and facilitates finding related standards.

SIST EN 4315:2026 has the following relationships with other standards: It is inter standard links to SIST EN 4315:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

You can purchase SIST EN 4315:2026 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.

Standards Content (Sample)

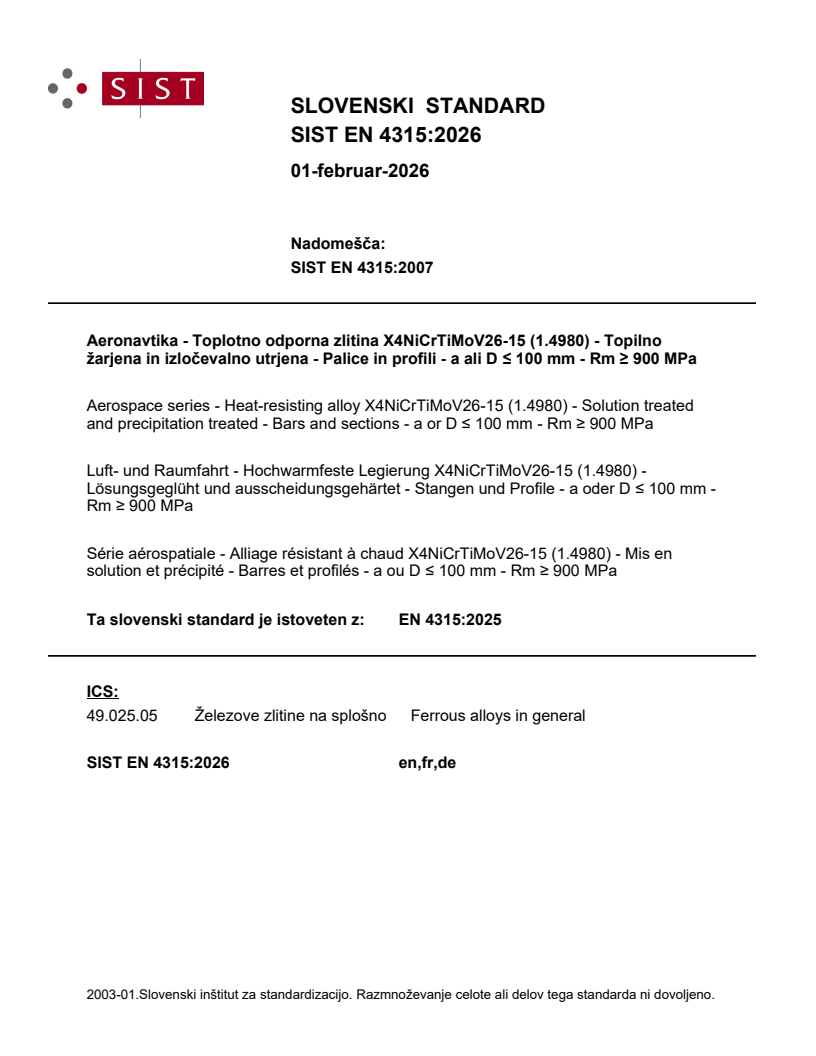

SLOVENSKI STANDARD
01-februar-2026
Nadomešča:
SIST EN 4315:2007
Aeronavtika - Toplotno odporna zlitina X4NiCrTiMoV26-15 (1.4980) - Topilno
žarjena in izločevalno utrjena - Palice in profili - a ali D ≤ 100 mm - Rm ≥ 900 MPa
Aerospace series - Heat-resisting alloy X4NiCrTiMoV26-15 (1.4980) - Solution treated
and precipitation treated - Bars and sections - a or D ≤ 100 mm - Rm ≥ 900 MPa
Luft- und Raumfahrt - Hochwarmfeste Legierung X4NiCrTiMoV26-15 (1.4980) -
Lösungsgeglüht und ausscheidungsgehärtet - Stangen und Profile - a oder D ≤ 100 mm -
Rm ≥ 900 MPa
Série aérospatiale - Alliage résistant à chaud X4NiCrTiMoV26-15 (1.4980) - Mis en
solution et précipité - Barres et profilés - a ou D ≤ 100 mm - Rm ≥ 900 MPa
Ta slovenski standard je istoveten z: EN 4315:2025
ICS:
49.025.05 Železove zlitine na splošno Ferrous alloys in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

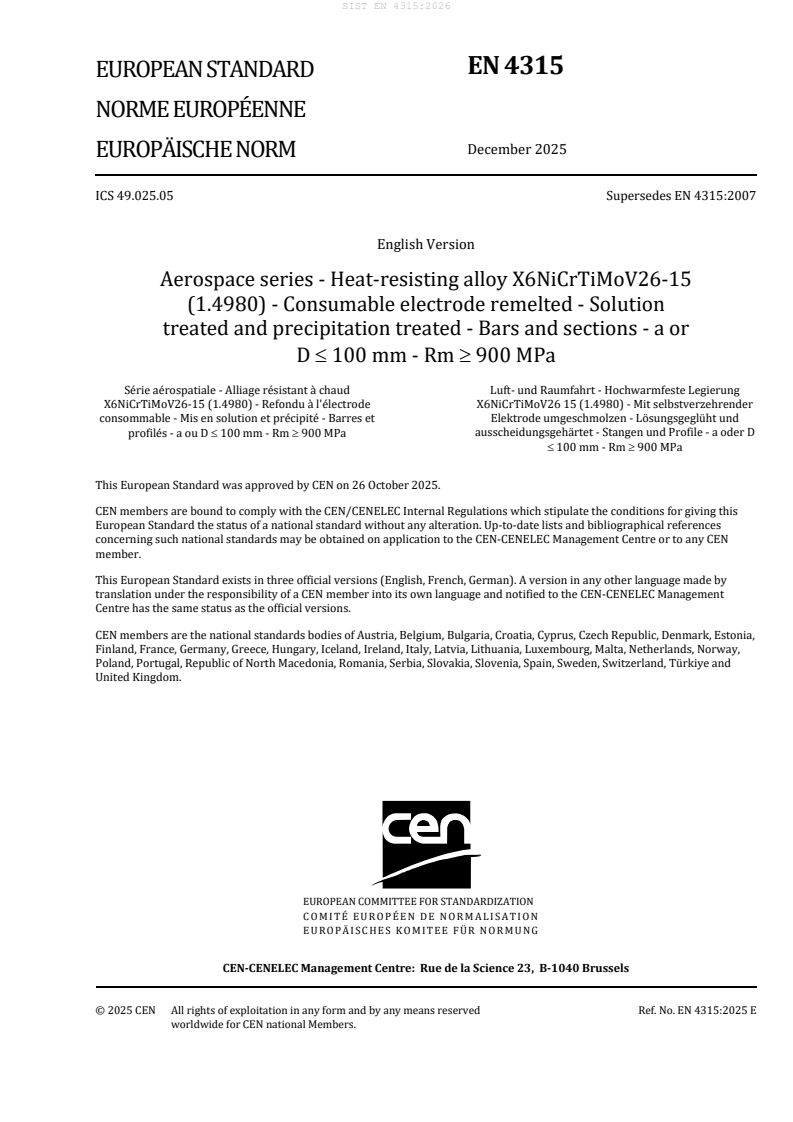

EN 4315
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2025
EUROPÄISCHE NORM
ICS 49.025.05 Supersedes EN 4315:2007
English Version
Aerospace series - Heat-resisting alloy X6NiCrTiMoV26-15
(1.4980) - Consumable electrode remelted - Solution
treated and precipitation treated - Bars and sections - a or
D  100 mm - Rm  900 MPa
Série aérospatiale - Alliage résistant à chaud Luft- und Raumfahrt - Hochwarmfeste Legierung
X6NiCrTiMoV26-15 (1.4980) - Refondu à l'électrode X6NiCrTiMoV26 15 (1.4980) - Mit selbstverzehrender
consommable - Mis en solution et précipité - Barres et Elektrode umgeschmolzen - Lösungsgeglüht und
profilés - a ou D  100 mm - Rm  900 MPa ausscheidungsgehärtet - Stangen und Profile - a oder D
 100 mm - Rm  900 MPa
This European Standard was approved by CEN on 26 October 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4315:2025 E
worldwide for CEN national Members.

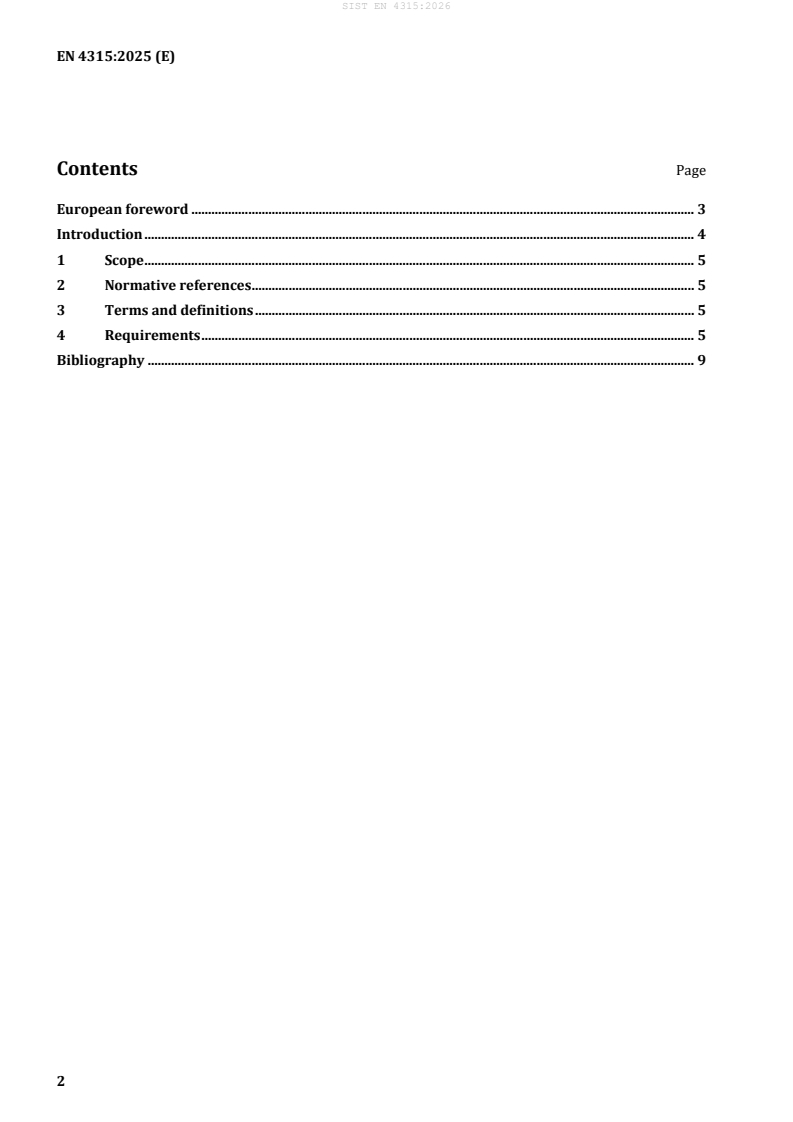

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 9

European foreword
This document (EN 4315:2025) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by June 2026, and conflicting national standards shall be withdrawn at
the latest by June 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 4315:2007.
— update of the material designation;
— corr
...
