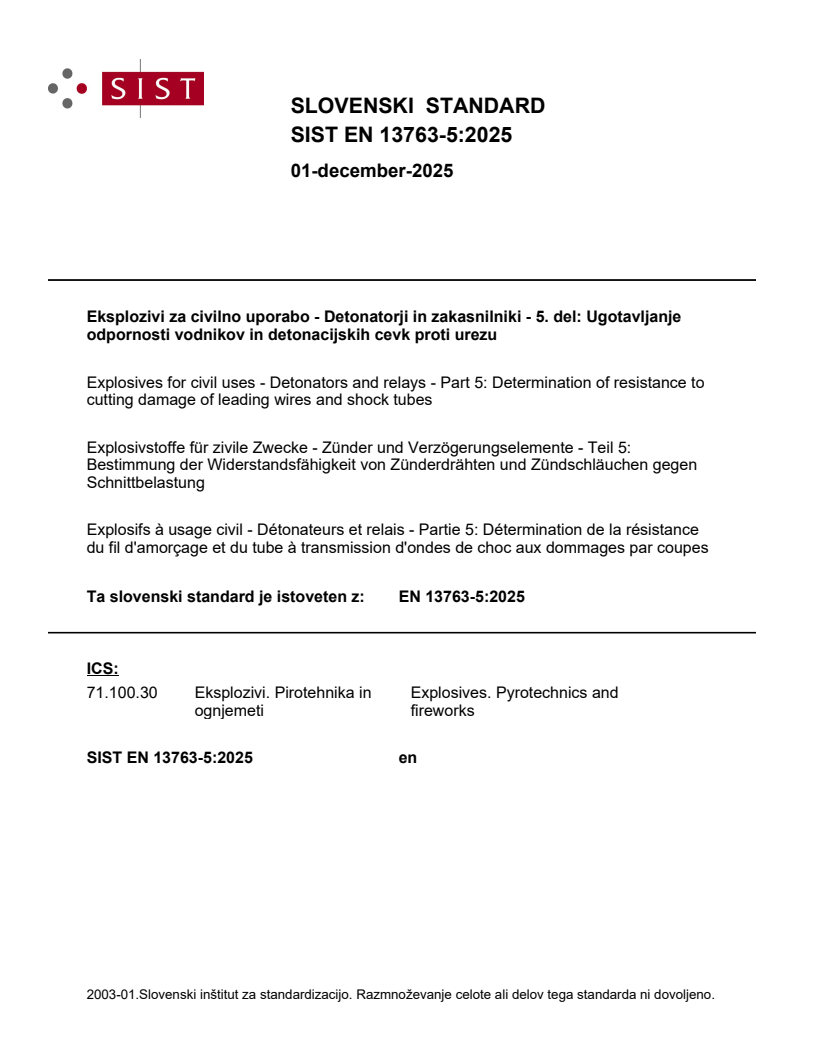

SIST EN 13763-5:2025

SLOVENSKI STANDARD
01-december-2025
Eksplozivi za civilno uporabo - Detonatorji in zakasnilniki - 5. del: Ugotavljanje
odpornosti vodnikov in detonacijskih cevk proti urezu
Explosives for civil uses - Detonators and relays - Part 5: Determination of resistance to
cutting damage of leading wires and shock tubes
Explosivstoffe für zivile Zwecke - Zünder und Verzögerungselemente - Teil 5:
Bestimmung der Widerstandsfähigkeit von Zünderdrähten und Zündschläuchen gegen
Schnittbelastung
Explosifs à usage civil - Détonateurs et relais - Partie 5: Détermination de la résistance
du fil d'amorçage et du tube à transmission d'ondes de choc aux dommages par coupes
Ta slovenski standard je istoveten z: EN 13763-5:2025
ICS:
71.100.30 Eksplozivi. Pirotehnika in Explosives. Pyrotechnics and
ognjemeti fireworks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

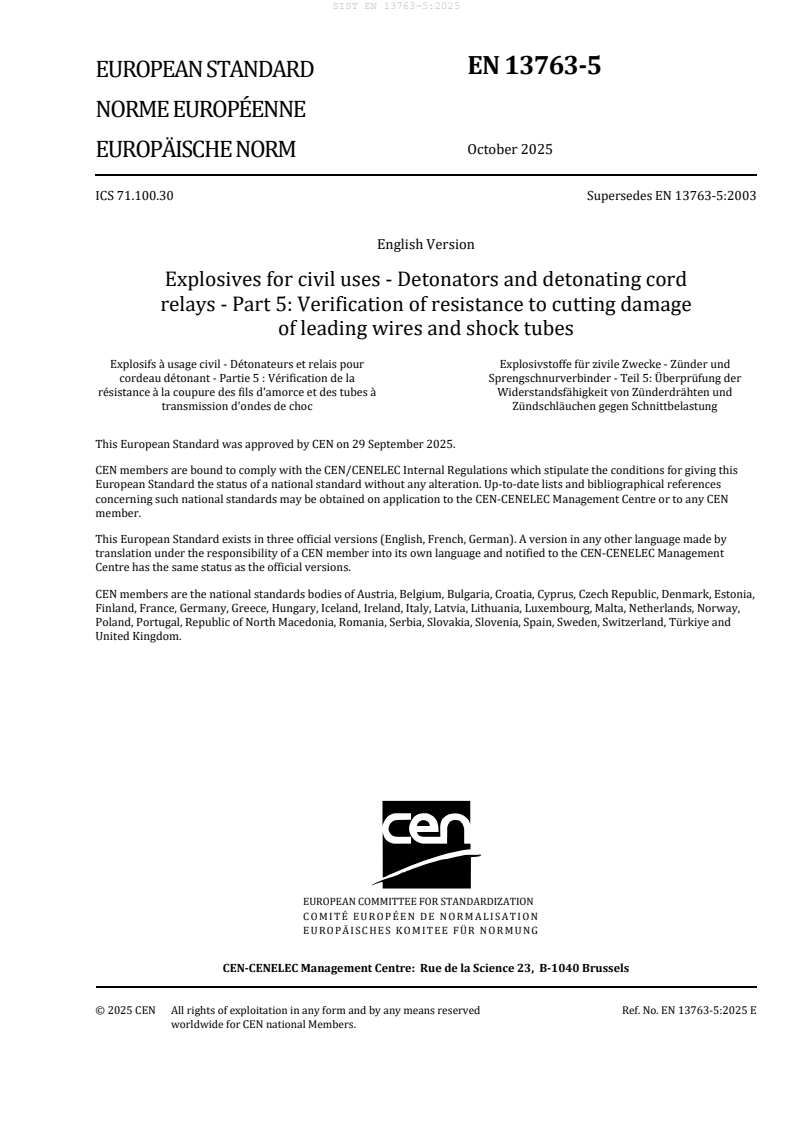

EN 13763-5
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13763-5:2003
English Version
Explosives for civil uses - Detonators and detonating cord
relays - Part 5: Verification of resistance to cutting damage
of leading wires and shock tubes
Explosifs à usage civil - Détonateurs et relais pour Explosivstoffe für zivile Zwecke - Zünder und
cordeau détonant - Partie 5 : Vérification de la Sprengschnurverbinder - Teil 5: Überprüfung der
résistance à la coupure des fils d'amorce et des tubes à Widerstandsfähigkeit von Zünderdrähten und
transmission d'ondes de choc Zündschläuchen gegen Schnittbelastung
This European Standard was approved by CEN on 29 September 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13763-5:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 5
5 Apparatus . 5
)
6 Preparation of test sample . 7
6.1 Leading wires . 7
6.2 Shock tubes . 8
7 Procedure . 8
7.1 Leading wires . 8
7.2 Shock tubes . 8
8 Expression of results . 9
8.1 Leading wires . 9
8.2 Shock tubes . 9
9 Test report . 9
Annex A (informative) Example of a cutting damage test apparatus . 10
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the market
and supervision of explosives for civil uses aimed to be covered. 11
Bibliography . 12

European foreword
This document (EN 13763-5:2025) has been prepared by Technical Committee CEN/TC 321 “Explosives
for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026 and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13763-5:2003.
a) the document title has been changed from “Detonators and relays — Part 5: Determination of
resistance to cutting damage of leading wires and shock tubes” to “Detonators and detonating cord
relays — Part 5: Verification of resistance to cutting damage of leading wires and shock tubes”;
b) the Introduction has been removed;
c) the Scope has been revised to clarify the covered and not covered explosives;
d) the normative references have been updated;
e) the Clause 4 “Principle” has been added;
f) the Clause “Apparatus” has been revised and completed;
g) the Clause “Test pieces” is now called “Preparation of test sample” and has been revised to include
the conditioning of the test pieces that is no longer part of the clause “Procedure”;
h) the Clause “Procedure” has been revised and further detailed;
i) the Clause 8 “Expression of results” has been added;
j) the Clause “Test report” does no longer require conformity with EN ISO/IEC 17025 and the
information to be provided has been revised;
k) the former Annex A “Range of applicability of the test method” has been removed;
l) a new Annex A “Example of a cutting damage test apparatus” has been added;
m) the Annex ZA has been updated;
n) the Bibliography has been added and lists EN ISO/IEC 17025:2017.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13763 series, published under the general title Explosives for civil uses —
Detonators and detonating cord relays, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This test method specifies a test method for the verification of the resistance to cutting damage of leading
wires and shock tubes of leading wires of electric and electronic detonators as well as shock tubes of non-
electric detonators, surface connectors and electronic detonators.
This document does not apply to detonating cord relays and electronic initiation systems.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13763-1:2025, Explosives for civil uses — Detonators and detonating cord relays — Part 1:
Requirements
EN 13857-1:2025, Explosives for civil uses — Part 1: Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13857-1:2025 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp/
4 Principle
During use, the insulation on the leading wires and the plastic tubing of shock tubes can be drawn over
sharp edges cutting into the material. In case of leading wires, this could cause short cuts and in case of
shock tubes, this could cause misfires.
For the verification of the resistance to cutting damage, a test piece is drawn over a cutting edge whilst
being subjected to a load in longitudinal direction. For leading wires, it is observed whether an electrical
contact is made between the conductor wire of the test piece and the cutting edge. For shock tubes, the
test pieces are subsequently immersed in water and initiated afterwards; it is checked whether the test
piece initiates.
5 Apparatus
5.1 Cutting damage test apparatus, comprising the components 5.1.1 to 5.1.6. The principle of the
apparatus and the distances between the components are shown in Figure 1.
An example of the cutting damage test apparatus is shown in Figure A.1.
5.1.1 Cutting edge, made from tungsten carbide, having a 90° cutting edge radiused to
(0,07 ± 0,02) mm.
5.1.2 Pulley A, having a diameter of (32,0 ± 1) mm.
5.1.3 Pulley B, having a diameter of (32,0 ± 1) mm. It shall be possible to attach the test piece to the
pulley so that it stays attached when the pulley B is rotated.
+0,48
-1
5.1.4 Motor, with a gearbox, capable of rotating pulley B (5.1.3) at a rotation speed of min
7, 5
once turned on and maintaining its final position when switched off.
5.1.5 Electrical device, to detect when electrical contact is made between the electrical conductor in
a leading wire test piece and the cutting edge (5.1.1).
EXAMPLE A multimeter that is connected to the cutting edge and the electrical conductor of the test piece.
5.1.6 Spring balance, capable to measure up to 8 N and readable to the nearest 0,1 N.
Dimensions in millimetres
Key
1 spring balance (5.1.6)
2 cutting edge (5.1.1)
3 pulley A (5.1.2)
4 pulley B (5.1.3)
5 remaining shock tube/leading wire
6 point of attachment between test piece and spring balance (5.1.6)
7 distance at start of test
8 point of attachment between the test piece and the pulley B (5.1.3)
9 test piece
Figure 1 — Principle of cutting damage test apparatus
5.2 Immersion test apparatus, as shown in Figure 2, comprising the components 5.2.1 and 5.2.2.
5.2.1 Water tank, with a depth of (0,50 ± 0,05) m. The water shall have a temperature of (20 ± 2) °C.
5.2.2 Bending rig, in cylindrical form, with a bending radius of (1,6 ± 0,1) times the diameter of the
shock tube test piece around a cylindrical rod (5.2.3) maintaining it in a “U”-form.
5.2.3 Rod, having a diameter equal to the diameter of the shock tube test piece.
Dimensions in millimetres
Key
1 shock tube test piece
2 water tank (5.2.1) with water
3 bending rig (5.2.2)
4 rod (5.2.3)
5 part of the shock tube test piece that is cut on the outer radius
d diameter of the shock tube test piece
t
Figure 2 — Water tank and cylindrical bending rig
5.3 Conditioning chamber, capable of maintaining the maximum temperature of use as specified for
the explosive under test in accordance with EN 13763-1:2025, 4.2.1.5 (for leading wires in electric
detonators), 4.4.1.5 (for leading wires in electronic detonators) or 4.9.1.1 (for shock tubes), with a
toleran
...
