DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2024
ICS 49.030.20 Will supersede EN 4162:2016
English Version
Aerospace series - Screw, 100° countersunk normal head,
offset cruciform recess, coarse tolerance normal shank,
medium length thread, in alloy steel, cadmium plated -
Classification: 1 100 MPa (at ambient
temperature)/235 °C
Série aérospatiale - Vis à tête fraisée 100° normale, à Luft- und Raumfahrt - 100°-Senkschraube mit
empreinte cruciforme déportée, tige normale à Flügelkreuzschlitz, mittlere Gewindelänge, aus
tolérance large, filetage moyen, en acier allié, cadmiées legiertem Stahl, verkadmet - Klasse: 1 100 MPa (bei
- Classification: 1 100 MPa (à température Raumtemperatur)/235 °C
ambiante)/235 °C
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-
STAN.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N

E UROPÄISCHES KOMITEE FÜR NORMUN G

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 4162:2024 E
worldwide for CEN national Members.

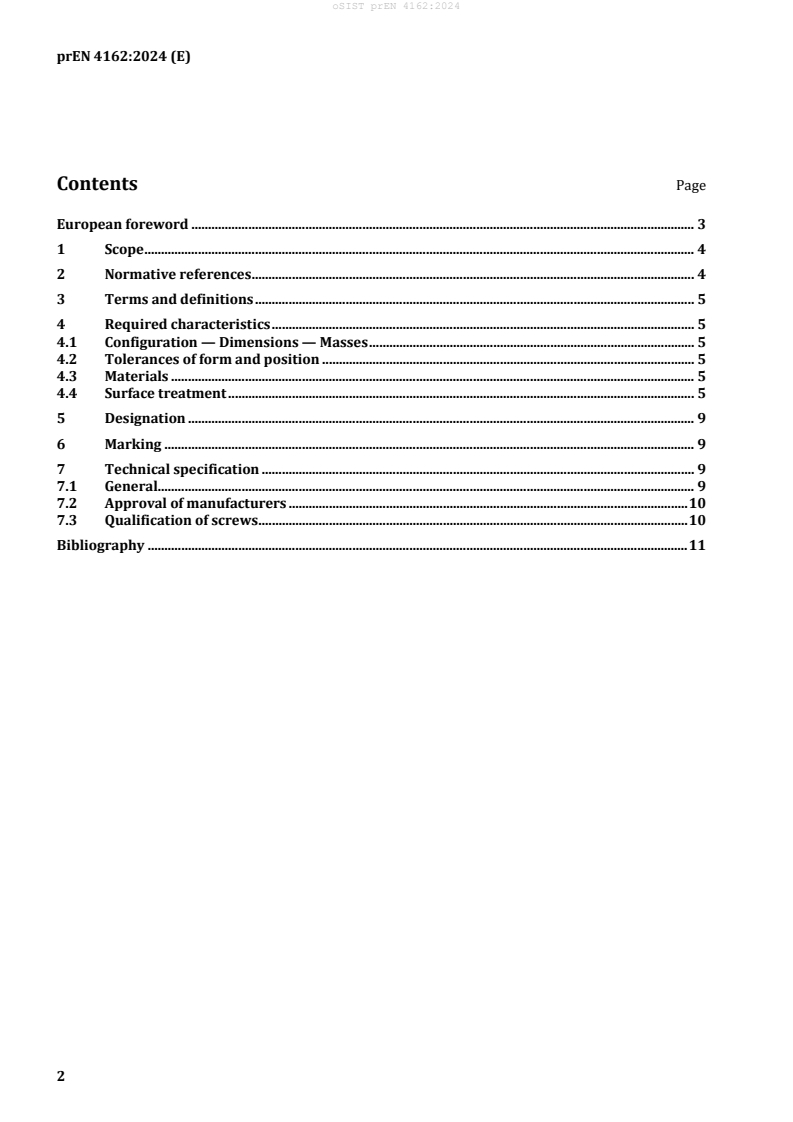

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 5
4 Required characteristics . 5
4.1 Configuration — Dimensions — Masses . 5
4.2 Tolerances of form and position . 5
4.3 Materials . 5
4.4 Surface treatment . 5
5 Designation . 9
6 Marking . 9
7 Technical specification . 9
7.1 General. 9
7.2 Approval of manufacturers . 10
7.3 Qualification of screws . 10
Bibliography . 11

European foreword
This document (prEN 4162:2024) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 4162:2016.
This document includes the following significant technical changes with respect to EN 4162:2016:
— Clause 3 „Terms and definitions“ added;
— update of 4.3 „Surface treatment“;
— Table 3 has been updated with new drive code references.
1 Scope
This document specifies the characteristics of bolts, 100° countersunk normal head, offset cruciform
recess, coarse tolerance normal shank, medium length thread, in alloy steel, cadmium plated.
1 2
Classification: 1 100 MPa /235 °C .
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2133:2020, Aerospace series — Cadmium plating of steels with specified
...
