SIST ETS 300 019-1-0:2006

SLOVENSKI STANDARD
01-februar-2006
Inženiring opreme (EE) – Okoljski pogoji in preskusi vplivov okolja za
telekomunikacijsko opremo – 1-0. del: Klasifikacija okoljskih pogojev – Uvod
Equipment Engineering (EE); Environmental conditions and environmental tests for
telecommunications equipment; Part 1-0: Classification of environmental conditions;
Introduction
Ta slovenski standard je istoveten z: ETS 300 019-1-0 Edition 1
ICS:
19.040 Preskušanje v zvezi z Environmental testing
okoljem
33.050.01 Telekomunikacijska Telecommunication terminal
terminalska oprema na equipment in general
splošno
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 019-1-0
TELECOMMUNICATION May 1994
STANDARD
Source: ETSI TC-EE Reference: DE/EE-01019-1-0
ICS: 33.080
Evironment, test, equipment
Key words:
Equipment Engineering (EE);
Environmental conditions and environmental tests for
telecommunications equipment
Part 1-0: Classification of environmental conditions
Introduction
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
F-06921 Sophia Antipolis CEDEX - FRANCE
Postal address:
650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
Office address:
c=fr, a=atlas, p=etsi, s=secretariat - secretariat@etsi.fr
X.400: Internet:
Tel.: +33 92 94 42 00 - Fax: +33 93 65 47 16
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1994. All rights reserved.
New presentation - see History box

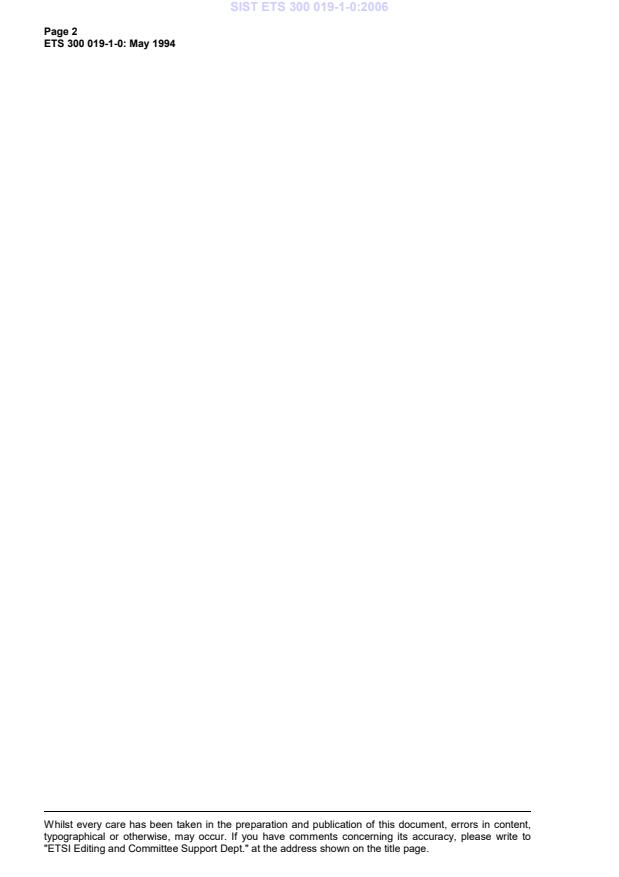

Page 2
ETS 300 019-1-0: May 1994
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 019-1-0: May 1994
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions.7
3.1 Storage .7
3.2 Transportation.7
3.3 In-use.7
3.3.1 Stationary use.7
3.3.2 Mobile use (including portable) .7
3.3.3 Portable and non-stationary use.7
3.4 Environmental condition.8
3.5 Environmental factor.8
3.6 Environmental parameter .8
3.7 Severity of environmental parameter.8
3.8 Environmental class.8
4 Environmental classes .8
4.1 Purpose of classification .8
4.2 Environmental classes covered in Part 1.9
5 Explanation of climatograms.10
6 Environmental contents of equipment documentation .11
6.1 Environmental considerations to be included in the design process for producing
equipment .11
6.2 Environmental contents of a product specification .11
6.3 Contents of an environmental test programme .11
History.12

Page 4
ETS 300 019-1-0: May 1994
Blank page
Page 5
ETS 300 019-1-0: May 1994
Foreword
This multi-part European Telecommunication Standard (ETS) has been produced by the Equipment
Engineering (EE) Technical Committee of the European Telecommunications Standards Institute (ETSI).
ETS 300 019 is concerned with environmental conditions and environmental tests for telecommunications
equipment and comprises two main parts, each with subdivisions:
- ETS 300 019-1: "Classification of environmental conditions".
Part 1 specifies different standardised environmental classes covering climatic and biological
conditions, chemically and mechanically active substances and mechanical conditions during
storage, transportation and in-use.
- ETS 300 019-2: "Specification of environmental tests".
Part 2 specifies the recommended test severities and test methods for the different environmental
classes.
Part 2-0 forms a general overview of Part 2. This part (Part 1-0), forms a general overview of Part 1.
An associated ETSI Technical Report (ETR), ETR 035 [1], gives an introduction to the main concepts of
environmental engineering, the purpose and use of environmental classes and the corresponding test
philosophy.
Page 6
ETS 300 019-1-0: May 1994
Blank page
Page 7
ETS 300 019-1-0: May 1994
1 Scope
This European Telecommunication Standard (ETS) defines the classes of environmental conditions and
their severities to which equipment may be exposed at specified locations. The severities specified are
those which will have a low probability of being exceeded - generally less than 1 %.
The purpose of Part 1-0 is to form a general overview of Part 1.
2 Normative references
This ETS contains, by dated or undated reference, provisions from other publications. These normative
references are cited at the appropriate places in the text and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this ETS
only when incorporated in it by amendment or revision. For undated references the latest edition of the
publication referred to applies.
[1] ETR 035: "Equipment Engineering (EE); Environmental engineering Guidance
and terminology".
[2] ETS 300 019-1-1 to 1-7: "Equipment Engineering (EE); Environmental
conditions and environmental tests for telecommunications equipment;
Classification of environmental conditions".
[3] ETS 300 019-2-1 to 2-7: "Equipment Engineering (EE); Environmental
conditions and environmental tests for telecommunications equipment;
Specification of environmental tests".
3 Definitions
3.1 Storage
The equipment is placed at a certain site for a long period, but is not intended for use during this period. If
the equipment is packaged, the environmental conditions apply to the packaging protecting the
equipment.
3.2 Transportation
Transportation is the phase during which the equipment is moved from one place to another after being
made ready for dispatch. It includes loading, unloading and temporary storage. The equipment is not in-
use under these conditions.
3.3 In-use
An equipment is in-use when it is directly operational.
3.3.1 Stationary use
An equipment is mounted firmly on the structure, or on mounting devices, or it is permanently placed at a
ce
...
