SIST EN 61300-3-46:2011
(Main)Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 3-46: Measurement - Bore diameter for guide pin in MT ferrules (IEC 61300-3-46:2011)
Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 3-46: Measurement - Bore diameter for guide pin in MT ferrules (IEC 61300-3-46:2011)
IEC 61300-3-46:2011 provides a standard for the measurement of guide pin bore diameters in thermoplastic and thermoset MT ferrules specified in IEC 61754-5.
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Grundlegende Prüf- und Messverfahren - Teil 3-45: Messung - Bohrlochdurchmesser für Führungsstifte von Mehrfasersteckverbindern (IEC 61300-3-46:2011)
Dispositifs d'interconnexion et composants passifs à fibres optiques - Méthodes fondamentales d'essais et de mesures - Partie 3-46: Mesure - Diamètre d'alésage pour broche de guidage dans les férules MT (CEI 61300-3-46:2011)
La CEI 61300-3-46:2011 donne une méthode normalisée pour la mesure des diamètres d'alésage des broches de guidage dans les férules MT en matériaux thermoplastiques et thermodurcissables spécifiées dans la CEI 61754-5.
Optični spojni elementi in pasivne komponente - Osnovni preskusni in merilni postopki - 3-46. del: Meritve - Premer izvrtine za vodilni trn pri tulkah MT (IEC 61300-3-46:2011)
Namen tega dela IEC 61300 je zagotoviti standard za meritve premera izvrtine za vodilni trn pri plastomernih in termoplastnih tulkah MT, ki jih določa IEC 61754-5.
General Information
- Status
- Published
- Publication Date
- 14-Sep-2011
- Technical Committee
- iTEL - Communication cables
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 30-Aug-2011
- Due Date
- 04-Nov-2011
- Completion Date
- 15-Sep-2011
Relations
- Effective Date
- 01-Sep-2025
Overview
EN 61300-3-46:2011 (IEC 61300-3-46:2011) defines a reproducible measurement method for the guide pin bore diameter in thermoplastic and thermoset MT ferrules (as specified in IEC 61754-5). The standard is part of the IEC/CENELEC series on fibre optic interconnecting devices and passive components and describes apparatus, environmental conditions, procedure and post-test examination to determine the effective bore size for connector guide pins.
Key topics and technical requirements
- Scope: Measurement of guide pin bore diameters in MT ferrules used for multi‑fibre connectors.
- Test conditions: Temperature 21.0 °C to 25.0 °C; relative humidity 50 % ± 10 %; total assembly mass 100.0 g ± 5.0 g. Parts must be preconditioned for at least 24 hours.
- Gauge pins and tolerances:
- Traceable, calibrated gauge pins (material: tungsten carbide steel).
- Typical pin diameter series: from 0.69895 mm to 0.70005 mm in 100 nm increments (used to find the largest pin that can be withdrawn under the specified mass).
- Cylindricity: 100 nm or better. Surface finish: 0.2 µm.
- Apparatus: Pin vice, rod and platform to hold calibrated mass elements so the assembly hangs vertically; clean pins and test parts to ensure accurate results.
- Procedure: Insert calibrated gauge pin (rear entry recommended), secure vice, gradually apply the calibrated mass to pull the pin through the bore. Increase pin size until the 100 g ± 5 g mass can no longer pull the pin free; the previous (smaller) pin size is recorded as the effective bore diameter. Repeat for the opposite hole.
- Post-test examination: Visual inspection per IEC 61300-3-1 for damage (e.g., chipping, scratching, bore exit damage).
Applications and who uses this standard
- Connector and ferrule manufacturers: product design validation, production quality control, acceptance testing.
- Test laboratories and QA teams: conformity testing, incoming inspection, and process control to ensure interchangeability and mechanical alignment.
- System integrators and data centre operators: verification of connector compatibility where MT-based high-density multi-fibre connectors are deployed.
- R&D and compliance engineers: development of connector interfaces and documentation for regulatory or customer requirements.
Practical benefits include reliable connector alignment, controlled manufacturing tolerances for multi‑fibre assemblies, and reproducible inspection methods to reduce assembly failures and field returns.
Related standards
- IEC 61754-5 - Type MT connector family (ferrule/interface definition)
- IEC 61300-3-1 - Visual examination and related test/measurement procedures
Keywords: EN 61300-3-46:2011, guide pin bore diameter, MT ferrules, measurement procedure, gauge pins, fibre optic connectors, connector alignment, quality control.
Frequently Asked Questions
SIST EN 61300-3-46:2011 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 3-46: Measurement - Bore diameter for guide pin in MT ferrules (IEC 61300-3-46:2011)". This standard covers: IEC 61300-3-46:2011 provides a standard for the measurement of guide pin bore diameters in thermoplastic and thermoset MT ferrules specified in IEC 61754-5.
IEC 61300-3-46:2011 provides a standard for the measurement of guide pin bore diameters in thermoplastic and thermoset MT ferrules specified in IEC 61754-5.
SIST EN 61300-3-46:2011 is classified under the following ICS (International Classification for Standards) categories: 33.180.20 - Fibre optic interconnecting devices. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 61300-3-46:2011 has the following relationships with other standards: It is inter standard links to SIST EN IEC 61300-3-46:2025. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 61300-3-46:2011 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Lichtwellenleiter - Verbindungselemente und passive Bauteile - Grundlegende Prüf- und Messverfahren - Teil 3-45: Messung - Bohrlochdurchmesser für Führungsstifte von Mehrfasersteckverbindern (IEC 61300-3-46:2011)Dispositifs d'interconnexion et composants passifs à fibres optiques - Méthodes fondamentales d'essais et de mesures - Partie 3-46: Mesure - Diamètre d'alésage pour broche de guidage dans les férules MT (CEI 61300-3-46:2011)Fibre optic interconnecting devices and passive components - Basic test and measurement procedures - Part 3-46: Measurement - Bore diameter for guide pin in MT ferrules (IEC 61300-3-46:2011)33.180.20Fibre optic interconnecting devicesICS:Ta slovenski standard je istoveten z:EN 61300-3-46:2011SIST EN 61300-3-46:2011en01-oktober-2011SIST EN 61300-3-46:2011SLOVENSKI
STANDARD
EUROPEAN STANDARD EN 61300-3-46 NORME EUROPÉENNE
EUROPÄISCHE NORM August 2011
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2011 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61300-3-46:2011 E
ICS 33.180.20
English version
Fibre optic interconnecting devices and passive components -
Basic test and measurement procedures -
Part 3-46: Measurement -
Bore diameter for guide pin in MT ferrules (IEC 61300-3-46:2011)
Dispositifs d'interconnexion et composantspassifs à fibres optiques -
Méthodes fondamentales d'essais et de mesures -
Partie 3-46: Mesure -
Diamètre d'alésage pour broche de guidage dans les férules MT (CEI 61300-3-46:2011)
Lichtwellenleiter -
Verbindungselemente und passive Bauteile -
Grundlegende Prüf- und Messverfahren - Teil 3-45: Messung -
Bohrlochdurchmesser für Führungsstifte von Mehrfasersteckverbindern (IEC 61300-3-46:2011)
This European Standard was approved by CENELEC on 2011-07-21. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

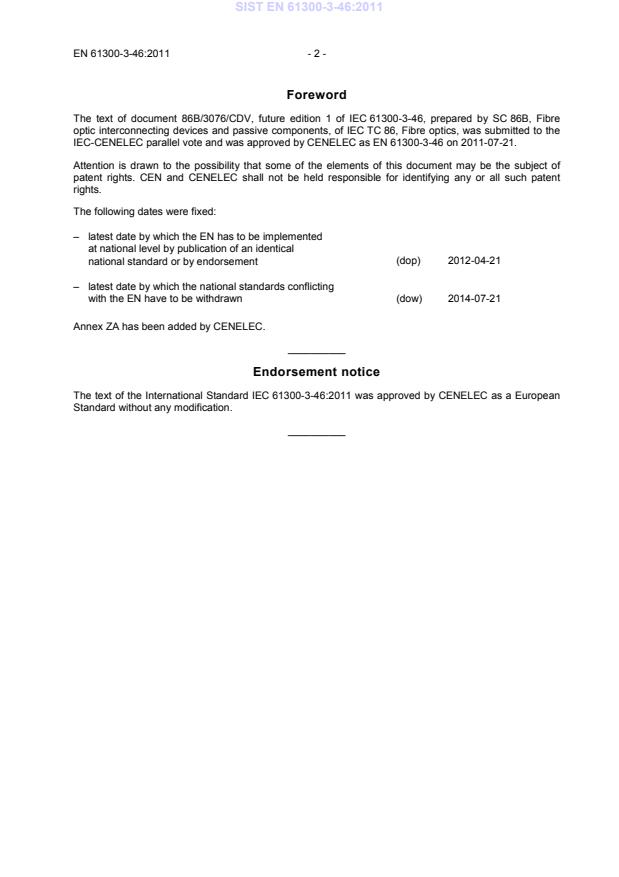

Foreword The text of document 86B/3076/CDV, future edition 1 of IEC 61300-3-46, prepared by SC 86B, Fibre optic interconnecting devices and passive components, of IEC TC 86, Fibre optics, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 61300-3-46 on 2011-07-21. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent rights. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop)
2012-04-21 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)
2014-07-21 Annex ZA has been added by CENELEC. __________ Endorsement notice The text of the International Standard IEC 61300-3-46:2011 was approved by CENELEC as a European Standard without any modification. __________
- 3 - EN 61300-3-46:2011 Annex ZA (normative)
Normative references to international publications with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year
IEC 61300-3-1 - Fibre optic interconnecting devices and passive components - Basic test and measurement procedures -
Part 3-1: Examinations and measurements - Visual examination EN 61300-3-1 -
IEC 61754-5 - Fibre optic connector interfaces -
Part 5: Type MT connector family EN 61754-5 -
IEC 61300-3-46 Edition 1.0 2011-06 INTERNATIONAL STANDARD NORME INTERNATIONALE Fibre optic interconnecting devices and passive components – Basic test and measurement procedures –
Part 3-46: Measurement – Bore diameter for guide pin in MT ferrules
Dispositifs d'interconnexion et composants passifs à fibres optiques – Méthodes fondamentales d'essais et de mesures –
Partie 3-46: Mesure – Diamètre d’alésage pour broche de guidage dans les férules MT INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE H ICS 33.180.20 PRICE CODE CODE PRIX ISBN 978-2-88912-536-4
– 2 – 61300-3-46 IEC:2011 CONTENTS FOREWORD . 3 1 Scope . 5 2 Normative references . 5 3 General description . 5 3.1 Pin specifications . 5 3.2 Test conditions . 6 3.3 Apparatus . 6 4 Procedure . 6 5 Post test examination . 8 6 Details to be specified . 8
Figure 1 – Gauge pin through ferrule . 7 Figure 2 – An example of a complete measurement apparatus with ferrule . 7 Figure 3 – An example of front loading the pin in an assembled connector . 8
Table 1 – Pin specifications . 5 Table 2 – Test conditions . 6
61300-3-46 IEC:2011 – 3 – INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
FIBRE OPTIC INTERCONNECTING DEVICES
AND PASSIVE COMPONENTS –
BASIC TEST AND MEASUREMENT PROCEDURES –
Part 3-46: Measurement –
Bore diameter for guide pin in MT ferrules
FOREWOR
...
