Sintered metal materials and hardmetals - Determination of Young modulus (ISO 3312:1987)

This second edition cancels and replaces the first edition (i.e. ISO 3312:1975). Specifies a method for the determination of the dynamic (adiabatic) Young moduls by longitudinal oscillations of sintered metal materials and hardmetals. Gives principle, symbols and units, apparatus, preparation of the pieces, procedure, expression of results and test report.

Sintermetall und Hartmetalle - Ermittlung des Elastizitätsmoduls (ISO 3312:1987)

Matériaux métalliques frittés et métaux-durs - Détermination du module de Young (ISO 3312:1987)

La présente Norme internationale spécifie une méthode de détermination dynamique (adiabatique) du module de Young par oscillations longitudinales pour les matériaux métalliques frittés et les métaux-durs.

Sintered metal materials and hardmetals - Determination of Young modulus (ISO 3312:1987)

General Information

Status
Published
Publication Date
30-Nov-2000
ICS
77.040.10 - Mechanical testing of metals

77.160 - Powder metallurgy
Technical Committee
SS SPL - Technical Board for the general field
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Dec-2000
Due Date
01-Dec-2000
Completion Date
01-Dec-2000
Ref Project
EN 23312:1993 - Sintered metal materials and hardmetals - Determination of Young modulus (ISO 3312:1987)

Overview

EN 23312:1993 (identical to ISO 3312:1987) specifies a standardized method to determine the dynamic (adiabatic) Young modulus of sintered metal materials and hardmetals by exciting longitudinal ultrasonic oscillations and measuring the specimen’s resonance frequency. Published by CEN and prepared by ISO/TC 119 (Powder Metallurgy), this edition replaces the earlier 1975 version and defines principle, apparatus, specimen preparation, procedure, result expression and required test report information.

Key Topics and Requirements

  • Test principle: excite longitudinal oscillations in a fixed specimen and measure the natural resonance frequency.
  • Apparatus:
    • Fixture to mount the specimen
    • Ultrasonic oscillator with continuous control in the 20–100 kHz range
    • Device for determining resonance frequency (resolution to ±50 Hz)
  • Specimen dimensions:
    • Minimum length: 60 mm
    • Round cross-section: 6 +0.2 mm diameter
    • Rectangular cross-section: (6 +0.2) mm × (8 +0.2) mm
  • Surface and dimensional tolerances:
    • Remove surface layer ≥ 0.1 mm
    • Surface roughness Ra ≤ 1.25 µm
    • End faces ground and parallel within 0.02 mm
    • Specimen free of surface cracks and cleaned immediately before testing
  • Density and length measurements:
    • Density determined per ISO 2738 to 0.01 g/cm³
    • Length measured to 0.1 mm
  • Calculation:
    • Young modulus given by: E = 4 × 10^−9 × L^2 × ρ × f^2 (as in the standard)
    • Report results rounded to the nearest 5 × 10^3 N/mm²
  • Test report must reference the standard, identify the sample, state the result and any non‑specified operations or events affecting results.

Applications and Who Uses It

  • Practical for quality control, R&D and materials characterization in:
    • Powder metallurgy manufacturers
    • Hardmetal (cemented carbide) producers
    • Materials testing laboratories and certification bodies
    • Design engineers needing elastic property data for components made from sintered metals
  • Useful for comparing mechanical stiffness (Young modulus) between sintered compositions, porosity levels and processing routes.

Related Standards

  • ISO 2738 - Determination of density, oil content and open porosity for permeable sintered metal materials (referenced for density measurement).
  • Note: EN 23312:1993 corresponds to ISO 3312:1987; earlier edition ISO 3312:1975 was cancelled.

Keywords: EN 23312:1993, ISO 3312:1987, Young modulus, sintered metal materials, hardmetals, dynamic Young’s modulus, longitudinal oscillations, resonance frequency, powder metallurgy, mechanical testing.

Frequently Asked Questions

SIST EN 23312:2000 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Sintered metal materials and hardmetals - Determination of Young modulus (ISO 3312:1987)". This standard covers: This second edition cancels and replaces the first edition (i.e. ISO 3312:1975). Specifies a method for the determination of the dynamic (adiabatic) Young moduls by longitudinal oscillations of sintered metal materials and hardmetals. Gives principle, symbols and units, apparatus, preparation of the pieces, procedure, expression of results and test report.

This second edition cancels and replaces the first edition (i.e. ISO 3312:1975). Specifies a method for the determination of the dynamic (adiabatic) Young moduls by longitudinal oscillations of sintered metal materials and hardmetals. Gives principle, symbols and units, apparatus, preparation of the pieces, procedure, expression of results and test report.

SIST EN 23312:2000 is classified under the following ICS (International Classification for Standards) categories: 77.040.10 - Mechanical testing of metals; 77.160 - Powder metallurgy. The ICS classification helps identify the subject area and facilitates finding related standards.

You can purchase SIST EN 23312:2000 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.

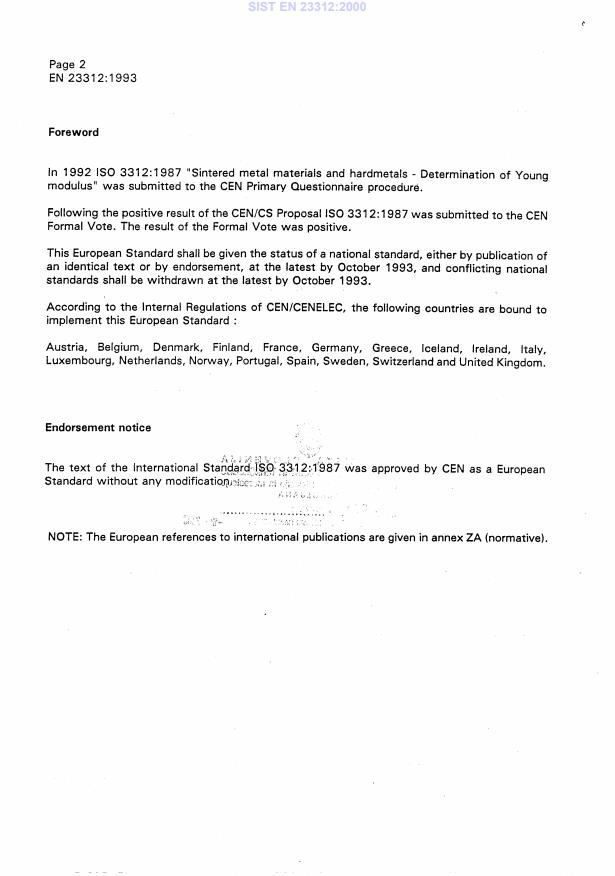

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sintered metal materials and hardmetals - Determination of Young modulus (ISO 3312:1987)Sintermetall und Hartmetalle - Ermittlung des Elastizitätsmoduls (ISO 3312:1987)Matériaux métalliques frittés et métaux-durs - Détermination du module de Young (ISO 3312:1987)Sintered metal materials and hardmetals - Determination of Young modulus (ISO 3312:1987)77.160Metalurgija prahovPowder metallurgy77.040.10Mehansko preskušanje kovinMechanical testing of metalsICS:Ta slovenski standard je istoveten z:EN 23312:1993SIST EN 23312:2000en01-december-2000SIST EN 23312:2000SLOVENSKI
STANDARD
INTERNATIONAL STANDARD INTERNATIONAL ORGANIZATION FOR STANDARDIZATION ORGANISATION INTERNATIONALE DE NORMALISATION MEXflYHAPOflHAfi OPrAHM3A~MR I-IO CTAHAAPTM3A~MM 3312 Second edition 1987-07-15 Sintered metal materials and hardmetals - Determination of Young modulus Ma tkiaux rnd tafliques fritths et mb taux-durs - Dhtermination du module de Young Reference number ISO 3312: 1987 (E SIST EN 23312:2000

Fo reword ISO (the International Organization for Standardization) is a worldwide federation of national Standards bodies (ISO member bodies). The work of preparing International Standards is normally carried out through ISO technical committees. Esch member body interested in a subject for which a technical committee has been established has the right to be represented on that committee. International organizations, govern- mental and non-governmental, in liaison with ISO, also take part in the work. Draft International Standards adopted by the technical committees are circulated to the member bodies for approval before their acceptance as International Standards by the ISO Council. They are approved in accordance with ISO procedures requiring at least 75 % approval by the member bodies voting. International Standard ISO 3312 was prepared by Technical Committee ISO/TC 119, Powder metallurg y. This second edition cancels and replaces the first edition (ISO 3312 : 19751, of which it constitutes a minor revision. Users should note that all International Standards undergo revision from time to time and that any reference made herein to any other International Standard implies its latest edition, unless otherwise stated. @ International Organkation for Standardization, 1987 l Printed in Switzerland SIST EN 23312:2000

INTERNATIONAL STANDARD ISO 3312 : 1987 (E) Sintered metal materials and of Young modulus 1 Scope and field of application T
...
