SIST EN 3480:2025
(Main)Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Plate - 6 mm < a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 Mpa
Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Plate - 6 mm < a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 Mpa
This document specifies the requirements relating to:
Steel X6CrNiTi18-10 (1.4541)
Air melted
Softened
Plates
6 mm < a ≤ 50 mm
500 MPa ≤ Rm ≤ 700 MPa
for aerospace applications.
W.nr: 1.4541.
ASD-STAN designation: FE-PA3601.
Luft- und Raumfahrt - Stahl X6CrNiTi18-10 (1.4541) - Lufterschmolzen - Weichgeglüht - Platten - 6 mm < a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 MPa
Dieses Dokument legt die Anforderungen an
Stahl X6CrNiTi18 10 (1.4541)
Lufterschmolzen
Weichgeglüht
Platten
6 mm < a ≤ 50 mm
500 MPa ≤ Rm ≤ 700 MPa
für Anwendungen in der Luft- und Raumfahrt fest.
W. Nr.: 1.4541.
ASD STAN Werkstoffbezeichnung: FE PA3601.
Série aérospatiale - Acier X6CrNiTi18-10 (1.4541) - Élaboré à l'air - Adouci - Plaques - 6 mm < a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 MPa
Le présent document spécifie les exigences relatives à :
Acier X6CrNiTi18-10 (1.4541)
Élaboré à l’air
Adouci
Plaques
6 mm < a ≤ 50 mm
500 MPa ≤ Rm ≤ 700 MPa
pour les applications aérospatiales.
W.nr : 1.4541.
Désignation ASD-STAN : FE-PA3601.
Aeronavtika - Jeklo X6CrNiTi18-10 (1.4541) - Taljeno na zraku - Mehčano - Plošča - 6 mm < a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 Mpa
Ta dokument določa zahteve, ki se navezujejo na:
jeklo X6CrNiTi18-10 (1.4541),
taljeno na zraku,
mehčano,
plošče,
6 mm < a ≤ 50 mm,
500 MPa ≤ Rm ≤ 700 MPa
za uporabo v aeronavtiki.
Št. W.: 1.4541.
Oznaka ASD-STAN: FE-PA3601.
General Information
- Status
- Published
- Public Enquiry End Date
- 30-Nov-2020
- Publication Date
- 07-Jan-2025
- Technical Committee
- I13 - Imaginarni 13
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 06-Jan-2025
- Due Date
- 13-Mar-2025
- Completion Date
- 08-Jan-2025
Relations
- Effective Date
- 19-Jan-2023
Overview
SIST EN 3480:2025 is a European standard developed by CEN that specifies requirements for aerospace-grade steel X6CrNiTi18-10 (1.4541). This standard covers air melted, softened steel plates with thicknesses between 6 mm and 50 mm and tensile strengths ranging from 500 MPa to 700 MPa. The steel conforms to the W.nr 1.4541 designation and is identified by ASD-STAN as FE-PA3601. SIST EN 3480:2025 supersedes the 2007 edition, incorporating updates in material designation, testing formats, and bibliographic references.
This standard supports stringent aerospace industry demands for high-performance stainless steel plates, ensuring consistent mechanical properties, chemical composition, and quality for critical aerospace components.
Key Topics
Material Specification: Steel grade X6CrNiTi18-10 (1.4541) with controlled chemical composition:
- Chromium (Cr): 17.0% - 19.0%
- Nickel (Ni): 9.0% - 12.0%
- Carbon (C): max 0.08%
- Titanium (Ti): max 0.70%
- Other elements strictly limited to ensure corrosion resistance and weldability.
Physical Form: Rolled plates with thickness > 6 mm and ≤ 50 mm, delivered in a softened (annealed) condition.
Mechanical Properties:
- Tensile strength (Rm) between 500 MPa and 700 MPa
- Proof stress (Rp0.2) ≥ 200 MPa
- Elongation (A) ≥ 40%
- Hardness ≤ 207 HV
Quality Requirements:
- Maximum δ-ferrite content not exceeding 8%
- Grain size grade ≥ 4
- Inspection for inclusions, internal and external imperfections per EN 4700-001
- Visual and ultrasonic testing standards applied
Heat Treatment: Softening heat treatment between 1050 °C and 1100 °C (water quenching or air quenching/aging), ensuring appropriate microstructural properties.
Special Considerations:
- For high-power beam welding applications, tighter controls on sulfur, phosphorus, and boron content are recommended.
- Cr/Ni ratio adjustments according to the Suutala formula to optimize corrosion resistance.
Applications
The steel plates covered by SIST EN 3480:2025 are specifically designed for aerospace applications requiring reliable material performance under demanding environmental and mechanical conditions. Key applications include:
- Aircraft structural components where corrosion resistance and strength are vital
- Aerospace engine parts necessitating stable mechanical properties after heat treatment
- Components exposed to cyclic stresses and temperature variations
- High-integrity welded assemblies for airframes and aerospace systems
By adhering to this standard, manufacturers ensure material compatibility with aerospace quality programs, supporting enhanced safety, durability, and performance in aviation environments.
Related Standards
SIST EN 3480:2025 is part of a broader series of EN aerospace metallic material standards, harmonized under ASD-STAN and aligned with CEN regulations, including:
- EN 4258: General organization of aerospace metallic material standardization
- EN 4700-001: Technical specifications for wrought steel and heat-resisting alloy products (plate, sheet, strip)
- EN 4500-005: Rules for drafting material standards specific to aerospace steels
These interlinked standards ensure comprehensive guidance on material selection, testing methods, and documentation critical to aerospace manufacturing and certification processes.
By implementing SIST EN 3480:2025, aerospace industry stakeholders benefit from a harmonized specification that guarantees steel plate quality and performance, optimizing product development and regulatory compliance across European and international markets. Keywords such as aerospace steel plates, X6CrNiTi18-10 stainless steel, air melted, softened steel plates, and aerospace material standards highlight the document’s relevance in aerospace metallurgy and quality assurance.
Frequently Asked Questions
SIST EN 3480:2025 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Plate - 6 mm < a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 Mpa". This standard covers: This document specifies the requirements relating to: Steel X6CrNiTi18-10 (1.4541) Air melted Softened Plates 6 mm < a ≤ 50 mm 500 MPa ≤ Rm ≤ 700 MPa for aerospace applications. W.nr: 1.4541. ASD-STAN designation: FE-PA3601.
This document specifies the requirements relating to: Steel X6CrNiTi18-10 (1.4541) Air melted Softened Plates 6 mm < a ≤ 50 mm 500 MPa ≤ Rm ≤ 700 MPa for aerospace applications. W.nr: 1.4541. ASD-STAN designation: FE-PA3601.
SIST EN 3480:2025 is classified under the following ICS (International Classification for Standards) categories: 49.025.10 - Steels; 77.140.50 - Flat steel products and semi-products. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 3480:2025 has the following relationships with other standards: It is inter standard links to SIST EN 3480:2007. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 3480:2025 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2025
Aeronavtika - Jeklo X6CrNiTi18-10 (1.4541) - Taljeno na zraku - Mehčano - Plošča -
6 mm < a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 Mpa
Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Plate - 6 mm
< a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 Mpa
Luft- und Raumfahrt - Stahl X6CrNiTi18-10 (1.4541) - Lufterschmolzen - Weichgeglüht -
Platten - 6 mm < a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 MPa
Série aérospatiale - Acier X6CrNiTi18-10 (1.4541) - Élaboré à l'air - Adouci - Plaques - 6
mm < a ≤ 50 mm - 500 MPa ≤ Rm ≤ 700 MPa
Ta slovenski standard je istoveten z: EN 3480:2024
ICS:
49.025.10 Jekla Steels
77.140.50 Ploščati jekleni izdelki in Flat steel products and semi-
polizdelki products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 3480
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2024
EUROPÄISCHE NORM
ICS 49.025.10 Supersedes EN 3480:2007
English Version
Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air
melted - Softened - Plates - 6 mm < a ≤ 50 mm - 500 MPa ≤
R ≤ 700 MPa
m
Série aérospatiale - Acier X6CrNiTi18-10 (1.4541) - Luft- und Raumfahrt - Stahl X6CrNiTi18-10 (1.4541) -
Élaboré à l'air - Adouci - Plaques - 6 mm < a ≤ 50 mm - Lufterschmolzen - Weichgeglüht - Platten - 6 mm < a ≤
500 MPa ≤ R ≤ 700 MPa 50 mm - 500 MPa ≤ R ≤ 700 MPa
m m
This European Standard was approved by CEN on 4 November 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N
EUROPÄISCHES KOMITEE FÜR NORMUN G
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3480:2024 E
worldwide for CEN national Members.

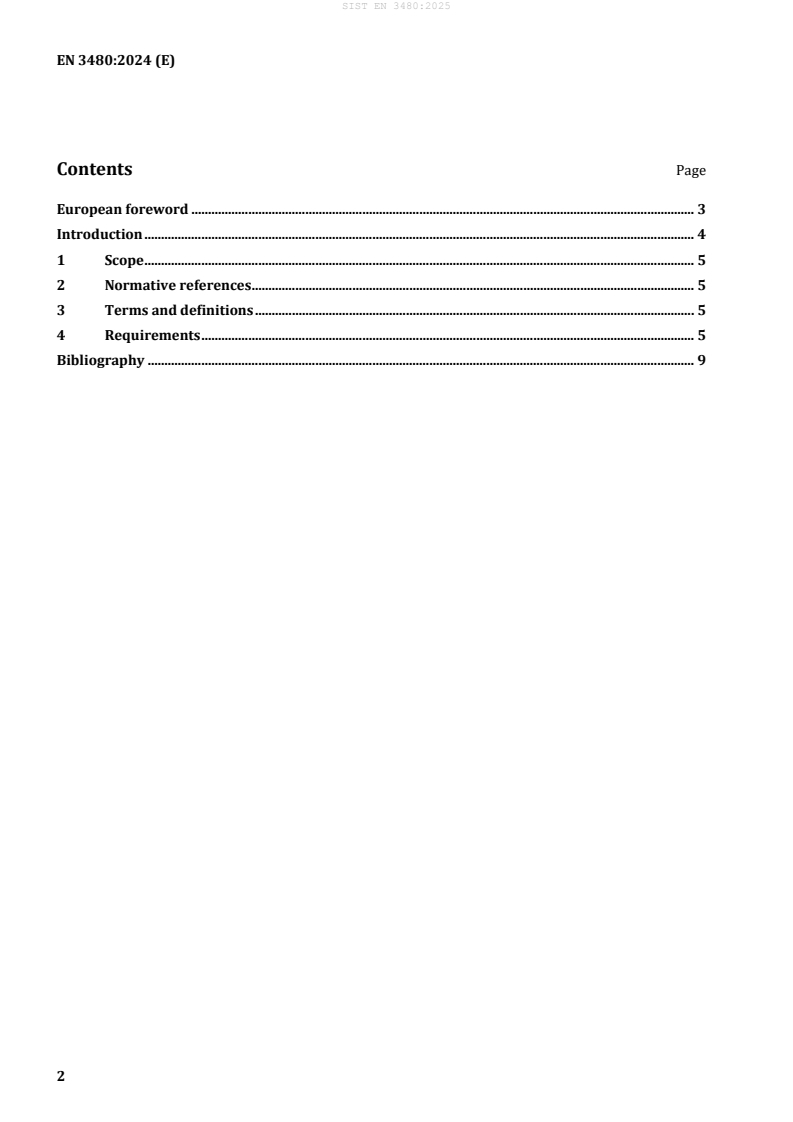

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 9
European foreword
This document (EN 3480:2024) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by June 2025, and conflicting national standards shall be withdrawn at
the latest by June 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 3480:2007.
The main changes with respect to the previous edition are as follows:
— EN
...
