SIST EN 17176-2:2019/oprA1:2022

SLOVENSKI STANDARD
01-januar-2022
Cevni sistemi iz polimernih materialov za oskrbo z vodo in za podzemne in
nadzemne sisteme odvodnjavanja, kanalizacije ter namakanja pod tlakom -
Orientiran nemehčan polivinilklorid (PVC-O) - 2. del: Cevi - Dopolnilo A1
Plastics piping systems for water supply and for buried and above ground drainage,
sewerage and irrigation under pressure - Oriented unplasticized poly(vinyl chloride)
(PVC-O) - Part 2: Pipes
Kunststoff-Rohrleitungssysteme für die Wasserversorgung und für erdverlegte und nicht
erdverlegte Entwässerungs-, Abwasser- und Bewässerungsdruckleitungen - Orientiertes
weichmacherfreies Polyvinylchlorid (PVC-O) - Teil 2: Rohre - Änderung 1
Systèmes de canalisations en plastique pour l'alimentation en eau, les branchements et
collecteurs d'assainissement et les systèmes d'irrigation sous pression, enterrés ou
aériens - Poly(chlorure de vinyle) non plastifié orienté (PVC-O) - Partie 2 : Tubes
Ta slovenski standard je istoveten z: EN 17176-2:2019/prA1
ICS:
23.040.20 Cevi iz polimernih materialov Plastics pipes
91.140.80 Drenažni sistemi Drainage systems
93.030 Zunanji sistemi za odpadno External sewage systems
vodo
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

DRAFT
EUROPEAN STANDARD
EN 17176-2:2019
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
November 2021
ICS 23.040.20
English Version
Plastics piping systems for water supply and for buried
and above ground drainage, sewerage and irrigation under
pressure - Oriented unplasticized poly(vinyl chloride)
(PVC-O) - Part 2: Pipes
Systèmes de canalisations en plastique pour Kunststoff-Rohrleitungssysteme für die
l'alimentation en eau, les branchements et collecteurs Wasserversorgung und für erdverlegte und nicht
d'assainissement et les systèmes d'irrigation sous erdverlegte Entwässerungs-, Abwasser- und
pression, enterrés ou aériens - Poly(chlorure de vinyle) Bewässerungsdruckleitungen - Orientiertes
non plastifié orienté (PVC-O) - Partie 2 : Tubes weichmacherfreies Polyvinylchlorid (PVC-O) - Teil 2:
Rohre - Änderung 1
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 155.

This draft amendment A1, if approved, will modify the European Standard EN 17176-2:2019. If this draft becomes an
amendment, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
inclusion of this amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17176-2:2019/prA1:2021 E
worldwide for CEN national Members.

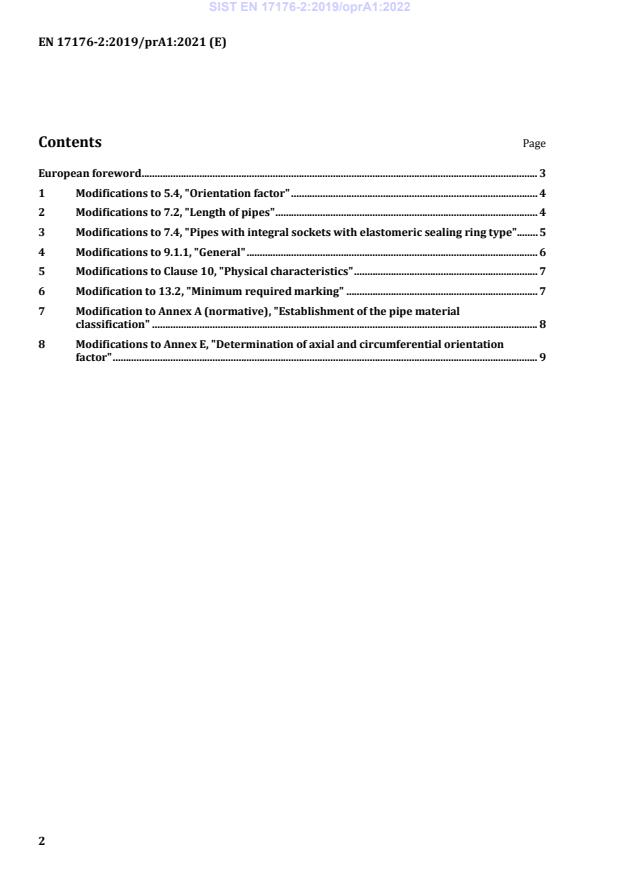

Contents Page
European foreword . 3
1 Modifications to 5.4, "Orientation factor" . 4
2 Modifications to 7.2, "Length of pipes" . 4
3 Modifications to 7.4, "Pipes with integral sockets with elastomeric sealing ring type". 5
4 Modifications to 9.1.1, "General" . 6
5 Modifications to Clause 10, "Physical characteristics" . 7
6 Modification to 13.2, "Minimum required marking" . 7
7 Modification to Annex A (normative), "Establishment of the pipe material
classification" . 8
8 Modifications to Annex E, "Determination of axial and circumferential orientation
factor" . 9

European foreword
This document (EN 17176-2:2019/prA1:2021) has been prepared by Technical Committee CEN/TC 155
“Plastics piping systems and ducting systems”, the secretariat of which is held by NEN.
This document is currently submitted to the CEN Enquiry.
The main amendments to EN 17176-2:2019 are as follows:
— Correct MRS classification;
— Amend text nominal length (7.2) and tolerance Table 2;
— Revision Annex A Addition alternative interpretation reference lines (A.2.2 and A.2.3);
— Including clause test method in Annex E;
— Mistakes corrected in Table E and Annex E.
The amendment of EN 17176-2 is proposed to add clause E.5 Test report in Annex E,
to avoid miss interpretation and confusion in the market regarding reporting and use of the test results.
Also mistakes regarding MRS classification and ambiguities at different places, including Annex A, in the
document and mistakes identified in Table 8 and Annex E are amended. Table 2 Tolerance on length is
also amended to align with current practise.
1 Modifications to 5.4, "Orientation factor"
In Table 1, first row, replace MRS values "315 /355 /400 / 450 / 500" with "31,5 /35,5 /40,0 / 45,0 /
50,0" as follows:
"Table1 — Minimum orientation factor
Minimum required
31,5 35,5 40,0 45,0 50,0
strength (MRS)-MPa
Axial  1,0
Circumferential  1,5 1,6 1,7 1,8 1,9
".
2 Modifications to 7.2, "Length of pipes"
Replace the current text in 7.2 with the following:
"The nominal pipe length, l, shall be a minimum length which does not include the depth of the socketed
portions, as shown in Figure 1.
It is recommended to supply pipes in one or more of the following lengths: 3 m, 5 m, 6 m, 10 m or 12 m.
NOTE Other lengths are subject to agreement between the manufacturer and the purchaser.
The tolerance on the nominal pipe length is specified in Table 2.
Table 2 — Tolerance on nominal pipe length
Nominal pipe length Tolerance on length
≥ Manufacturer +0,05 m
declared value
Figure 1 — Points of measurement for nominal pipe lengths".
3 Modifications to 7.4, "Pipes with integral sockets with elastomeric sealing ring
type"
In the first paragraph, replace citation to "Figure 1" with "Figure 2".
In the title of Figure 1, replace “Figure 1 - Socket and spigot end for pipes with elastomeric sealing” with
“Figure 2 - Socket and spigot end for pipes with elastomeric sealing”.
4 Modifications to 9.1.1, "General"
In Table 5, replace headings "MRS315 /MRS355 /MRS400 / MRS450 / MRS500" with "MRS31,5 /MRS35,5 /MRS40,0 / MRS45,0 / MRS50,0" to read
as follows:
"Table 5 — Test conditions
Characteristic Requirement Test parameters Test method
b
Temperature °C Hoop stress MPa Time Type Number
of
...
