SIST EN 50332-2:2014

SLOVENSKI STANDARD
SIST EN 50332-2:2014
01-april-2014
1DGRPHãþD
SIST EN 50332-2:2004
(OHNWURDNXVWLþQHQDSUDYH1DJODYQHLQXãHVQHVOXãDONHVSULSDGDMRþLPLRVHEQLPL
JODVEHQLPLSUHGYDMDOQLNL0HWRGRORJLMD]DPHUMHQMHUDYQLQDMYHþMHJD]YRþQHJD
WODNDGHO8MHPDQMHHOHNWURDNXVWLþQLKQDSUDY]QDJODYQLPLVOXãDONDPLþHVR
HQHDOLGUXJHSRQXMHQHORþHQRDOLYHQHPNRPSOHWXYHQGDUVVWDQGDUGL]LUDQLPL
NRQHNWRUML]DPHGVHERMQRSRYH]DYRNLRPRJRþDMRNRPELQLUDQMHNRPSRQHQW
UD]OLþQLKSURL]YDMDOFHYDOLUD]OLþQLK]DVQRY
Sound system equipment: Headphones and earphones associated with personal music
players - Maximum sound pressure level measurement methodology - Part 2: Matching
of sets with headphones if either or both are offered separately, or are offered as one
package equipment but with standardised connectors between the two allowing to
combine components of different manufacturers or different design
Elektroakustische Geräte: Kopfhörer und Ohrhörer in Verbindung mit tragbaren
Audiogeräten - Verfahren zur Messung des maximalen Schalldruckpegels -- Teil 2:
Anpassung von Geräten und Kopfhörern, wenn eine der beiden oder beide
Komponenten getrennt angeboten werden
Ta slovenski standard je istoveten z: EN 50332-2:2013
ICS:
17.140.50 Elektroakustika Electroacoustics
33.160.50 Pribor Accessories
SIST EN 50332-2:2014 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 50332-2:2014

---------------------- Page: 2 ----------------------

SIST EN 50332-2:2014

EUROPEAN STANDARD
EN 50332-2

NORME EUROPÉENNE
October 2013
EUROPÄISCHE NORM

ICS 17.140.50; 33.160.50 Supersedes EN 50332-2:2003
English version

Sound system equipment: Headphones and earphones associated with
personal music players -
Maximum sound pressure level measurement methodology -
Part 2: Matching of sets with headphones if either or both are offered
separately, or are offered as one package equipment but with standardised
connectors between the two allowing to combine components of different
manufacturers or different design

Equipement de systèmes acoustiques: Elektroakustische Geräte: Kopfhörer und
Casques et écouteurs associés avec un Ohrhörer in Verbindung mit tragbaren
baladeur - Audiogeräten -
Méthode de mesure de niveau maximal de Verfahren zur Messung des maximalen
pression acoustique - Schalldruckpegels -
Part 2 : Adaptation des équipements avec des Teil 2: Anpassung von Geräten und
écouteurs provenant de différents fabricants, Kopfhörern, wenn eine der beiden oder beide
ou provenant d’un équipement complet mais Komponenten getrennt angeboten werden
avec des connecteurs normalisés entre les
deux, permettant d’associer des composants
provenant de différents fabricants ou bien de
conception différente

This European Standard was approved by CENELEC on 2013-09-23. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50332-2:2013 E

---------------------- Page: 3 ----------------------

SIST EN 50332-2:2014
EN 50332-2:2013 - 2 -

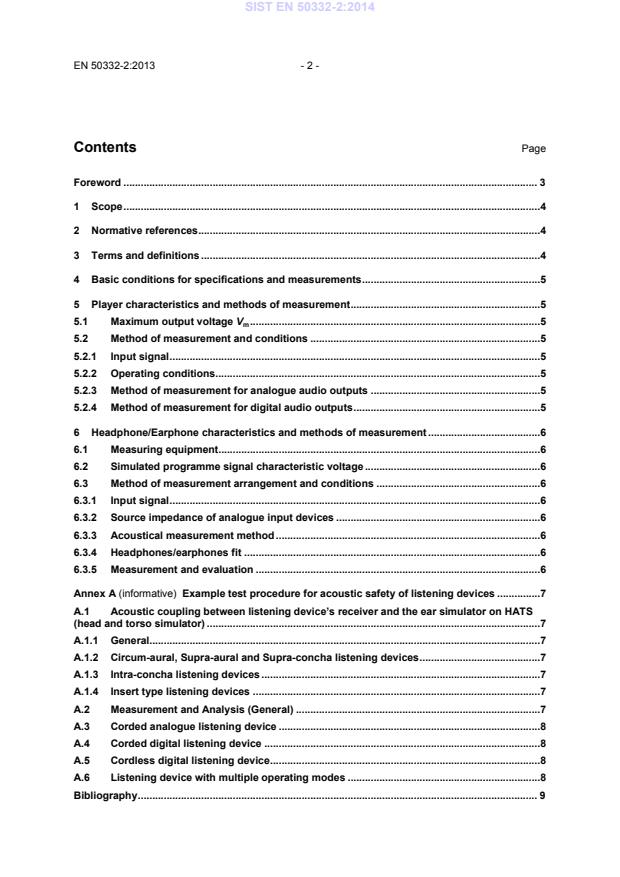

Contents Page
Foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Basic conditions for specifications and measurements . 5
5 Player characteristics and methods of measurement . 5
5.1 Maximum output voltage V . 5
m
5.2 Method of measurement and conditions . 5
5.2.1 Input signal . 5
5.2.2 Operating conditions . 5
5.2.3 Method of measurement for analogue audio outputs . 5
5.2.4 Method of measurement for digital audio outputs . 5
6 Headphone/Earphone characteristics and methods of measurement . 6
6.1 Measuring equipment . 6
6.2 Simulated programme signal characteristic voltage . 6
6.3 Method of measurement arrangement and conditions . 6
6.3.1 Input signal . 6
6.3.2 Source impedance of analogue input devices . 6
6.3.3 Acoustical measurement method . 6
6.3.4 Headphones/earphones fit . 6
6.3.5 Measurement and evaluation . 6
Annex A (informative) Example test procedure for acoustic safety of listening devices . 7
A.1 Acoustic coupling between listening device’s receiver and the ear simulator on HATS
(head and torso simulator) . 7
A.1.1 General. 7
A.1.2 Circum-aural, Supra-aural and Supra-concha listening devices . 7
A.1.3 Intra-concha listening devices . 7
A.1.4 Insert type listening devices . 7
A.2 Measurement and Analysis (General) . 7
A.3 Corded analogue listening device . 8
A.4 Corded digital listening device . 8
A.5 Cordless digital listening device . 8
A.6 Listening device with multiple operating modes . 8
Bibliography . 9

---------------------- Page: 4 ----------------------

SIST EN 50332-2:2014
- 3 - EN 50332-2:2013

Foreword
This document (EN 50332-2:2013) has been prepared by CLC/TC 108X, "Safety of electronic
equipment within the fields of Audio/Video, Information Technology and Communication Technology".
The following dates are fixed:
• latest date by which this document has to be
(dop) 2014-09-23
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards
(dow) 2016-09-23
conflicting with this document have to
be withdrawn
This document supersedes EN 50332-2:2003.
EN 50332-2:2013 includes the following significant technical changes with respect to
EN 50332-2:2003:
- deletion of limits;
- addition of digital signals;
- adaptations to use the term "personal music players".
EN 50332, Sound system equipment: Headphones and earphones associated with personal music
players  Maximum sound pressure level measurement methodology, is composed with the following
parts:
− Part 1: General method for "one package equipment";
− Part 2: Matching of sets with headphones if either or both are offered separately, or are offered as
one package equipment but with standardised connectors between the two allowing to combine
components of different manufacturers or different design.
The Part 1 of this standard describes conditions and procedures for combination of player units and
headphones sold as “one-package sets”. The sound pressure limitation (SPL) of these sets is lost
when players or headphones with standardised sockets and plugs are arbitrarily combined.
This Part 2 provides measurement methods for the matching values which guarantee the SPL limit
also for the aforementioned condition.
__________

---------------------- Page: 5 ----------------------

SIST EN 50332-2:2014
EN 50332-2:2013 - 4 -

1 Scope
This Part 2 of EN 50332 specifies methods of measuring the matching values for the use of personal
music players and headphones/earphones defined for the use with those and with standardised
connectors or interfaces allowing to combine components of different manufacturers or different
design sold separately in order to avoid possible hearing impairment by excessive sound pressure
resulting from them.
Compared with “one-package sets“ the sound pressure level at the ear cannot be fixed by only one
condition but needs at least two characteristics, one each for player and the headphones/earphones,
defined by the matching values for their connection.
Requirements for protection against excessive sound pressure from personal music players are given
in EN 60950-1:2006/A12:2011 and EN 60065:2002/A12:2011.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition ci
...
