ISO/IEC 19794-4:2005

INTERNATIONAL ISO/IEC
STANDARD 19794-4
First edition
2005-06-01


Information technology — Biometric data
interchange formats —
Part 4:
Finger image data
Technologies de l'information — Formats d'échange de données
biométriques —
Partie 4: Données d'image du doigt




Reference number
ISO/IEC 19794-4:2005(E)
©
ISO/IEC 2005

---------------------- Page: 1 ----------------------
ISO/IEC 19794-4:2005(E)

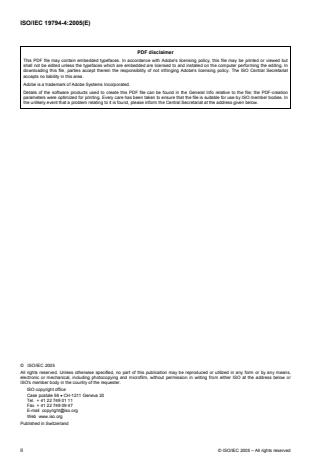

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO/IEC 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2005 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 19794-4:2005(E)
Contents Page
Foreword.v
Introductio n.vi
1 Scope.1
2 Conformance.1
3 Normative references .1
4 Terms and definitions.1
5 Abbreviated terms .3
6 Data conventions .3
6.1 Byte and bit ordering.3
6.2 Scan sequence.3
7 Image acquisition requirements .4
7.1 General .4
7.2 Pixel aspect ratio .4
7.3 Pixel depth.5
7.4 Grayscale data .5
7.5 Dynamic range .5
7.6 Scan resolution.6
7.7 Image resolution .6
7.8 Fingerprint image location .6
8 Finger image record format.6
8.1 Record structure .6
8.2 General record header.7
8.2.1 Required fields.7
8.2.2 Format identifier.7
8.2.3 Version number.8
8.2.4 Record length.8
8.2.5 Capture device ID.8
8.2.6 Image acquisition level.8
8.2.7 Number of finger/palm images.8
8.2.8 Scale units.8
8.2.9 Scan resolution (horizontal).8
8.2.10 Scan resolution (vertical) .8
8.2.11 Image resolution (horizontal).8
8.2.12 Image resolution (vertical) .9
8.2.13 Pixel depth.9
8.2.14 Image compression algorithm .9
8.2.15 Reserved.9
8.3 Finger record header .10
8.3.1 Required fields.10
8.3.2 Length of finger/palm data block.10
8.3.3 Finger/palm position.10
8.3.4 Count of views .11
8.3.5 View number.12
8.3.6 Finger/palm image quality.12
8.3.7 Impression type .12
8.3.8 Horizontal line length.12
8.3.9 Vertical line length .12
8.3.10 Finger/palm image data .12
© ISO/IEC 2005 — All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 19794-4:2005(E)

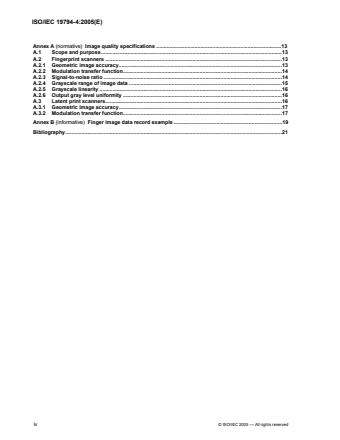

Annex A (normative) Image quality specifications .13
A.1 Scope and purpose.13
A.2 Fingerprint scanners .13
A.2.1 Geometric image accuracy.13
A.2.2 Modulation transfer function.14
A.2.3 Signal-to-noise ratio .14
A.2.4 Grayscale range of image data .15
A.2.5 Grayscale linearity .16
A.2.6 Output gray level uniformity .16
A.3 Latent print scanners.16
A.3.1 Geometric image accuracy.17
A.3.2 Modulation transfer function.17
Annex B (informative) Finger image data record example .19
Bibliography.21
iv © ISO/IEC 2005 — All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 19794-4:2005(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 19794-4 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 37, Biometrics.
ISO/IEC 19794 consists of the following parts, under the general title Information technology — Biometric data
interchange formats:
 Part 1: Framework
 Part 2: Finger minutiae data
 Part 3: Finger pattern spectral data
 Part 4: Finger image data
 Part 5: Face image data
 Part 6: Iris image data
The following parts are under preparation:
 Part 7: Signature/sign behavioral data
 Part 8: Finger pattern skeletal data


© ISO/IEC 2005 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO/IEC 19794-4:2005(E)
Introduction
In the forensic community, the capture and transmission of fingerprint images has been a common choice for
the exchange of fingerprint information used by Automatic Fingerprint Identification Systems (AFIS) for the
identification of individuals. However, little to no fingerprint information is being exchanged between
equipment from different vendors in the biometric user verification and access community. This has been due
in part to the lack of agreement between vendors on the amount and type of information to capture, the
method of capture, and the information to be exchanged.
This part of the ISO/IEC 19794 standard is intended for those applications requiring the exchange of raw or
processed fingerprint images that may not necessarily be limited by the amount of resources required for data
storage or transmitting time. It can be used for the exchange of scanned fingerprints containing detailed
image pixel information. This part of ISO/IEC 19794 can also be used to exchange processed fingerprint
image data containing considerably fewer pixels per inch and/or a lesser number of greyscale levels.  This is
in contrast to other parts of ISO/IEC 19794 used for exchanging lists of fingerprint characteristics such as
minutiae, patterns, or other variants. These formats require considerably less storage than a fingerprint image.
However, by using any of the other parts of ISO/IEC 19794, information recorded in one standard format
cannot be used by algorithms designed to operate with another type of information. In other words, minutiae
data cannot be used by pattern matching algorithms and pattern data cannot be used by minutiae matching
algorithms.
Although the minutiae, pattern, or other approaches produce different intermediate outputs, all must initially
capture a reasonably high quality fingerprint image before reducing the size of the image (in bytes) or
developing a list of characteristic data from the image. Use of the captured or processed image can provide
interoperability among vendors relying on minutiae-based, pattern-based or other algorithms. As a result,
data from the captured finger image offers the developer more freedom in choosing or combining matching
algorithm technology. For example, an enrolment image may be stored on a contactless chip located on an
identification document. This will allow future verification of the holder of the document with systems that rely
on either minutiae based or pattern based algorithms. Establishment of an image-based representation of
fingerprint information will not rely on pre-established definitions of minutiae, patterns or other types. It will
provide implementers with the flexibility to accommodate images captured from dissimilar devices, varying
image sizes, resolutions, and different grayscale depths. Use of the fingerprint image will allow each vendor
to implement their own algorithms to determine whether two fingerprint records are from the same finger.
vi © ISO/IEC 2005 — All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO/IEC 19794-4:2005(E)

Information technology — Biometric data
interchange formats —
Part 4:
Finger image data
1 Scope
This part of the ISO/IEC 19794 standard specifies a data record interchange format for storing, recording, and
transmitting the information from one or more finger or palm image areas within an ISO/IEC 19785-1 CBEFF
data structure. This can be used for the exchange and comparison of finger image data. It defines the
content, format, and units of measurement for the exchange of finger image data that may be used in the
verification or identification process of a subject. The information consists of a variety of mandatory and
optional items, including scanning parameters, compressed or uncompressed images and vendor-specific
information. This information is intended for interchange among organizations that rely on automated devices
and systems for identification or verification purposes based on the information from finger image areas.
Information compiled and formatted in accordance with this part of the ISO/IEC 19794 standard can be
recorded on machine-readable media or may be transmitted by data communication facilities.
2 Conformance
Systems claiming conformance with this part of the ISO/IEC 19794 standard shall be capable of encoding and
decoding finger image data and the associated parameter data used in the transmitting and/or receiving of
fingerprint images as defined by this part of the ISO/IEC 19794 standard. At a minimum, conformance shall
require the ability to capture, exchange, and compare interoperable fingerprint image information.
3 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
IAFIS-IC-0110 (V3), WSQ Gray-scale Fingerprint Image Compression Specification 1997
ISO/IEC 19785.1, Information technology — Common biometric exchange formats framework — Part 1:
Data element specification
ISO/IEC 15444 (all parts), Information technology — JPEG 2000 image coding system
MTR 04B0000022 (Mitre Technical Report), Margaret Lepley, Profile for 1000ppi Fingerprint Compression,
Version 1.1, April 2004. Available at:
http://www.mitre.org/work/tech_papers/tech_papers_04/lepley_fingerprint/lepley_fingerprint.pdf
4 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
4.1
biometric sample
raw data representing a biometric characteristic of an end-user as captured by a biometric system
EXAMPLE The image of a fingerprint.
© ISO/IEC 2005 — All rights reserved 1

---------------------- Page: 7 ----------------------
ISO/IEC 19794-4:2005(E)
4.2
capture
the method of taking a biometric sample from an end user
4.3
core
the approximate center of a fingerprint image area
NOTE The exact location of the core is generally placed near the topmost point of the innermost recurving ridgeline of the
fingerprint provided there are no ridges inside the recurving ridge. For those instances where there are one or more
ridges within the recurving ridge, the placement of the core will be dependent upon the specific combination of ridges.
4.4
fingerprint image area
the area of friction skin on the fleshy surface of a finger located horizontally between the two edges of the
fingernail and vertically between the first joint and the tip of a finger. It contains a unique pattern of friction
ridge and valley information commonly referred to as a “fingerprint”
4.5
friction ridge
the ridges present on the skin of the finger which makes contact with an incident surface under normal touch
4.6
grayscale
the method used to represent a continuous tone image that has only a single component or variable to
represent each pixel; also referred to as monochrome or black and white
4.7
image resolution
the number of pixels per unit distance in the interchanged image
NOTE This may be the result of processing a captured image. The original captured scanned image may have been
subsampled, scaled, interpolated, or otherwise processed to produce a form for representing the ridge and valley structure
areas of the fingerprint.
4.8
latent
an impression of a fingerprint image collected from an intermediate surface, rather than directly via a live scan
capture device or a traditional inked fingerprint card
NOTE The term latent print is generally used to describe any type of print found at the scene of a crime or on evidence
associated with a crime.
4.9
live capture
the process of capturing a biometric sample through an interaction between and end user and a biometric
system
4.10
pixel
a picture element – located on an n by m matrix of picture elements, where n is the horizontal component and
m is the vertical component
4.11
plain fingerprint image
image captured from a finger placed on a platen without any rolling movement – the center portion of a rolled
2 © ISO/IEC 2005 — All rights reserved

---------------------- Page: 8 ----------------------
ISO/IEC 19794-4:2004(E)
4.12
rolled fingerprint image
image area captured that is located between the two edges of the fingernail. Acquired using a rolling motion
from one edge of the fingernail to the other
4.13
scan resolution
the number of pixels per unit distance used by a sensor or scanning device to initially capture a fingerprint or
palmprint image
4.14
swipe fingerprint image
a method of fingerprint collection where the finger is manually slid across a one-dimensional sensor resulting
in multiple readings or partial impressions from the same fingerprint. These readings are then combined to
produce an accurate two-dimensional image of the fingerprint
4.15
transaction
a command, message, or input record that explicitly or implicitly calls for a processing action. Information
contained in a transaction shall be applicable to a single subject
4.16
valley
the area surrounding a friction ridge, which does not make contact with an incident surface under normal
touch; the area of the finger image area between two frictions ridges
5 Abbreviated terms
ppcm pixels per centimetre
ppi pixels per inch
ppmm pixels per millimetre
6 Data conventions
6.1 Byte and bit ordering
Each item of information, field, or logical record shall contain one or more bytes of data. Within a record all
multibyte quantities are represented in Big-Endian format. That is, the more significant bytes of any multibyte
quantity are stored at lower addresses in memory than less significant bytes. The order for transmission shall
also be the most significant byte first and least significant byte last. Within a byte, the order of transmission
shall be the most significant bit first and the least significant bit last. All numeric values are fixed-length
unsigned integer quantities.
6.2 Scan sequence
It is not the purpose of this part of the ISO/IEC 19794 standard to specify the orientation of the finger (or palm),
the method of scanning, or the order of scanning used to capture the image. However, each image as
presented in accordance with this format standard shall appear to have been captured in an upright position
and approximately centered horizontally in the field of view. The recorded image data shall appear to be the
result of a scanning of a conventional inked impression of a fingerprint. The scanning sequence (and
recorded data) shall appear to have been from left-to-right, progressing from top-to-bottom of the fingerprint or
palm print. Figure 1 illustrates the recording order for the scanned image. For the purpose of describing the
position of each pixel within an image to be exchanged, a pair of reference axes shall be used. The origin of
the axes, pixel location (0,0), shall be located at the upper left-hand corner of each image. The x-coordinate
© ISO/IEC 2005 — All rights reserved 3

---------------------- Page: 9 ----------------------
ISO/IEC 19794-4:2005(E)
Figure 1 Order of scanned lines
(horizontal) position shall increase positively from the origin to the right side of the image. The y-coordinate
(vertical) position shall increase positively from the origin to the bottom of the image.
7 Image acquisition requirements
7.1 General
Image capture requirements are dependent on various factors including the application, the available amount
of raw pixel information to retain or exchange, and targeted performance metrics. As a result of these factors,
numeric values for specific image capture parameters will be associated with one of several combinations of
image acquisition parameters settings. The choice of the image acquisition settings level should therefore be
commensurate with the system and application requirements.
Table 1 lists the minimum requirements for selected image acquisition parameters as a function of the image
acquisition settings level desired. A tolerance of plus or minus 1% is applicable to the minimum numeric
values stated for the scan resolution and dynamic range parameters. The last column indicates compliance
with established certification procedures. Values for setting levels 40 or 41 are intended for applications
requiring the greatest amount of detailed information. Scanners capable of level 30 and 31 performance are
currently available and are being deployed for law enforcement purposes. Level 30 or 31 applications
primarily include law enforcement agencies. Both level 41 and 31 systems should be certified using these and
other requirements contained in Appendix F of the FBI’s Electronic Fingerprint Transmission Specification
(EFTS/F). Annex A lists the requirements from the EFTS/Appendix F that are pertinent to fingerprint image
input devices. The remaining levels are designed for commercial access control and verification systems.
The overall quality level of a biometric system will be limited to that level at which all of the minimums are met.
Note – Setting levels not listed are reserved for future definition by SC37, including indication of compliance with future
ISO standards for image capture. Compliance with future certifications will be indicated by additional entries in the
certifications columns.
7.2 Pixel aspect ratio
For all quality levels, the finger image shall be represented using square pixels, in which the horizontal and
vertical dimensions of the pixels are equal. Any difference between these two dimensions should be within
1%. That is, the ratio of horizontal to vertical pixel dimensions should be between .99 and 1. 01.
4 © ISO/IEC 2005 — All rights reserved

---------------------- Page: 10 ----------------------
ISO/IEC 19794-4:2005(E)
Table 1 — Image acquisition settings levels
Setting Scan resolution Scan resolution  Pixel depth Dynamic range Certification
level pixels/centimeter pixels/inch   (bits) (gray levels)
(ppcm) (ppi)
10 49 125 1 2 None
20 98 250 3 5 None
30 197 500 8 80 None
35 295 750 8 100 None
31 197 500 8 200 EFTS/F
40 394 1000 8 120 None
41 394 1000 8 200 EFTS/F
Note – Manufacturers generally express the rated scan resolution of their devices in pixels per inch (ppi). Table 1 also
lists the resolutions in pixels per centimetre (ppcm). These are the rounded values of each ppi resolution divided by 2.54.
The ppi and ppcm values are therefore consistent with, but not exactly equal to, each other. Either system may be used,
but the two should not be intermixed or re-converted.
7.3 Pixel depth
The grayscale precision of the pixel data shall be specified in terms of the pixel depth or the number of bits
used to represent the grayscale value of a pixel. A pixel depth of 3 provides 8 levels of grayscale; a depth of 8
provides up to 256 levels of gray. For grayscale data, the minimum value that can be assigned to a "black"
pixel shall be zero. The maximum value that can be assigned to a "white" pixel shall be the grayscale value
with all of its bits of precision set to "1". However, the 'blackest" pixel in an image may have a value greater
than "0" and the "whitest" pixel may have a value less than its maximum value. This implies that the maximum
value for a "white" pixel with 5 bits of precision shall be 31 or less. The maximum value for the "whitest" pixel
using 8 bits of precision shall be 255 or less. The pixel depth may range from 1 to 16 bits.
7.4 Grayscale data
Grayscale finger image data may be stored, recorded, or transmitted in either compressed or uncompressed
form. The image data portion of a record for an uncompressed grayscale image shall contain a set of raw
pixel information. Using a pixel depth of 8 bits (256 grayscale levels) each pixel shall be contained in a single
byte. Pixel values with a depth of less than eight bits can be stored and transmitted in a packed binary format.
Increased precision for pixel values greater than 255 shall use two unsigned bytes to hold up to sixteen-bit
pixels with values in the range of 0-65635. The encoding of a compressed gray
...
