ISO/TR 20173:2009
(Main)Welding - Grouping systems for materials - American materials
Welding - Grouping systems for materials - American materials
ISO/TR 20173:2009 provides an American grouping system for materials for welding purposes, classified in accordance with the grouping system of ISO/TR 15608:2005. It may also apply for other purposes, such as heat treatment, forming, and non-destructive testing. Types of steels are listed in accordance with the grouping system of ISO/TR 15608:2005, Table 1. ISO/TR 20173:2009 covers grouping systems for the following standardized materials: steel; aluminium and its alloys; nickel and its alloys; copper and its alloys; titanium and its alloys; zirconium and its alloys; and cast irons.
Soudage — Systèmes de groupement des matériaux — Matériaux américains
L'ISO/TR 20173:2009 fournit un système de groupement américain des matériaux destinés au soudage, classés conformément au système de groupement de l'ISO/TR 15608:2005. Il peut également s'appliquer pour d'autres fins, tels le traitement thermique, le formage et les contrôles non destructifs. Les types d'acier sont listés conformément au système de groupement de l'ISO/TR 15608:2005, Tableau 1. L'ISO/TR 20173:2009 couvre les systèmes de groupement des matériaux normalisés suivants: aciers; aluminium et alliages d'aluminium; nickel et alliages de nickel; cuivre et alliages de cuivre; titane et alliages de titane; zirconium et alliages de zirconium; fontes.
General Information
Relations
Frequently Asked Questions
ISO/TR 20173:2009 is a technical report published by the International Organization for Standardization (ISO). Its full title is "Welding - Grouping systems for materials - American materials". This standard covers: ISO/TR 20173:2009 provides an American grouping system for materials for welding purposes, classified in accordance with the grouping system of ISO/TR 15608:2005. It may also apply for other purposes, such as heat treatment, forming, and non-destructive testing. Types of steels are listed in accordance with the grouping system of ISO/TR 15608:2005, Table 1. ISO/TR 20173:2009 covers grouping systems for the following standardized materials: steel; aluminium and its alloys; nickel and its alloys; copper and its alloys; titanium and its alloys; zirconium and its alloys; and cast irons.
ISO/TR 20173:2009 provides an American grouping system for materials for welding purposes, classified in accordance with the grouping system of ISO/TR 15608:2005. It may also apply for other purposes, such as heat treatment, forming, and non-destructive testing. Types of steels are listed in accordance with the grouping system of ISO/TR 15608:2005, Table 1. ISO/TR 20173:2009 covers grouping systems for the following standardized materials: steel; aluminium and its alloys; nickel and its alloys; copper and its alloys; titanium and its alloys; zirconium and its alloys; and cast irons.
ISO/TR 20173:2009 is classified under the following ICS (International Classification for Standards) categories: 25.160.20 - Welding consumables. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO/TR 20173:2009 has the following relationships with other standards: It is inter standard links to ISO 604:2002, ISO/TR 20173:2018, ISO/TR 20173:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO/TR 20173:2009 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
TECHNICAL ISO/TR
REPORT 20173
Second edition
2009-10-01
Welding — Grouping systems for
materials — American materials
Soudage — Systèmes de groupement des matériaux — Matériaux
américains
Reference number
©
ISO 2009

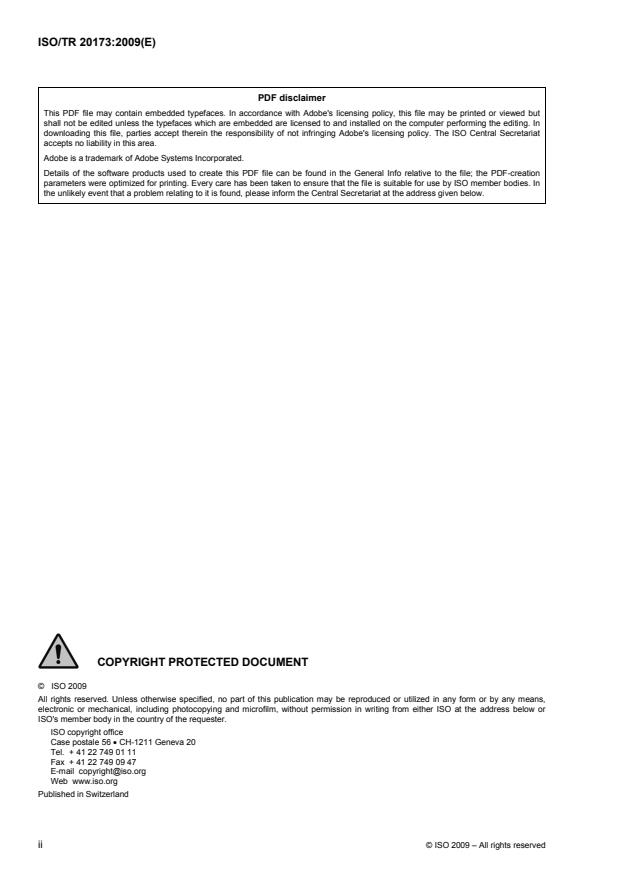

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2009 – All rights reserved
Contents Page
Foreword. iv
1 Scope . 1
2 American grouping system for materials. 1
Bibliography . 58

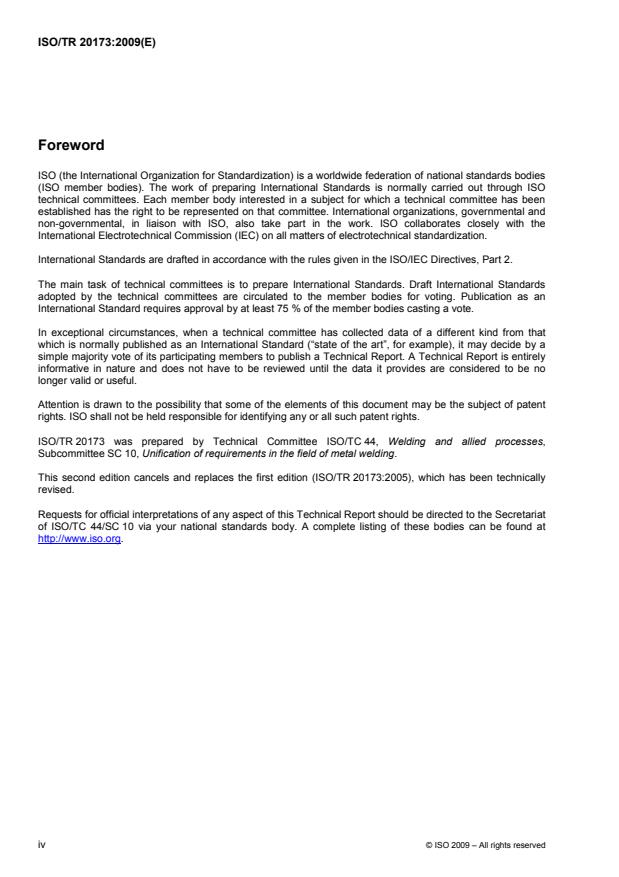

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 20173 was prepared by Technical Committee ISO/TC 44, Welding and allied processes,
Subcommittee SC 10, Unification of requirements in the field of metal welding.
This second edition cancels and replaces the first edition (ISO/TR 20173:2005), which has been technically
revised.
Requests for official interpretations of any aspect of this Technical Report should be directed to the Secretariat
of ISO/TC 44/SC 10 via your national standards body. A complete listing of these bodies can be found at
http://www.iso.org.
iv © ISO 2009 – All rights reserved
TECHNICAL REPORT ISO/TR 20173:2009(E)
Welding — Grouping systems for materials — American
materials
1 Scope
This Technical Report provides an American grouping system for materials for welding purposes, classified in
[1]
accordance with the grouping system of ISO/TR 15608:2005 .
It may also apply for other purposes, such as heat treatment, forming, and non-destructive testing. Types of
[1]
steels are listed in accordance with the grouping system of ISO/TR 15608:2005 , Table 1.
This Technical Report covers grouping systems for the following standardized materials:
⎯ steel;
⎯ aluminium and its alloys;
⎯ nickel and its alloys;
⎯ copper and its alloys;
⎯ titanium and its alloys;
⎯ zirconium and its alloys;
⎯ cast irons.
2 American grouping system for materials
See Tables 1 and 2.
Table 1 — American grouping system for ferrous material
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade 15608:2005 Nominal composition
P or M Group
No.
Specification No. group
No. No.
AS 15 5-490 — 1 — 1.1 C
AS 15 7-430 — 1 — 1.1 C
AS 15 7-460 — 1 — 1.1 C
AS 15 7-490 — 1 — 1.1 C
A/SA 36 — K02600 1 1 11.1 C-Mn-Si
A/SA 36 — K02600 1 1 11.1 C-Mn-Si
A/SA 53 Type E, Gr. A K02504 1 1 11.1 C
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade 15608:2005 Nominal composition
No. P or M Group
Specification No.
group
No. No.
A/SA 53 Type E, Gr. B K03005 1 1 11.1 C-Mn
A/SA 53 Type F — 1 1 11.1 C
A/SA 53 Type S, Gr. A K02504 1 1 11.1 C
A/SA 53 Type S, Gr. B K03005 1 1 11.1 C-Mn
A/SA 105 — K03504 1 2 11.1 C
A/SA 106 A K02501 1 1 1.1 C-Si
A/SA 106 B K03006 1 1 11.1 C-Mn-Si
A/SA 106 C K03501 1 2 11.1 C-Mn-Si
A 108 1015 CW G10150 1 1 1.1 C
A 108 1018 CW G10180 1 1 1.1 C
A 108 1020 CW G10200 1 1 1.1 C
A 108 8620 CW G86200 3 3 4.1 0.5Ni-0.5Cr-Mo
A 131 A — 1 1 1.1 C
A 131 AH32 — 1 2 1.2 C-Mn-Si
A 131 AH36 — 1 2 1.2 C-Mn-Si
A 131 B — 1 1 1.1 C-Mn-Si
A 131 CS — 1 1 1.1 C-Mn-Si
A 131 D — 1 1 1.1 C-Mn-Si
A 131 DH32 — 1 2 1.2 C-Mn-Si
A 131 DH36 — 1 2 1.2 C-Mn-Si
A 131 DS — 1 1 1.1 C-Mn-Si
A 131 E — 1 2 1.1 C-Mn-Si
A 131 EH32 — 1 2 1.2 C-Mn-Si
A 131 EH36 — 1 2 1.2 C-Mn-Si
A/SA 134 SA283, Gr. A — 1 1 1.1 C
A/SA 134 SA283, Gr. B — 1 1 1.1 C
A/SA 134 SA283, Gr. C K02401 1 1 1.1 C
A/SA 134 SA283, Gr. D K02702 1 1 1.1 C
A/SA 134 SA285, Gr. A K01700 1 1 1.1 C
A/SA 134 SA285, Gr. B K02200 1 1 1.1 C
A/SA 134 SA285, Gr. C K02801 1 1 11.1 C
A/SA 135 A — 1 1 1.1 C
A/SA 135 B — 1 1 11.1 C
A 139 A — 1 1 1.1 C
A 139 B K03003 1 1 1.1 C
2 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade 15608:2005 Nominal composition
No. P or M Group
Specification No.
group
No. No.
A 139 C K03004 1 1 11.1 C
A 139 D K03010 1 1 11.1 C
A 139 E K03012 1 1 11.1 C
A 167 Type 302B S30215 8 1 8.1 18Cr-8Ni-2Si
A 167 Type 308 S30800 8 2 8.2 20Cr-10Ni
A 167 Type 309 S30900 8 2 8.2 23Cr-12Ni
A 167 Type 309S S30908 8 2 8.2 23Cr-12Ni
A 167 Type 310 S31000 8 2 8.2 25Cr-20Ni
A 167 Type 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 178 A K01200 1 1 1.1 C
A/SA 178 C K03503 1 1 11.1 C
A/SA 178 D — 1 2 11.1 C-Mn-Si
A/SA 179 — K01200 1 1 1.1 C
A/SA 181 Cl. 60 K03502 1 1 11.1 C-Si
A/SA 181 Cl. 70 K03502 1 2 11.1 C-Si
A 182 F60 S32205 10H 1 10.1 22Cr-5Ni-3Mo-N
A 182 F6a, Cl. 3 S41000 6 3 7.2 13Cr
A 182 F6a, Cl. 4 S41000 6 3 7.2 13Cr
A 182 S34565 S34565 8 4 8.2 24Cr-17Ni-6Mn-4.5Mo-N
A/SA 182 F1 K12822 3 2 1.1 C-0.5Mo
A/SA 182 F10 S33100 8 2 8.1 20Ni-8Cr
A/SA 182 F11, Cl. 1 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 182 F11, Cl. 2 K11572 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 182 F11, Cl. 3 K11572 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 182 F12, Cl. 1 K11562 4 1 5.1 1Cr-0.5Mo
A/SA 182 F12, Cl. 2 K11564 4 1 5.1 1Cr-0.5Mo
A/SA 182 F2 K12122 3 2 4.2 0.5Cr-0.5Mo
A/SA 182 F21 K31545 5° 1 5.2 3Cr-1Mo
A/SA 182 F22, Cl. 1 K21590 5° 1 5.2 2.25Cr-1Mo
A/SA 182 F22, Cl. 3 K21590 5° 1 5.2 2.25Cr-1Mo
A/SA 182 F22V K31835 5C 1 6.2 2.25Cr-1Mo-V
A/SA 182 F304 S30400 8 1 8.1 18Cr-8Ni
A/SA 182 F304H S30409 8 1 8.1 18Cr-8Ni
A/SA 182 F304L S30403 8 1 8.1 18Cr-8Ni
A/SA 182 F304LN S30453 8 1 8.1 18Cr-8Ni-N
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 182 F304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 182 F310 S31000 8 2 8.2 25Cr-20Ni
A/SA 182 F310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 182 F316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 182 F316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 182 F316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 182 F316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 182 F316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 182 F317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 182 F317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 182 F321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 182 F321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 182 F347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 182 F347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 182 F348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 182 F348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 182 F3V K31830 5C 1 6.2 3Cr-1Mo-V-Ti-B
A/SA 182 F3VCb — 5C 1 6.2 3Cr-1Mo-0.25V-Cb-Ca
A/SA 182 F429 S42900 6 2 7.2 15Cr
A/SA 182 F430 S43000 7 2 7.1 17Cr
A/SA 182 F44 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 182 F45 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 182 F46 S30600 8 1 8.1 18Cr-15Ni-4Si
A/SA 182 F5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 182 F50 S31200 10H 1 10.2 25Cr-6Ni-Mo-N
A/SA 182 F51 S31803 10H 1 10.1 22Cr-5Ni-3Mo-N
A/SA 182 F53 S32750 10H 1 10.2 25Cr-7Ni-4Mo-N
A/SA 182 F54 S39274 10H 1 10.2 25Cr-7Ni-3Mo-2W-Cu-N
A/SA 182 F55 S32760 10H 1 10.1 25Cr-8Ni-3Mo-W-Cu-N
A/SA 182 F5a K42544 5B 1 5.3 5Cr-0.5Mo
A/SA 182 F6a, Cl. 1 S41000 6 1 7.2 13Cr
A/SA 182 F6a, Cl. 2 S41000 6 3 7.2 13Cr
A/SA 182 F6b S41026 6 3 7.2 13Cr-0.5Mo
A/SA 182 F6NM S41500 6 4 7.2 13Cr-4.5Ni-Mo
4 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 182 F9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 182 F91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 182 FR K22035 9A 1 9.1 2Ni-1Cu
A/SA 182 FXM-11 S21904 8 3 8.3 21Cr-6Ni-9Mn
A/SA 182 FXM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 182 FXM-27Cb S44627 10I 1 7.1 27Cr-1Mo
A/SA 192 — K01201 1 1 1.1 C-Si
A/SA 202 A K11742 4 1 4.2 0.5Cr-1.25Mn-Si
A/SA 202 B K12542 4 1 4.2 0.5Cr-1.25Mn-Si
A/SA 203 A K21703 9A 1 9.1 2.5Ni
A/SA 203 B K22103 9A 1 9.1 2.5Ni
A/SA 203 D K31718 9B 1 9.2 3.5Ni
A/SA 203 E K32018 9B 1 9.2 3.5Ni
A/SA 203 F — 9B 1 9.2 3.5Ni
A/SA 204 A K11820 3 1 1.1 C-0.5Mo
A/SA 204 B K12020 3 2 1.1 C-0.5Mo
A/SA 204 C K12320 3 2 1.2 C-0.5Mo
A/SA 209 T1 K11522 3 1 1.1 C-0.5Mo
A/SA 209 T1a K12023 3 1 1.1 C-0.5Mo
A/SA 209 T1b K11422 3 1 1.1 C-0.5Mo
A/SA 210 A-1 K02707 1 1 11.1 C-Si
A/SA 210 C K03501 1 2 11.1 C-Mn-Si
A 211 A570-30 K02502 1 1 1.1 C
A 211 A570-33 K02502 1 1 1.1 C
A 211 A570-40 K02502 1 1 1.1 C
A/SA 213 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 213 S30600 S30600 8 1 8.1 17Cr-14Ni-4Si
A/SA 213 S30601 S30601 8 1 8.1 17.5Cr-17.5Ni-5.3Si
A/SA 213 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 213 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 213 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 213 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 213 S32615 S32615 8 1 8.1 18Cr-20Ni-5.5Si
A/SA 213 T11 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 213 T12 K11562 4 1 5.1 1Cr-0.5Mo
A/SA 213 T17 K12047 10B 1 4.1 1Cr-V
A/SA 213 T2 K11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 213 T21 K31545 5A 1 5.2 3Cr-1Mo
A/SA 213 T22 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 213 T5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 213 T5b K51545 5B 1 5.3 5Cr-0.5Mo-Si
A/SA 213 T5c K41245 5B 1 5.3 5Cr-0.5Mo-Ti
A/SA 213 T9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 213 T91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 213 TP201 S20100 8 3 8.3 17Cr-4Ni-6Mn
A/SA 213 TP202 S20200 8 3 8.3 18Cr-5Ni-9Mn
A/SA 213 TP304 S30400 8 1 8.1 18Cr-8Ni
A/SA 213 TP304H S30409 8 1 8.1 18Cr-8Ni
A/SA 213 TP304L S30403 8 1 8.1 18Cr-8Ni
A/SA 213 TP304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 213 TP304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 213 TP309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 213 TP309H S30909 8 2 8.2 23Cr-12Ni
A/SA 213 TP309HCb S30941 8 2 8.2 23Cr-12Ni-Cb
A/SA 213 TP309S S30908 8 2 8.2 23Cr-12Ni
A/SA 213 TP310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 213 TP310H S31009 8 2 8.2 25Cr-20Ni
A/SA 213 TP310HCb S31041 8 2 8.2 25Cr-20Ni-Cb
A/SA 213 TP310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 213 TP310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 213 TP310S S31008 8 2 8.2 25Cr-20Ni
A/SA 213 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 213 TP316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 213 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 213 TP316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 213 TP316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 213 TP321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 213 TP321H S32109 8 1 8.1 18Cr-10Ni-Ti
6 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 213 TP347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 TP347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 TP347HFG S34710 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 TP348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 TP348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 XM-15 S38100 8 1 8.1 18Cr-18Ni-2Si
A/SA 213 XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 214 — K01807 1 1 1.1 C
A/SA 216 WCA J02502 1 1 1.1 C-Si
A/SA 216 WCB J03002 1 2 1.1 C-Si
A/SA 216 WCC J02503 1 2 1.1 C-Mn-Si
A 217 C12A J84090 5B 2 6.4 9Cr-1Mo-V
A/SA 217 C12 J82090 5B 1 5.4 9Cr-1Mo
A/SA 217 C5 J42045 5B 1 5.3 5Cr-0.5Mo
A/SA 217 CA15 J91150 6 3 7.2 13Cr
A/SA 217 WC1 J12524 3 1 1.1 C-0.5Mo
A/SA 217 WC4 J12082 4 1 9.1 1Ni-0.5Cr-0.5Mo
A/SA 217 WC5 J22000 4 1 4.2 0.75Ni-1Mo-0.75Cr
A/SA 217 WC6 J12072 4 1 5.1 1.25Cr-0.5Mo
A/SA 217 WC9 J21890 5A 1 5.2 2.25Cr-1Mo
A/SA 225 C K12524 10A 1 4.1 Mn-0.5Ni-V
A/SA 225 D K12004 10A 1 2.1 Mn-0.5Ni-V
A/SA 234 WP1 K12821 3 1 11.2 C-0.5Mo
A/SA 234 WP11, Cl. 1 — 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 234 WP12, Cl. 1 K12062 4 1 5.1 1Cr-0.5Mo
A/SA 234 WP22, Cl. 1 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 234 WP5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 234 WP91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 234 WPB K03006 1 1 11.1 C-Mn-Si
A/SA 234 WPC K03501 1 2 11.1 C-Mn-Si
A/SA 234 WPR K22035 9A 1 9.1 2Ni-1Cu
A 240 S32205 S32205 10H 1 10.1 22Cr-5Ni-3Mo-N
A 240 S34565 S34565 8 4 8.2 24Cr-17Ni-6Mn-4.5Mo-N
A/SA 240 — S20400 8 3 8.3 16Cr-9Mn-2Ni-N
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 240 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 240 S21800 S21800 8 3 8.1 18Cr-8Ni-4Si-N
A/SA 240 S30600 S30600 8 1 8.1 18Cr-15Ni-4Si
A/SA 240 S30601 S30601 8 1 8.1 17.5Cr-17.5Ni-5.3Si
A/SA 240 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 240 S31200 S31200 10H 1 10.2 25Cr-6Ni-Mo-N
A/SA 240 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 240 S31260 S31260 10H 1 10.2 25Cr-6.5Ni-3Mo-N
A/SA 240 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 240 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 240 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 240 S31753 S31753 8 1 8.1 18Cr-13Ni-3Mo-N
A/SA 240 S31803 S31803 10H 1 10.1 22Cr-5Ni-3Mo-N
A/SA 240 S32550 S32550 10H 1 10.2 25Cr-5Ni-3Mo-2Cu
A/SA 240 S32615 S32615 8 1 8.1 18Cr-20Ni-5.5Si
A/SA 240 S32750 S32750 10H 1 10.2 25Cr-7Ni-4Mo-N
A/SA 240 S32760 S32760 10H 1 10.2 25Cr-8Ni-3Mo-W-Cu-N
A/SA 240 S32906 S32906 10H 1 10.2 29Cr-6.5Ni-2Mo-N
A/SA 240 S32950 S32950 10H 1 10.2 26Cr-4Ni-Mo-N
A/SA 240 S41500 S41500 6 4 7.2 13Cr-4.5Ni-Mo
A/SA 240 S44400 S44400 7 2 7.1 18Cr-2Mo
A/SA 240 S44635 S44635 10I 1 7.1 25Cr-4Ni-4Mo-Ti
A/SA 240 S44660 S44660 10K 1 7.1 26Cr-3Ni-3Mo
A/SA 240 S44700 S44700 10J 1 7.1 29Cr-4Mo
A/SA 240 S44800 S44800 10K 1 7.1 29Cr-4Mo-2Ni
A/SA 240 Type 201-1 S20100 8 3 8.3 17Cr-4Ni-6Mn
A/SA 240 Type 201-2 S20100 8 3 8.3 17Cr-4Ni-6Mn
A/SA 240 Type 201LN S20153 8 3 8.3 16Cr-4Ni-6Mn
A/SA 240 Type 202 S20200 8 3 8.3 18Cr-5Ni-9Mn
A/SA 240 Type 301 S30100 8 1 8.1 17Cr-7Ni
A/SA 240 Type 302 S30200 8 1 8.1 18Cr-8Ni
A/SA 240 Type 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 240 Type 304H S30409 8 1 8.1 18Cr-8Ni
A/SA 240 Type 304L S30403 8 1 8.1 18Cr-8Ni
8 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 240 Type 304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 240 Type 304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 240 Type 305 S30500 8 1 8.1 18Cr-11Ni
A/SA 240 Type 309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 240 Type 309H S30909 8 2 8.2 23Cr-12Ni
A/SA 240 Type 309HCb S30941 8 2 8.2 23Cr-12Ni-Cb
A/SA 240 Type 309S S30908 8 2 8.2 23Cr-12Ni
A/SA 240 Type 310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 240 Type 310H S31009 8 2 8.2 25Cr-20Ni
A/SA 240 Type 310HCb S31041 8 2 8.2 25Cr-20Ni-Cb
A/SA 240 Type 310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 240 Type 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 240 Type 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 240 Type 316Cb S31640 8 1 8.1 16Cr-12Ni-2Mo-Cb
A/SA 240 Type 316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 240 Type 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 240 Type 316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 240 Type 316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 240 Type 316Ti S31635 8 1 8.1 16Cr-12Ni-2Mo-Ti
A/SA 240 Type 317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 240 Type 317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 240 Type 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 240 Type 321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 240 Type 347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 240 Type 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 240 Type 348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 240 Type 405 S40500 7 1 7.1 12Cr-1Al
A/SA 240 Type 409 S40910 7 1 7.1 11Cr-Ti
A/SA 240 Type 409 S40930 7 1 7.1 11Cr-Ti
A/SA 240 Type 409 S40920 7 1 7.1 11Cr-Ti
A/SA 240 Type 410 S41000 6 1 7.2 13Cr
A/SA 240 Type 410S S41008 7 1 7.1 13Cr
A/SA 240 Type 429 S42900 6 2 7.2 15Cr
A/SA 240 Type 430 S43000 7 2 7.1 17Cr
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 240 Type 439 S43035 7 2 7.1 18Cr-Ti
A/SA 240 Type XM-15 S38100 8 1 8.1 18Cr-18Ni-2Si
A/SA 240 Type XM-17 S21600 8 3 8.3 19Cr-8Mn-6Ni-Mo-N
A/SA 240 Type XM-18 S21603 8 3 8.3 19Cr-8Mn-6Ni-Mo-N
A/SA 240 Type XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 240 Type XM-21 S30452 8 1 8.1 18Cr-8Ni-N
A/SA 240 Type XM-27 S44627 10I 1 7.1 27Cr-1Mo
A/SA 240 Type XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 240 Type XM-33 S44626 10I 1 7.1 27Cr-1Mo-Ti
A/SA 249 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 249 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 249 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 249 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 249 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 249 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 249 TP 201 S20100 8 3 8.3 17Cr-4Ni-6Mn
A/SA 249 TP 202 S20200 8 3 8.3 18Cr-5Ni-9Mn
A/SA 249 TP XM-15 S38100 8 1 8.1 18Cr-18Ni-2Si
A/SA 249 TP XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 249 TP XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 249 TP304H S30409 8 1 8.1 18Cr-8Ni
A/SA 249 TP304L S30403 8 1 8.1 18Cr-8Ni
A/SA 249 TP304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 249 TP304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 249 TP309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 249 TP309H S30909 8 2 8.2 23Cr-12Ni
A/SA 249 TP309HCb S30941 8 2 8.2 23Cr-12Ni-Cb
A/SA 249 TP309S S30908 8 2 8.2 23Cr-12Ni
A/SA 249 TP310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 249 TP310H S31009 8 2 8.2 25Cr-20Ni
A/SA 249 TP310HCb S31041 8 2 8.2 25Cr-20Ni-Cb
A/SA 249 TP310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 249 TP310S S31008 8 2 8.2 25Cr-20Ni
A/SA 249 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
10 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 249 TP316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 249 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 249 TP316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 249 TP316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 249 TP317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 249 TP317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 249 TP321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 249 TP321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 249 TP347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 249 TP347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 249 TP348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 249 TP348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 250 T1 K11522 3 1 1.1 C-0.5Mo
A/SA 250 T11 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 250 T12 K11564 4 1 5.1 1Cr-0.5Mo
A/SA 250 T1a K12023 3 1 1.1 C-0.5Mo
A/SA 250 T1b K11422 3 1 1.1 C-0.5Mo
A/SA 250 T2 K11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 250 T22 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 266 1 K03506 1 1 11.1 C-Si
A/SA 266 2 K03506 1 2 11.1 C-Si
A/SA 266 3 K05001 1 2 11.2 C-Si
A/SA 266 4 K03017 1 2 11.1 C-Mn-Si
A/SA 268 18Cr-2Mo S44400 7 2 7.1 18Cr-2Mo
A/SA 268 25-4-4 S44635 10I 1 7.1 25Cr-4Ni-4Mo-Ti
A/SA 268 26-3-3 S44660 10K 1 7.1 26Cr-3Ni-3Mo
A/SA 268 29-4 S44700 10J 1 7.1 29Cr-4Mo
A/SA 268 29-4-2 S44800 10K 1 7.1 29Cr-4Mo-2Ni
A/SA 268 S40800 S40800 7 1 7.1 12Cr-Ti
A/SA 268 S41500 S41500 6 4 7.2 13Cr-4.5Ni-Mo
A/SA 268 S44735 S44735 10J 1 7.1 29Cr-4Mo-Ti
A/SA 268 TP 446-1 S44600 10I 1 7.1 27Cr
A/SA 268 TP 446-2 S44600 10I 1 7.1 27Cr
A/SA 268 TP XM-27 S44627 10I 1 7.1 27Cr-1Mo
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 268 TP XM-33 S44626 10I 1 7.1 27Cr-1Mo-Ti
A/SA 268 TP405 S40500 7 1 7.1 12Cr-1Al
A/SA 268 TP409 S40900 7 1 7.1 11Cr-Ti
A/SA 268 TP410 S41000 6 1 7.2 13Cr
A/SA 268 TP429 S42900 6 2 7.2 15Cr
A/SA 268 TP430 S43000 7 2 7.1 17Cr
A/SA 268 TP430Ti S43036 7 1 7.1 18Cr-Ti-Cb
A/SA 268 TP439 S43035 7 2 7.1 18Cr-Ti
A 269 TP304 S30400 8 1 8.1 18Cr-8Ni
A 269 TP304L S30403 8 1 8.1 18Cr-8Ni
A 269 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A 269 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A 271 TP304 S30400 8 1 8.1 18Cr-8Ni
A 276 S32205 S32205 10H 1 10.1 22Cr-5Ni-3Mo-N
A 276 TP304 S30400 8 1 8.1 18Cr-8Ni
A 276 TP304L S30403 8 1 8.1 18Cr-8Ni
A 276 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A 276 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 283 A K01400 1 1 1.1 C
A/SA 283 B K01702 1 1 1.1 C
A/SA 283 C K02401 1 1 1.1 C
A/SA 283 D K02702 1 1 1.1 C
A/SA 285 A K01700 1 1 1.1 C
A/SA 285 B K02200 1 1 1.1 C
A/SA 285 C K02801 1 1 11.1 C
A/SA 299 — K02803 1 2 11.1 C-Mn-Si
A/SA 302 A K12021 3 2 1.1 Mn-0.5Mo
A/SA 302 B K12022 3 3 1.2 Mn-0.5Mo
A 312 S34565 S34565 8 4 8.2 24Cr-17Ni-6Mn-4.5Mo-N
A/SA 312 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 312 S30600 S30600 8 1 8.1 18Cr-15Ni-4Si
A/SA 312 S30601 S30601 8 1 8.1 17.5Cr-17.5Ni-5.3Si
A/SA 312 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 312 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
12 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 312 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 312 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 312 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 312 S32615 S32615 8 1 8.1 18Cr-20Ni-5.5Si
A/SA 312 TP XM-11 S21904 8 3 8.3 21Cr-6Ni-9Mn
A/SA 312 TP XM-15 S38100 8 1 8.1 18Cr-18Ni-2Si
A/SA 312 TP XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 312 TP XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 312 TP304 S30400 8 1 8.1 18Cr-8Ni
A/SA 312 TP304H S30409 8 1 8.1 18Cr-8Ni
A/SA 312 TP304L S30403 8 1 8.1 18Cr-8Ni
A/SA 312 TP304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 312 TP304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 312 TP309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 312 TP309H S30909 8 2 8.2 23Cr-12Ni
A/SA 312 TP309HCb S30941 8 2 8.2 23Cr-12Ni-Cb
A/SA 312 TP309S S30908 8 2 8.2 23Cr-12Ni
A/SA 312 TP310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 312 TP310H S31009 8 2 8.2 25Cr-20Ni
A/SA 312 TP310HCb S31041 8 2 8.2 25Cr-20Ni-Cb
A/SA 312 TP310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 312 TP310S S31008 8 2 8.2 25Cr-20Ni
A/SA 312 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 312 TP316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 312 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 312 TP316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 312 TP316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 312 TP317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 312 TP317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 312 TP321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 312 TP321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 312 TP347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 312 TP347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 312 TP348 S34800 8 1 8.1 18Cr-10Ni-Cb
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 312 TP348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 333 1 K03008 1 1 11.1 C-Mn
A/SA 333 10 — 1 3 11.1 C-Mn-Si
A/SA 333 3 K31918 9B 1 9.2 3.5Ni
A/SA 333 4 K11267 4 2 4.1 0.75Cr-0.75Ni-Cu-Al
A/SA 333 6 K03006 1 1 11.1 C-Mn-Si
A/SA 333 7 K21903 9A 1 9.1 2.5Ni
A/SA 333 8 K81340 11A 1 9.3 9Ni
A/SA 333 9 K22035 9A 1 9.1 2Ni-1Cu
A/SA 334 1 K03008 1 1 11.1 C-Mn
A/SA 334 3 K31918 9B 1 9.2 3.5Ni
A/SA 334 6 K03006 1 1 11.1 C-Mn-Si
A/SA 334 7 K21903 9A 1 9.1 2.5Ni
A/SA 334 8 K81340 11A 1 9.3 9Ni
A/SA 334 9 K22035 9A 1 9.1 2Ni-1Cu
A/SA 335 P1 K11522 3 1 1.1 C-0.5Mo
A/SA 335 P11 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 335 P12 K11562 4 1 5.1 1Cr-0.5Mo
A/SA 335 P2 K11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 335 P21 K31545 5A 1 5.2 3Cr-1Mo
A/SA 335 P22 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 335 P5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 335 P5b K51545 5B 1 5.3 5Cr-0.5Mo-Si
A/SA 335 P5c K41245 5B 1 5.3 5Cr-0.5Mo-Ti
A/SA 335 P9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 335 P91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 336 F1 K12520 3 2 1.1 C-0.5Mo
A/SA 336 F11, Cl. 1 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 336 F11, Cl. 2 K11572 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 336 F11, Cl. 3 K11572 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 336 F12 K11564 4 1 5.1 1Cr-0.5Mo
A/SA 336 F21, Cl. 1 K31545 5A 1 5.2 3Cr-1Mo
A/SA 336 F21, Cl. 3 K31545 5A 1 5.2 3Cr-1Mo
A/SA 336 F22, Cl. 1 K21590 5A 1 5.2 2.25Cr-1Mo
14 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 336 F22, Cl. 3 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 336 F22V K31835 5C 1 6.2 2.25Cr-1Mo-V
A/SA 336 F3Cb — 5C 1 6.2 3Cr-1Mo-0.25V-Cb-Ca
A/SA 336 F3V K31830 5C 1 6.2 3Cr-1Mo-V-Ti-B
A/SA 336 F5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 336 F5A K42544 5B 1 5.3 5Cr-0.5Mo
A/SA 336 F6 S41000 6 3 7.2 13Cr
A/SA 336 F9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 336 F91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 350 LF1 K03009 1 1 11.1 C-Mn-Si
A/SA 350 LF2 K03011 1 2 11.1 C-Mn-Si
A/SA 350 LF3 K32025 9B 1 9.2 3.5Ni
A/SA 350 LF5, Cl. 1 K13050 9A 1 9.1 1.5Ni
A/SA 350 LF5, Cl. 2 K13050 9A 1 9.1 1.5Ni
A/SA 350 LF9 K22036 9A 1 9.1 2Ni-1Cu
A 351 CA15 — 6 3 7.2 13Cr
A 351 CE20N — 8 2 8.2 25Cr-8Ni-N
A 351 CF10MC J92971 8 1 8.1 16Cr-14Ni-2Mo
A 351 CH10 J93401 8 2 8.2 25Cr-12Ni
A 351 HK30 J94203 8 2 8.2 25Cr-20Ni-0.5Mo
A 351 HK40 J94204 8 2 8.2 25Cr-20Ni-0.5Mo
A 351 HT30 N08603 45 — 45 35Ni-15Cr-0.5Mo
A/SA 351 CD3MWCuN J93380 10H 1 10.2 25Cr-8Ni-3Mo-W-Cu-N
A/SA 351 CF10 J92590 8 1 8.1 19Cr-9Ni-0.5Mo
A/SA 351 CF10M J92901 8 1 8.1 19Cr-9Ni-2Mo
A/SA 351 CF3 J92500 8 1 8.1 18Cr-8Ni
A/SA 351 CF3A J92500 8 1 8.1 18Cr-8Ni
A/SA 351 CF3M J92800 8 1 8.1 18Cr-12Ni-2Mo
A/SA 351 CF8 J92600 8 1 8.1 18Cr-8Ni
A/SA 351 CF8A J92600 8 1 8.1 18Cr-8Ni
A/SA 351 CF8C J92710 8 1 8.1 18Cr-10Ni-Cb
A/SA 351 CF8M J92900 8 1 8.1 18Cr-12Ni-2Mo
A/SA 351 CG6MMN J93790 8 3 8.3 22Cr-12Ni-5Mn
A/SA 351 CG8M J93000 8 1 8.1 19Cr-10Ni-3Mo
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 351 CH20 J93402 8 2 8.2 25Cr-12Ni
A/SA 351 CH8 J93400 8 2 8.2 25Cr-12Ni
A/SA 351 CK20 J94202 8 2 8.2 25Cr-20Ni
A/SA 351 CK3MCuN J93254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 351 CN3MN J94651 45 — 8.2 46Fe-24Ni-21Cr-6Mo-Cu
A/SA 351 CN7M N08007 45 — 8.2 28Ni-19Cr-Cu-Mo
A/SA 351 CT15C N08151 45 — 45 32Ni-45Fe-20Cr-Cb
A/SA 352 CA6NM J91540 6 4 7.2 13Cr-4Ni
A/SA 352 LC1 J12522 3 1 1.1 C-0.5Mo
A/SA 352 LC2 J22500 9A 1 9.1 2.5Ni
A/SA 352 LC2-1 J42215 11A 5 9.2 3Ni-1.5Cr-0.5Mo
A/SA 352 LC3 J31550 9B 1 9.3 3.5Ni
A/SA 352 LC4 J41500 9C 1 9.3 4.5Ni
A/SA 352 LCA J02504 1 1 11.1 C-Si
A/SA 352 LCB J03003 1 1 1.1 C-Si
A/SA 352 LCC J02505 1 2 11.1 C-Mn-Si
A/SA 353 — K81340 11A 1 9.3 9Ni
A 356 1 J03502 1 2 11.1 C-Si
A 356 10 J22090 5A 1 5.2 2.25Cr-1Mo
A 356 12A J80490 5B 2 6.4 9Cr-1Mo-V
A 356 6 J12073 4 1 5.1 1.25Cr-0.5Mo
A/SA 358 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 358 304H S30409 8 1 8.1 18Cr-8Ni
A/SA 358 304L S30403 8 1 8.1 18Cr-8Ni
A/SA 358 304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 358 304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 358 309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 358 309S S30908 8 2 8.2 23Cr-12Ni
A/SA 358 310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 358 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 358 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 358 316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 358 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 358 316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
16 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 358 316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 358 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 358 347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 358 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 358 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 358 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 358 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 358 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 358 XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 358 XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 369 FP1 K11522 3 1 1.1 C-0.5Mo
A/SA 369 FP11 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 369 FP12 K11562 4 1 5.1 1Cr-0.5Mo
A/SA 369 FP2 K11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 369 FP21 K31545 5A 1 5.2 3Cr-1Mo
A/SA 369 FP22 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 369 FP5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 369 FP9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 369 FP91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 369 FPA K02501 1 1 1.1 C-Si
A/SA 369 FPB K03006 1 1 1.1 C-Mn-Si
A/SA 372 A K03002 1 1 11.1 C-Si
A/SA 372 B K04001 1 2 11.1 C-Mn-Si
A/SA 376 16-8-2H S16800 8 1 8.1 16Cr-8Ni-2Mo
A/SA 376 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 376 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 376 TP304 S30400 8 1 8.1 18Cr-8Ni
A/SA 376 TP304H S30409 8 1 8.1 18Cr-8Ni
A/SA 376 TP304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 376 TP304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 376 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 376 TP316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 376 TP316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 376 TP316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 376 TP321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 376 TP321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 376 TP347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 376 TP347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 376 TP348 S34800 8 1 8.1 18Cr-10Ni-Cb
A 381 Y35 K03013 1 1 1.1 C
A 381 Y42 — 1 1 1.2 C
A 381 Y46 — 1 1 1.2 C
A 381 Y48 — 1 1 1.2 C
A 381 Y50 — 1 1 1.2 C
A 381 Y52 — 1 2 1.2 C
A 381 Y56 — 1 2 1.3 C
A 381 Y60 — 1 2 1.3 C
A/SA 387 11, Cl. 1 K11789 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 387 11, Cl. 2 K11789 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 387 12, Cl. 1 K11757 4 1 5.1 1Cr-0.5Mo
A/SA 387 12, Cl. 2 K11757 4 1 5.1 1Cr-0.5Mo
A/SA 387 21, Cl. 1 K31545 5A 1 5.2 3Cr-1Mo
A/SA 387 21, Cl. 2 K31545 5A 1 5.2 3Cr-1Mo
A/SA 387 22, Cl. 1 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 387 22, Cl. 2 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 387 5, Cl. 1 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 387 5, Cl. 2 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 387 Gr. 2, Cl. 1 K12143 3 1 4.2 0.5Cr-0.5Mo
A/SA 387 Gr. 2, Cl. 2 K12143 3 2 4.2 0.5Cr-0.5Mo
A/SA 387 Gr. 91, Cl. 2 K90901 5B 2 5.4 9Cr-1Mo-V
A 403 S34565 S34565 8 4 8.2 24Cr-17Ni-6Mn-4.5Mo-N
A/SA 403 — S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 403 WP 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 403 WP 304H S30409 8 1 8.1 18Cr-8Ni
A/SA 403 WP 304L S30403 8 1 8.1 18Cr-8Ni
A/SA 403 WP 304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 403 WP 304N S30451 8 1 8.1 18Cr-8Ni-N
18 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 403 WP 309 S30900 8 2 8.2 23Cr-12Ni
A/SA 403 WP 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 403 WP 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 403 WP 316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 403 WP 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 403 WP 316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 403 WP 316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 403 WP 317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 403 WP 317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 403 WP 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 403 WP 321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 403 WP 347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 403 WP 347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 403 WP 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 403 WP 348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 403 WPXM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 409 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 409 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 409 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 409 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 409 TP 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 409 TP 304L S30403 8 1 8.1 18Cr-8Ni
A/SA 409 TP 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 409 TP 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 409 TP 317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 409 TP 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 409 TP 347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 409 TP 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 409 TP309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 409 TP309S S30908 8 2 8.2 23Cr-12Ni
A/SA 409 TP310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 409 TP310S S31008 8 2 8.2 25Cr-20Ni
A/SA 414 A K01501 1 1 1.1 C
A/SA 414 B K02201 1 1 1.1 C
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 414 C K02503 1 1 1.1 C
A/SA 414 D K02505 1 1 1.1 C-Mn
A/SA 414 E K02704 1 1 11.1 C-Mn
A/SA 414 F K03102 1 2 11.1 C-Mn
A/SA 414 G K03103 1 2 11.1 C-Mn
A/SA 420 WPL3 K31918 9B 1 9.2 3.5Ni
A/SA 420 WPL6 K03006 1 1 11.1 C-Mn-Si
A/SA 420 WPL8 K81340 11A 1 9.3 9Ni
A/SA 420 WPL9 K22035 9A 1 9.1 2Ni-1Cu
A/SA 423 1 K11535 4 2 5.1 0.75Cr-0.5Ni-Cu
A/SA 423 2 K11540 4 2 5.1 0.75Ni-0.5Cu-Mo
A/SA 426 CP1 J12521 3 1 1.1 C-0.5Mo
A/SA 426 CP11 J12072 4 1 5.1 1.25Cr-0.5Mo
A/SA 426 CP12 J11562 4 1 5.1 1Cr-0.5Mo
A/SA 426 CP15 J11522 3 1 1.1 C-0.5Mo-Si
A/SA 426 CP2 J11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 426 CP21 J31545 5A 1 5.2 3Cr-1Mo
A/SA 426 CP22 J21890 5A 1 5.2 2.25Cr-1Mo
A/SA 426 CP5 J42045 5B 1 5.3 5Cr-0.5Mo
A/SA 426 CP5b J51545 5B 1 5.3 5Cr-1.5Si-0.5Mo
A/SA 426 CP9 J82090 5B 1 5.4 9Cr-1Mo
A/SA 426 CPCA15 J91150 6 3 7.2 13Cr
A 451 CPE20N — 8 2 8.2 25Cr-8Ni-N
A 451 CPF10MC J92971 8 1 8.1 16Cr-14Ni-2Mo
A/SA 451 CPF3 J92500 8 1 8.1 18Cr-8Ni
A/SA 451 CPF3A J92500 8 1 8.1 18Cr-8Ni
A/SA 451 CPF3M J92800 8 1 8.1 16Cr-12Ni-2Mo
A/SA 451 CPF8 J92600 8 1 8.1 18Cr-8Ni
A/SA 451 CPF8A J92600 8 1 8.1 18Cr-8Ni
A/SA 451 CPF8C J92710 8 1 8.1 18Cr-10Ni-Cb
A/SA 451 CPF8M J92900 8 1 8.1 18Cr-12Ni-2Mo
A/SA 451 CPH20 J93402 8 2 8.2 25Cr-12Ni
A/SA 451 CPH8 J93400 8 2 8.2 25Cr-12Ni
A/SA 451 CPK20 J94202 8 2 8.2 25Cr-20Ni
20 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 455 — K03300 1 2 11.2 C-Mn-Si
A/SA 455 — K03300 1 2 11.2 C-Mn-Si
A/SA 455 — K03300 1 2 11.2 C-Mn-Si
A/SA 479 — S31803 10H 1 10.1 22Cr-5Ni-3Mo-N
A/SA 479 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 479 302 S30200 8 1 8.1 18Cr-8Ni
A/SA 479 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 479 304H S30409 8 1 8.1 18Cr-8Ni
A/SA 479 304L S30403 8 1 8.1 18Cr-8Ni
A/SA 479 304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 479 304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 479 309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 479 309S S30908 8 2 8.2 23Cr-12Ni
A/SA 479 310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 479 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 479 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 479 316Cb S31640 8 1 8.1 16Cr-12Ni-2Mo-Cb
A/SA 479 316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 479 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 479 316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 479 316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 479 316Ti S31635 8 1 8.1 16Cr-12Ni-2Mo-Ti
A/SA 479 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 479 321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 479 347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 479 347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 479 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 479 348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 479 403 S40300 6 1 7.1 12Cr
A/SA 479 405 S40500 7 1 7.1 12Cr-1Al
A/SA 479 410 S41000 6 1 7.2 13Cr
A/SA 479 414 S41400 6 4 7.2 12.5Cr-2Ni-Si
A/SA 479 430 S43000 7 2 7.1 17Cr
A/SA 479 439 S43035 7 2 7.1 18Cr-Ti
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 479 S21800 S21800 8 3 8.1 18Cr-8Ni-4Si-N
A/SA 479 S30600 S30600 8 1 8.1 18Cr-15Ni-4Si
A/SA 479 S30601 S30601 8 1 8.1 17.5Cr-17.5Ni-5.3Si
A/SA 479 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 479 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 479 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 479 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 479 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 479 S32550 S32550 10H 1 10.2 25Cr-5Ni-3Mo-2Cu
A/SA 479 S32615 S32615 8 1 8.1 18Cr-20Ni-5.5Si
A/SA 479 S41500 S41500 6 4 7.2 13Cr-4.5Ni-Mo
A/SA 479 S44400 S44400 7 2 7.1 18Cr-2Mo
A/SA 479 S44700 S44700 10J 1 7.1 29Cr-4Mo
A/SA 479 S44800 S44800 10K 1 7.1 29Cr-4Mo-2Ni
A/SA 479 XM-11 S21904 8 3 8.3 21Cr-6Ni-9Mn
A/SA 479 XM-17 S21600 8 3 8.3 19Cr-8Mn-6Ni-Mo-N
A/SA 479 XM-18 S21603 8 3 8.3 19Cr-8Mn-6Ni-Mo-N
A/SA 479 XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 479 XM-27 S44627 10I 1 7.1 27Cr-1Mo
A/SA 479 XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 487 CA15, Cl. B J91171 6 3 7.2 13Cr
A/SA 487 CA15, Cl. C J91150 6 3 7.2 13Cr
A/SA 487 CA15, Cl. D J91171 6 3 7.2 13Cr
A/SA 487 CA15M, Cl. A J91151 6 3 7.2 13Cr-Mo
A/SA 487 CA6NM, Cl. A J91540 6 4 7.2 13Cr-4Ni
A/SA 487 CA6NM, Cl. B J91540 6 4 7.2 13Cr-4Ni
A/SA 487 Gr. 1, Cl. A J13002 10A 1 2.1 Mn-V
A/SA 487 Gr. 1, Cl. B J13002 10A 1 2.1 Mn-V
A/SA 487 Gr. 16, Cl. A J31200 1 2 1.1 Low C-Mn-Ni
A/SA 487 Gr. 2, Cl. A J13005 3 3 2.1 Mn-0.25Mo-V
A/SA 487 Gr. 2, Cl. B J13005 3 3 2.1 Mn-0.25Mo-V
A/SA 487 Gr. 4, Cl. A J13047 3 3 3.1 0.5Ni-0.5Cr-0.25Mo-V
A/SA 487 Gr. 4, Cl. B J13047 11A 3 3.1 0.5Ni-0.5Cr-0.25Mo-V
A/SA 487 Gr. 4, Cl. E J13047 11A 3 3.1 0.5Ni-0.5Cr-0.25Mo-V
22 © ISO 2009 – All rights reserved
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A/SA 487 Gr. 8, Cl. A J22091 5C 1 5.2 2.25Cr-1Mo
A/SA 487 Gr. 8, Cl. B J22091 5C 4 5.2 2.25Cr-1Mo
A/SA 487 Gr. 8, Cl. C J22091 5C 4 5.2 2.25Cr-1Mo
A 494 CW-6M N30107 44 — 44 56Ni-19Mo-18Cr-2Fe
A/SA 494 CX2MW N26022 43 — 44 59Ni-22Cr-14Mo-4Fe-3W
A 500 A — 1 1 11.1 C
A 500 B K03000 1 1 11.1 C
A 500 C K02705 1 1 11.1 C
A 501 — K03000 1 1 11.1 C
A/SA 508 1 K13502 1 2 11.1 C
A/SA 508 1A K13502 1 2 11.1 C
A/SA 508 2, Cl. 1 K12766 3 3 3.1 0.75Ni-0.5Mo-0.3Cr-V
A/SA 508 2, Cl. 2 K12766 3 3 3.1 0.75Ni-0.5Mo-0.3Cr-V
A/SA 508 22, Cl. 3 K21590 5C 1 5.2 2.25Cr-1Mo
A/SA 508 3, Cl. 1 K12042 3 3 3.1 0.75Ni-0.5Mo-Cr-V
A/SA 508 3, Cl. 2 K12042 3 3 3.1 0.75Ni-0.5Mo-Cr-V
A/SA 508 3V K31830 5C 1 6.2 3Cr-1Mo-V-Ti-B
A/SA 508 3VCb — 5C 1 6.2 3Cr-1Mo-0.25V-Cb-Ca
A/SA 508 4N, Cl. 1 K22375 11A 5 3.1 3.5Ni-1.75Cr-0.5Mo-V
A/SA 508 4N, Cl. 2 K22375 11B 10 3.1 3.5Ni-1.75Cr-0.5Mo-V
A/SA 508 4N, Cl. 3 K22375 3 3 3.1 3.5Ni-1.75Cr-0.5Mo-V
A/SA 508 5, Cl. 1 K42365 11A 5 3.1 3.5Ni-1.75Cr-0.5Mo-V
A/SA 508 5, Cl. 2 K42365 11B 10 3.1 3.5Ni-1.75Cr-0.5Mo-V
A 513 1015 CW G10150 1 1 1.1 C
A 513 1020 CW G10200 1 2 1.1 C
A 513 1025 CW G10250 1 2 1.2 C
A 513 1026 CW G10260 1 3 11.1 C
A/SA 513 1008 G10080 1 1 1.1 C
A/SA 513 1010 G10100 1 1 1.1 C
A/SA 513 1015 G10150 1 1 1.1 C
A 514 A K11856 11B 1 3.1 0.5Cr-0.25Mo-Si
A 514 B K11630 11B 4 3.1 0.5Cr-0.2Mo-V
A 514 E K21604 11B 2 3.1 1.75Cr-0.5Mo-Cu
A 514 F K11576 11B 3 3.1 0.75Ni-0.5Cr-0.5Mo-V
Table 1 (continued)
ASTM/ASME ASME/AWS
ISO/TR
UNS
[1]
Type or grade Nominal composition
15608:2005
No. P or M Group
Specification No.
group
No. No.
A 514 J K11625 11B 6 3.1 C-0.5Mo
A 514 P K21650 11B 8 3.1 1.25Ni-1Cr-0.5Mo
A 514 Q — 11B 9 3.1 1.3Ni-1.3Cr-0.5Mo-V
A/SA 515 60 K02401 1 1 1.1 C
A/SA 515 65 K02800 1 1 11.1 C-Si
A/SA 515 70 K03101 1 2 11.1 C-Si
A/SA 516 55 K01800 1 1 1.1 C-Si
A/SA 516 60 K02100 1 1 1.1 C-Mn-Si
A/SA 516 65 K02403 1 1 1.1 C-Mn-Si
A/SA 516 70 K02700 1 2 11.1 C-Mn-Si
A/SA 517 A K11856 11B 1 3.1 0.5Cr-0.25Mo-Si
A/SA 517 B K11630 11B 4 3.1 0.5Cr-0.2Mo-V
A/SA 517 E K21604 11B 2 3.1 1.75Cr-0.5Mo-Cu
A/SA 517 F K11576 11B 3 3.1 0.75Ni-0.5Cr-0.5Mo-V
A/SA 517 J K11625 11B 6 3.1 C-0.5Mo
A/SA 517 P K21650 11B 8 3.1 1.25Ni-1Cr-0.5Mo
A 519 1018 CW G10180 1 2 1.1 C
A 519 1018 HR G10180 1 1 1.1 C
A 519 1020 CW G10200 1 2 1.1 C
A 519 1020 HR G10200 1 1 1.1 C
A 519 1022 CW G10220 1 2 1.1 C
A 519 1022 HR G10220 1 1 1.1 C
A 519 1025 CW G10250 1 2 1.2 C
A 519 1025 HR G10250 1 1 1.1 C
...
RAPPORT ISO/TR
TECHNIQUE 20173
Deuxième édition
2009-10-01
Soudage — Systèmes de groupement
des matériaux — Matériaux américains
Welding — Grouping systems for materials — American materials
Numéro de référence
©
ISO 2009

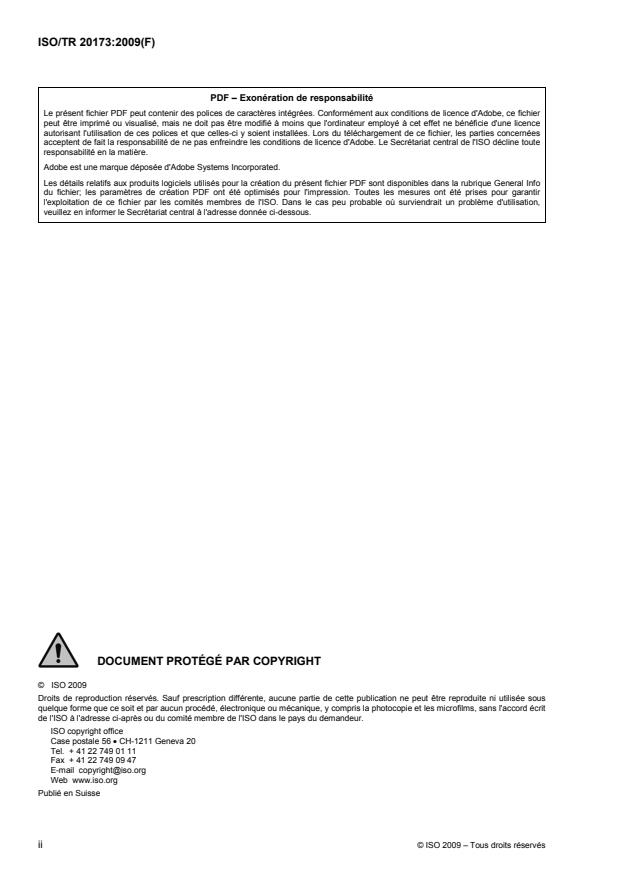

PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2009
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2009 – Tous droits réservés
Sommaire Page
Avant-propos. iv
1 Domaine d'application. 1
2 Système de groupement américain des matériaux. 1
Bibliographie . 58

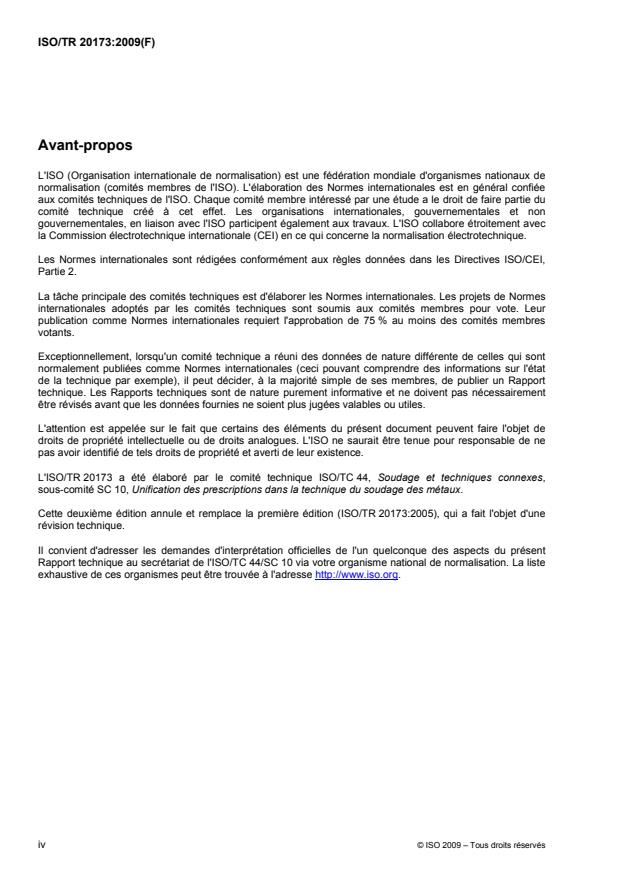

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
Exceptionnellement, lorsqu'un comité technique a réuni des données de nature différente de celles qui sont
normalement publiées comme Normes internationales (ceci pouvant comprendre des informations sur l'état
de la technique par exemple), il peut décider, à la majorité simple de ses membres, de publier un Rapport
technique. Les Rapports techniques sont de nature purement informative et ne doivent pas nécessairement
être révisés avant que les données fournies ne soient plus jugées valables ou utiles.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO/TR 20173 a été élaboré par le comité technique ISO/TC 44, Soudage et techniques connexes,
sous-comité SC 10, Unification des prescriptions dans la technique du soudage des métaux.
Cette deuxième édition annule et remplace la première édition (ISO/TR 20173:2005), qui a fait l'objet d'une
révision technique.
Il convient d'adresser les demandes d'interprétation officielles de l'un quelconque des aspects du présent
Rapport technique au secrétariat de l'ISO/TC 44/SC 10 via votre organisme national de normalisation. La liste
exhaustive de ces organismes peut être trouvée à l'adresse http://www.iso.org.
iv © ISO 2009 – Tous droits réservés
RAPPORT TECHNIQUE ISO/TR 20173:2009(F)
Soudage — Systèmes de groupement des matériaux —
Matériaux américains
1 Domaine d'application
Le présent Rapport technique fournit un système de groupement américain des matériaux destinés au
[1]
soudage, classés conformément au système de groupement de l'ISO/TR 15608:2005 .
Il peut également s'appliquer pour d'autres fins, tels le traitement thermique, le formage et les contrôles non
destructifs. Les types d'acier sont énumérés conformément au système de groupement de
l'ISO/TR 15608:2005, Tableau 1.
Le présent Rapport technique couvre les systèmes de groupement des matériaux normalisés suivants:
⎯ aciers;
⎯ aluminium et alliages d'aluminium;
⎯ nickel et alliages de nickel;
⎯ cuivre et alliages de cuivre;
⎯ titane et alliages de titane;
⎯ zirconium et alliages de zirconium;
⎯ fontes.
2 Système de groupement américain des matériaux
Voir Tableaux 1 et 2.
Tableau 1 — Système de groupement américain des matériaux ferreux
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
ou nuance n Groupe
o [1]
Spécification n 15608:2005
o
P ou M n
AS 15 5-490 — 1 — 1.1 C
AS 15 7-430 — 1 — 1.1 C
AS 15 7-460 — 1 — 1.1 C
AS 15 7-490 — 1 — 1.1 C
A/SA 36 — K02600 1 1 11.1 C-Mn-Si
A/SA 36 — K02600 1 1 11.1 C-Mn-Si
A/SA 53 Type E, Gr. A K02504 1 1 11.1 C
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 53 Type E, Gr. B K03005 1 1 11.1 C-Mn
A/SA 53 Type F — 1 1 11.1 C
A/SA 53 Type S, Gr. A K02504 1 1 11.1 C
A/SA 53 Type S, Gr. B K03005 1 1 11.1 C-Mn
A/SA 105 — K03504 1 2 11.1 C
A/SA 106 A K02501 1 1 1.1 C-Si
A/SA 106 B K03006 1 1 11.1 C-Mn-Si
A/SA 106 C K03501 1 2 11.1 C-Mn-Si
A 108 1015 CW G10150 1 1 1.1 C
A 108 1018 CW G10180 1 1 1.1 C
A 108 1020 CW G10200 1 1 1.1 C
A 108 8620 CW G86200 3 3 4.1 0.5Ni-0.5Cr-Mo
A 131 A — 1 1 1.1 C
A 131 AH32 — 1 2 1.2 C-Mn-Si
A 131 AH36 — 1 2 1.2 C-Mn-Si
A 131 B — 1 1 1.1 C-Mn-Si
A 131 CS — 1 1 1.1 C-Mn-Si
A 131 D — 1 1 1.1 C-Mn-Si
A 131 DH32 — 1 2 1.2 C-Mn-Si
A 131 DH36 — 1 2 1.2 C-Mn-Si
A 131 DS — 1 1 1.1 C-Mn-Si
A 131 E — 1 2 1.1 C-Mn-Si
A 131 EH32 — 1 2 1.2 C-Mn-Si
A 131 EH36 — 1 2 1.2 C-Mn-Si
A/SA 134 SA283, Gr. A — 1 1 1.1 C
A/SA 134 SA283, Gr. B — 1 1 1.1 C
A/SA 134 SA283, Gr. C K02401 1 1 1.1 C
A/SA 134 SA283, Gr. D K02702 1 1 1.1 C
A/SA 134 SA285, Gr. A K01700 1 1 1.1 C
A/SA 134 SA285, Gr. B K02200 1 1 1.1 C
A/SA 134 SA285, Gr. C K02801 1 1 11.1 C
A/SA 135 A — 1 1 1.1 C
A/SA 135 B — 1 1 11.1 C
A 139 A — 1 1 1.1 C
A 139 B K03003 1 1 1.1 C
2 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A 139 C K03004 1 1 11.1 C
A 139 D K03010 1 1 11.1 C
A 139 E K03012 1 1 11.1 C
A 167 Type 302B S30215 8 1 8.1 18Cr-8Ni-2Si
A 167 Type 308 S30800 8 2 8.2 20Cr-10Ni
A 167 Type 309 S30900 8 2 8.2 23Cr-12Ni
A 167 Type 309S S30908 8 2 8.2 23Cr-12Ni
A 167 Type 310 S31000 8 2 8.2 25Cr-20Ni
A 167 Type 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 178 A K01200 1 1 1.1 C
A/SA 178 C K03503 1 1 11.1 C
A/SA 178 D — 1 2 11.1 C-Mn-Si
A/SA 179 — K01200 1 1 1.1 C
A/SA 181 Cl. 60 K03502 1 1 11.1 C-Si
A/SA 181 Cl. 70 K03502 1 2 11.1 C-Si
A 182 F60 S32205 10H 1 10.1 22Cr-5Ni-3Mo-N
A 182 F6a, Cl. 3 S41000 6 3 7.2 13Cr
A 182 F6a, Cl. 4 S41000 6 3 7.2 13Cr
A 182 S34565 S34565 8 4 8.2 24Cr-17Ni-6Mn-4.5Mo-N
A/SA 182 F1 K12822 3 2 1.1 C-0.5Mo
A/SA 182 F10 S33100 8 2 8.1 20Ni-8Cr
A/SA 182 F11, Cl. 1 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 182 F11, Cl. 2 K11572 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 182 F11, Cl. 3 K11572 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 182 F12, Cl. 1 K11562 4 1 5.1 1Cr-0.5Mo
A/SA 182 F12, Cl. 2 K11564 4 1 5.1 1Cr-0.5Mo
A/SA 182 F2 K12122 3 2 4.2 0.5Cr-0.5Mo
A/SA 182 F21 K31545 5° 1 5.2 3Cr-1Mo
A/SA 182 F22, Cl. 1 K21590 5° 1 5.2 2.25Cr-1Mo
A/SA 182 F22, Cl. 3 K21590 5° 1 5.2 2.25Cr-1Mo
A/SA 182 F22V K31835 5C 1 6.2 2.25Cr-1Mo-V
A/SA 182 F304 S30400 8 1 8.1 18Cr-8Ni
A/SA 182 F304H S30409 8 1 8.1 18Cr-8Ni
A/SA 182 F304L S30403 8 1 8.1 18Cr-8Ni
A/SA 182 F304LN S30453 8 1 8.1 18Cr-8Ni-N
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 182 F304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 182 F310 S31000 8 2 8.2 25Cr-20Ni
A/SA 182 F310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 182 F316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 182 F316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 182 F316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 182 F316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 182 F316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 182 F317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 182 F317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 182 F321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 182 F321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 182 F347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 182 F347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 182 F348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 182 F348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 182 F3V K31830 5C 1 6.2 3Cr-1Mo-V-Ti-B
A/SA 182 F3VCb — 5C 1 6.2 3Cr-1Mo-0.25V-Cb-Ca
A/SA 182 F429 S42900 6 2 7.2 15Cr
A/SA 182 F430 S43000 7 2 7.1 17Cr
A/SA 182 F44 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 182 F45 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 182 F46 S30600 8 1 8.1 18Cr-15Ni-4Si
A/SA 182 F5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 182 F50 S31200 10H 1 10.2 25Cr-6Ni-Mo-N
A/SA 182 F51 S31803 10H 1 10.1 22Cr-5Ni-3Mo-N
A/SA 182 F53 S32750 10H 1 10.2 25Cr-7Ni-4Mo-N
A/SA 182 F54 S39274 10H 1 10.2 25Cr-7Ni-3Mo-2W-Cu-N
A/SA 182 F55 S32760 10H 1 10.1 25Cr-8Ni-3Mo-W-Cu-N
A/SA 182 F5a K42544 5B 1 5.3 5Cr-0.5Mo
A/SA 182 F6a, Cl. 1 S41000 6 1 7.2 13Cr
A/SA 182 F6a, Cl. 2 S41000 6 3 7.2 13Cr
A/SA 182 F6b S41026 6 3 7.2 13Cr-0.5Mo
A/SA 182 F6NM S41500 6 4 7.2 13Cr-4.5Ni-Mo
4 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 182 F9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 182 F91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 182 FR K22035 9A 1 9.1 2Ni-1Cu
A/SA 182 FXM-11 S21904 8 3 8.3 21Cr-6Ni-9Mn
A/SA 182 FXM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 182 FXM-27Cb S44627 10I 1 7.1 27Cr-1Mo
A/SA 192 — K01201 1 1 1.1 C-Si
A/SA 202 A K11742 4 1 4.2 0.5Cr-1.25Mn-Si
A/SA 202 B K12542 4 1 4.2 0.5Cr-1.25Mn-Si
A/SA 203 A K21703 9A 1 9.1 2.5Ni
A/SA 203 B K22103 9A 1 9.1 2.5Ni
A/SA 203 D K31718 9B 1 9.2 3.5Ni
A/SA 203 E K32018 9B 1 9.2 3.5Ni
A/SA 203 F — 9B 1 9.2 3.5Ni
A/SA 204 A K11820 3 1 1.1 C-0.5Mo
A/SA 204 B K12020 3 2 1.1 C-0.5Mo
A/SA 204 C K12320 3 2 1.2 C-0.5Mo
A/SA 209 T1 K11522 3 1 1.1 C-0.5Mo
A/SA 209 T1a K12023 3 1 1.1 C-0.5Mo
A/SA 209 T1b K11422 3 1 1.1 C-0.5Mo
A/SA 210 A-1 K02707 1 1 11.1 C-Si
A/SA 210 C K03501 1 2 11.1 C-Mn-Si
A 211 A570-30 K02502 1 1 1.1 C
A 211 A570-33 K02502 1 1 1.1 C
A 211 A570-40 K02502 1 1 1.1 C
A/SA 213 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 213 S30600 S30600 8 1 8.1 17Cr-14Ni-4Si
A/SA 213 S30601 S30601 8 1 8.1 17.5Cr-17.5Ni-5.3Si
A/SA 213 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 213 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 213 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 213 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 213 S32615 S32615 8 1 8.1 18Cr-20Ni-5.5Si
A/SA 213 T11 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 213 T12 K11562 4 1 5.1 1Cr-0.5Mo
A/SA 213 T17 K12047 10B 1 4.1 1Cr-V
A/SA 213 T2 K11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 213 T21 K31545 5A 1 5.2 3Cr-1Mo
A/SA 213 T22 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 213 T5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 213 T5b K51545 5B 1 5.3 5Cr-0.5Mo-Si
A/SA 213 T5c K41245 5B 1 5.3 5Cr-0.5Mo-Ti
A/SA 213 T9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 213 T91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 213 TP201 S20100 8 3 8.3 17Cr-4Ni-6Mn
A/SA 213 TP202 S20200 8 3 8.3 18Cr-5Ni-9Mn
A/SA 213 TP304 S30400 8 1 8.1 18Cr-8Ni
A/SA 213 TP304H S30409 8 1 8.1 18Cr-8Ni
A/SA 213 TP304L S30403 8 1 8.1 18Cr-8Ni
A/SA 213 TP304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 213 TP304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 213 TP309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 213 TP309H S30909 8 2 8.2 23Cr-12Ni
A/SA 213 TP309HCb S30941 8 2 8.2 23Cr-12Ni-Cb
A/SA 213 TP309S S30908 8 2 8.2 23Cr-12Ni
A/SA 213 TP310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 213 TP310H S31009 8 2 8.2 25Cr-20Ni
A/SA 213 TP310HCb S31041 8 2 8.2 25Cr-20Ni-Cb
A/SA 213 TP310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 213 TP310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 213 TP310S S31008 8 2 8.2 25Cr-20Ni
A/SA 213 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 213 TP316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 213 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 213 TP316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 213 TP316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 213 TP321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 213 TP321H S32109 8 1 8.1 18Cr-10Ni-Ti
6 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 213 TP347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 TP347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 TP347HFG S34710 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 TP348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 TP348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 213 XM-15 S38100 8 1 8.1 18Cr-18Ni-2Si
A/SA 213 XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 214 — K01807 1 1 1.1 C
A/SA 216 WCA J02502 1 1 1.1 C-Si
A/SA 216 WCB J03002 1 2 1.1 C-Si
A/SA 216 WCC J02503 1 2 1.1 C-Mn-Si
A 217 C12A J84090 5B 2 6.4 9Cr-1Mo-V
A/SA 217 C12 J82090 5B 1 5.4 9Cr-1Mo
A/SA 217 C5 J42045 5B 1 5.3 5Cr-0.5Mo
A/SA 217 CA15 J91150 6 3 7.2 13Cr
A/SA 217 WC1 J12524 3 1 1.1 C-0.5Mo
A/SA 217 WC4 J12082 4 1 9.1 1Ni-0.5Cr-0.5Mo
A/SA 217 WC5 J22000 4 1 4.2 0.75Ni-1Mo-0.75Cr
A/SA 217 WC6 J12072 4 1 5.1 1.25Cr-0.5Mo
A/SA 217 WC9 J21890 5A 1 5.2 2.25Cr-1Mo
A/SA 225 C K12524 10A 1 4.1 Mn-0.5Ni-V
A/SA 225 D K12004 10A 1 2.1 Mn-0.5Ni-V
A/SA 234 WP1 K12821 3 1 11.2 C-0.5Mo
A/SA 234 WP11, Cl. 1 — 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 234 WP12, Cl. 1 K12062 4 1 5.1 1Cr-0.5Mo
A/SA 234 WP22, Cl. 1 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 234 WP5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 234 WP91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 234 WPB K03006 1 1 11.1 C-Mn-Si
A/SA 234 WPC K03501 1 2 11.1 C-Mn-Si
A/SA 234 WPR K22035 9A 1 9.1 2Ni-1Cu
A 240 S32205 S32205 10H 1 10.1 22Cr-5Ni-3Mo-N
A 240 S34565 S34565 8 4 8.2 24Cr-17Ni-6Mn-4.5Mo-N
A/SA 240 — S20400 8 3 8.3 16Cr-9Mn-2Ni-N
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 240 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 240 S21800 S21800 8 3 8.1 18Cr-8Ni-4Si-N
A/SA 240 S30600 S30600 8 1 8.1 18Cr-15Ni-4Si
A/SA 240 S30601 S30601 8 1 8.1 17.5Cr-17.5Ni-5.3Si
A/SA 240 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 240 S31200 S31200 10H 1 10.2 25Cr-6Ni-Mo-N
A/SA 240 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 240 S31260 S31260 10H 1 10.2 25Cr-6.5Ni-3Mo-N
A/SA 240 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 240 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 240 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 240 S31753 S31753 8 1 8.1 18Cr-13Ni-3Mo-N
A/SA 240 S31803 S31803 10H 1 10.1 22Cr-5Ni-3Mo-N
A/SA 240 S32550 S32550 10H 1 10.2 25Cr-5Ni-3Mo-2Cu
A/SA 240 S32615 S32615 8 1 8.1 18Cr-20Ni-5.5Si
A/SA 240 S32750 S32750 10H 1 10.2 25Cr-7Ni-4Mo-N
A/SA 240 S32760 S32760 10H 1 10.2 25Cr-8Ni-3Mo-W-Cu-N
A/SA 240 S32906 S32906 10H 1 10.2 29Cr-6.5Ni-2Mo-N
A/SA 240 S32950 S32950 10H 1 10.2 26Cr-4Ni-Mo-N
A/SA 240 S41500 S41500 6 4 7.2 13Cr-4.5Ni-Mo
A/SA 240 S44400 S44400 7 2 7.1 18Cr-2Mo
A/SA 240 S44635 S44635 10I 1 7.1 25Cr-4Ni-4Mo-Ti
A/SA 240 S44660 S44660 10K 1 7.1 26Cr-3Ni-3Mo
A/SA 240 S44700 S44700 10J 1 7.1 29Cr-4Mo
A/SA 240 S44800 S44800 10K 1 7.1 29Cr-4Mo-2Ni
A/SA 240 Type 201-1 S20100 8 3 8.3 17Cr-4Ni-6Mn
A/SA 240 Type 201-2 S20100 8 3 8.3 17Cr-4Ni-6Mn
A/SA 240 Type 201LN S20153 8 3 8.3 16Cr-4Ni-6Mn
A/SA 240 Type 202 S20200 8 3 8.3 18Cr-5Ni-9Mn
A/SA 240 Type 301 S30100 8 1 8.1 17Cr-7Ni
A/SA 240 Type 302 S30200 8 1 8.1 18Cr-8Ni
A/SA 240 Type 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 240 Type 304H S30409 8 1 8.1 18Cr-8Ni
A/SA 240 Type 304L S30403 8 1 8.1 18Cr-8Ni
8 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 240 Type 304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 240 Type 304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 240 Type 305 S30500 8 1 8.1 18Cr-11Ni
A/SA 240 Type 309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 240 Type 309H S30909 8 2 8.2 23Cr-12Ni
A/SA 240 Type 309HCb S30941 8 2 8.2 23Cr-12Ni-Cb
A/SA 240 Type 309S S30908 8 2 8.2 23Cr-12Ni
A/SA 240 Type 310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 240 Type 310H S31009 8 2 8.2 25Cr-20Ni
A/SA 240 Type 310HCb S31041 8 2 8.2 25Cr-20Ni-Cb
A/SA 240 Type 310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 240 Type 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 240 Type 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 240 Type 316Cb S31640 8 1 8.1 16Cr-12Ni-2Mo-Cb
A/SA 240 Type 316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 240 Type 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 240 Type 316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 240 Type 316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 240 Type 316Ti S31635 8 1 8.1 16Cr-12Ni-2Mo-Ti
A/SA 240 Type 317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 240 Type 317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 240 Type 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 240 Type 321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 240 Type 347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 240 Type 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 240 Type 348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 240 Type 405 S40500 7 1 7.1 12Cr-1Al
A/SA 240 Type 409 S40910 7 1 7.1 11Cr-Ti
A/SA 240 Type 409 S40930 7 1 7.1 11Cr-Ti
A/SA 240 Type 409 S40920 7 1 7.1 11Cr-Ti
A/SA 240 Type 410 S41000 6 1 7.2 13Cr
A/SA 240 Type 410S S41008 7 1 7.1 13Cr
A/SA 240 Type 429 S42900 6 2 7.2 15Cr
A/SA 240 Type 430 S43000 7 2 7.1 17Cr
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 240 Type 439 S43035 7 2 7.1 18Cr-Ti
A/SA 240 Type XM-15 S38100 8 1 8.1 18Cr-18Ni-2Si
A/SA 240 Type XM-17 S21600 8 3 8.3 19Cr-8Mn-6Ni-Mo-N
A/SA 240 Type XM-18 S21603 8 3 8.3 19Cr-8Mn-6Ni-Mo-N
A/SA 240 Type XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 240 Type XM-21 S30452 8 1 8.1 18Cr-8Ni-N
A/SA 240 Type XM-27 S44627 10I 1 7.1 27Cr-1Mo
A/SA 240 Type XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 240 Type XM-33 S44626 10I 1 7.1 27Cr-1Mo-Ti
A/SA 249 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 249 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 249 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 249 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 249 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 249 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 249 TP 201 S20100 8 3 8.3 17Cr-4Ni-6Mn
A/SA 249 TP 202 S20200 8 3 8.3 18Cr-5Ni-9Mn
A/SA 249 TP XM-15 S38100 8 1 8.1 18Cr-18Ni-2Si
A/SA 249 TP XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 249 TP XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 249 TP304H S30409 8 1 8.1 18Cr-8Ni
A/SA 249 TP304L S30403 8 1 8.1 18Cr-8Ni
A/SA 249 TP304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 249 TP304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 249 TP309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 249 TP309H S30909 8 2 8.2 23Cr-12Ni
A/SA 249 TP309HCb S30941 8 2 8.2 23Cr-12Ni-Cb
A/SA 249 TP309S S30908 8 2 8.2 23Cr-12Ni
A/SA 249 TP310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 249 TP310H S31009 8 2 8.2 25Cr-20Ni
A/SA 249 TP310HCb S31041 8 2 8.2 25Cr-20Ni-Cb
A/SA 249 TP310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 249 TP310S S31008 8 2 8.2 25Cr-20Ni
A/SA 249 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
10 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 249 TP316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 249 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 249 TP316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 249 TP316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 249 TP317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 249 TP317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 249 TP321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 249 TP321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 249 TP347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 249 TP347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 249 TP348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 249 TP348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 250 T1 K11522 3 1 1.1 C-0.5Mo
A/SA 250 T11 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 250 T12 K11564 4 1 5.1 1Cr-0.5Mo
A/SA 250 T1a K12023 3 1 1.1 C-0.5Mo
A/SA 250 T1b K11422 3 1 1.1 C-0.5Mo
A/SA 250 T2 K11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 250 T22 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 266 1 K03506 1 1 11.1 C-Si
A/SA 266 2 K03506 1 2 11.1 C-Si
A/SA 266 3 K05001 1 2 11.2 C-Si
A/SA 266 4 K03017 1 2 11.1 C-Mn-Si
A/SA 268 18Cr-2Mo S44400 7 2 7.1 18Cr-2Mo
A/SA 268 25-4-4 S44635 10I 1 7.1 25Cr-4Ni-4Mo-Ti
A/SA 268 26-3-3 S44660 10K 1 7.1 26Cr-3Ni-3Mo
A/SA 268 29-4 S44700 10J 1 7.1 29Cr-4Mo
A/SA 268 29-4-2 S44800 10K 1 7.1 29Cr-4Mo-2Ni
A/SA 268 S40800 S40800 7 1 7.1 12Cr-Ti
A/SA 268 S41500 S41500 6 4 7.2 13Cr-4.5Ni-Mo
A/SA 268 S44735 S44735 10J 1 7.1 29Cr-4Mo-Ti
A/SA 268 TP 446-1 S44600 10I 1 7.1 27Cr
A/SA 268 TP 446-2 S44600 10I 1 7.1 27Cr
A/SA 268 TP XM-27 S44627 10I 1 7.1 27Cr-1Mo
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 268 TP XM-33 S44626 10I 1 7.1 27Cr-1Mo-Ti
A/SA 268 TP405 S40500 7 1 7.1 12Cr-1Al
A/SA 268 TP409 S40900 7 1 7.1 11Cr-Ti
A/SA 268 TP410 S41000 6 1 7.2 13Cr
A/SA 268 TP429 S42900 6 2 7.2 15Cr
A/SA 268 TP430 S43000 7 2 7.1 17Cr
A/SA 268 TP430Ti S43036 7 1 7.1 18Cr-Ti-Cb
A/SA 268 TP439 S43035 7 2 7.1 18Cr-Ti
A 269 TP304 S30400 8 1 8.1 18Cr-8Ni
A 269 TP304L S30403 8 1 8.1 18Cr-8Ni
A 269 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A 269 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A 271 TP304 S30400 8 1 8.1 18Cr-8Ni
A 276 S32205 S32205 10H 1 10.1 22Cr-5Ni-3Mo-N
A 276 TP304 S30400 8 1 8.1 18Cr-8Ni
A 276 TP304L S30403 8 1 8.1 18Cr-8Ni
A 276 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A 276 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 283 A K01400 1 1 1.1 C
A/SA 283 B K01702 1 1 1.1 C
A/SA 283 C K02401 1 1 1.1 C
A/SA 283 D K02702 1 1 1.1 C
A/SA 285 A K01700 1 1 1.1 C
A/SA 285 B K02200 1 1 1.1 C
A/SA 285 C K02801 1 1 11.1 C
A/SA 299 — K02803 1 2 11.1 C-Mn-Si
A/SA 302 A K12021 3 2 1.1 Mn-0.5Mo
A/SA 302 B K12022 3 3 1.2 Mn-0.5Mo
A 312 S34565 S34565 8 4 8.2 24Cr-17Ni-6Mn-4.5Mo-N
A/SA 312 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 312 S30600 S30600 8 1 8.1 18Cr-15Ni-4Si
A/SA 312 S30601 S30601 8 1 8.1 17.5Cr-17.5Ni-5.3Si
A/SA 312 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 312 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
12 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 312 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 312 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 312 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 312 S32615 S32615 8 1 8.1 18Cr-20Ni-5.5Si
A/SA 312 TP XM-11 S21904 8 3 8.3 21Cr-6Ni-9Mn
A/SA 312 TP XM-15 S38100 8 1 8.1 18Cr-18Ni-2Si
A/SA 312 TP XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 312 TP XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 312 TP304 S30400 8 1 8.1 18Cr-8Ni
A/SA 312 TP304H S30409 8 1 8.1 18Cr-8Ni
A/SA 312 TP304L S30403 8 1 8.1 18Cr-8Ni
A/SA 312 TP304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 312 TP304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 312 TP309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 312 TP309H S30909 8 2 8.2 23Cr-12Ni
A/SA 312 TP309HCb S30941 8 2 8.2 23Cr-12Ni-Cb
A/SA 312 TP309S S30908 8 2 8.2 23Cr-12Ni
A/SA 312 TP310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 312 TP310H S31009 8 2 8.2 25Cr-20Ni
A/SA 312 TP310HCb S31041 8 2 8.2 25Cr-20Ni-Cb
A/SA 312 TP310MoLN S31050 8 2 8.2 25Cr-22Ni-2Mo-N
A/SA 312 TP310S S31008 8 2 8.2 25Cr-20Ni
A/SA 312 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 312 TP316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 312 TP316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 312 TP316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 312 TP316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 312 TP317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 312 TP317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 312 TP321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 312 TP321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 312 TP347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 312 TP347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 312 TP348 S34800 8 1 8.1 18Cr-10Ni-Cb
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 312 TP348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 333 1 K03008 1 1 11.1 C-Mn
A/SA 333 10 — 1 3 11.1 C-Mn-Si
A/SA 333 3 K31918 9B 1 9.2 3.5Ni
A/SA 333 4 K11267 4 2 4.1 0.75Cr-0.75Ni-Cu-Al
A/SA 333 6 K03006 1 1 11.1 C-Mn-Si
A/SA 333 7 K21903 9A 1 9.1 2.5Ni
A/SA 333 8 K81340 11A 1 9.3 9Ni
A/SA 333 9 K22035 9A 1 9.1 2Ni-1Cu
A/SA 334 1 K03008 1 1 11.1 C-Mn
A/SA 334 3 K31918 9B 1 9.2 3.5Ni
A/SA 334 6 K03006 1 1 11.1 C-Mn-Si
A/SA 334 7 K21903 9A 1 9.1 2.5Ni
A/SA 334 8 K81340 11A 1 9.3 9Ni
A/SA 334 9 K22035 9A 1 9.1 2Ni-1Cu
A/SA 335 P1 K11522 3 1 1.1 C-0.5Mo
A/SA 335 P11 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 335 P12 K11562 4 1 5.1 1Cr-0.5Mo
A/SA 335 P2 K11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 335 P21 K31545 5A 1 5.2 3Cr-1Mo
A/SA 335 P22 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 335 P5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 335 P5b K51545 5B 1 5.3 5Cr-0.5Mo-Si
A/SA 335 P5c K41245 5B 1 5.3 5Cr-0.5Mo-Ti
A/SA 335 P9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 335 P91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 336 F1 K12520 3 2 1.1 C-0.5Mo
A/SA 336 F11, Cl. 1 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 336 F11, Cl. 2 K11572 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 336 F11, Cl. 3 K11572 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 336 F12 K11564 4 1 5.1 1Cr-0.5Mo
A/SA 336 F21, Cl. 1 K31545 5A 1 5.2 3Cr-1Mo
A/SA 336 F21, Cl. 3 K31545 5A 1 5.2 3Cr-1Mo
A/SA 336 F22, Cl. 1 K21590 5A 1 5.2 2.25Cr-1Mo
14 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 336 F22, Cl. 3 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 336 F22V K31835 5C 1 6.2 2.25Cr-1Mo-V
A/SA 336 F3Cb — 5C 1 6.2 3Cr-1Mo-0.25V-Cb-Ca
A/SA 336 F3V K31830 5C 1 6.2 3Cr-1Mo-V-Ti-B
A/SA 336 F5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 336 F5A K42544 5B 1 5.3 5Cr-0.5Mo
A/SA 336 F6 S41000 6 3 7.2 13Cr
A/SA 336 F9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 336 F91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 350 LF1 K03009 1 1 11.1 C-Mn-Si
A/SA 350 LF2 K03011 1 2 11.1 C-Mn-Si
A/SA 350 LF3 K32025 9B 1 9.2 3.5Ni
A/SA 350 LF5, Cl. 1 K13050 9A 1 9.1 1.5Ni
A/SA 350 LF5, Cl. 2 K13050 9A 1 9.1 1.5Ni
A/SA 350 LF9 K22036 9A 1 9.1 2Ni-1Cu
A 351 CA15 — 6 3 7.2 13Cr
A 351 CE20N — 8 2 8.2 25Cr-8Ni-N
A 351 CF10MC J92971 8 1 8.1 16Cr-14Ni-2Mo
A 351 CH10 J93401 8 2 8.2 25Cr-12Ni
A 351 HK30 J94203 8 2 8.2 25Cr-20Ni-0.5Mo
A 351 HK40 J94204 8 2 8.2 25Cr-20Ni-0.5Mo
A 351 HT30 N08603 45 — 45 35Ni-15Cr-0.5Mo
A/SA 351 CD3MWCuN J93380 10H 1 10.2 25Cr-8Ni-3Mo-W-Cu-N
A/SA 351 CF10 J92590 8 1 8.1 19Cr-9Ni-0.5Mo
A/SA 351 CF10M J92901 8 1 8.1 19Cr-9Ni-2Mo
A/SA 351 CF3 J92500 8 1 8.1 18Cr-8Ni
A/SA 351 CF3A J92500 8 1 8.1 18Cr-8Ni
A/SA 351 CF3M J92800 8 1 8.1 18Cr-12Ni-2Mo
A/SA 351 CF8 J92600 8 1 8.1 18Cr-8Ni
A/SA 351 CF8A J92600 8 1 8.1 18Cr-8Ni
A/SA 351 CF8C J92710 8 1 8.1 18Cr-10Ni-Cb
A/SA 351 CF8M J92900 8 1 8.1 18Cr-12Ni-2Mo
A/SA 351 CG6MMN J93790 8 3 8.3 22Cr-12Ni-5Mn
A/SA 351 CG8M J93000 8 1 8.1 19Cr-10Ni-3Mo
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 351 CH20 J93402 8 2 8.2 25Cr-12Ni
A/SA 351 CH8 J93400 8 2 8.2 25Cr-12Ni
A/SA 351 CK20 J94202 8 2 8.2 25Cr-20Ni
A/SA 351 CK3MCuN J93254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 351 CN3MN J94651 45 — 8.2 46Fe-24Ni-21Cr-6Mo-Cu
A/SA 351 CN7M N08007 45 — 8.2 28Ni-19Cr-Cu-Mo
A/SA 351 CT15C N08151 45 — 45 32Ni-45Fe-20Cr-Cb
A/SA 352 CA6NM J91540 6 4 7.2 13Cr-4Ni
A/SA 352 LC1 J12522 3 1 1.1 C-0.5Mo
A/SA 352 LC2 J22500 9A 1 9.1 2.5Ni
A/SA 352 LC2-1 J42215 11A 5 9.2 3Ni-1.5Cr-0.5Mo
A/SA 352 LC3 J31550 9B 1 9.3 3.5Ni
A/SA 352 LC4 J41500 9C 1 9.3 4.5Ni
A/SA 352 LCA J02504 1 1 11.1 C-Si
A/SA 352 LCB J03003 1 1 1.1 C-Si
A/SA 352 LCC J02505 1 2 11.1 C-Mn-Si
A/SA 353 — K81340 11A 1 9.3 9Ni
A 356 1 J03502 1 2 11.1 C-Si
A 356 10 J22090 5A 1 5.2 2.25Cr-1Mo
A 356 12A J80490 5B 2 6.4 9Cr-1Mo-V
A 356 6 J12073 4 1 5.1 1.25Cr-0.5Mo
A/SA 358 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 358 304H S30409 8 1 8.1 18Cr-8Ni
A/SA 358 304L S30403 8 1 8.1 18Cr-8Ni
A/SA 358 304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 358 304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 358 309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 358 309S S30908 8 2 8.2 23Cr-12Ni
A/SA 358 310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 358 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 358 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 358 316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 358 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 358 316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
16 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 358 316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 358 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 358 347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 358 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 358 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 358 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 358 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 358 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 358 XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 358 XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 369 FP1 K11522 3 1 1.1 C-0.5Mo
A/SA 369 FP11 K11597 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 369 FP12 K11562 4 1 5.1 1Cr-0.5Mo
A/SA 369 FP2 K11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 369 FP21 K31545 5A 1 5.2 3Cr-1Mo
A/SA 369 FP22 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 369 FP5 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 369 FP9 K90941 5B 1 5.4 9Cr-1Mo
A/SA 369 FP91 K90901 5B 2 6.4 9Cr-1Mo-V
A/SA 369 FPA K02501 1 1 1.1 C-Si
A/SA 369 FPB K03006 1 1 1.1 C-Mn-Si
A/SA 372 A K03002 1 1 11.1 C-Si
A/SA 372 B K04001 1 2 11.1 C-Mn-Si
A/SA 376 16-8-2H S16800 8 1 8.1 16Cr-8Ni-2Mo
A/SA 376 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 376 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 376 TP304 S30400 8 1 8.1 18Cr-8Ni
A/SA 376 TP304H S30409 8 1 8.1 18Cr-8Ni
A/SA 376 TP304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 376 TP304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 376 TP316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 376 TP316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 376 TP316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 376 TP316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 376 TP321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 376 TP321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 376 TP347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 376 TP347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 376 TP348 S34800 8 1 8.1 18Cr-10Ni-Cb
A 381 Y35 K03013 1 1 1.1 C
A 381 Y42 — 1 1 1.2 C
A 381 Y46 — 1 1 1.2 C
A 381 Y48 — 1 1 1.2 C
A 381 Y50 — 1 1 1.2 C
A 381 Y52 — 1 2 1.2 C
A 381 Y56 — 1 2 1.3 C
A 381 Y60 — 1 2 1.3 C
A/SA 387 11, Cl. 1 K11789 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 387 11, Cl. 2 K11789 4 1 5.1 1.25Cr-0.5Mo-Si
A/SA 387 12, Cl. 1 K11757 4 1 5.1 1Cr-0.5Mo
A/SA 387 12, Cl. 2 K11757 4 1 5.1 1Cr-0.5Mo
A/SA 387 21, Cl. 1 K31545 5A 1 5.2 3Cr-1Mo
A/SA 387 21, Cl. 2 K31545 5A 1 5.2 3Cr-1Mo
A/SA 387 22, Cl. 1 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 387 22, Cl. 2 K21590 5A 1 5.2 2.25Cr-1Mo
A/SA 387 5, Cl. 1 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 387 5, Cl. 2 K41545 5B 1 5.3 5Cr-0.5Mo
A/SA 387 Gr. 2, Cl. 1 K12143 3 1 4.2 0.5Cr-0.5Mo
A/SA 387 Gr. 2, Cl. 2 K12143 3 2 4.2 0.5Cr-0.5Mo
A/SA 387 Gr. 91, Cl. 2 K90901 5B 2 5.4 9Cr-1Mo-V
A 403 S34565 S34565 8 4 8.2 24Cr-17Ni-6Mn-4.5Mo-N
A/SA 403 — S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 403 WP 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 403 WP 304H S30409 8 1 8.1 18Cr-8Ni
A/SA 403 WP 304L S30403 8 1 8.1 18Cr-8Ni
A/SA 403 WP 304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 403 WP 304N S30451 8 1 8.1 18Cr-8Ni-N
18 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 403 WP 309 S30900 8 2 8.2 23Cr-12Ni
A/SA 403 WP 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 403 WP 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 403 WP 316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 403 WP 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 403 WP 316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 403 WP 316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 403 WP 317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 403 WP 317L S31703 8 1 8.1 18Cr-13Ni-3Mo
A/SA 403 WP 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 403 WP 321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 403 WP 347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 403 WP 347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 403 WP 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 403 WP 348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 403 WPXM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 409 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 409 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 409 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 409 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 409 TP 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 409 TP 304L S30403 8 1 8.1 18Cr-8Ni
A/SA 409 TP 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 409 TP 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 409 TP 317 S31700 8 1 8.1 18Cr-13Ni-3Mo
A/SA 409 TP 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 409 TP 347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 409 TP 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 409 TP309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 409 TP309S S30908 8 2 8.2 23Cr-12Ni
A/SA 409 TP310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 409 TP310S S31008 8 2 8.2 25Cr-20Ni
A/SA 414 A K01501 1 1 1.1 C
A/SA 414 B K02201 1 1 1.1 C
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 414 C K02503 1 1 1.1 C
A/SA 414 D K02505 1 1 1.1 C-Mn
A/SA 414 E K02704 1 1 11.1 C-Mn
A/SA 414 F K03102 1 2 11.1 C-Mn
A/SA 414 G K03103 1 2 11.1 C-Mn
A/SA 420 WPL3 K31918 9B 1 9.2 3.5Ni
A/SA 420 WPL6 K03006 1 1 11.1 C-Mn-Si
A/SA 420 WPL8 K81340 11A 1 9.3 9Ni
A/SA 420 WPL9 K22035 9A 1 9.1 2Ni-1Cu
A/SA 423 1 K11535 4 2 5.1 0.75Cr-0.5Ni-Cu
A/SA 423 2 K11540 4 2 5.1 0.75Ni-0.5Cu-Mo
A/SA 426 CP1 J12521 3 1 1.1 C-0.5Mo
A/SA 426 CP11 J12072 4 1 5.1 1.25Cr-0.5Mo
A/SA 426 CP12 J11562 4 1 5.1 1Cr-0.5Mo
A/SA 426 CP15 J11522 3 1 1.1 C-0.5Mo-Si
A/SA 426 CP2 J11547 3 1 4.2 0.5Cr-0.5Mo
A/SA 426 CP21 J31545 5A 1 5.2 3Cr-1Mo
A/SA 426 CP22 J21890 5A 1 5.2 2.25Cr-1Mo
A/SA 426 CP5 J42045 5B 1 5.3 5Cr-0.5Mo
A/SA 426 CP5b J51545 5B 1 5.3 5Cr-1.5Si-0.5Mo
A/SA 426 CP9 J82090 5B 1 5.4 9Cr-1Mo
A/SA 426 CPCA15 J91150 6 3 7.2 13Cr
A 451 CPE20N — 8 2 8.2 25Cr-8Ni-N
A 451 CPF10MC J92971 8 1 8.1 16Cr-14Ni-2Mo
A/SA 451 CPF3 J92500 8 1 8.1 18Cr-8Ni
A/SA 451 CPF3A J92500 8 1 8.1 18Cr-8Ni
A/SA 451 CPF3M J92800 8 1 8.1 16Cr-12Ni-2Mo
A/SA 451 CPF8 J92600 8 1 8.1 18Cr-8Ni
A/SA 451 CPF8A J92600 8 1 8.1 18Cr-8Ni
A/SA 451 CPF8C J92710 8 1 8.1 18Cr-10Ni-Cb
A/SA 451 CPF8M J92900 8 1 8.1 18Cr-12Ni-2Mo
A/SA 451 CPH20 J93402 8 2 8.2 25Cr-12Ni
A/SA 451 CPH8 J93400 8 2 8.2 25Cr-12Ni
A/SA 451 CPK20 J94202 8 2 8.2 25Cr-20Ni
20 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 455 — K03300 1 2 11.2 C-Mn-Si
A/SA 455 — K03300 1 2 11.2 C-Mn-Si
A/SA 455 — K03300 1 2 11.2 C-Mn-Si
A/SA 479 — S31803 10H 1 10.1 22Cr-5Ni-3Mo-N
A/SA 479 — S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 479 302 S30200 8 1 8.1 18Cr-8Ni
A/SA 479 304 S30400 8 1 8.1 18Cr-8Ni
A/SA 479 304H S30409 8 1 8.1 18Cr-8Ni
A/SA 479 304L S30403 8 1 8.1 18Cr-8Ni
A/SA 479 304LN S30453 8 1 8.1 18Cr-8Ni-N
A/SA 479 304N S30451 8 1 8.1 18Cr-8Ni-N
A/SA 479 309Cb S30940 8 2 8.2 23Cr-12Ni-Cb
A/SA 479 309S S30908 8 2 8.2 23Cr-12Ni
A/SA 479 310Cb S31040 8 2 8.2 25Cr-20Ni-Cb
A/SA 479 310S S31008 8 2 8.2 25Cr-20Ni
A/SA 479 316 S31600 8 1 8.1 16Cr-12Ni-2Mo
A/SA 479 316Cb S31640 8 1 8.1 16Cr-12Ni-2Mo-Cb
A/SA 479 316H S31609 8 1 8.1 16Cr-12Ni-2Mo
A/SA 479 316L S31603 8 1 8.1 16Cr-12Ni-2Mo
A/SA 479 316LN S31653 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 479 316N S31651 8 1 8.1 16Cr-12Ni-2Mo-N
A/SA 479 316Ti S31635 8 1 8.1 16Cr-12Ni-2Mo-Ti
A/SA 479 321 S32100 8 1 8.1 18Cr-10Ni-Ti
A/SA 479 321H S32109 8 1 8.1 18Cr-10Ni-Ti
A/SA 479 347 S34700 8 1 8.1 18Cr-10Ni-Cb
A/SA 479 347H S34709 8 1 8.1 18Cr-10Ni-Cb
A/SA 479 348 S34800 8 1 8.1 18Cr-10Ni-Cb
A/SA 479 348H S34809 8 1 8.1 18Cr-10Ni-Cb
A/SA 479 403 S40300 6 1 7.1 12Cr
A/SA 479 405 S40500 7 1 7.1 12Cr-1Al
A/SA 479 410 S41000 6 1 7.2 13Cr
A/SA 479 414 S41400 6 4 7.2 12.5Cr-2Ni-Si
A/SA 479 430 S43000 7 2 7.1 17Cr
A/SA 479 439 S43035 7 2 7.1 18Cr-Ti
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 479 S21800 S21800 8 3 8.1 18Cr-8Ni-4Si-N
A/SA 479 S30600 S30600 8 1 8.1 18Cr-15Ni-4Si
A/SA 479 S30601 S30601 8 1 8.1 17.5Cr-17.5Ni-5.3Si
A/SA 479 S30815 S30815 8 2 8.2 21Cr-11Ni-N
A/SA 479 S31254 S31254 8 4 8.2 20Cr-18Ni-6Mo
A/SA 479 S31277 S31277 45 — 8.2 27Ni-22Cr-7Mo-Mn-Cu
A/SA 479 S31725 S31725 8 4 8.1 19Cr-15Ni-4Mo
A/SA 479 S31726 S31726 8 4 8.1 19Cr-15.5Ni-4Mo
A/SA 479 S32550 S32550 10H 1 10.2 25Cr-5Ni-3Mo-2Cu
A/SA 479 S32615 S32615 8 1 8.1 18Cr-20Ni-5.5Si
A/SA 479 S41500 S41500 6 4 7.2 13Cr-4.5Ni-Mo
A/SA 479 S44400 S44400 7 2 7.1 18Cr-2Mo
A/SA 479 S44700 S44700 10J 1 7.1 29Cr-4Mo
A/SA 479 S44800 S44800 10K 1 7.1 29Cr-4Mo-2Ni
A/SA 479 XM-11 S21904 8 3 8.3 21Cr-6Ni-9Mn
A/SA 479 XM-17 S21600 8 3 8.3 19Cr-8Mn-6Ni-Mo-N
A/SA 479 XM-18 S21603 8 3 8.3 19Cr-8Mn-6Ni-Mo-N
A/SA 479 XM-19 S20910 8 3 8.3 22Cr-13Ni-5Mn
A/SA 479 XM-27 S44627 10I 1 7.1 27Cr-1Mo
A/SA 479 XM-29 S24000 8 3 8.3 18Cr-3Ni-12Mn
A/SA 487 CA15 Cl. B J91171 6 3 7.2 13Cr
A/SA 487 CA15 Cl. C J91150 6 3 7.2 13Cr
A/SA 487 CA15 Cl. D J91171 6 3 7.2 13Cr
A/SA 487 CA15M Cl. A J91151 6 3 7.2 13Cr-Mo
A/SA 487 CA6NM Cl. A J91540 6 4 7.2 13Cr-4Ni
A/SA 487 CA6NM Cl. B J91540 6 4 7.2 13Cr-4Ni
A/SA 487 Gr. 1, Cl. A J13002 10A 1 2.1 Mn-V
A/SA 487 Gr. 1, Cl. B J13002 10A 1 2.1 Mn-V
A/SA 487 Gr. 16, Cl. A J31200 1 2 1.1 Low C-Mn-Ni
A/SA 487 Gr. 2, Cl. A J13005 3 3 2.1 Mn-0.25Mo-V
A/SA 487 Gr. 2, Cl. B J13005 3 3 2.1 Mn-0.25Mo-V
A/SA 487 Gr. 4, Cl. A J13047 3 3 3.1 0.5Ni-0.5Cr-0.25Mo-V
A/SA 487 Gr. 4, Cl. B J13047 11A 3 3.1 0.5Ni-0.5Cr-0.25Mo-V
A/SA 487 Gr. 4, Cl. E J13047 11A 3 3.1 0.5Ni-0.5Cr-0.25Mo-V
22 © ISO 2009 – Tous droits réservés
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
A/SA 487 Gr. 8, Cl. A J22091 5C 1 5.2 2.25Cr-1Mo
A/SA 487 Gr. 8, Cl. B J22091 5C 4 5.2 2.25Cr-1Mo
A/SA 487 Gr. 8, Cl. C J22091 5C 4 5.2 2.25Cr-1Mo
A 494 CW-6M N30107 44 — 44 56Ni-19Mo-18Cr-2Fe
A/SA 494 CX2MW N26022 43 — 44 59Ni-22Cr-14Mo-4Fe-3W
A 500 A — 1 1 11.1 C
A 500 B K03000 1 1 11.1 C
A 500 C K02705 1 1 11.1 C
A 501 — K03000 1 1 11.1 C
A/SA 508 1 K13502 1 2 11.1 C
A/SA 508 1A K13502 1 2 11.1 C
A/SA 508 2, Cl. 1 K12766 3 3 3.1 0.75Ni-0.5Mo-0.3Cr-V
A/SA 508 2, Cl. 2 K12766 3 3 3.1 0.75Ni-0.5Mo-0.3Cr-V
A/SA 508 22, Cl. 3 K21590 5C 1 5.2 2.25Cr-1Mo
A/SA 508 3, Cl. 1 K12042 3 3 3.1 0.75Ni-0.5Mo-Cr-V
A/SA 508 3, Cl. 2 K12042 3 3 3.1 0.75Ni-0.5Mo-Cr-V
A/SA 508 3V K31830 5C 1 6.2 3Cr-1Mo-V-Ti-B
A/SA 508 3VCb — 5C 1 6.2 3Cr-1Mo-0.25V-Cb-Ca
A/SA 508 4N, Cl. 1 K22375 11A 5 3.1 3.5Ni-1.75Cr-0.5Mo-V
A/SA 508 4N, Cl. 2 K22375 11B 10 3.1 3.5Ni-1.75Cr-0.5Mo-V
A/SA 508 4N, Cl. 3 K22375 3 3 3.1 3.5Ni-1.75Cr-0.5Mo-V
A/SA 508 5, Cl. 1 K42365 11A 5 3.1 3.5Ni-1.75Cr-0.5Mo-V
A/SA 508 5, Cl. 2 K42365 11B 10 3.1 3.5Ni-1.75Cr-0.5Mo-V
A 513 1015 CW G10150 1 1 1.1 C
A 513 1020 CW G10200 1 2 1.1 C
A 513 1025 CW G10250 1 2 1.2 C
A 513 1026 CW G10260 1 3 11.1 C
A/SA 513 1008 G10080 1 1 1.1 C
A/SA 513 1010 G10100 1 1 1.1 C
A/SA 513 1015 G10150 1 1 1.1 C
A 514 A K11856 11B 1 3.1 0.5Cr-0.25Mo-Si
A 514 B K11630 11B 4 3.1 0.5Cr-0.2Mo-V
A 514 E K21604 11B 2 3.1 1.75Cr-0.5Mo-Cu
A 514 F K11576 11B 3 3.1 0.75Ni-0.5Cr-0.5Mo-V
Tableau 1 (suite)
ASTM/ASME ASME/AWS
Groupe de
Type
o
n UNS l'ISO/TR Composition nominale
o
n Groupe
ou nuance
o
[1]
Spécification n
15608:2005
o
P ou M n
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
