ISO 4074-9:1996

INTERNATIONAL
IS0
STANDARD
4074-g
Second edition
1996-08-I 5
Rubber condoms -
Part 9:
Determination of tensile properties

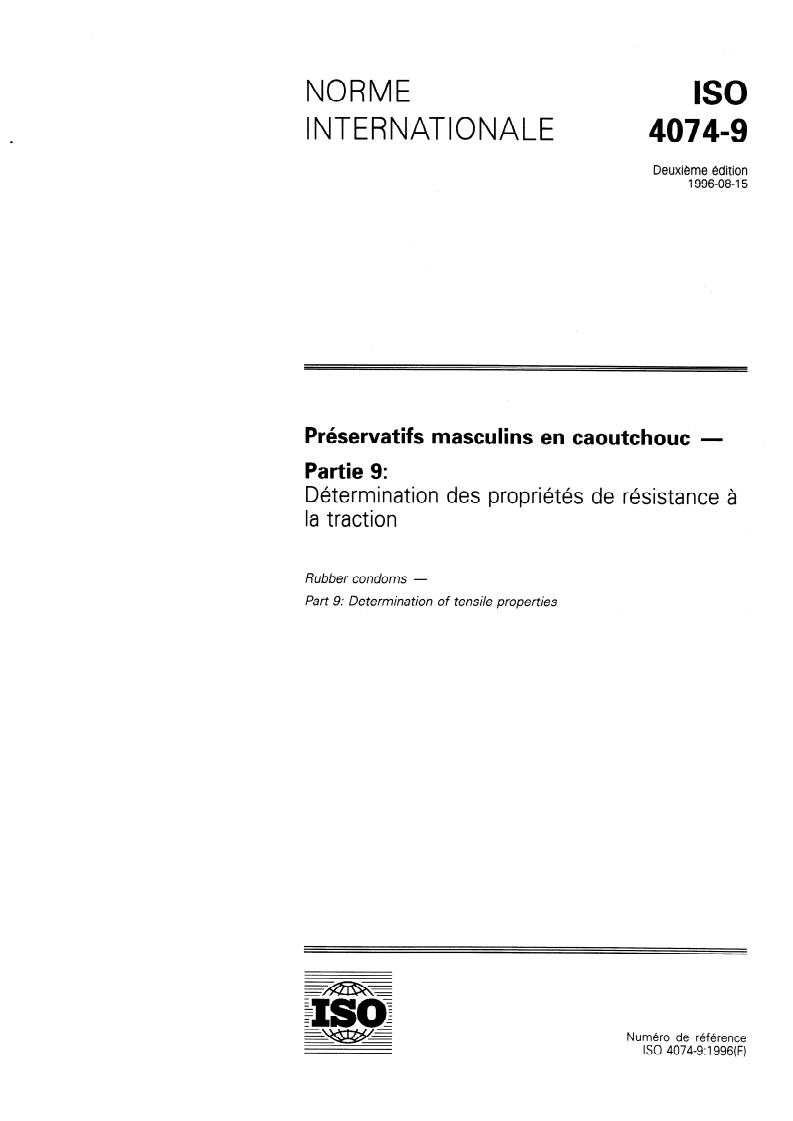

Prbservatifs masculins en caoutchouc -
Partie 9: D&ermina tion des propriG t6s de r&istance ;i la traction
Reference number
IS0 4074-9:1996(E)
IS0 4074-g: 1996(E)

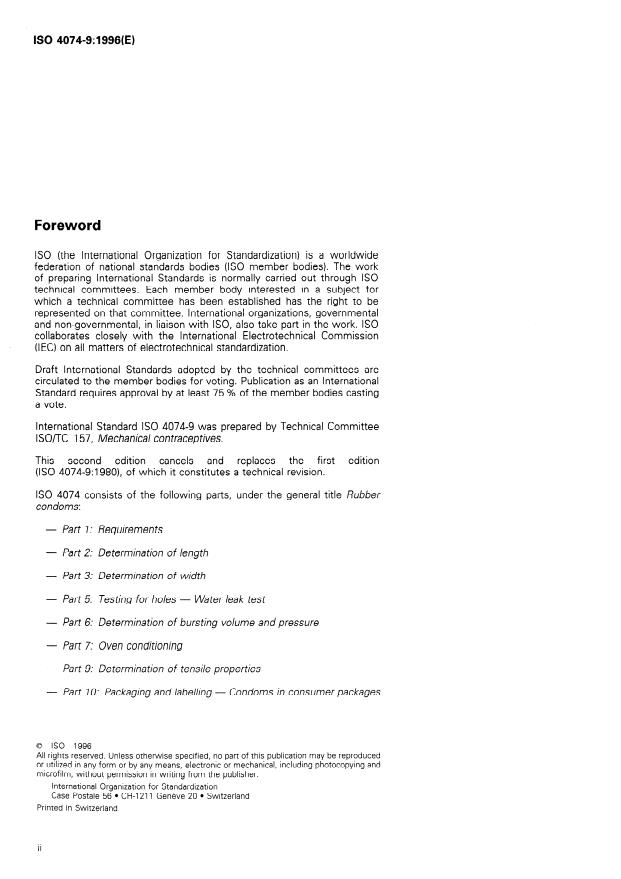

Foreword
IS0 (the International Organization for Standardization) is a worldwide
federation of national standards bodies (IS0 member bodies). The work
of preparing International Standards is normally carried out through IS0
technical committees. Each member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. IS0
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard IS0 4074-9 was prepared by Technical Committee
ISOJTC 157, Mechanical contraceptives.
This second edition cancels and replaces the first edition
(IS0 4074-9:1980), of which it constitutes a technical revision.
IS0 4074 consists of the following parts, under the general title Rubber
condoms:
- Part I: Requirements
- Part 2: De termination of length
- Part 3: Determination of width
- Part 5: Testing for holes - Water leak test
- Part 6: Determination of bursting volume and pressure
- Part 7: Oven conditioning
- Part 9: Determination of tensile properties
- Part 10: Packaging and labelling - Condoms in consumer packages
0 IS0 1996
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced
or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case Postale 56 l CH-1211 Geneve 20 l Switzerland
Printed in Switzerland

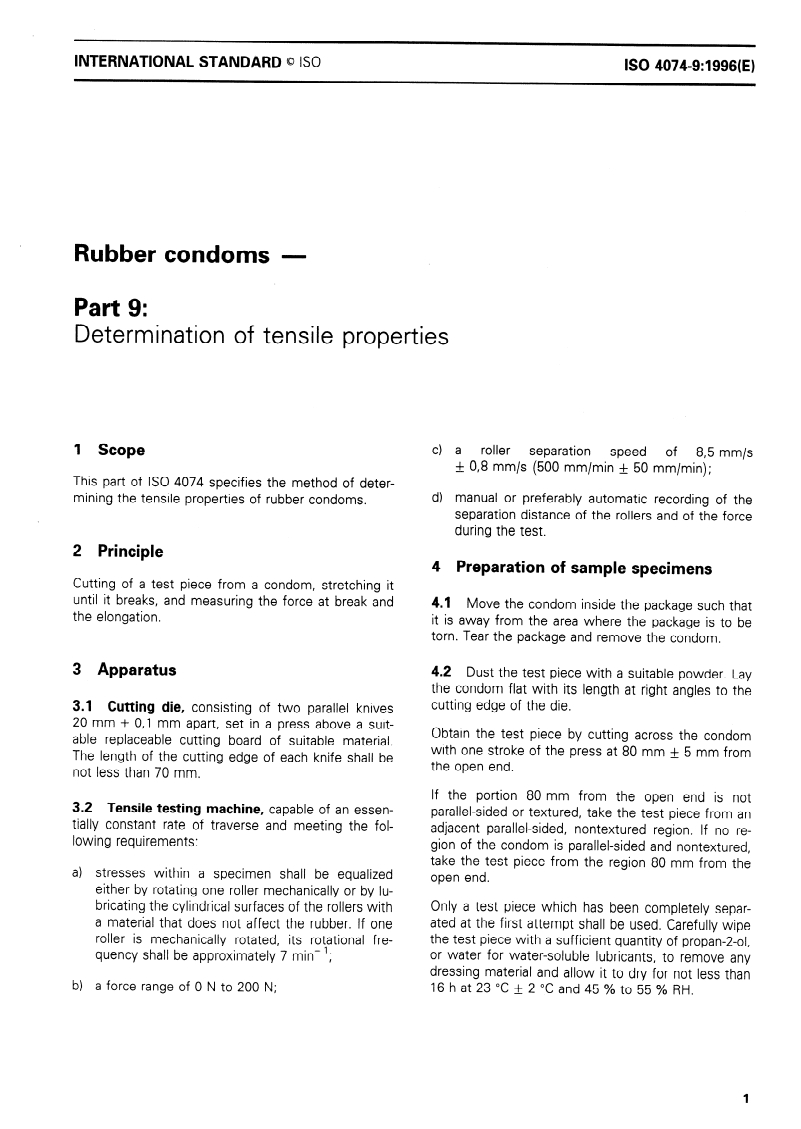

INTERNATIONAL STANDARD 0 IS0 IS0 4074-g: 1996( E)
Rubber condoms -
Part 9:
Determination of tensile properties
roller separation
cl a speed of 8,5 mm/s
1 Scope
+ 0,8 mm/s (500 mm/min + 50 mm/min);
This part of IS0 4074 specifies the method of deter-
d) manual or preferably automatic recording of the
mining the tensile properties of rubber condoms.
separation distance of the rollers and of the force
during the test.
2 Principle
4 Preparation of sample specimens
Cutting of a test piece from a condom, stretching it
until it breaks, and measuring the force at break and 4.1 Move the condom inside the package such that
the elongation. it is away from the area where the package is to be
torn. Tear the package and remove the condom.
4.2 Dust the test piece with a suitable powder. Lay
3 Apparatus
the condom flat with its length at right angles to the
cutting edge of the die.
3.1 Cutting die, consisting of two parallel knives
20 mm + - 0,l mm apart, set in a
...
