ISO/IEC 23090-6:2021/Amd 1:2024

International
Standard
ISO/IEC 23090-6
First edition
Information technology — Coded
2021-06
representation of immersive
media —
AMENDMENT 1
2024-01
Part 6:
Immersive media metrics
AMENDMENT 1: Immersive media
metrics for V3C Data and OMAF
Reference number
ISO/IEC 23090-6:2021/Amd. 1:2024(en) © ISO/IEC 2024

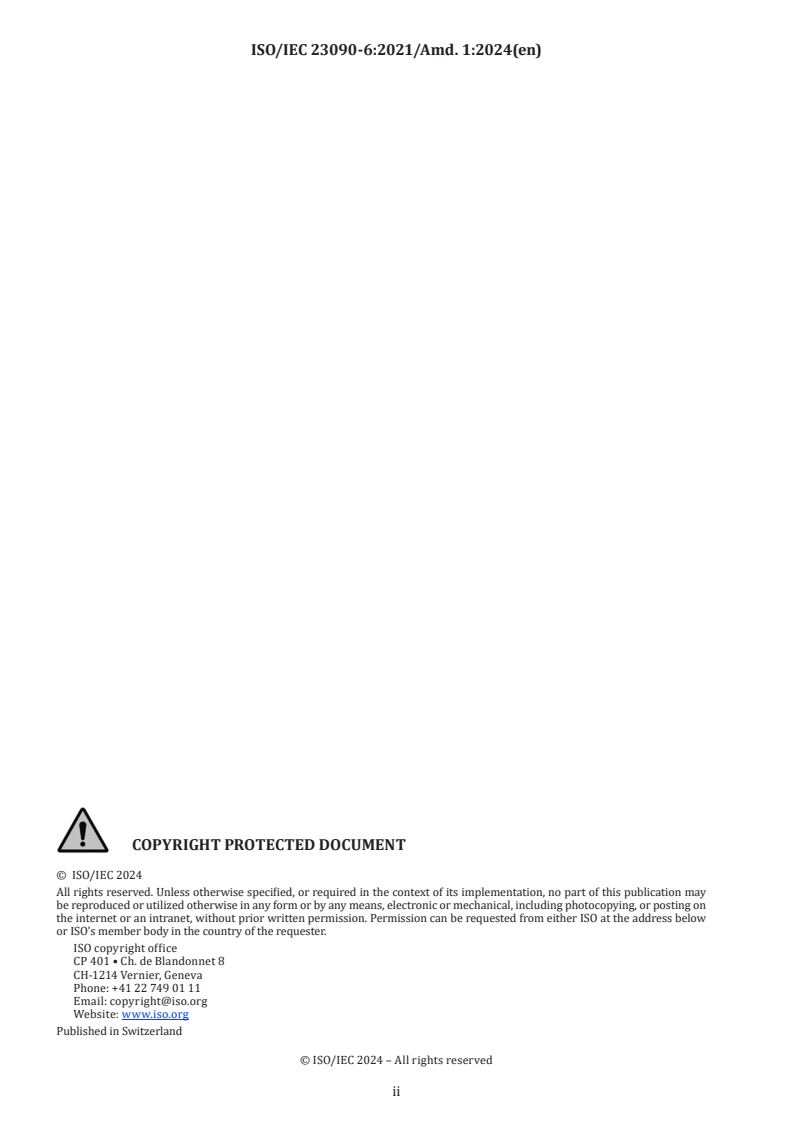

ISO/IEC 23090-6:2021/Amd. 1:2024(en)
© ISO/IEC 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
© ISO/IEC 2024 – All rights reserved
ii
ISO/IEC 23090-6:2021/Amd. 1:2024(en)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical activity.
ISO and IEC technical committees collaborate in fields of mutual interest. Other international organizations,
governmental and non-governmental, in liaison with ISO and IEC, also take part in the work.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of document should be noted. This document was drafted in accordance with the editorial rules of the ISO/
IEC Directives, Part 2 (see www.iso.org/directives or www.iec.ch/members_experts/refdocs).
ISO and IEC draw attention to the possibility that the implementation of this document may involve the
use of (a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any
claimed patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had not
received notice of (a) patent(s) which may be required to implement this document. However, implementers
are cautioned that this may not represent the latest information, which may be obtained from the patent
database available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall not be held
responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standards.
This document was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
A list of all parts in the ISO/IEC 23090 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards
body. A complete listing of these bodies can be found at www.iso.org/members.html and
www.iec.ch/national-committees.

© ISO/IEC 2024 – All rights reserved
iii
ISO/IEC 23090-6:2021/Amd. 1:2024(en)
Information technology — Coded representation of
immersive media —
Part 6:
Immersive media metrics
AMENDMENT 1: Immersive media metrics for V3C Data and
OMAF
Normative references
Add the following reference:
ISO/IEC 23090-10, Coded representation of immersive media — Part 10: Carriage of visual volumetric video-
based coding data
Terms and definitions
Replace the first sentence with: "For the purposes of this document, the terms and definitions given in
ISO/IEC 23090-10 apply."
Clause 4
Add the following abbreviated terms:
3DoF Three Degrees of Freedom
6DoF Six Degrees of Freedom
V3C Visual Volumetric Video-based Coding (ISO/IEC 23090-10)

6.1, first paragraph
Replace the third sentence with the following:
A VR client may be an OMAF player or a V3C content player for file/segment reception or file access, file/
segment decapsulation, decoding of audio, video, or image bitstreams, audio and image rendering, and
viewport selection.
Figure 1
Update the figure to add missing text as follows:

© ISO/IEC 2024 – All rights reserved
ISO/IEC 23090-6:2021/Amd. 1:2024(en)
Figure 1 — Immersive media metrics client reference model

6.2.3
Add the following bullets before the last bullet:
— MIV metadata, for example:
— viewport camera information;
— viewport position information;
— viewing space information
— V-PCC metadata, for example:
— volumetric annotation information;
— scene object information;
6.2.4
Add the following bullet at the end:
— Location information (i.e., x-y-z coordinates) corresponding to the current viewport

7.1
Delete Table 1 and replace the second paragraph with the following:
Two new data types are defined: ViewportDataType and ViewpointDataType. ViewportDataType is an object
that defines a viewport and is defined as shown in Table 1, while ViewpointDataType is an object that defines
a viewpoint and is defined as shown in Table 2.

© ISO/IEC 2024 – All rights reserved
ISO/IEC 23090-6:2021/Amd. 1:2024(en)
Table 1 — ViewportDataType
Key Type Description
ViweportDataType Object
media_type Integer
Specifies the type
of the immersive
media: 0 indicates
omnidirectional
media, 1 indicates
V3C media, and
other values are
reserved.
viewport_omnidirectional OmnidirectionViweportDataType
Specifies the
viewport as an
omnidirectional
viewport. Shall
only be present if
the media_type is
equal to 0.
viewport_v3c V3CViewportDataType
Specifies the view-
port as a V3C view-
port. Shall only
be present if the
media_type is equal
to 1.
Table 2 — ViewpointDataType
Key Type Description
ViewpointDataType Object
media_type Integer
Specifies the type
of the immersive
media: 0 indicates
omnidirectional, 1
indicates V3C, and
other values are
reserved.
viewpoint_omnidirectional OmnidirectionViewpointDataType
Specifies the view-
point as an omnidi-
rectional viewpoint.
Shall only be pres-
ent if media_type
is equal to 0.
viewpoint_v3c V3CViewpointDataType
Specifies the view-
point as a V3C view-
point. Shall only be
present if media_
type is equal to 1.
For omnidirectional media, OmnidirectionalViewportDataType and OmnidirectionalViewpointDataType
are defined as shown in Table 3 and Table 4, respectively.

© ISO/IEC 2024 – All rights reserved
ISO/IEC 23090-6:2021/Amd. 1:2024(en)
Table 3 — OmnidirectionalViewportDataType
Key Type Description
OmnidirectionalViewportDataType Object

viewpoint_id Integer
Specifies the identifier of the viewpoint to which
the viewport belongs. Each viewpoint has a
unique viewpoint_id.
centre_azimuth Integer
Specifies the azimuth of the centre of the viewport
−16
in units of 2 degrees. The value shall be in the
16 16
range of −180 * 2 to 180 * 2 − 1, inclusive.
centre_elevation Integer
Specifies the elevation of the centre of the view-
−16
port in units of 2 degrees. The value shall be
16 16
in the range of −90 * 2 to 90 * 2 , inclusive.
centre_tilt Integer
Specifies the tilt angle of the viewport in units
−16
of 2 degrees. The value shall be in the range
16 16
of −180 * 2 to 180 * 2 − 1, inclusive.
azimuth_range Integer
Specifies the azimuth range of the viewport
through the centre point of the viewport, in
−16
units of 2 degrees.
elevation_range Integer
Specifies the elevation range of the viewport
through the centre point of the viewport, in
−16
units of 2 degrees.
Table 4 — OmnidirectionalViewpointDataType
Key Type Description
OmnidirectionalViwepointDataType Object

viewpoint_id Integer
Specifies an identifier for the viewpoint. Each
viewpoint has a unique viewpoint_id.
centre_azimuth Integer
Specifies the azimuth of the centre of the view-
−16
port in units of 2 degrees. The value shall
16 16
be in the range of −180 * 2 to 180 * 2 − 1,
inclusive.
centre_elevation Integer
Specifies the elevation of the centre of the
−16
viewport in units of 2 degrees. The value
16 16
shall be in the range of −90 * 2 to 90 * 2 ,
inclusive.
centre_tilt Integer
Specifies the tilt angle of the viewport in units
−16
of 2 degrees. The value shall be in the range
16 16
of −180 * 2 to 180 * 2 − 1, inclusive.
For V3C media, V3CViewportDataType and V3CViewpointDataType are defined as shown in Table 5 and
Table 6, respectively.
© ISO/IEC 2024 – All rights reserved
ISO/IEC 23090-6:2021/Amd. 1:2024(en)
Table 5 — V3CViewportDataType
Key Type Description
V3CViewportDataType Object
viewpoint V3CViewpointDataType
Specifies the viewpoint to which
the viewport belongs. Note that
each viewpoint has a unique
viewpoint_id.
camera_type Integer
Specifies the projection method
of the viewport camera. The
value 0 specifies ERP projection.
The value 1 specifies a per-
spective projection. The value
2 specifies an orthographic
projection. Values in the range
3 to 255 are reserved for future
use by ISO/IEC.
erp_horizontal_fov SignedInt
Specifies the longitude range
for an ERP projection corre-
sponding to the horizontal size
of the viewport region, in units
of radians. The value shall be in
the range 0 to 2π.
This is for camera_type = 0.
erp_vertical_fov SignedInt
Specifies the latitude range for
an ERP projection correspond-
ing to the vertical size of the
viewport region, in units of
radians. The value shall be in
the range 0 t
...
